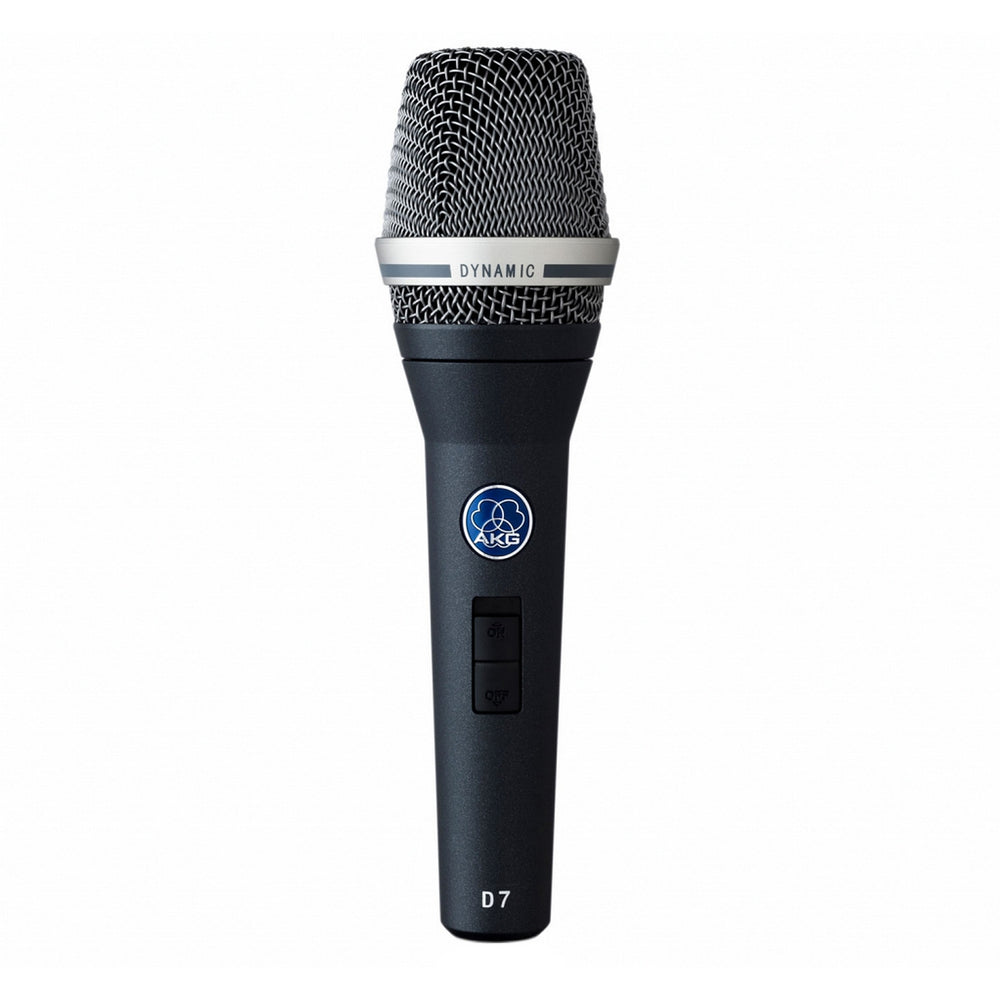

AKG D7S Reference Dynamic Vocal Mircophone On Off Switch

The D7 reference dynamic vocal microphone creates the subtle and open sound of a condenser capsule with the powerful resonance of a dynamic microphone. The patented dual-layer Varimotion diaphragm can vibrate unhindered, which results in an extraordinarily crisp and clean sound. The unique laminated material damps high resonance peaks in the frequency response, which in combination with the tight, supercardioid polar pattern enables the D7's outstanding high gain before feedback.
Its mechano-pneumatic capsule suspension and an integrated high-pass filter effectively eliminate handling noise. A precision metal dust filter provides a consistent protection for the diaphragm, ensuring an extra-long life.

Key Features

• Dual-thickness Varimotion diaphragm provides a subtle and open sound in all frequency ranges
• Highest feedback suppression laminate diaphragm material damps critical resonance peaks
• Integrated hum compensation coil for the cleanest sound
• Precision metal dust filter protects the capsule from sound-changing pollution
• Mechano-pneumatic suspension effectively eliminates unwanted handling noises
• The D 7 S has the same mechanical, electrical, and acoustic characteristics as the D 7 and features a noiseless on/off switch.

Technical Specifications

General
Audio Frequency bandwidth : 70 to 20000 Hz
Sensitivity : 2.6 mV/Pa
Electrical Impedance : 600 Ohms
Recommended Load Impedance : 2000 Ohms
Polar Pattern : supercardioid
Audio Output
Type : Balanced XLR
Gender : Male
Contacts : 3-pin
Design
Body : Metal
Finish : dark stage blue
Dimensions / Weight
Length : 185 mm
Diameter : 51 mm
Net Weight : 320 g
Polar Patterns
Super Cardioid
