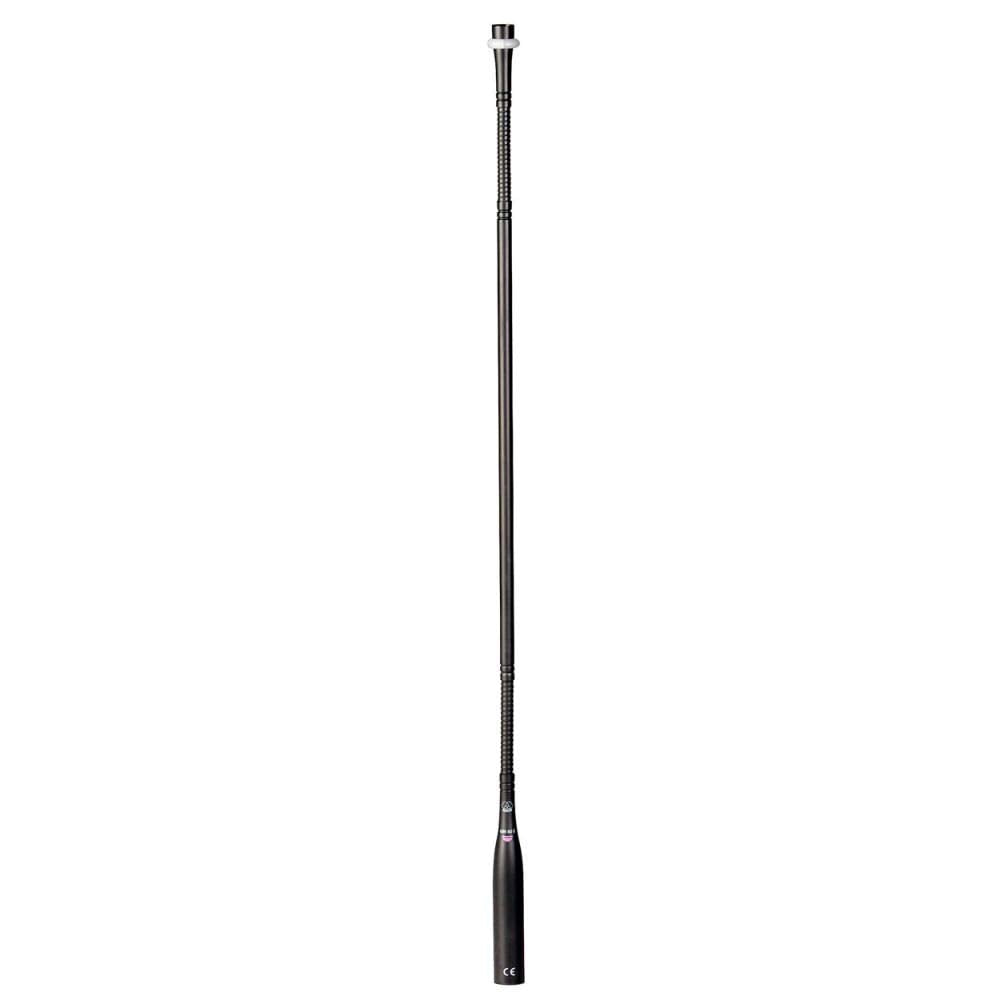

AKG GN50 E 5-pin 20 Inch High Performance Modular Gooseneck Module, DAM Series
AKG GN50 E 5-pin 20 Inch High Performance Modular Gooseneck Module,...
Free Shipping
AKG GN50 E 5-pin 20 Inch High Performance Modular Gooseneck Module, DAM Series
The GN E 5Pin high-performance gooseneck modules for fixed and mobile installation provide a five-pin XLR connector that allows the audio signal and the control voltage for the LED ring to be fed separately. Thus, the LED ring can be activated remotely by, for example, a logic output from any automatic mixer. The LED ring is extra-large for enhanced visibility. The DAM Series GN E five-pin gooseneck modules are available in three different lengths: 15cm (6in), 30cm (12in) and 50cm (20in). The gooseneck module fits all DAM Series capsules, CK31, CK32, CK33, CK47 and CK80, via highly reliable contacts.
Key Features
- Gooseneck with 5-pin XLR connector module
- Extra large LED ring indicator
Technical Specifications
Audio frequency bandwidth
20 - 20000 Hz
Recommended load impedance
6000 Ohm
Design
Finish
matte dark gray
Powering Interface
Voltage
9 to 52 V
Current
3 mA
Dimensions
Height
1490 mm
Diameter
20 mm
Audio Output
Type
Balanced XLR
Gender
Male
