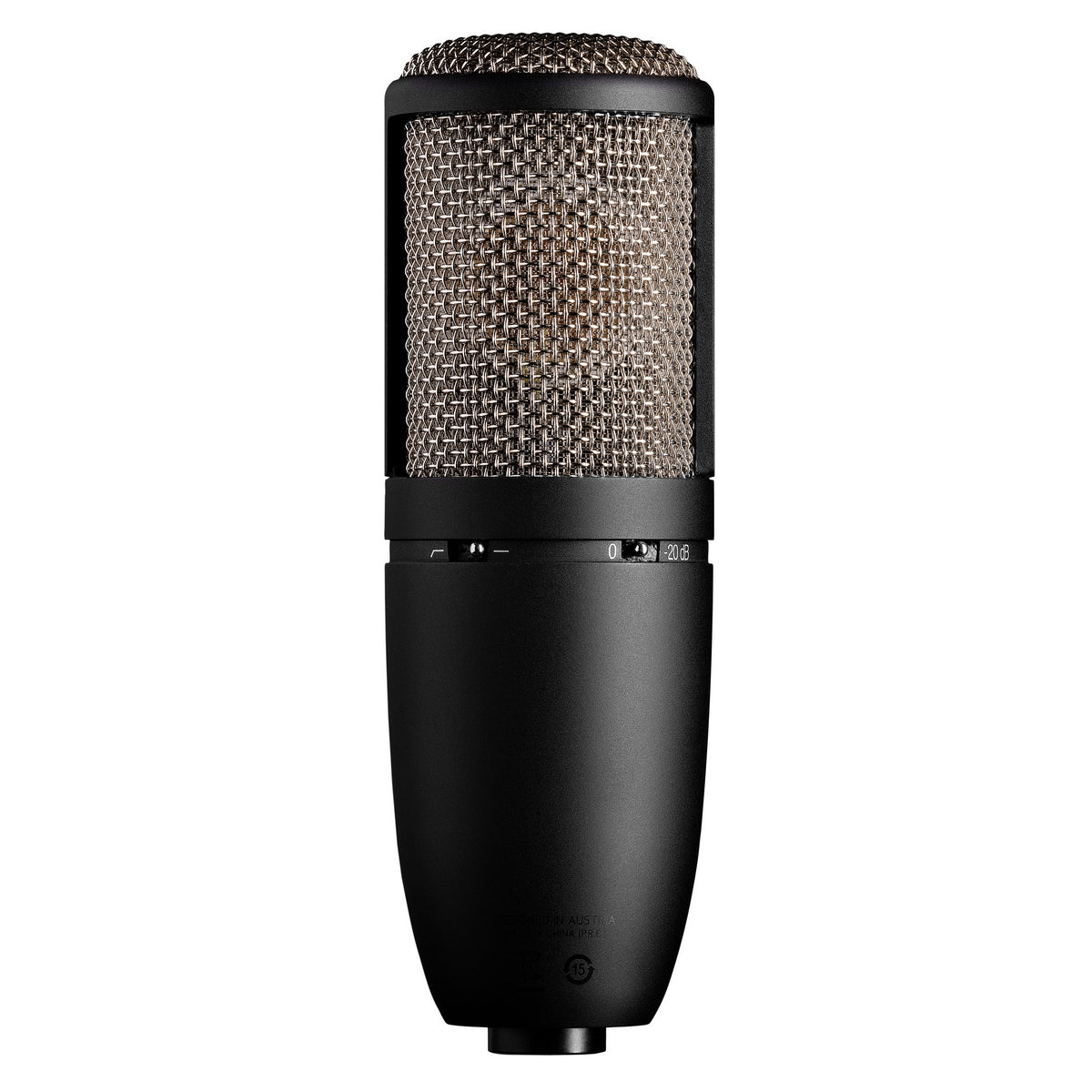

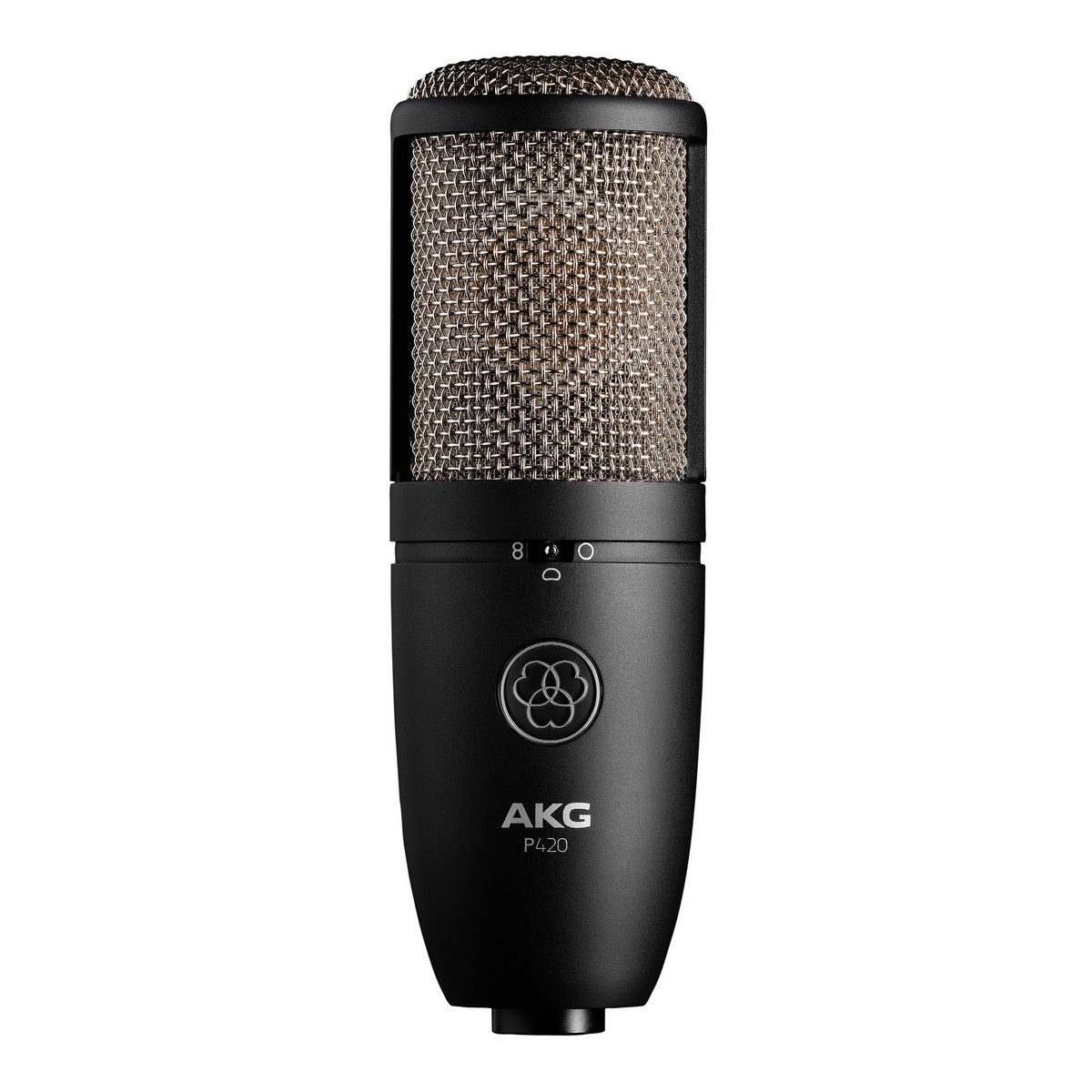

AKG P420 Dual Capsule True Condenser Microphone for Studio Stage

AKG P420 Dual Capsule True Condenser Microphone for Studio Stage

The P420 is a multi-pattern large diaphragm true condenser microphone for demanding project studio recording applications. Offering high sensitivity and 155dB maximum SPL, the P420 delivers a warm, transparent sound quality perfectly suited for ensemble recording, grand piano, woodwind and brass instruments, as well as drums and percussion. With three selectable polar patterns – cardioid, omnidirectional or figure 8 – it is an ideal tool for stereo miking techniques and ambient recording.

Key Features

• One-inch dual-diaphragm microphone with three selectable polar patterns for the perfect setting
• Low noise electronics for high dynamic range
• Switchable attenuation pad for high SPL applications up to 155 dB SPL

Technical Specifications

General
Audio Frequency bandwidth : 20 to 20000 Hz
Sensitivity : 28 mV/Pa
Equivalent Noise Level : 15 dB-A
Signal to Noise : 79 dB-A
Preattenuation Pad : -20 dB
Bass Cut Filter : 300 - 12 dB/octave Hz
Electrical Impedance : <= 200 Ohms
Recommended Load Impedance : >= 1000 Ohms
Polar Patterns
Cardioid
Omnidirectional
Figure of eight
Powering Interface
Voltage : 44 to 52 V
Current : <= 3 mA
Audio Output
Type : Balanced XLR
Gender : Male
Contacts : 3-pin
Dimensions / Weight
Length : 165 mm
Diameter : 54 mm
Net Weight : 530 g
