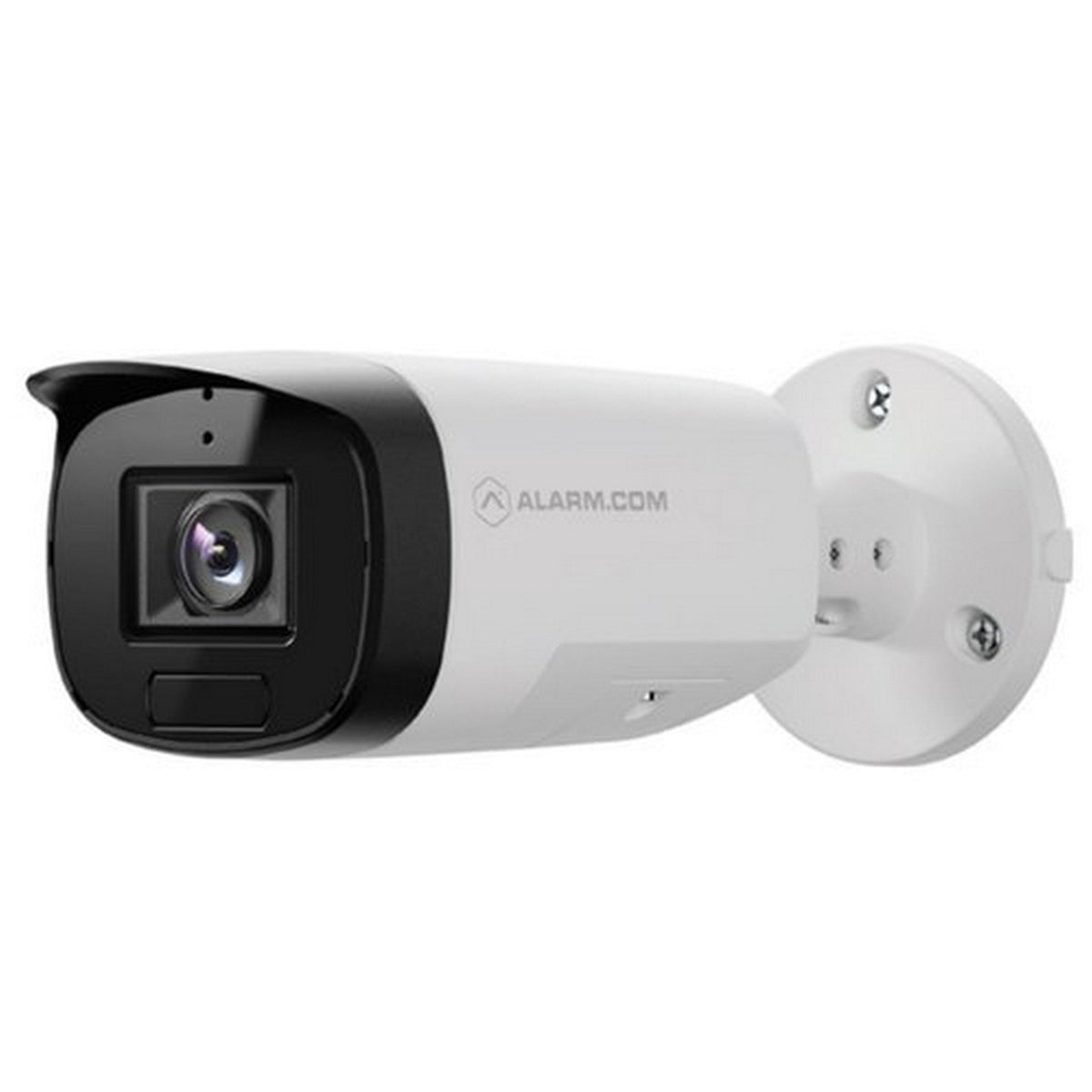

Alarm.com ADC-VC7398PA Prism 8MP PoE Varifocal Bullet Camera

Alarm.com ADC-VC7398PA Prism 8MP PoE Varifocal Bullet Camera

The Alarm.com ADC-VC7398PA Prism 8MP PoE Varifocal Bullet Camera provides 3840 x 2160 Ultra HD surveillance with a 1/1.8" SONY STARVIS 2 progressive CMOS sensor, motorized varifocal coverage, integrated infrared illumination, and VividNight low-light color technology. It is designed for detailed indoor or outdoor commercial video monitoring through the Alarm.com for Business platform.

For businesses, campuses, parking areas, entrances, and other professional security installations, the camera combines a remotely adjustable field of view with integrated Video Analytics and encrypted onboard recording support. Built-in IR reaches approximately 131 feet, while a built-in microphone and optional line-level audio connections enable two-way communication and compatible proactive deterrence workflows.

The ADC-VC7398PA connects through 10/100 Mbps Ethernet and receives power from an IEEE 802.3af PoE network connection, simplifying installation to a single network cable. Its rugged enclosure carries IP66, IP67, IK10, and NEMA 4X protection ratings for demanding environments. Alarm.com also identifies the Prism Series hardware as NDAA-approved for installations with applicable procurement requirements.

Key Features

• 8MP Ultra HD Imaging: Captures video at up to 3840 x 2160 resolution for detailed commercial surveillance coverage.
• VividNight Low-Light Performance: Maintains color imaging in reduced illumination and switches to infrared-assisted monochrome viewing when required.
• Motorized Varifocal Coverage: Adjusts the viewing angle remotely for wide-area monitoring or tighter observation of critical locations.
• Integrated Video Analytics: Works with Alarm.com analytics tools for intelligent event detection and business security workflows.
• 131-Foot IR Range: Built-in infrared illumination supports monitoring in complete darkness at distances up to approximately 131 feet.
• Two-Way Audio Support: Includes a built-in microphone and supports line-level audio input and output through an optional accessory cable.
• Onboard Recording: Supports encrypted microSD recording with compatible cards up to 1.5 TB for local video storage.
• Outdoor-Rated Construction: IP66, IP67, IK10, and NEMA 4X protection supports exposed and high-impact commercial installations.

Technical Specifications

• Manufacturer: Alarm.com
• Model: ADC-VC7398PA
• Product Series: Prism Series
• Camera Type: PoE varifocal bullet IP camera
• Maximum Resolution: 3840 x 2160, 8MP
• Image Sensor: 1/1.8" SONY STARVIS 2 progressive CMOS
• Lens Type: Motorized varifocal
• Horizontal Field of View: 110.4° to 45.1°
• Vertical Field of View: 57.9° to 25.4°
• Diagonal Field of View: 133.9° to 51.8°
• Tilt Adjustment: 80°
• Rotation Adjustment: 350°
• Minimum Illumination, Color: 0.02 lux at F1.6
• Minimum Illumination, B/W: Less than 0.005 lux at F1.6
• Minimum Illumination with IR: 0 lux
• Low-Light Technology: VividNight
• Built-In IR Range: 131 ft
• Video Analytics: Integrated Alarm.com Video Analytics
• Local Recording: Encrypted microSD recording supported
• Maximum Supported Onboard Storage: 1.5 TB
• Built-In Microphone: Yes
• Two-Way Audio: Full duplex
• External Audio: Line-level input and output through optional accessory cable
• External Speaker Requirement: Required for camera audio output
• Proactive Deterrence Support: Audio response, AI Deterrence, and Remote Video Monitoring with applicable services and hardware
• Network Interface: 10/100 Mbps Ethernet, RJ45
• Power: IEEE 802.3af PoE
• Maximum Power Consumption with IR: 12.4 W
• Maximum Power Consumption without IR: 9.6 W
• Operating Temperature with IR: -31 to 122°F
• Operating Temperature without IR: -31 to 140°F
• Operating Humidity: Up to 98% RH, non-condensing
• Dimensions: 10.2" long x 3.6" diameter
• Weight: 2.3 lb
• Ingress Protection: IP66 and IP67
• Impact Protection: IK10
• Enclosure Rating: NEMA 4X
• NDAA Status: NDAA-approved hardware
• Platform Compatibility: Alarm.com for Business
