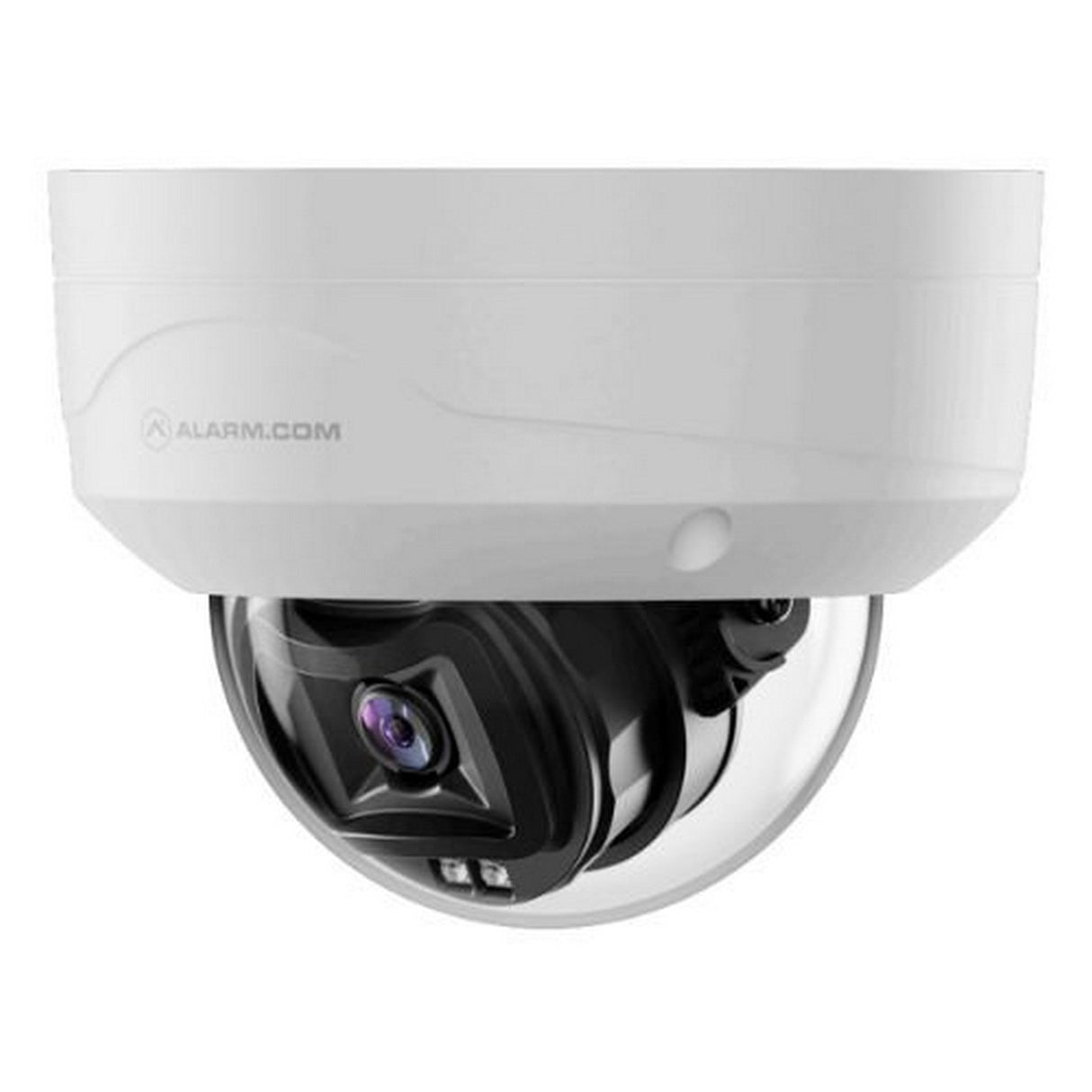

Alarm.com ADC-VC8295P Prism 5MP PoE Fixed Dome IP Camera

Alarm.com ADC-VC8295P Prism 5MP PoE Fixed Dome IP Camera

The Alarm.com ADC-VC8295P Prism 5MP PoE Fixed Dome IP Camera provides 2560 x 1920 surveillance imaging with a 103.4° horizontal field of view, VividNight low-light color, and infrared coverage up to 98 feet. Its 1/1.8" Sony STARVIS 2 progressive CMOS sensor supports detailed commercial monitoring in changing lighting conditions.

The fixed wide-angle design suits lobbies, hallways, entrances, retail spaces, offices, and other areas that need consistent coverage without motorized lens adjustment. Video Analytics 2.0 supports selectable object detection without calibration, while encrypted microSD recording provides up to 1.5 TB of local storage when used with compatible media and services.

For professional indoor or outdoor security installations, the camera uses a rugged IP66 and IK10 enclosure and receives both network connectivity and power through a single PoE connection. It integrates with the Alarm.com platform, supports Remote Video Monitoring as an optional service, and uses NDAA-approved hardware. The camera does not include internal or external audio connections.

Key Features

• 5MP Surveillance Imaging: Captures video at up to 2560 x 1920 resolution for detailed monitoring of commercial spaces.
• VividNight Technology: Preserves useful color information in low-light conditions before infrared illumination becomes necessary.
• Wide Fixed Coverage: Provides a 103.4° horizontal field of view for entrances, corridors, retail areas, and general overview applications.
• 98-Foot Infrared Range: Integrated IR illumination supports video capture in complete darkness at distances up to approximately 98 feet.
• Video Analytics 2.0: Supports selectable object-based recording without requiring camera calibration.
• Local Recording: Supports encrypted microSD storage up to 1.5 TB with compatible media and the applicable Alarm.com service.
• Single-Cable PoE: IEEE 802.3af Power over Ethernet delivers network connectivity and operating power through one Ethernet connection.
• Rugged Construction: IP66 weather protection and IK10 impact resistance support demanding indoor and outdoor installations.

Technical Specifications

• Manufacturer: Alarm.com
• Model: ADC-VC8295P
• Product Series: Prism Series
• Camera Type: Fixed-lens PoE dome IP camera
• Maximum Resolution: 2560 x 1920, 5MP
• Image Sensor: 1/1.8" Sony STARVIS 2 progressive CMOS
• Lens Type: Wide-angle fixed lens
• Horizontal Field of View: 103.4°
• Low-Light Technology: VividNight
• Minimum Illumination, Color: 0.02 lux at F1.6
• Minimum Illumination, B/W: Less than 0.005 lux at F1.6
• Minimum Illumination with IR: 0 lux
• Built-In IR Range: 98 ft
• Video Analytics: Video Analytics 2.0
• Analytics Calibration: No calibration required
• Analytics Object Recording: Selectable object types
• Business Activity Analytics: Compatible
• Local Recording: Encrypted microSD recording supported
• Maximum Onboard Storage: 1.5 TB with compatible microSD card
• Onboard Recording: Compatible with Smart View
• SVR Support: Compatible with Alarm.com Stream Video Recorder workflows
• Proactive Deterrence: Remote Video Monitoring available as a separate add-on
• Audio: No internal or external audio connections
• Two-Way Audio: Not supported
• Network Interface: 10/100 Mbps Ethernet, RJ45
• Power: IEEE 802.3af PoE
• Maximum Power Consumption with IR: 8.5 W
• Maximum Power Consumption without IR: 6 W
• Operating Temperature: -22 to 122°F
• Operating Humidity: Up to 98% RH, non-condensing
• Dimensions: 4.6" diameter x 3.5" high
• Weight: 1.2 lb
• Ingress Protection: IP66
• Impact Protection: IK10
• NDAA Status: NDAA-approved hardware
• Platform Compatibility: Alarm.com

What's In the Box

• Alarm.com ADC-VC8295P Camera
• Mounting template
• L-shaped wrench
• Side egress plug
• 3 wall anchors and screws
• Desiccant packet and double-sided tape
