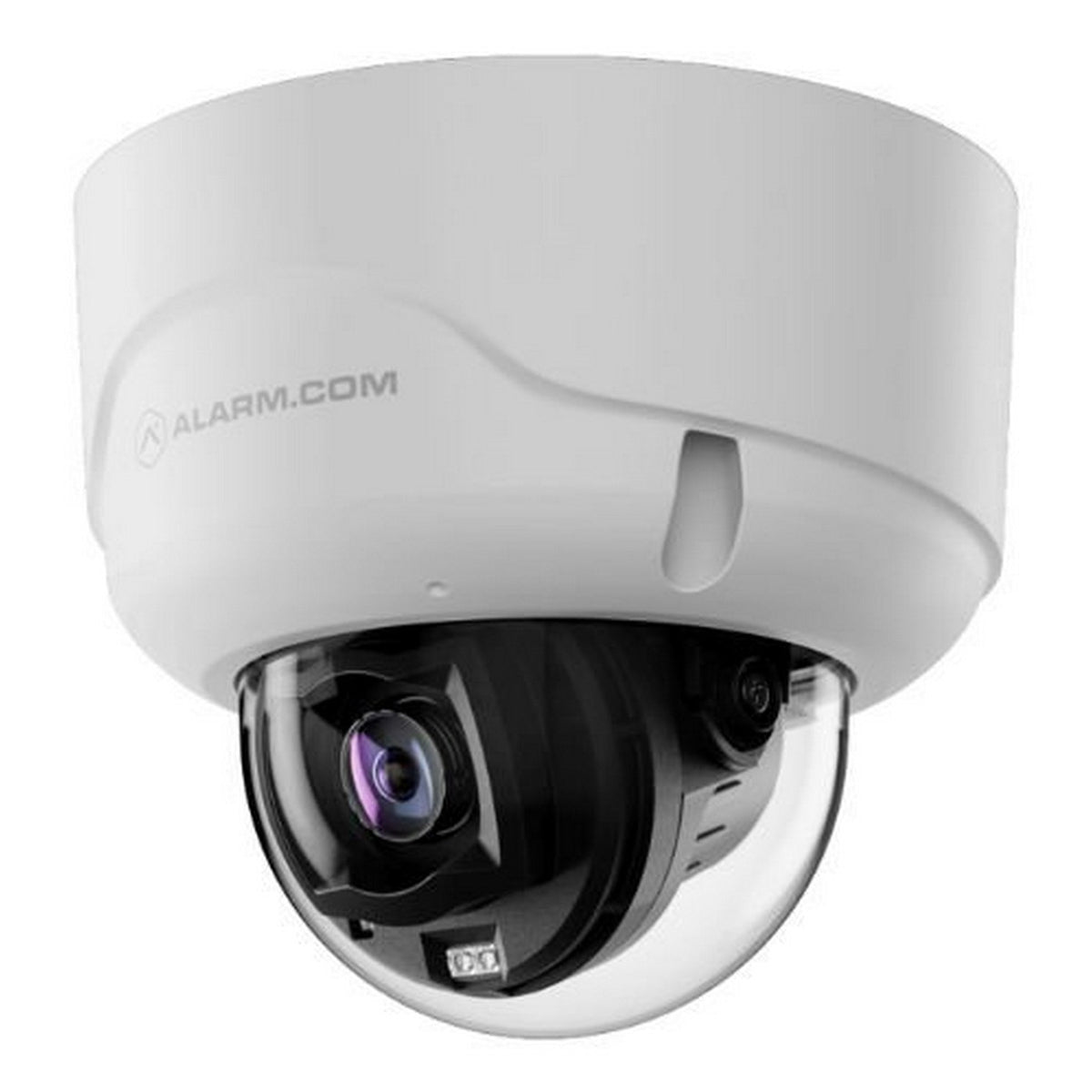

Alarm.com ADC-VC8498P Prism 8MP PoE Fixed Lens Dome Camera

Alarm.com ADC-VC8498P Prism 8MP PoE Fixed Lens Dome Camera

The Alarm.com ADC-VC8498P Prism 8MP PoE Fixed Lens Dome Camera captures 3840 x 2160 surveillance video with a 1/1.8" Sony STARVIS 2 progressive CMOS sensor. Its fixed 110.74° horizontal field of view, VividNight low-light technology, and 131-foot infrared range provide consistent wide-area coverage for professional security installations.

Designed for businesses, entrances, retail environments, offices, campuses, and other monitored spaces, the fixed lens maintains a consistent viewing area without motorized adjustment. Integrated Video Analytics supports intelligent monitoring, while encrypted microSD recording provides up to 1.5 TB of onboard storage with compatible media. Smart View support provides access to locally recorded video through applicable Alarm.com services.

IEEE 802.3af Power over Ethernet supplies power and network connectivity through one cable. A built-in microphone supports full-duplex two-way audio when paired with the optional line-level accessory cable and an external speaker. The enclosure carries IP66, IK10, and NEMA 4X protection ratings, and Alarm.com documents the camera as using NDAA-approved hardware.

Key Features

• 8MP Ultra HD Imaging: Captures video at up to 3840 x 2160 resolution for detailed commercial surveillance.
• Fixed Wide-Angle Coverage: Provides a 110.74° horizontal field of view for consistent monitoring without lens adjustment.
• VividNight Technology: Maintains useful color imaging in low-light environments before infrared illumination becomes necessary.
• 131-Foot Infrared Range: Built-in IR supports surveillance in complete darkness at distances up to approximately 131 feet.
• Integrated Video Analytics: Works with Alarm.com intelligent video tools for event detection and commercial monitoring workflows.
• Full-Duplex Audio: Uses the built-in microphone with optional line-level connections and an external speaker for two-way communication.
• Onboard Recording: Supports encrypted microSD recording with compatible storage capacities up to 1.5 TB.
• Rugged Construction: IP66, IK10, and NEMA 4X ratings support weather-exposed and impact-resistant installations.

Technical Specifications

• Manufacturer: Alarm.com
• Model: ADC-VC8498P
• Product Series: Prism Series
• Camera Type: 8MP PoE fixed lens dome camera
• Maximum Resolution: 3840 x 2160, 8MP
• Image Sensor: 1/1.8" Sony STARVIS 2 progressive CMOS
• Lens Type: Fixed
• Horizontal Field of View: 110.74°
• Range of Motion: None
• Minimum Illumination, Color: 0.02 lux at F1.6
• Minimum Illumination, B/W: Less than 0.005 lux at F1.6
• Minimum Illumination with IR: 0 lux
• Low-Light Technology: VividNight
• Built-In IR Range: 131 ft
• Video Analytics: Integrated Alarm.com Video Analytics
• Local Recording: Encrypted microSD recording supported
• Maximum Onboard Storage: 1.5 TB
• Smart View: Onboard recording supported
• Two-Way Audio: Full duplex
• Built-In Microphone: Yes
• External Audio: Line-level input and output through optional accessory cable
• External Speaker: Required for camera audio output
• Proactive Deterrence: Audio response; AI Deterrence and Remote Video Monitoring available as separate add-ons
• Network Interface: 10/100 Mbps Ethernet, RJ45
• Power: IEEE 802.3af PoE
• Maximum Power Consumption with IR: 12.4 W
• Maximum Power Consumption without IR: 9.6 W
• Operating Temperature: -22 to 122°F
• Operating Humidity: Up to 98% RH, non-condensing
• Dimensions: 5.3" diameter x 4.6" high
• Weight: 2.1 lb
• Ingress Protection: IP66
• Impact Protection: IK10
• Enclosure Rating: NEMA 4X
• NDAA Status: NDAA-approved hardware
• Platform Compatibility: Alarm.com
