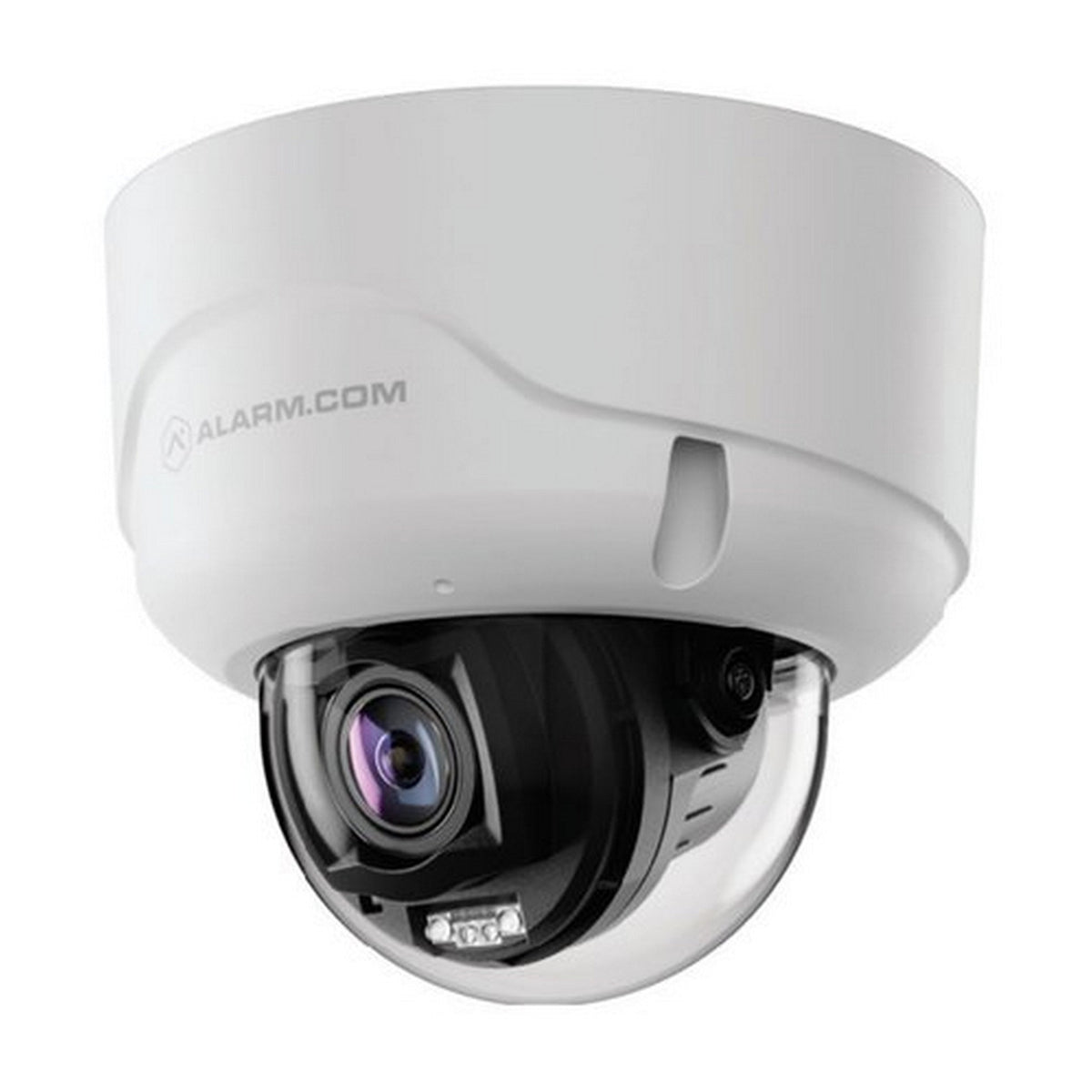

Alarm.com ADC-VC8498PA Prism 8MP PoE Varifocal Dome Camera

Alarm.com ADC-VC8498PA Prism 8MP PoE Varifocal Dome Camera

The Alarm.com ADC-VC8498PA Prism 8MP PoE Varifocal Dome Camera delivers 3840 x 2160 surveillance video using a 1/1.8" Sony STARVIS 2 progressive CMOS sensor. Its adjustable 110.4° to 45.1° horizontal field of view, VividNight low-light imaging, and 131-foot infrared range provide flexible coverage for professional security installations.

Designed for businesses, entrances, retail areas, campuses, and other monitored environments, the camera combines a varifocal lens with 350° pan, 80° tilt, and 350° rotation adjustment. Full-duplex two-way audio uses the built-in microphone plus an optional accessory cable and external speaker, while compatible microSD media provides encrypted onboard recording up to 1.5 TB.

IEEE 802.3af Power over Ethernet carries power and network connectivity through one cable, simplifying deployment with compatible infrastructure. The enclosure carries IP66, IK10, and NEMA 4X protection ratings for demanding installations. Alarm.com also documents NDAA-approved hardware, while integration with its platform supports proactive audio response and optional AI Deterrence and Remote Video Monitoring services.

Key Features

• 8MP Ultra HD Imaging: Captures surveillance video at up to 3840 x 2160 resolution for detailed monitoring.
• Varifocal Coverage: Adjusts horizontal viewing from 110.4° to 45.1° to match wide or focused surveillance areas.
• VividNight Technology: Maintains useful color imaging under low-light conditions before infrared illumination is required.
• 131-Foot Infrared Range: Built-in IR supports monitoring in complete darkness at distances up to approximately 131 feet.
• Full-Duplex Audio: A built-in microphone works with optional line-level connections and an external speaker for two-way communication.
• Onboard Recording: Supports encrypted microSD recording with compatible storage capacities up to 1.5 TB.
• Single-Cable PoE: IEEE 802.3af support combines network connectivity and operating power over Ethernet.
• Rugged Enclosure: IP66, IK10, and NEMA 4X ratings support weather-exposed and impact-resistant installations.

Technical Specifications

• Manufacturer: Alarm.com
• Model: ADC-VC8498PA
• Product Series: Prism Series
• Camera Type: 8MP PoE varifocal dome camera
• Maximum Resolution: 3840 x 2160, 8MP
• Image Sensor: 1/1.8" Sony STARVIS 2 progressive CMOS
• Lens Type: Varifocal
• Horizontal Field of View: 110.4° to 45.1°
• Pan Adjustment: 350°
• Tilt Adjustment: 80°
• Rotation Adjustment: 350°
• Minimum Illumination, Color: 0.02 lux at F1.6
• Minimum Illumination, B/W: Less than 0.005 lux at F1.6
• Minimum Illumination with IR: 0 lux
• Low-Light Technology: VividNight
• Built-In IR Range: 131 ft
• Two-Way Audio: Full duplex
• Built-In Microphone: Yes
• External Audio: Line-level input and output through optional accessory cable
• External Speaker: Required for camera audio output
• Local Recording: Encrypted microSD recording supported
• Maximum Onboard Storage: 1.5 TB
• Proactive Deterrence: Audio response; AI Deterrence and Remote Video Monitoring available as separate add-ons
• Network Interface: 10/100 Mbps Ethernet, RJ45
• Power: IEEE 802.3af PoE
• Maximum Power Consumption with IR: 12.4 W
• Maximum Power Consumption without IR: 9.6 W
• Operating Temperature: -22 to 122°F
• Operating Humidity: Up to 98% RH, non-condensing
• Dimensions: 5.3" diameter x 4.6" high
• Weight: 2.2 lb
• Ingress Protection: IP66
• Impact Protection: IK10
• Enclosure Rating: NEMA 4X
• NDAA Status: NDAA-approved hardware
