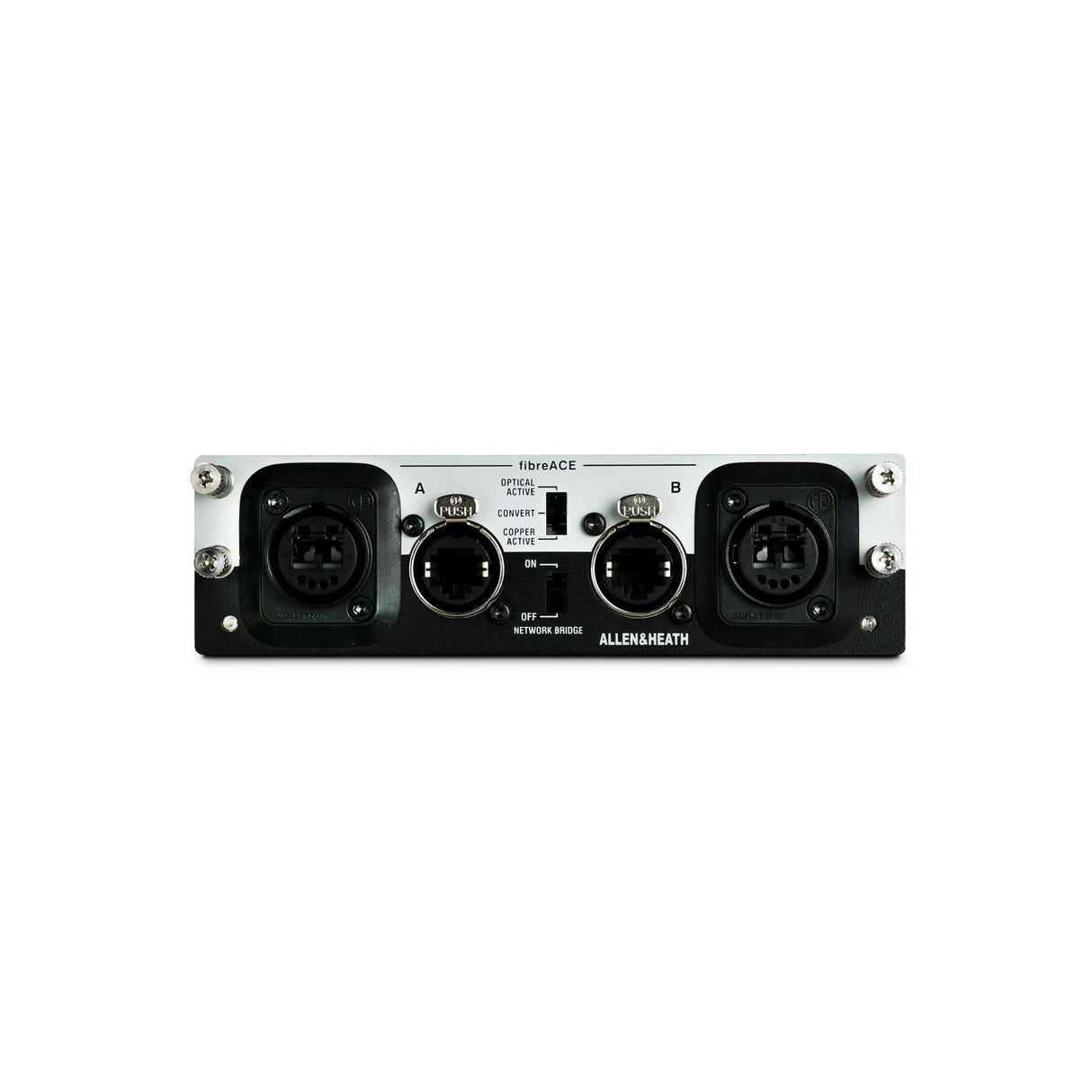

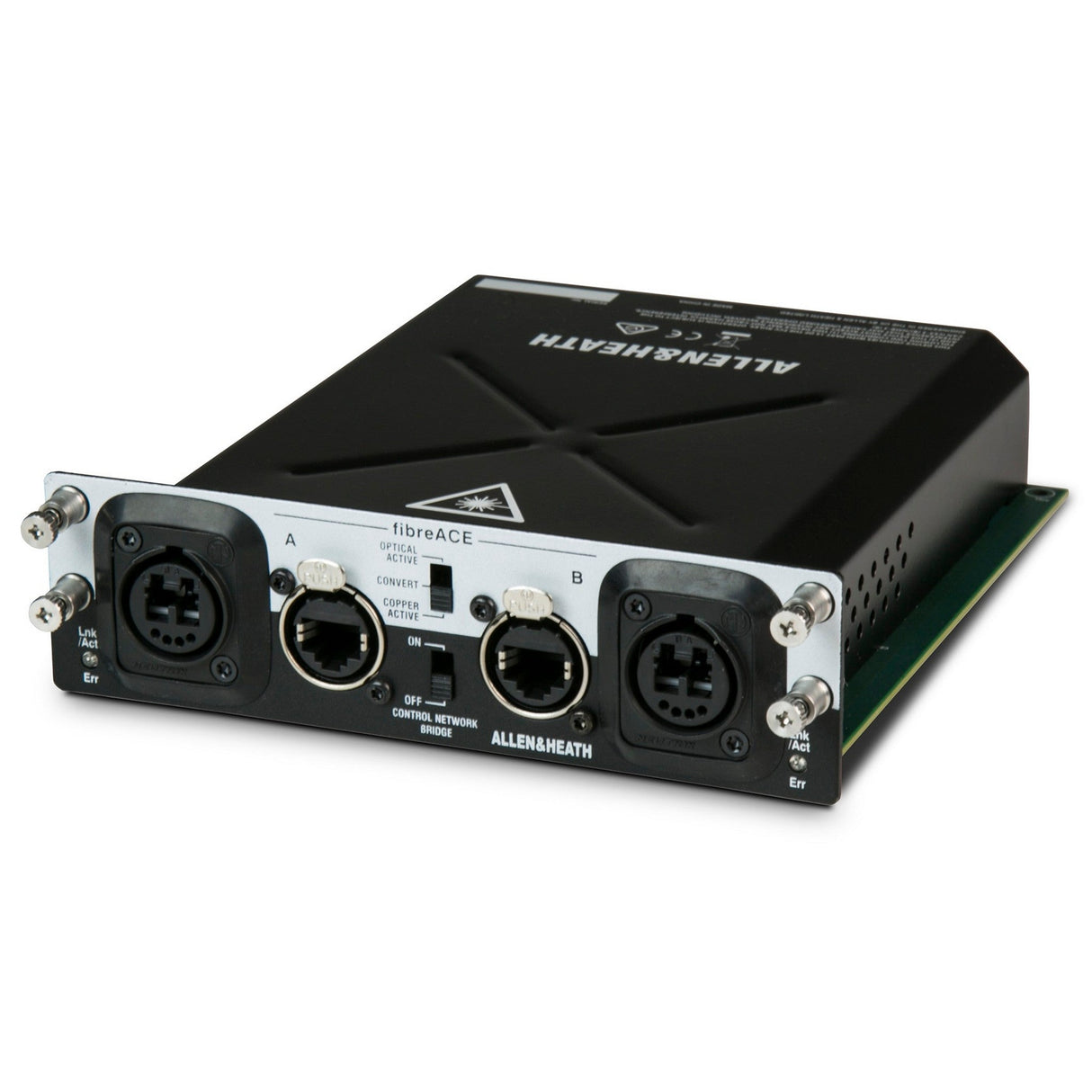

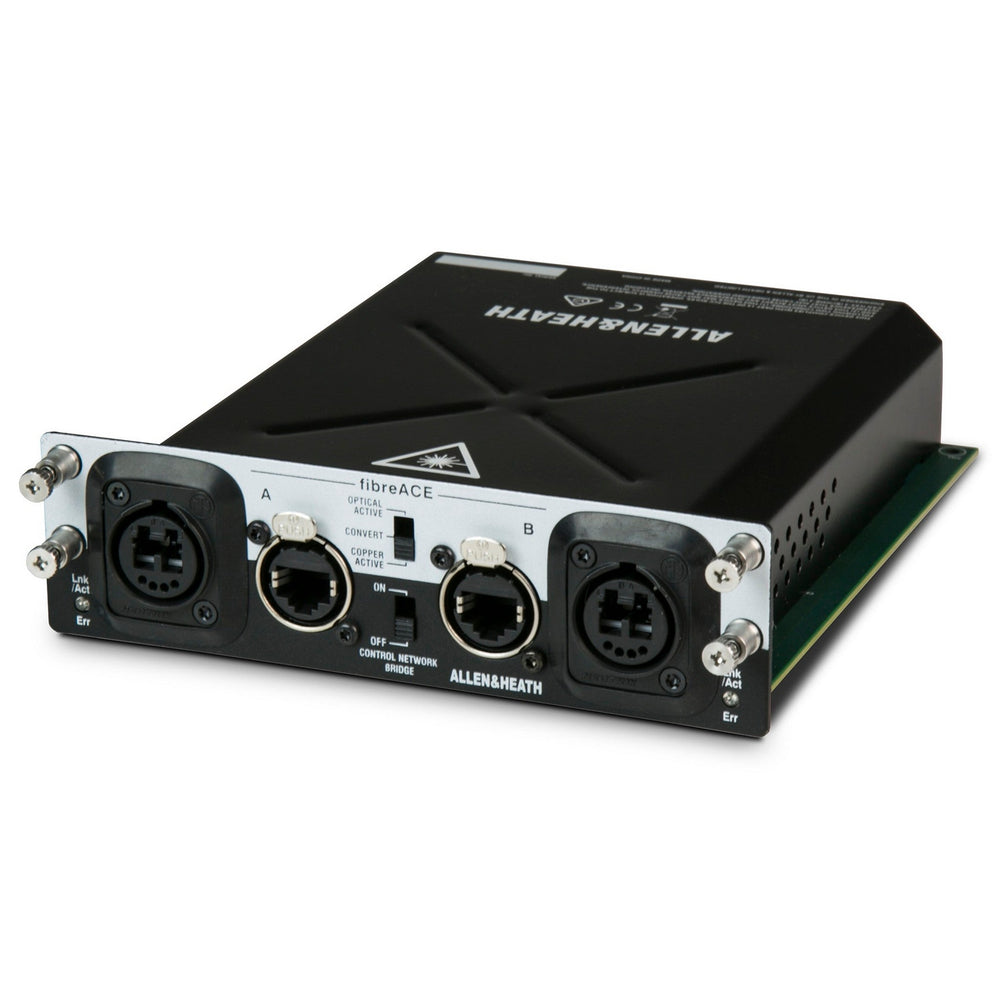

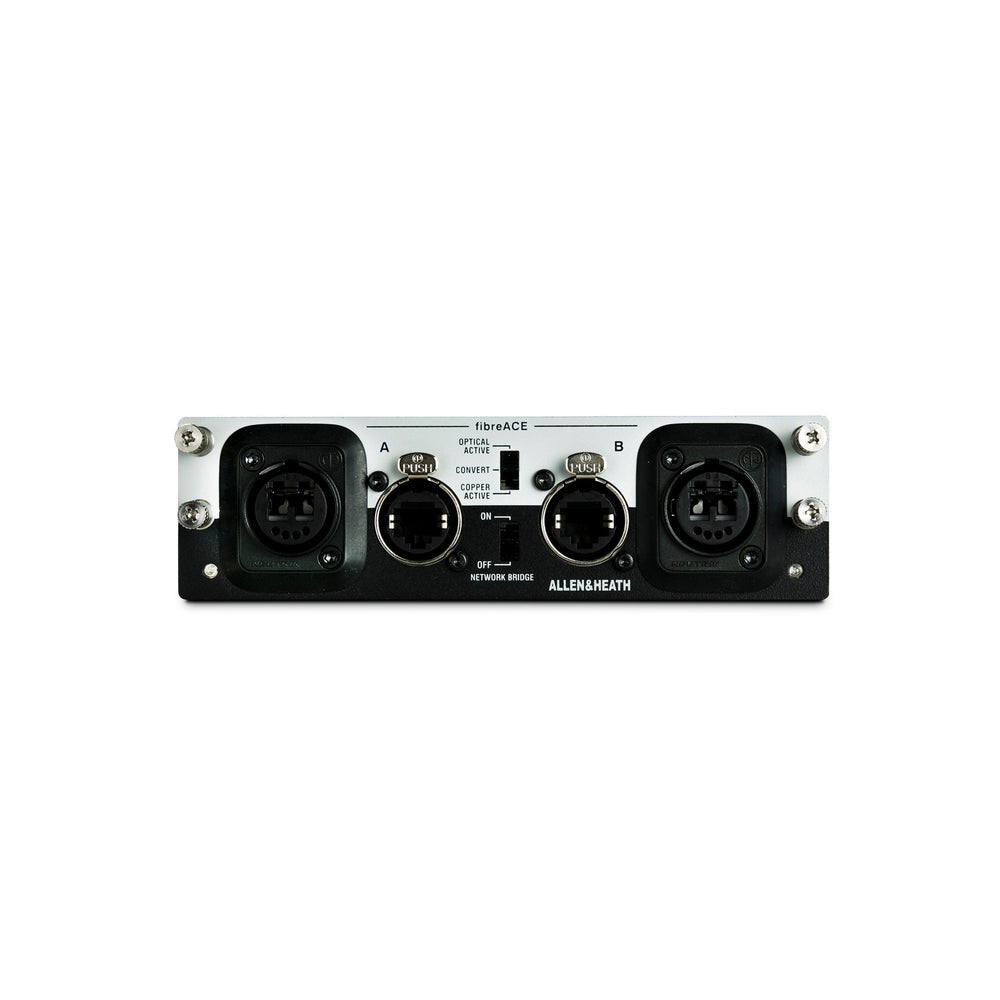

Allen & Heath M-DL-GOPT-A dLive 128 x 128 fibreACE Audio Networking Card

The Allen & Heath M-DL-GOPT-A dLive 128 x 128 fibreACE Audio Networking Card is a versatile and powerful networking solution designed for high-end professional audio applications. Whether you are working on large-scale events, installations, or need robust audio distribution, the fibreACE card has you covered. It seamlessly connects any Allen & Heath dLive or Avantis system over CAT cabling or multimode fiber optic connections, providing a 128x128 channel, 96kHz point-to-point link. Additionally, this card can serve as a converter to replace the traditional MixRack to Surface link with fiber optic, ensuring reliable signal transmission over long distances up to 500 meters.

Designed with industry-standard connectors, the fibreACE card offers low-latency and ultra-reliable audio transport. Its proprietary protocol allows for both Audio and Control data to be sent over Ethernet, ensuring minimal latency and maximum cable redundancy with zero audio drops. The system is truly plug-and-play, requiring no complex configurations or computers for setup. Simply connect the cable between any two dLive or Avantis systems, and adjust the patch and clock settings directly from the mixer. This ease of use combined with high performance makes the fibreACE card an ideal solution for any digital audio professional looking to enhance their workflow.

Key Features

• 128 in, 128 out audio channels
• 96kHz sample rate
• Supports both CAT5e (or higher) cabling and Neutrik OpticalCon Duo multimode fiber
• Convertible to run fiber between MixRack and Surface
• Ultra-low transport latency of just 5 samples (52 microseconds)
• Dual redundancy for maximum reliability
• Switchable Control Network Bridge for integrated system management

Specifications

• Model: M-DL-GOPT-A
• Supports Allen & Heath dLive and Avantis systems
• Channel Capacity: 128x128 at 96kHz
• Latency: 5 samples (52us)
• Cable Types: CAT5e or higher, Neutrik OpticalCon Duo multimode fiber
• Maximum Cable Run: 500 meters
• Protocol: fibreACE with Audio and Control over Ethernet
• Redundancy: Dual redundancy capability

Package Contents

• Allen & Heath M-DL-GOPT-A dLive 128 x 128 fibreACE Audio Networking Card
• User manual
• Warranty information
