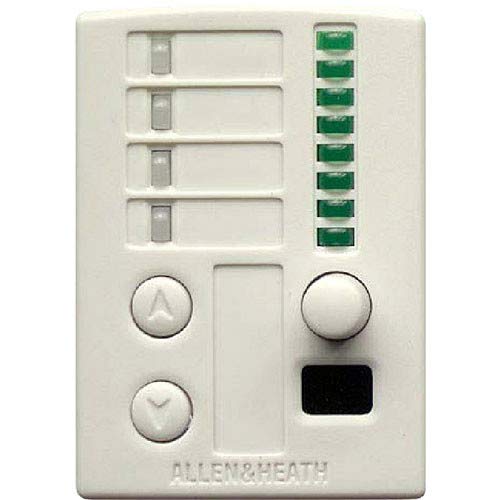

Allen & Heath PL-12 | GR2 Remote Control Wall Plate w/IR Sensor 2 Programmable Switches 4 LEDs
The Allen & Heath PL-12 is an advanced and intelligent remote control wall plate designed for use with the GR2 audio zone mixer. This sophisticated device aims to provide seamless and user-friendly control to non-technical operators, making it perfect for versatile environments such as conference rooms, restaurants, and other multi-zone venues. The PL-12 facilitates effortless local control of music source selection and audio levels, ensuring an optimal audio experience tailored to the specific needs of each application.
With its intuitive interface, the PL-12 can accommodate up to two controllers, allowing for flexible configurations. Whether used as a single unit to control both zones simultaneously or distinct controllers for each zone, the setup can be customized to fit different scenarios. Installers can configure its functions through a comprehensive setup menu, addressing all possible requirements. For enhanced remote operation, the optional PL-5 hand-held infra-red remote controller offers wireless control and additional features, including the capability to store and recall up to four source/level presets.
The PL-12 wall plate can be conveniently mounted into a single unit wall box or mounted on furniture using a provided cutting template. Its connectivity with the GR2 audio mixer is streamlined with standard CAT5 cables, simplifying installation and maintenance. An additional feature includes space on the panel for custom labeling, ensuring the controller integrates seamlessly with your venue’s aesthetic and functional requirements.
Key Features
- Eight LED bar level indicator displays the audio level clearly
- Infra-red sensor for detecting the optional PL-5 handheld controller
- Scroll up/down functionality to select available music sources
- Source indicators illuminate green for selected source, red for mute
- Rotary level control adjusts audio in 32 precise steps from off to on
Specifications
- Designed for Allen & Heath GR2 audio zone mixer
- Mounts into a single unit wall box or furniture mounted
- Uses standard CAT5 cables for connection
- Supports up to two controllers in daisy chain configuration
- Panel space available for custom labeling
Package Contents
- Allen & Heath PL-12 Remote Control Wall Plate
- Standard face plate
- Mounting template
- User manual
- Installation guide
