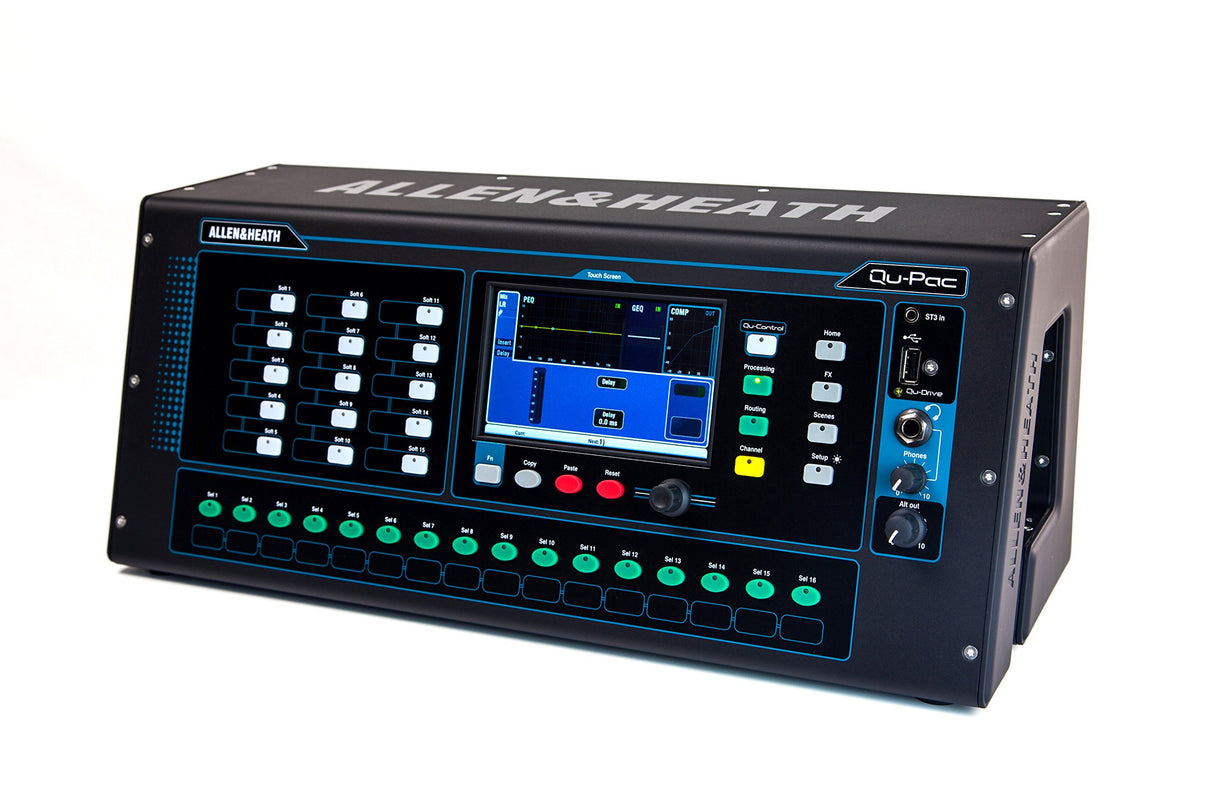

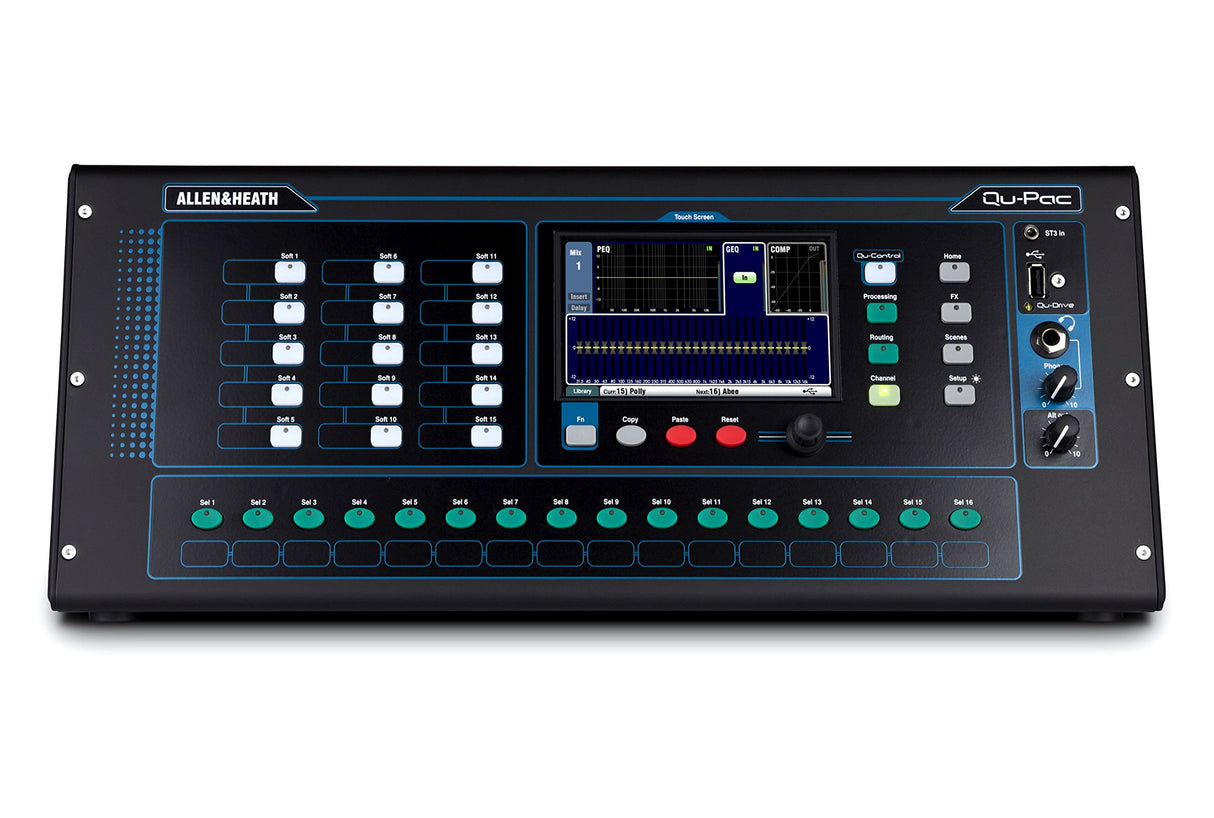

Allen & Heath QU-PAC-32 | Touchscreen Control Ultra Compact Digital Mixer

The Allen & Heath QU-PAC-32 Touchscreen Control Ultra Compact Digital Mixer is the ultimate solution for anyone requiring a professional-grade mixing solution within a compact footprint. Combining legendary quality and robust performance, this digital mixer takes the esteemed features of the Qu family and condenses them into a desk or rack mount format. Ideal for a myriad of applications, from live music bars and conferences to personal mixing setups, this digital mixer is designed to deliver an unparalleled sound experience without the need for extensive technical know-how.

Qu-Pac liberates you to mix directly from your iPad, offering remarkable flexibility and ease of use. Additionally, its front panel and touchscreen provide complete access to all its functions. With customizable settings and user permissions, it ensures a failsafe solution for any event or venue where seamless audio management is paramount. Cat5 expansion capabilities up to 38 inputs make the Qu-Pac incredibly scalable, making it a favorite among bands, schools, hotels, corporate events, and sundry other professional settings.

Whether managed by expert audio engineers or non-technical staff, the Allen & Heath QU-PAC-32 promises convenience, reliability, and exceptional sound quality. You can trust this digital mixer to meet your highest expectations with an elegant combination of cutting-edge technology and user-friendly design.

Key Features

• 16 AnaLOGIQ recallable preamps
• 16 on-board Mic/Line Inputs (XLR/TRS)
• Expandable up to 38 inputs via dSNAKE
• 3 Stereo Inputs (TRS)
• 32 Mono + 3 Stereo Input Channels
• 12 on-board Mix Outputs (XLR)
• 4 Stereo Groups
• Up to 11 Monitor Mixes (4 mono + 7 stereo)
• 2 Stereo Matrix Outs
• AES Digital Out
• 4 DCA Groups
• 4 Mute Groups
• Qu-Pad iPad App for all live mixing controls
• Qu-You iPhone App for personal monitoring
• Qu-Drive direct Multitrack Recording/Playback on USB drives
• 15 Soft Keys
• 16 Custom Select keys
• Qu-Control custom screen to suit application
• 4 FX Engines
• 4 FX Sends/Returns
• 32×32 USB Audio Interface
• 5” Touchscreen
• iLive FX Library
• Automatic Mic Mixer
• Compatible with ME Personal Mixing System
• Trim, polarity, HPF, gate, insert/ducker, 4-band PEQ, compressor, and delay on all Inputs
• Insert, 4-band PEQ, 1/3 octave GEQ, compressor, and delay on all Mix outputs
• Built-in Signal Generator
• RTA with Peak Band indication
• Spectrogram to aid with feedback elimination and taming room acoustics

Specifications

• Inputs: Balanced, XLR and 1/4" TRS jack, fully recallable
• Mic/Line Inputs
• Input Sensitivity (XLR/TRS): -60 to +5dBu / -50 to +15dBu
• Analogue Gain: -5 to +60dB, 1dB steps
• Maximum Input Level (XLR/TRS): +19dBu / +29dBu
• Input Impedance (XLR/TRS): >5kΩ / >10kΩ
• THD+N, Unity gain 0dB: 0.0005% -89dBu (20-20kHz, Direct Out @0dBu 1kHz)
• THD+N, Mid gain +30dB: 0.001% -83dBu (20-20kHz, Direct Out @0dBu 1kHz)
• USB Audio:
• Qu-Drive: USB A
• Stereo Record: 2 channel, WAV, 48kHz, 24-bit, patchable
• Stereo Playback: 2 channel, WAV, 44.1 or 48kHz, 16 or 24-bit, to ST3
• Multitrack Record: 18 channel, WAV, 48kHz, 24-bit, patchable
• Multitrack Playback: 18 channel, WAV, 48kHz, 24-bit
• Dimensions:
• Desk mounted: 440 x 180 x 181 mm (17.3" x 7" x 7")
• Rack mounted: 483 x 174 x 181 mm (19" x 6.9" x 7") 4U
• Packed in shipping box: 620 x 310 x 310 mm (24.4" x 12.2" x 12.2")
• Unpacked weight: 6.6 kg (14.5 lbs)

Package Contents

• Allen & Heath QU-PAC-32 Digital Mixer
• Power Cable
• User Manual
• Rack Mounting Kit
