AlphaTheta XDJ-AN 2-Channel All-In-One DJ System

AlphaTheta XDJ-AN 2-Channel All-In-One DJ System

The AlphaTheta XDJ-AN 2-Channel All-In-One DJ System lets DJs choose tracks, prepare sets, and perform from one standalone unit. It supports USB storage, streaming services, cloud libraries, Wi-Fi, Bluetooth audio input, SonicLink wireless monitoring, and a 7-inch touchscreen for an intuitive DJ workflow.

Built for DJs moving from controller-based setups into a more complete standalone performance system, the XDJ-AN blends home practice, set preparation, and live performance in one compact unit. Use USB storage devices exported in the OneLibrary format, connect to supported streaming sources, or access a cloud-based rekordbox library to manage playlists and load tracks directly from the system.

The 2-channel layout gives DJs club-style control with two decks, 132 mm jog wheels, Sound Color FX, Beat FX, microphone input, master outputs, and headphone monitoring. The touchscreen displays tracklists, artwork, preview waveforms, BPM, key, cues, loops, and performance information, helping DJs browse, prepare, and mix with a workflow designed for speed and confidence.

Wireless connectivity expands the system beyond traditional USB playback. Built-in Wi-Fi supports cloud and streaming access, Bluetooth Classic allows compatible audio input, and SonicLink enables low-latency wireless monitoring with compatible headphones. The XDJ-AN also works with rekordbox, djay, and Serato DJ software, giving DJs flexible options for practice, mobile performance, and software-based workflows.

Key Features

• 2-channel all-in-one DJ system for standalone performance and home practice
• Supports USB storage, cloud libraries, and compatible streaming music sources
• Built-in Wi-Fi supports online music access, cloud library workflows, and QR login
• 7-inch WSVGA touchscreen displays browsing, waveform, deck, and mixer information
• SonicLink supports low-latency wireless monitoring with compatible headphones
• Bluetooth Classic input supports SBC and AAC codecs
• Compatible with rekordbox, djay, Serato DJ Lite, and Serato DJ Pro workflows
• Includes Sound Color FX with Space, Dub Echo, Sweep, Noise, Crush, and Filter
• Includes Beat FX with Reverb, Echo, and Flanger
• Compact 11.5 lb design supports portable DJ setups and streamlined home installations

Technical Specifications

Model: XDJ-AN
Product Type: 2-Channel All-In-One DJ System
Maximum External Dimensions: 25.1" x 14.1" x 3.5"
Main Unit Weight: 11.5 lbs
Frequency Characteristic: 20 Hz – 20 kHz (USB, MIC)
S/N Ratio: 112 dB (USB)
Total Harmonic Distortion: 0.003% (USB)

Compatible Software

rekordbox for Mac/Windows: Hardware Unlock, no license needed
rekordbox for iOS: DJing via USB cable connection is only supported on the iOS version, no license needed
djay Pro for Mac and Windows: Subscription needed
djay for iOS: Subscription needed
Serato DJ Lite: No license needed
Serato DJ Pro: Subscription needed

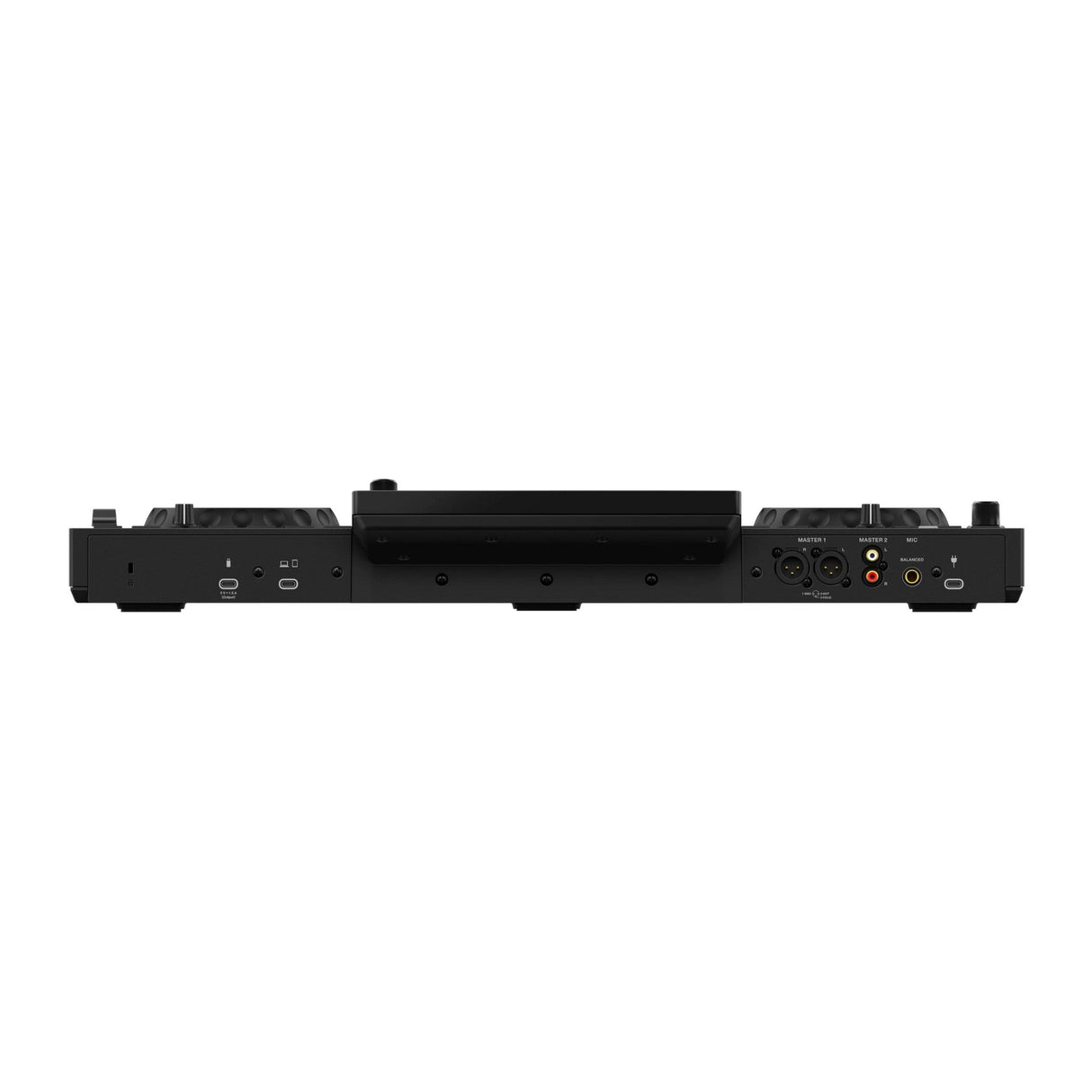

Input / Output Terminals

Input: MIC x 1 (1/4" TRS jack)
Master Output: MASTER x 2 (XLR x 1, RCA x 1)
Headphones Output: PHONES x 1 (3.5 mm stereo mini jack)
USB Storage: USB Type-C x 1
USB PC/Mac/Mobile Device: USB Type-C x 1
USB Power Supply: USB Type-C x 1

Wireless LAN Wi-Fi

Supported Standards: IEEE 802.11 a/b/g/n/ac
Frequency Band Used: 2.4 GHz / 5 GHz

Bluetooth

Wireless System: Bluetooth Classic
Compatible Codecs: SBC, AAC
Maximum Transmission Distance: Approx. 65.6 ft in unobstructed locations
Frequency Band Used: 2.4 GHz

SonicLink

Maximum Transmission Distance: Approx. 16.4 ft in unobstructed locations
Frequency Band Used: 2.4 GHz

Performance Control

Channels: 2
Deck Control: 2
Main Display: 7-inch touchscreen (WSVGA 1024 x 600)
Jog Wheel Size: 5.2"

Sound Color FX

Effects: Space, Dub Echo, Sweep, Noise, Crush, Filter

Beat FX

Effects: Reverb, Echo, Flanger

What's Included

• AlphaTheta XDJ-AN 2-Channel All-In-One DJ System
• AC Adapter
• Power Cord
• Quick Start Guide
• Warranty, for some regions
• Precautions for Use
