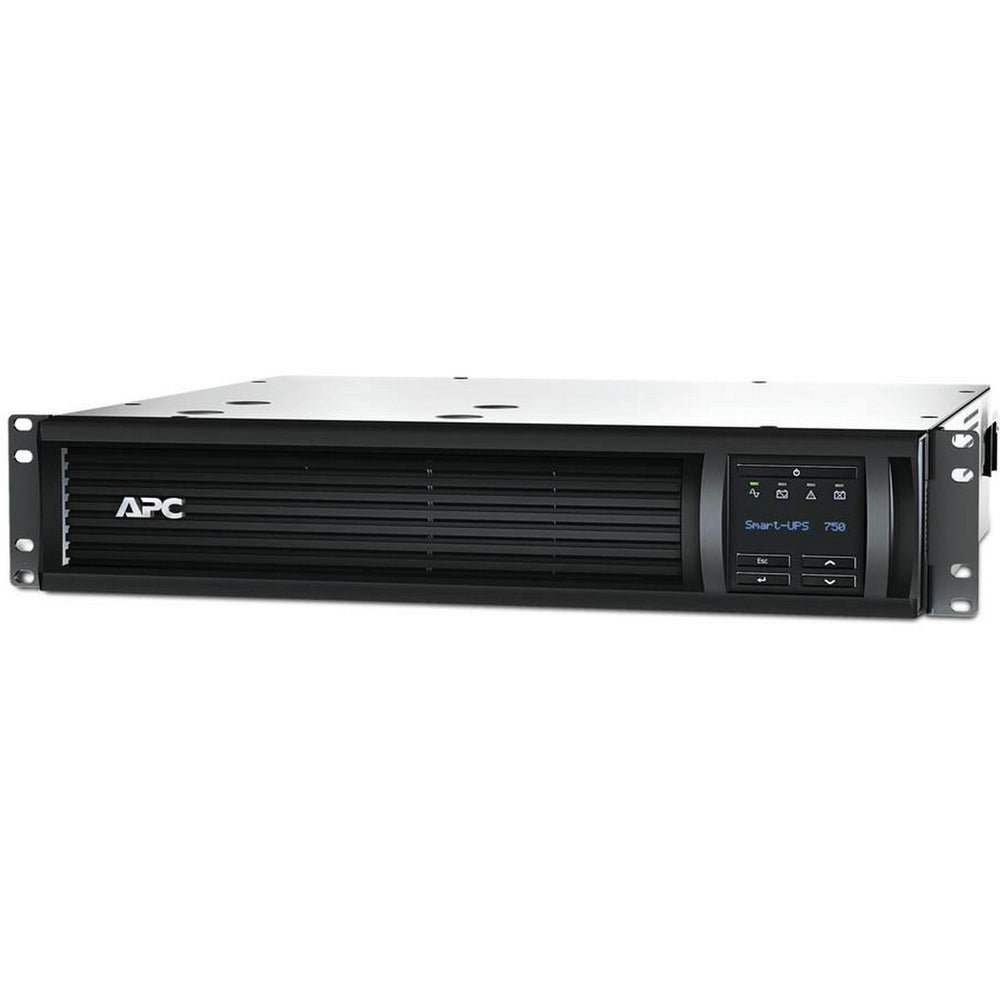

APC SMT750RM2UC Smart-UPS 750VA LCD RM 2U 120V with SmartConnect

Protect your servers, switches, routers and networking devices with the Smart-UPS SMT750RM2UC with APC SmartConnect - the first cloud enabled UPS for distributed IT. The SMT750RM2UC UPS provides backup battery power in the event of a power outage, while safeguarding your equipment from harmful power conditions, spikes and surges. The included service-free cloud monitoring feature is accessible from any internet connected device, and maximizes the life and performance of your UPS by providing proactive advice and life cycle recommendations so you can remotely monitor your power infrastructure from anywhere in the world. Automatic green mode ensures you are operating at the highest levels of efficiency, and intelligent battery management provides real-time monitoring and management through temperature compensated charging that extends the life of the battery. With 500-watt power capacity, six battery and surge protected outlets, and one switchable outlet group, this UPS is ideal for small and medium sized-businesses. Model comes with rails and hardware for rack-mounted installation.

Key Features

• Instant backup battery power during an outage
• Protects electronic equipment from harmful power conditions

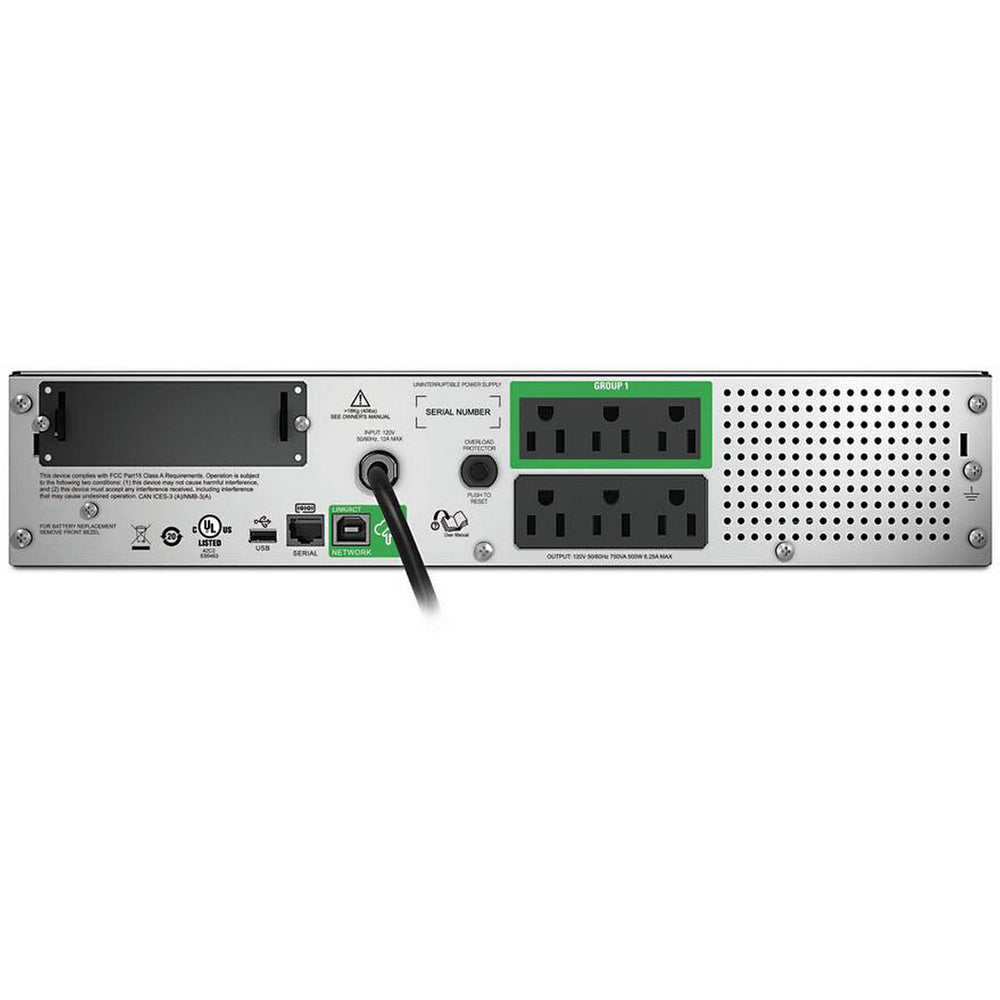

• Six power and surge protected outlets
• Proactive remote UPS cloud monitoring that is accessible from any internet connected device
• Pure sine wave output on battery
• Green mode reduces power consumption and increases energy efficiency
• Intelligent battery management and temperature compensated charging
• LCD interface with intuitive navigation
• SmartSlot for network management card
• PowerChute software for safe system shutdown
• $150,000 equipment protection policy
• ENERGY STAR Qualified efficiency
• 3-year warranty on unit and 2-year warranty on battery
• Includes rails and hardware for rack-mount installation

Technical Specifications

Output power capacity
500Watts / 750VA
Max Configurable Power
(Watts) 500Watts / 750VA
Nominal Output Voltage
120V
Output Voltage Distortion
Less than 5%
Output Frequency (sync to mains)
50/60Hz +/- 3 Hz
Other Output Voltages
110, 127
Topology
Line Interactive
Waveform type
Sine wave
Nominal Input Voltage
120V
Input frequency
50/60 Hz +/- 3 Hz (auto sensing)
Input Connections
NEMA 5-15P
Cord Length
8ft
Input voltage range for main operations
82 - 144V
Input voltage adjustable range for mains operation
75 - 154V
Number of Power Cords
1
Other Input Voltages
110, 127
Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time
3 hour(s)
Replacement Battery
APCRBC123
Expected Battery Life (years)
4 - 6
RBC Quantity
1
Interface Ports
RJ-45 Serial, SmartSlot, USB
Control panel
Multi-function LCD status and control console
Available SmartSlot Interface Quantity
1
Surge energy rating
680 Joules
Maximum Height
3.39 inches
Maximum Width
17.0 inches
Maximum Depth
16.1 inches
Rack Height
2U
Net Weight
39.02 lbs.
Shipping weight
49.93 lbs.
Shipping Height
9.25 inches
Shipping Width
21.06 inches
Shipping Depth
22.44 inches
Color
Black
Units per Pallet
16.0
Operating Temperature
32 - 104 F
Operating Relative Humidity
0 - 95 %
Operating Elevation
0-10000 ft
Storage Temperature
-15 - 45 C
Storage Relative Humidity
0 - 95 %
Storage Elevation
0-50000 ft
Audible noise at 1 meter from surface of unit
41.0dBA
Online thermal dissipation
90.0BTU/hr
