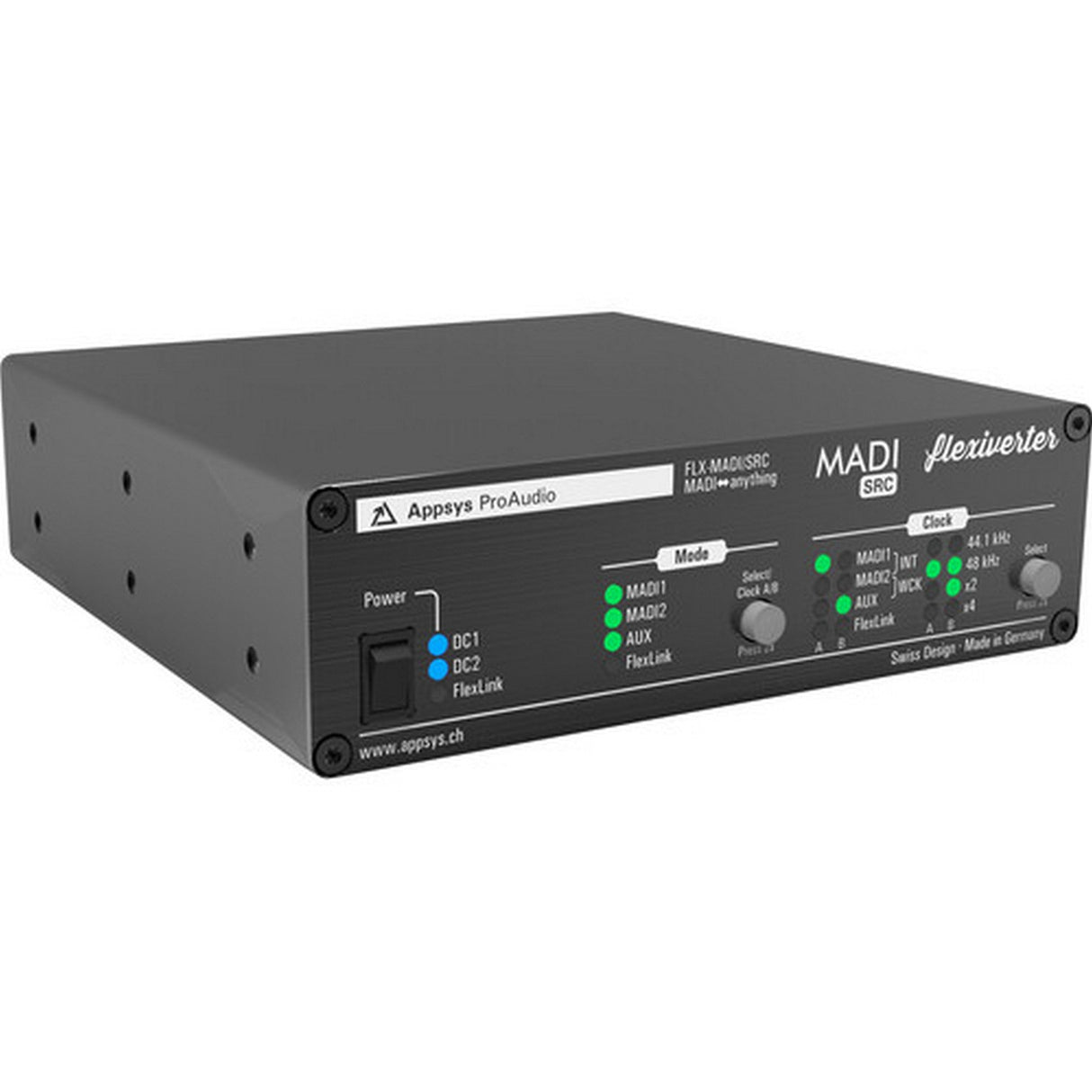

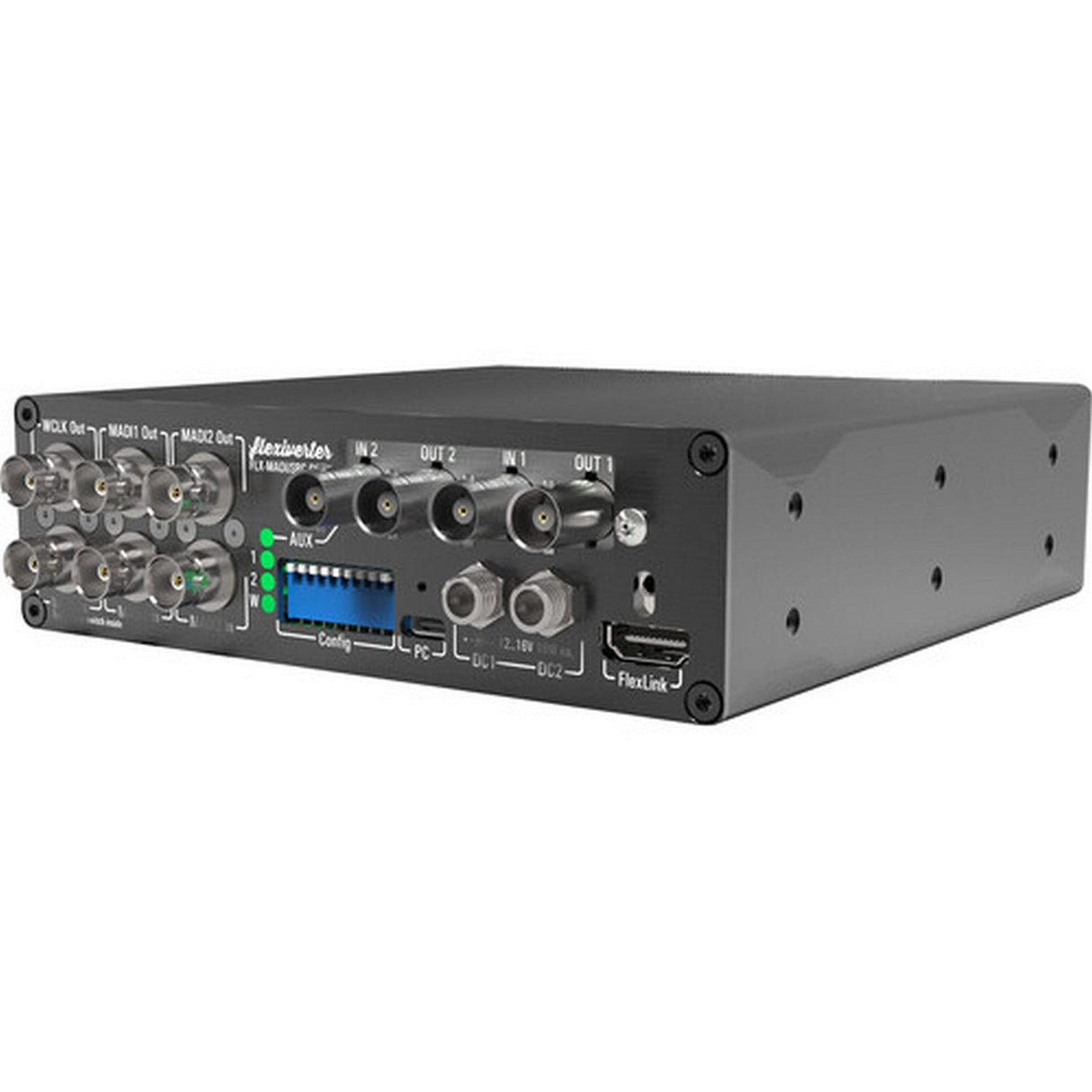

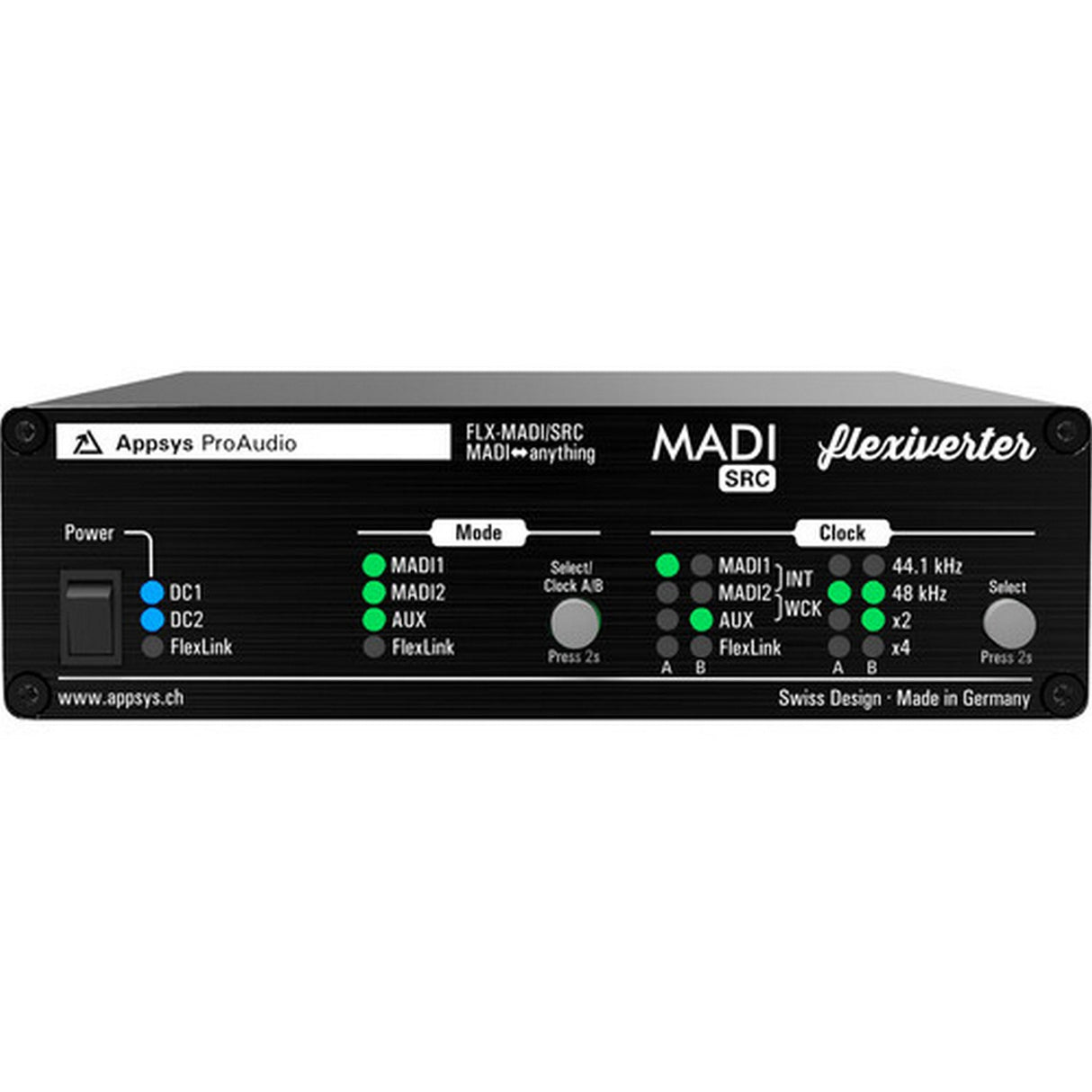

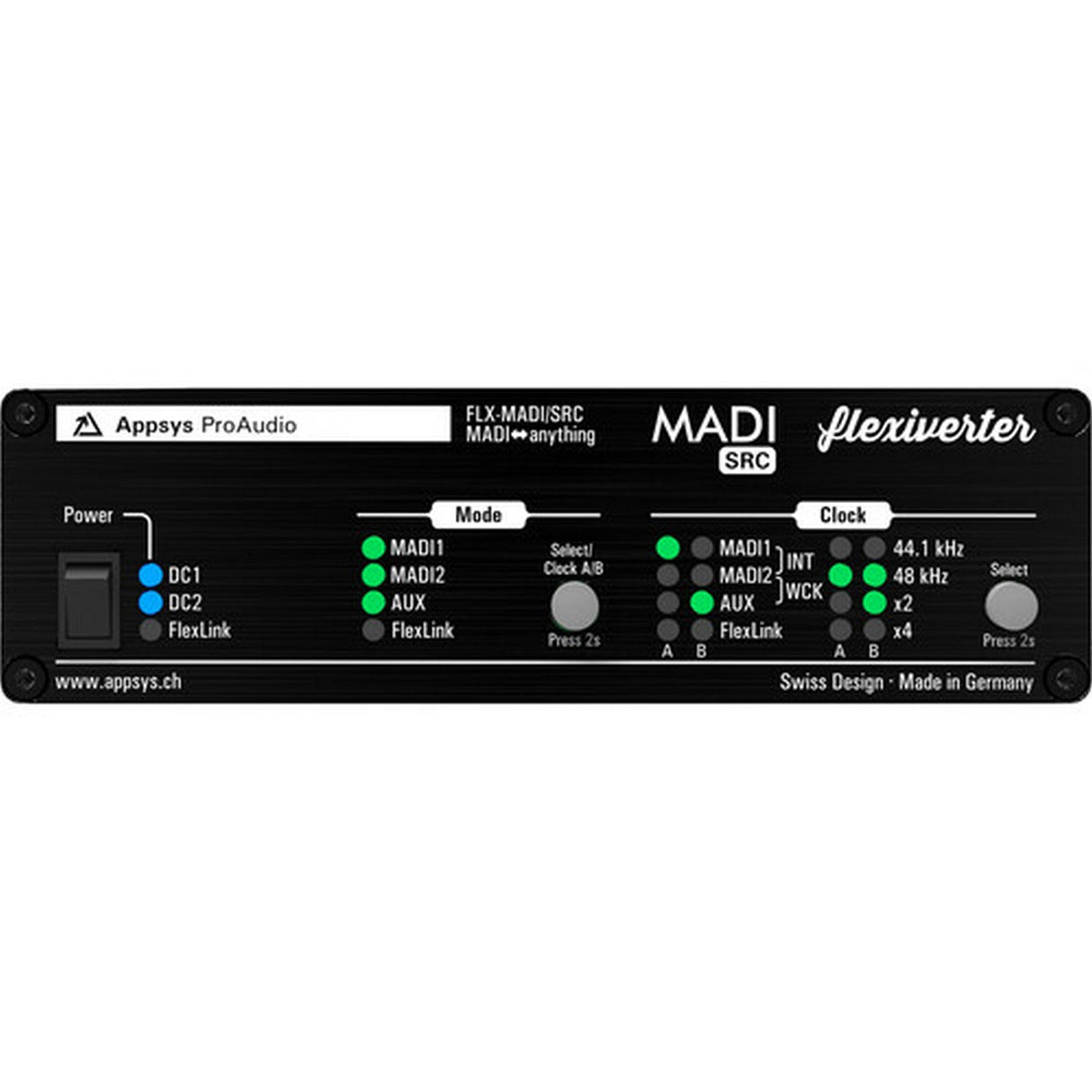

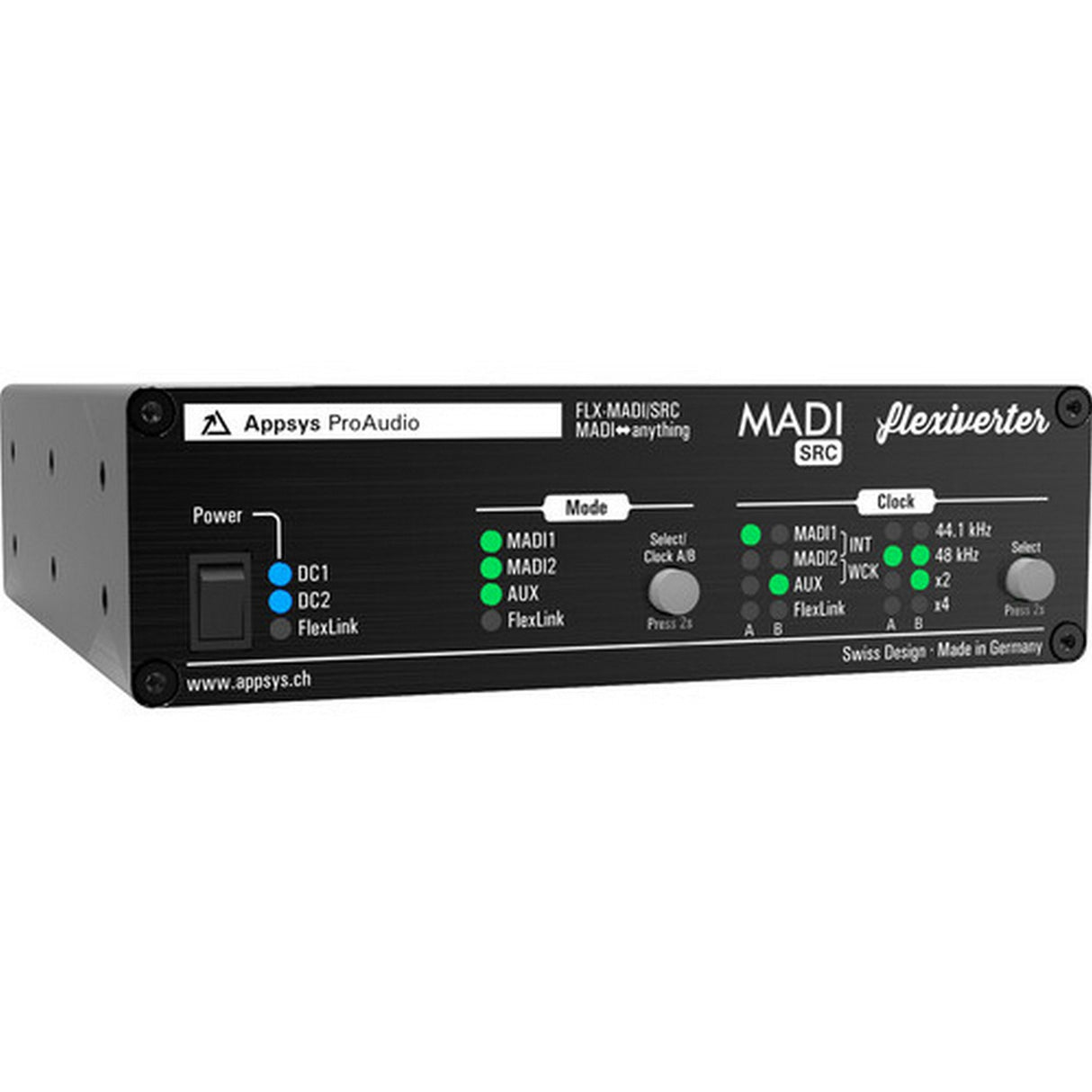

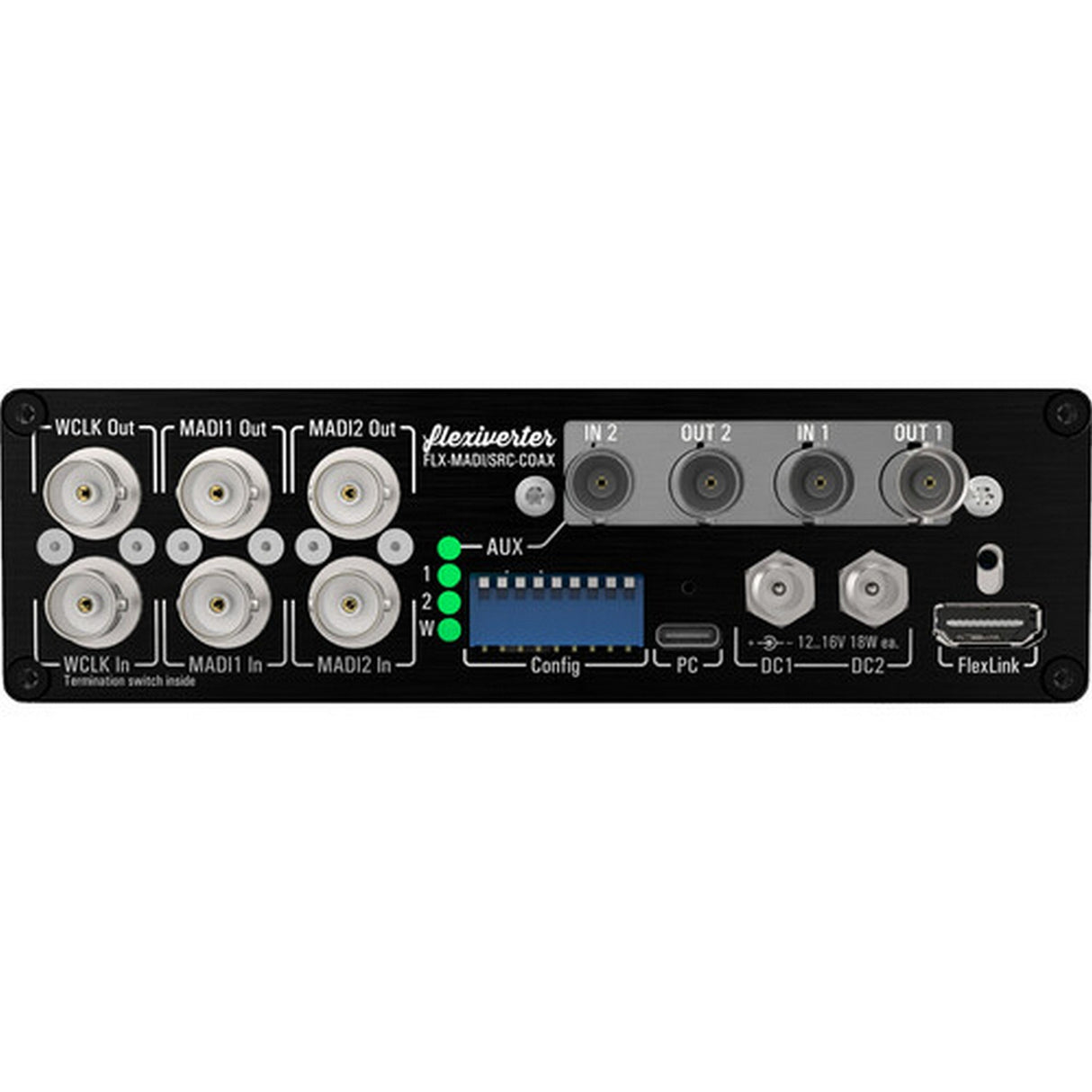

Appsys ProAudio Flexiverter FLX-MADI/SRC-COAX MADI Converter with SRC
The Appsys ProAudio FLX-MADI/SRC-COAX MADI Converter is a compact digital audio converter for coaxial MADI systems that need sample rate conversion, clock-domain separation, and format expansion. It converts 64x64 channels of MADI, even at 96 kHz, to supported protocols through an installed AUX card.
Built for broadcast, live production, studio, and installed audio networks, this MADI coaxial converter helps engineers bridge digital audio formats without replacing existing infrastructure. Use it to buy a MADI converter with SRC, connect coaxial MADI to Dante through an appropriate AUX card, or expand a Flexiverter system for scalable routing.
The FLX-MADI/SRC-COAX supports professional synchronization with built-in word clock input and output, USB remote control, and a FlexLink port for low-latency transfer of audio, clock, and power. Its 64x64-channel bidirectional SRC can be bypassed when sample rate conversion is not required.
Key Features
- Coaxial MADI Conversion: Converts coaxial MADI signals to supported formats through the AUX expansion slot.
- 64x64-Channel SRC: Built-in bidirectional sample rate conversion supports complex digital audio systems.
- Dual Coaxial MADI Ports: Includes two MADI coaxial ports with 2 inputs and 2 outputs for flexible MADI I/O.
- Wide Sample Rate Support: Supports sample rates from 44.1 to 192 kHz on either side of the converter.
- MADI Bridge Operation: Works with compatible AUX cards for MADI-to-MADI bridging with full network and clock-domain separation.
- FlexLink Expansion: Transfers up to 192 channels of audio, clock, and power with low latency.
- USB Remote Control: Provides browser-based USB control with no software required, plus UART command-line access.
- Redundant Power Design: Triple-redundant power supply support helps maintain reliability in critical environments.
Technical Specifications
- Product Type: MADI-to-anything digital audio converter with sample rate conversion
- Model: FLX-MADI/SRC-COAX
- Built-In Audio Format: Coaxial MADI
- MADI Ports: 2 x coaxial MADI ports with 2 inputs and 2 outputs
- Digital Audio I/O: BNC coaxial MADI input and output
- Sample Rate Conversion: 64x64-channel bidirectional SRC, bypassable
- MADI Conversion Capacity: 64x64 channels, including at 96 kHz
- Maximum Sampling Rate: 192 kHz / 24-bit
- Supported Sample Rates: 44.1 to 192 kHz
- Sample Rate Conversion Processing: On all inputs
- Dynamic Range: Greater than 134 dB
- THD+N: Greater than 120 dB
- Word Clock I/O: 1 x BNC word clock input; 1 x BNC word clock output
- Sync Sources: MADI and word clock
- Expansion: AUX port for compatible format cards
- Expansion Slot: 1 x network I/O slot
- FlexLink: Bidirectional transfer of up to 192 channels of audio, clock, and power
- Host Connection: 1 x USB-C
- Remote Control: USB browser-based remote control or UART command line
- OS Compatibility: Windows and macOS
- Analog Audio I/O: No
- Microphone Inputs: No mic inputs
- Display: No
- Network I/O: No
- MIDI I/O: No
- Wireless: No
- Power Requirements: DC input, 12 to 18 VDC
- Power Consumption: 18 W
- Form Factor: Desktop; rack-mountable with optional hardware
- Rackmount Size: 1U half-rack with optional hardware
- Operating Conditions: 32 to 131°F / 0 to 55°C
- Storage Conditions: -40 to 185°F / -40 to 85°C
What's Included
- Appsys ProAudio FLX-MADI/SRC-COAX Converter
