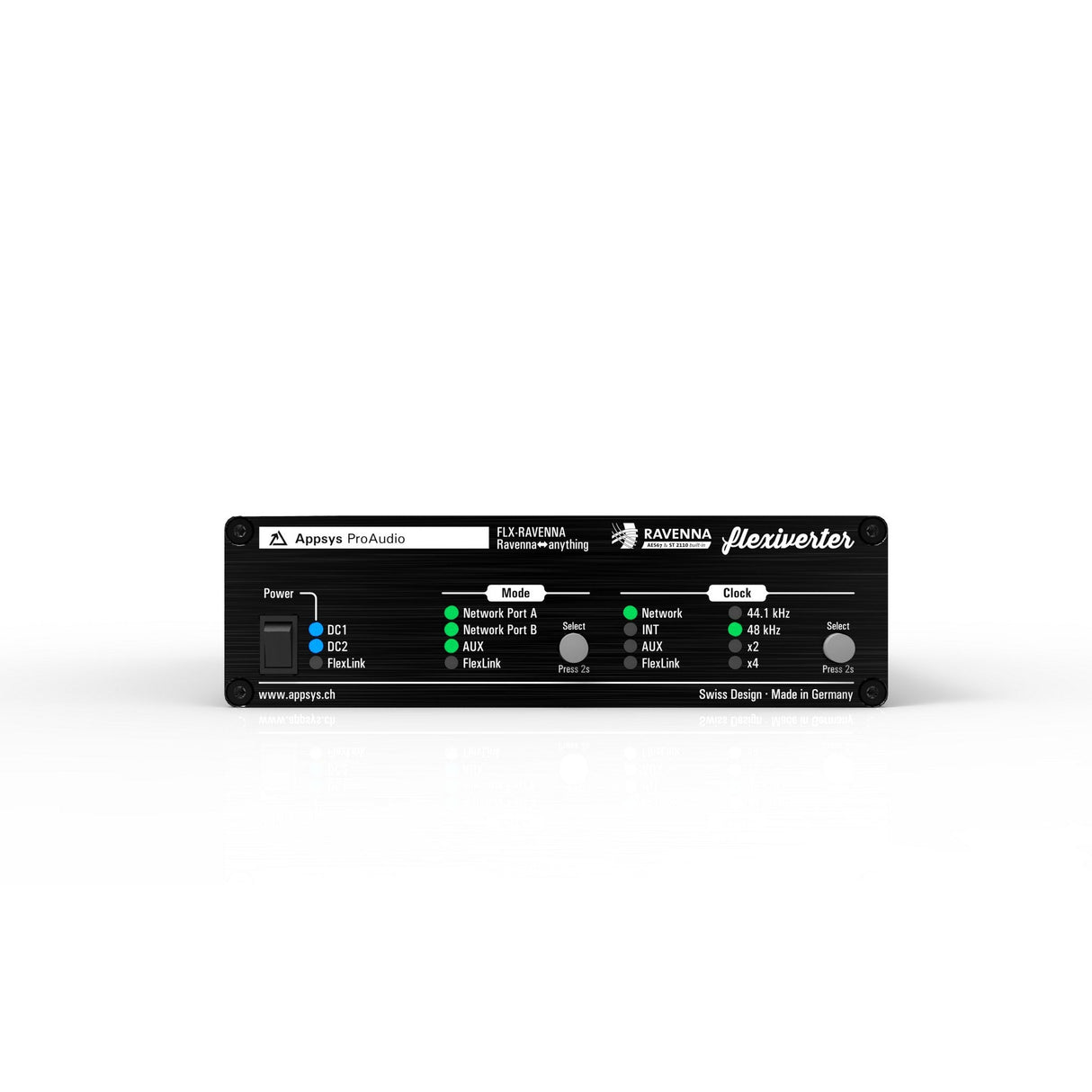

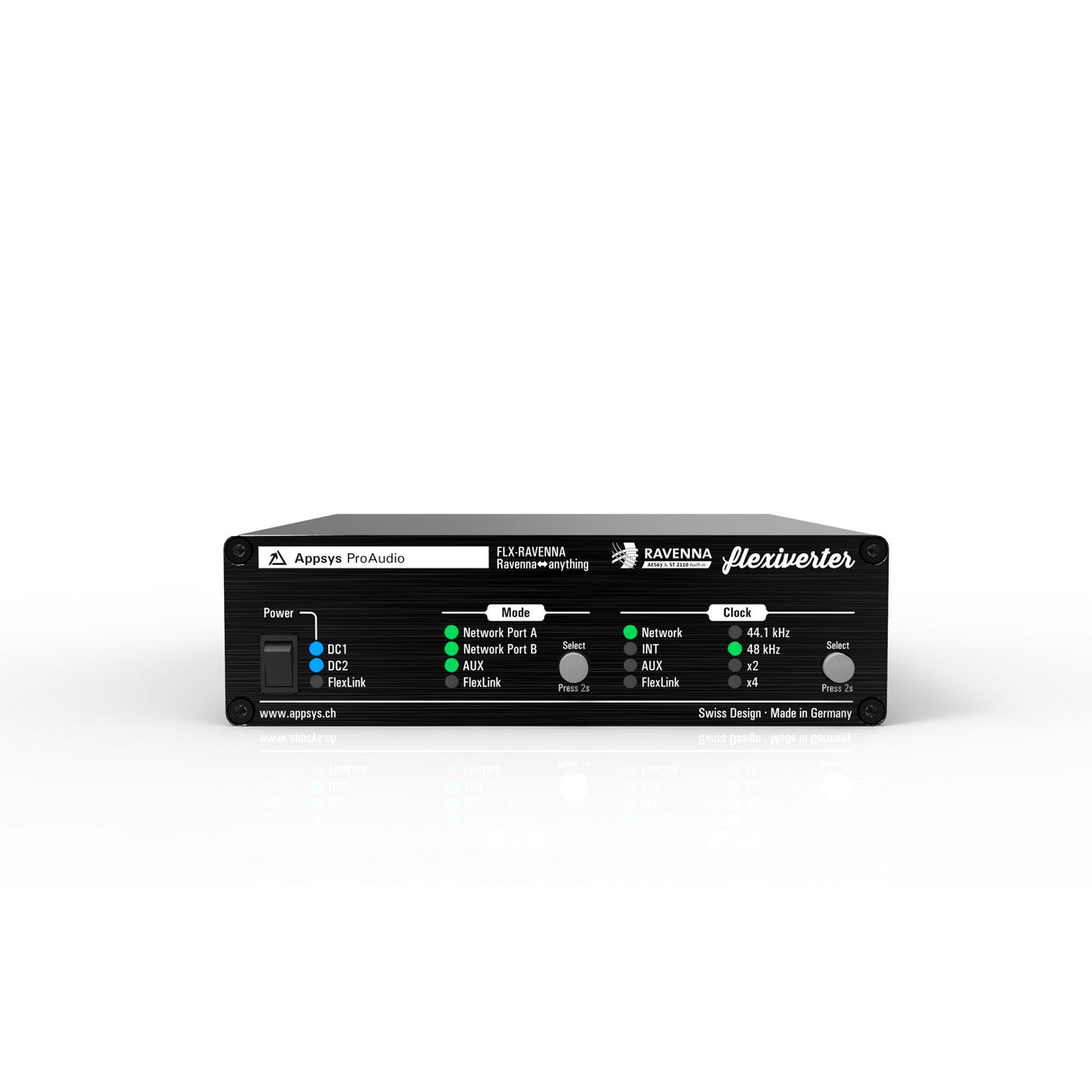

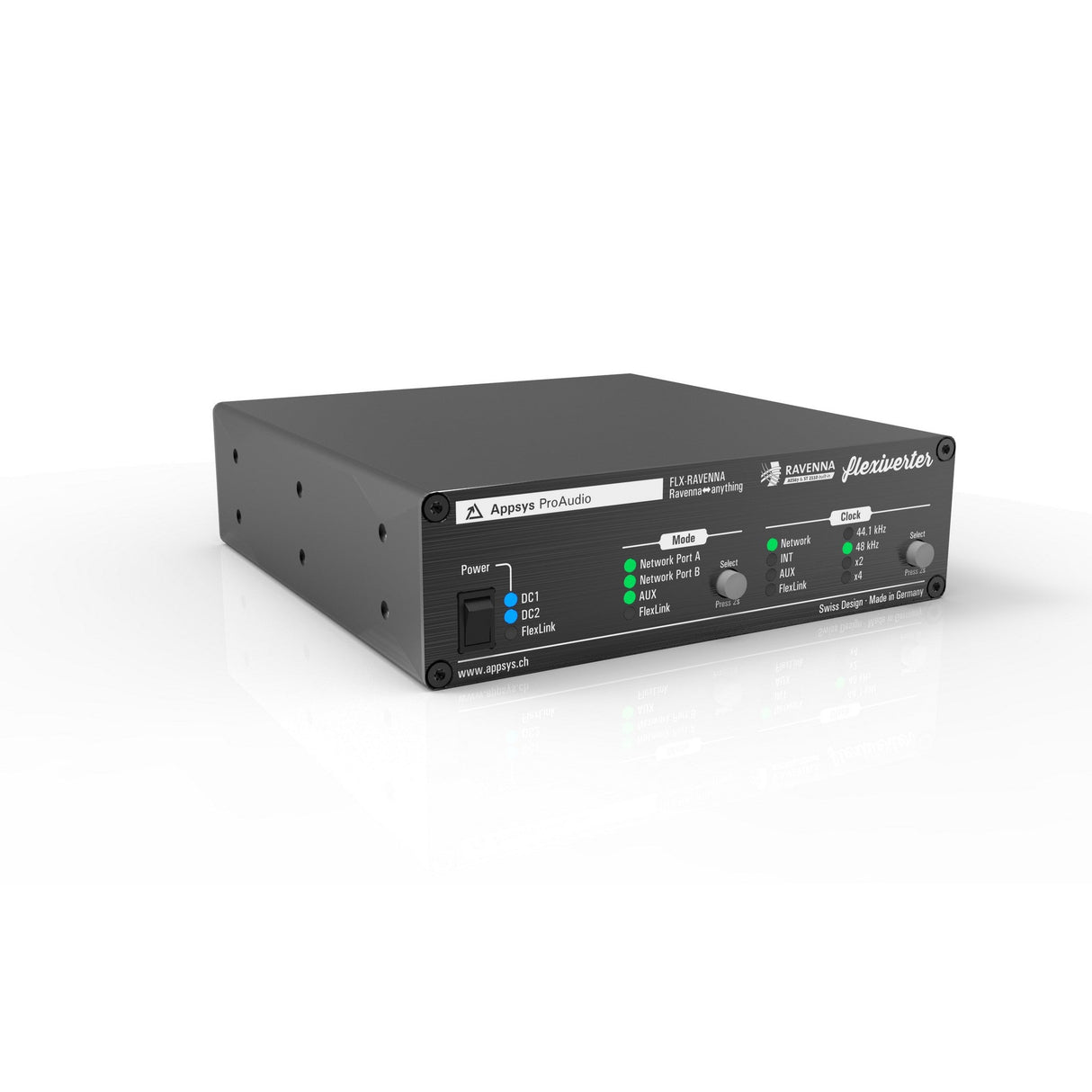

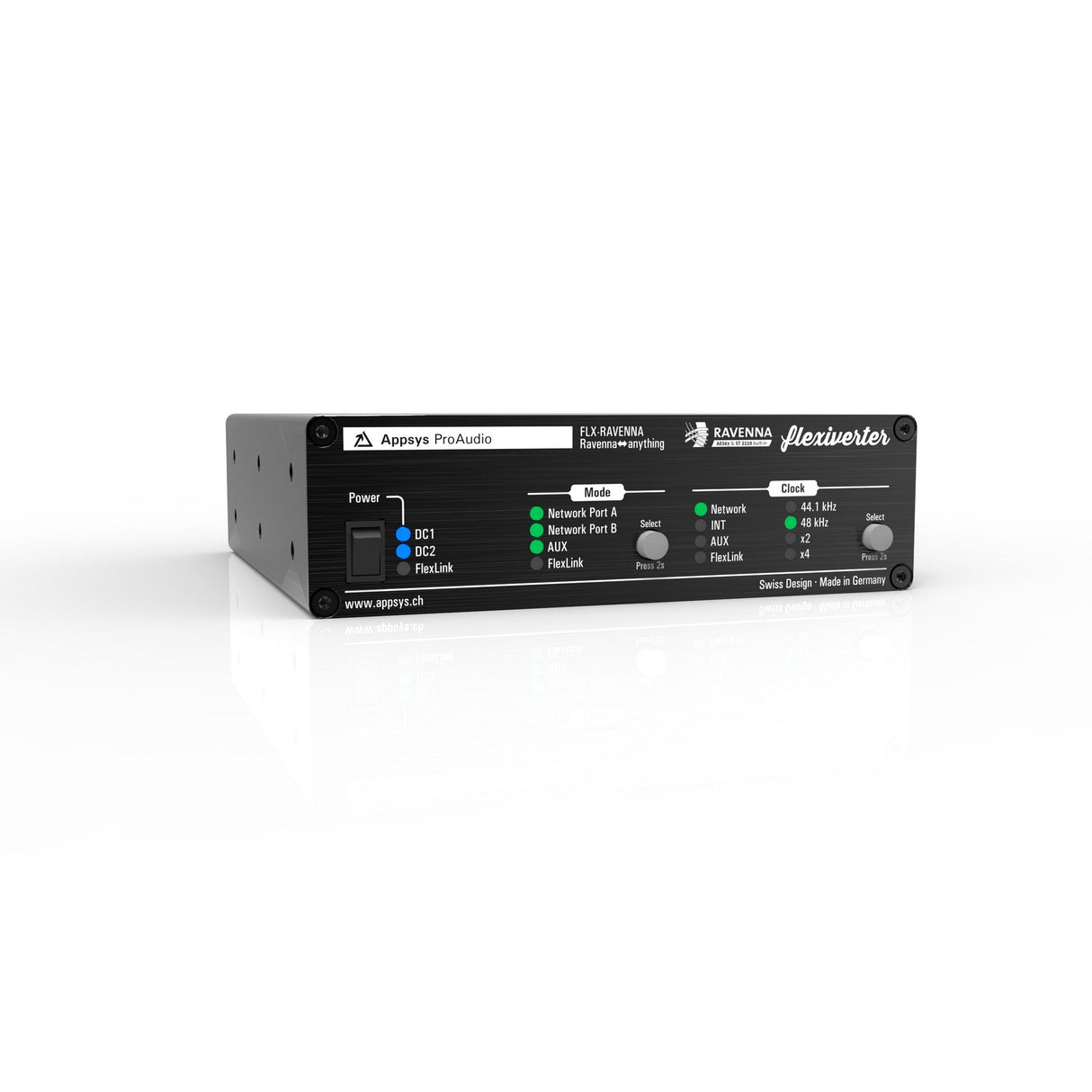

Appsys ProAudio Flexiverter FLX-RAVENNA RAVENNA Converter
The Appsys ProAudio FLX-RAVENNA RAVENNA Converter is a compact RAVENNA-to-anything converter for professional networked audio workflows. It features a built-in 64x64-channel RAVENNA port that converts to any compatible protocol installed in the AUX slot, supporting flexible integration across broadcast, studio, and live production systems.
Built for engineers who need to buy a RAVENNA converter for IP audio routing, the FLX-RAVENNA helps connect RAVENNA, ST2110, AES67, and other supported digital audio formats through the Flexiverter platform. It is ideal for broadcast facilities, live sound racks, installed AV systems, and scalable audio networks that require compact format conversion.
The FLX-RAVENNA uses the proven Merging/Sennheiser ZMAN module and provides two RAVENNA ports on EtherCON connectors. Its AUX port accepts compatible AUX cards as a conversion source or destination, while FlexLink enables low-latency bidirectional transfer of audio, clock, and power for larger Appsys systems.
Key Features
- RAVENNA Conversion: Converts a built-in 64x64-channel RAVENNA port to any compatible protocol installed in the AUX slot.
- ST2110 and AES67 Support: Built-in IP audio compatibility supports modern broadcast and networked audio workflows.

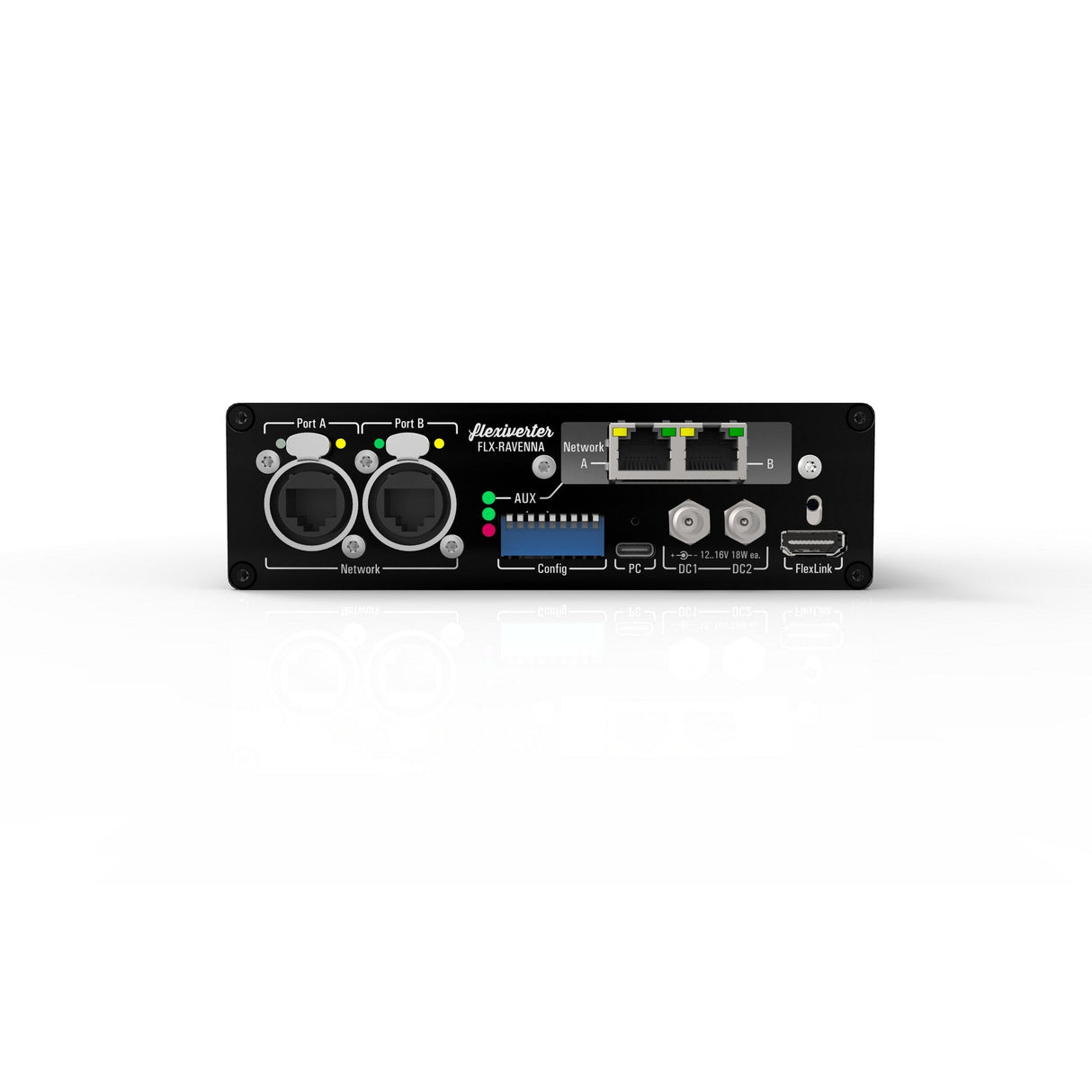

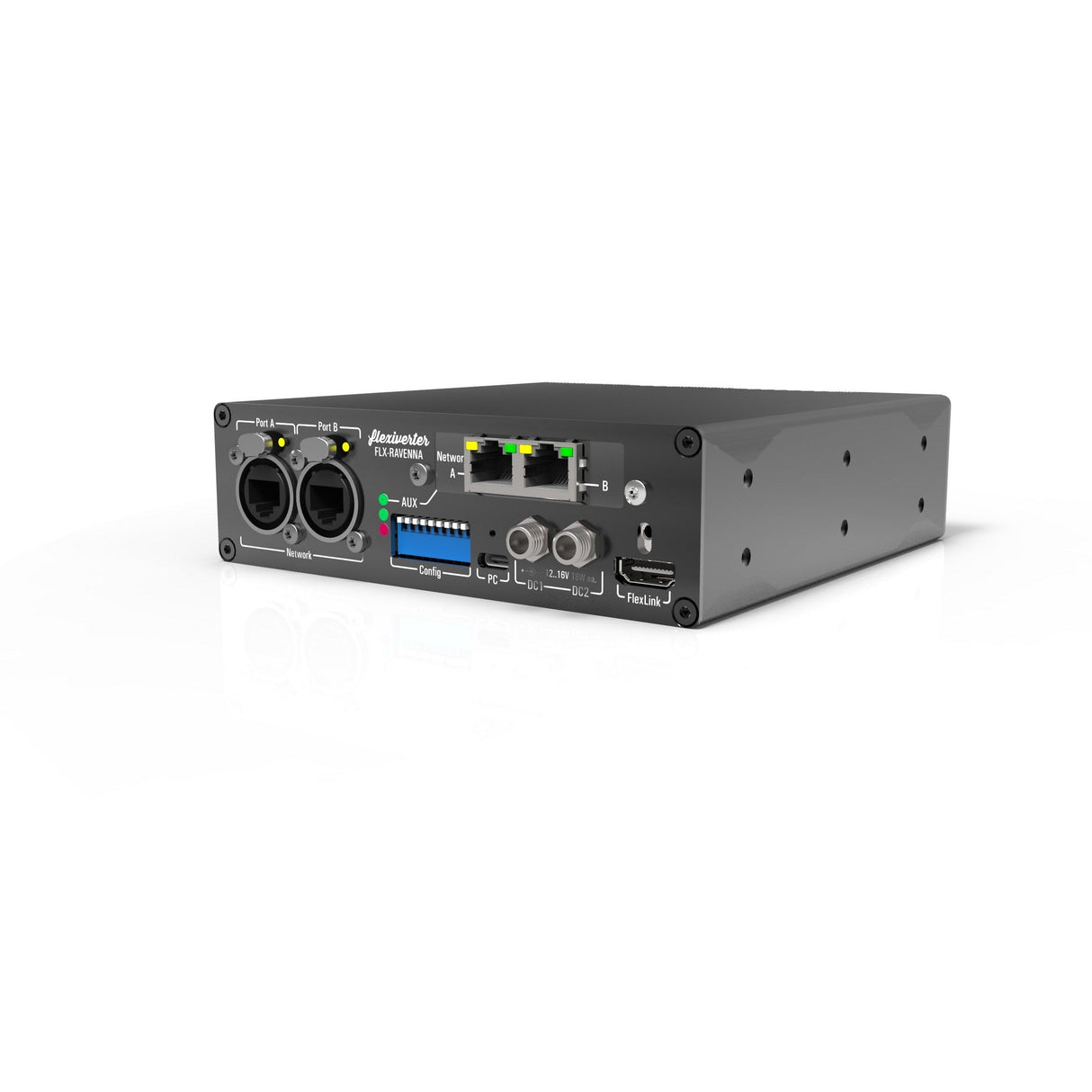

- Dual EtherCON Ports: Two RAVENNA ports on rugged EtherCON connectors provide professional network connectivity.
- ZMAN Module Platform: Based on the proven Merging/Sennheiser ZMAN module for reliable RAVENNA operation.
- AUX Card Expansion: Accepts compatible AUX cards as conversion sources or destinations for flexible format support.
- Wide Sample Rate Support: Supports sample rates from 44.1 to 192 kHz for professional digital audio systems.
- FlexLink Port: Provides low-latency bidirectional transfer of 192 channels of audio, clock, and power.
- USB Remote Control: Offers browser-based USB remote control with no software required, plus UART command-line access.
Technical Specifications
- Product Type: RAVENNA-to-anything digital audio converter
- Model: FLX-RAVENNA
- Built-In Audio Format: RAVENNA
- Network Audio Support: RAVENNA, ST2110, AES67
- RAVENNA Channel Count: 64x64 channels
- RAVENNA Ports: 2 x EtherCON ports
- Module Platform: Merging/Sennheiser ZMAN module
- Supported Sample Rates: 44.1 to 192 kHz
- Expansion: AUX port accepts compatible AUX cards as conversion source or destination
- FlexLink: Bidirectional transfer of 192 channels of audio, clock, and power
- MVR-64 Integration: Built-in channels and AUX card channels are available on the FlexLink port for use as an MVR-64 extension
- Flexiverter Integration: Built-in channels and AUX card channels are available on the FlexLink port for use as another Flexiverter extension
- Multiverter Integration: Supports true channel-wise routing of all available channels when connected to the Multiverter
- Sample Rate Conversion with Multiverter: Supports sample rate conversion using the SRC-64 when connected to the Multiverter
- Remote Control: USB web remote or UART command line
- Power Supply: Triple-redundant power supply support
