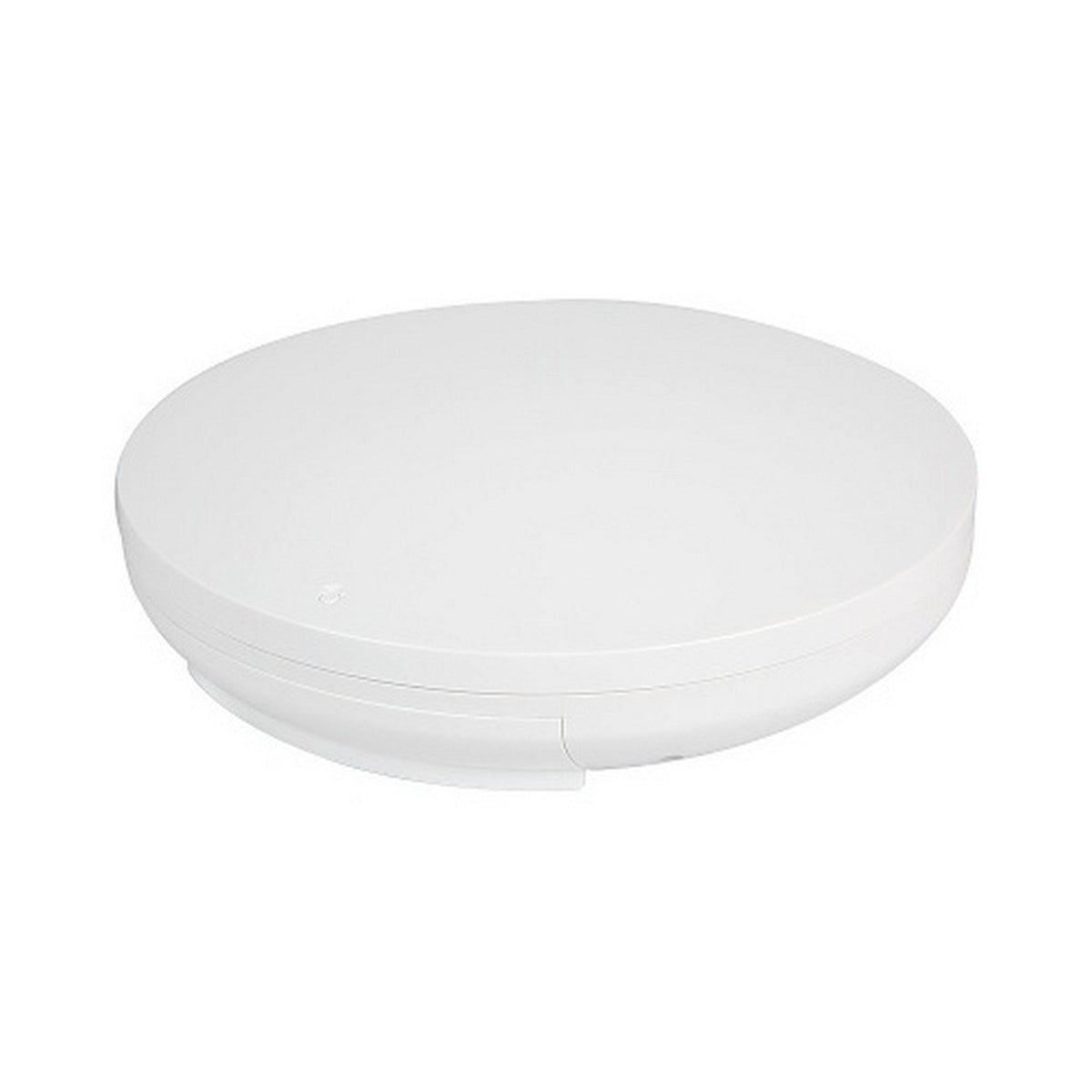

Araknis Networks AN-520-AP-I AX3000 Wi-Fi 6 Indoor Wireless Access Point

Araknis Networks AN-520-AP-I AX3000 Wi-Fi 6 Indoor Wireless Access Point

The Araknis Networks AN-520-AP-I AX3000 Wi-Fi 6 Indoor Wireless Access Point delivers high-speed dual-band wireless networking for residential and commercial installations. Featuring 2x2 MU-MIMO technology, theoretical wireless speeds approaching 3000 Mbps, and a 2.5 Gigabit Ethernet uplink, this 520 Series access point supports demanding connected environments. Integrated OvrC cloud management enables remote configuration, monitoring, and troubleshooting.

Designed for professional network installers, AV integrators, smart homes, and commercial facilities, the AN-520-AP-I combines Wi-Fi 6 performance with advanced wireless traffic management. Orthogonal Frequency-Division Multiple Access (OFDMA) enables efficient communication with multiple connected devices, while multi-user MIMO improves simultaneous wireless transmission. The access point supports maximum theoretical link speeds of 574 Mbps on 2.4 GHz and 2400 Mbps on 5 GHz using 160 MHz channel bandwidth. Its 2.5GbE uplink accommodates multi-gigabit wired connections, while a secondary Gigabit Ethernet port provides additional wired connectivity. Whether expanding wireless coverage in a large residence, supporting connected devices in a commercial office, or deploying multiple managed access points, the 520 Series offers flexible networking capabilities.

The Araknis 520 Series integrates with OvrC cloud management for remote network configuration, diagnostics, and optimization. Advanced wireless features include automated channel selection, Dynamic Frequency Selection (DFS), band steering, WPA3 security, and IEEE 802.11r/k/v fast roaming. The access point supports up to 254 wireless clients and multiple configurable service set identifiers (SSIDs) for separating network traffic. Its compact circular enclosure supports ceiling installation and compatible optional in-ceiling mounting accessories. Power over Ethernet simplifies deployment through a single network connection, while a separate 12V DC input provides an alternative power option.

Key Features

• AX3000 Wi-Fi 6 Performance: Supports combined theoretical wireless link speeds approaching 3000 Mbps across the 2.4 GHz and 5 GHz frequency bands for high-bandwidth residential and commercial networking.
• 2x2 MU-MIMO Technology: Uses two spatial streams per wireless band to improve communication efficiency when serving multiple compatible devices simultaneously.
• 2.5 Gigabit Ethernet Uplink: Features a multi-gigabit RJ45 connection for high-speed wired network connectivity and Power over Ethernet input.
• Dual Ethernet Connectivity: Provides a secondary Gigabit Ethernet port for connecting compatible wired networking equipment without requiring an additional dedicated cable run.
• OvrC Cloud Management: Enables authorized installers to remotely configure, monitor, optimize, and troubleshoot wireless network installations through compatible web and mobile management tools.
• Automated Wireless Optimization: Supports intelligent channel selection and RF optimization tools to help identify interference and improve wireless network configuration.
• Wireless Bridge Mode: Supports compatible wireless bridging applications to extend network connectivity between locations where installing additional Ethernet cabling is impractical.
• Flexible Indoor Installation: Features a compact circular design with ceiling mounting support and compatibility with optional Araknis in-ceiling mounting brackets.

Technical Specifications

General Specifications

• Brand: Araknis Networks
• Model: AN-520-AP-I
• Distributor Part Number: V6-AN520API
• Product Series: 520 Series
• Product Type: Indoor Wireless Access Point
• Wireless Generation: Wi-Fi 6
• Wireless Performance Class: AX3000
• Installation Environment: Indoor
• Country of Origin: Taiwan

Wireless Network Specifications

• Wireless Standards: IEEE 802.11a/b/g/n/ac/ax
• Wireless Technology: Wi-Fi 6 (802.11ax)
• Wireless Frequency Bands: 2.4 GHz and 5 GHz
• Wireless Configuration: Dual-Band 2x2 MIMO
• SU-MIMO: 2x2
• MU-MIMO: 2x2
• Spatial Streams: 2 per Band
• Maximum Combined Theoretical PHY Rate: Approximately 3000 Mbps
• Maximum 2.4 GHz PHY Rate: 574 Mbps
• Maximum 5 GHz PHY Rate: 2400 Mbps at 160 MHz
• Maximum 5 GHz PHY Rate at 80 MHz: 1200 Mbps
• Measured 2.4 GHz Throughput: 425 Mbps
• Measured 5 GHz Throughput: 1700 Mbps
• Supported Channel Bandwidths: 20, 40, 80, and 160 MHz
• Maximum Modulation: 1024-QAM
• OFDMA: Uplink and Downlink
• Transmit Beamforming: Supported
• BSS Coloring: Supported
• Target Wake Time: Supported
• Fast Roaming: IEEE 802.11r/k/v
• Band Steering: Supported
• Dynamic Frequency Selection: Supported
• Maximum Wireless Clients: 254 per Access Point
• Maximum SSIDs: Up to 18 per Access Point

RF and Antenna Specifications

• Antenna Type: Integrated Omnidirectional
• Antenna Configuration: 2x2
• 2.4 GHz Antenna Gain: Up to 3 dBi
• 5 GHz Antenna Gain: Up to 3 dBi
• Maximum 2.4 GHz Transmit Power: 25 dBm
• Maximum 5 GHz Transmit Power: 26 dBm
• 2.4 GHz Frequency Range: 2.4-2.484 GHz
• 5 GHz Frequency Bands: 5.15-5.25 GHz, 5.25-5.35 GHz, 5.47-5.725 GHz, and 5.725-5.85 GHz
• 2.4 GHz Wireless Channels: 1-13, Subject to Regional Regulations
• 5 GHz Wireless Channels: 36-64, 100-144, and 149-165, Subject to Regional Regulations

Ethernet Connectivity

• Ethernet Port Quantity: 2
• Primary Ethernet Port: 1 x 2.5G BASE-T RJ45
• Secondary Ethernet Port: 1 x 1G BASE-T RJ45
• Primary Ethernet Function: Network Uplink and PoE Input
• Secondary Ethernet Function: Gigabit Data Connection Only
• Power over Ethernet: Supported
• PoE Input Standards: IEEE 802.3af and IEEE 802.3at
• Recommended Power Standard: IEEE 802.3at PoE+ for Full Functionality
• 802.3af Operation: Limited Functionality
• PoE Output: Not Supported
• Alternative Power Input: 12V DC, 4A

Network Management and Security

• Cloud Management: OvrC
• Management Interfaces: Compatible OvrC Web and Mobile Applications
• Primary Operation Mode: Access Point
• Wireless Bridge Functionality: Supported Through Compatible OvrC Management
• Automatic Channel Selection: Supported
• Network Protocol: IPv4
• VLAN Support: IEEE 802.1Q, One VLAN per BSSID
• 802.1X: Supplicant
• Wireless Security: WPA, WPA2, WPA3, and WPA3-SAE
• MAC Address Filtering: Supported
• Hidden SSID: Supported
• Guest Network: Supported
• SNMP: Versions 2 and 3
• Spanning Tree Protocol: Supported
• Wireless Client Isolation: Supported
• Layer 2 Access Control Lists: Supported
• Bandwidth Rate Limiting: Supported
• Wireless Scheduling: Supported
• Maximum Client Limit Configuration: Supported
• Site Survey: Supported
• Channel Utilization Monitoring: Supported
• Device Fingerprinting: Supported Through OvrC
• Control System Compatibility: Control4

Power Specifications

• Power Sources: Power over Ethernet or 12V DC
• DC Power Requirement: 12V DC, 4A
• PoE+ Power Requirement: IEEE 802.3at, 30W Power Source
• 802.3af Operation: Reduced Functionality
• Maximum DC Power Consumption: 14.45W
• Maximum PoE+ Power Consumption: 15.28W
• Maximum 802.3af Power Consumption: 12.26W in Reduced-Function Mode

Physical Specifications

• Dimensions (L x W x H): 7.3" x 7.3" x 1.6"
• Weight: 1.3 lb
• Enclosure Design: Circular, Low-Profile
• Antenna Construction: Internal Omnidirectional
• Mounting Options: Ceiling Mounting
• Included Mounting Hardware: Ceiling and Surface Mounting Components
• Optional In-Ceiling Mount Compatibility: Compatible Araknis In-Ceiling Mounting Bracket
• Factory Reset: Integrated Reset Button

Environmental Specifications

• Operating Temperature: 32 to 122 Degrees Fahrenheit
• Storage Temperature: -4 to 140 Degrees Fahrenheit
• Operating Humidity: Up to 90% Non-Condensing
• Installation Environment: Indoor

Certifications and Warranty

• Wi-Fi Certification: Wi-Fi 6 CERTIFIED
• Wi-Fi Multimedia: WMM
• Wi-Fi Agile Multiband: Supported
• Wireless Security Standards: WPA, WPA2, WPA3
• Regulatory Compliance: FCC DFS, IC DFS, CE DFS, AS DFS
• Safety Standards: IEC 60950-1 and IEC 62368-1 3rd Edition
• Manufacturer Warranty: 2-Year Limited Warranty

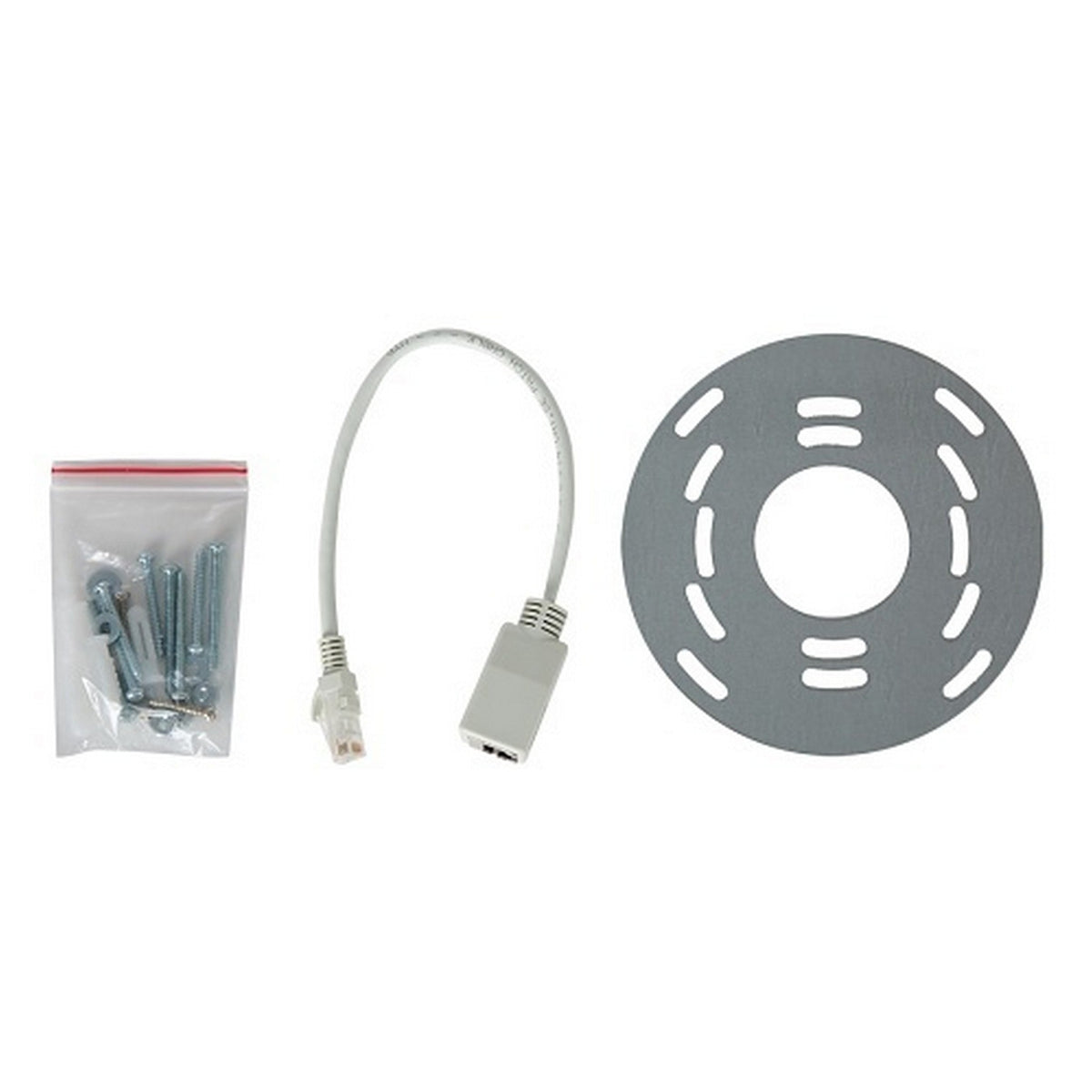

What's in the Box

• Araknis Networks AN-520-AP-I Wi-Fi 6 Indoor Wireless Access Point
• Mounting Bracket
• Ceiling Tile Backing Plate
• Quick Start Guide QR Card
• Male-to-Female Category Jumper Cable
• Ceiling Tile Mounting Hardware
• Drywall Mounting Hardware
• Wood Surface Mounting Hardware
