Araknis Networks AN-830-AP-I Wi-Fi 7 High Performance Access Point

Araknis Networks AN-830-AP-I Wi-Fi 7 High Performance Access Point

The Araknis Networks AN-830-AP-I Wi-Fi 7 High Performance Access Point is a premium tri-band indoor AP for demanding residential and light commercial networks. It delivers 2x4x4 Wi-Fi 7 performance, multi-gig throughput, ultra-low latency, expanded 6GHz spectrum, and 10G uplinks for high-density wireless installations.

Built for integrators who need a Wi-Fi 7 access point for smart homes, SMB spaces, conferencing, streaming, and connected AV systems, the AN-830-AP-I supports stronger coverage across busy environments. Its optimized RF design helps reduce dead zones while maintaining consistent performance with dozens of connected devices.

OvrC support, Wi-Fi Optimization, Proximity View, and Bridge Mode help installers deploy and manage professional networks with greater speed and confidence. WPA3 security, Wi-Fi 7 certification, backward compatibility with Araknis Wi-Fi 6 deployments, and ceiling-mount installation make it a strong choice for long-term managed wireless infrastructure.

Tri-Band Wi-Fi 7 Access Point Features

• High-Performance Wi-Fi 7: Delivers tri-band 2x4x4 wireless performance for higher throughput in demanding environments.
• Expanded 6GHz Spectrum: Uses wider 6GHz channels to reduce congestion and improve compatible next-generation device performance.
• Dual 10G Ethernet Ports: Provides 2 x 10GBASE-T RJ45 interfaces for high-speed uplink and deployment flexibility.
• OvrC Remote Management: Enables installers to monitor, configure, troubleshoot, and manage networks through a unified remote platform.
• Wi-Fi Optimization: Uses RF scanning to evaluate the wireless environment and apply optimized channel settings in minutes.
• Proximity View: Shows how access points see each other to help identify coverage gaps, overlap, and roaming issues.
• Bridge Mode: Extends wireless coverage where Ethernet wiring is not practical, with a built-in throughput test for link quality.
• Enterprise-Grade Security: Supports Open, OWE, WPA2 AES, WPA2-PSK AES, WPA3, WPA3-SAE, and WPA3-SAE Mixed security modes.

Technical Specifications

• Product Type: Indoor wireless access point
• Brand: Araknis Networks
• Model: AN-830-AP-I
• ADI Part Number: V6-AN830API
• Product Series: 830
• Application: Premium residential networks, modern homes, and light commercial networks
• Wi-Fi Generation: Wi-Fi 7
• Wireless LAN Standard: 802.11be
• Wi-Fi Standards: IEEE 802.11a/b/g/n/ac/ax/be
• Radio Design: Concurrent tri-band 2x4x4
• MIMO: 2.4GHz 2x2 SU-MIMO, 5GHz 4x4 MU-MIMO, 6GHz 4x4 MU-MIMO
• Spatial Streams: 2 streams SU-MIMO at 2.4GHz, 4 streams MU-MIMO at 5GHz, 4 streams MU-MIMO at 6GHz
• Radio Chains and Streams: 2x2:2 at 2.4GHz, 4x4:4 at 5GHz, 4x4:4 at 6GHz
• Antenna Type: Omnidirectional
• Operating Frequencies: 2.4GHz, 5GHz, 6GHz
• Frequency Bands: ISM 2.4-2.484GHz, U-NII-1 5.15-5.25GHz, U-NII-2A 5.25-5.35GHz, U-NII-2C 5.47-5.725GHz, U-NII-3 5.725-5.85GHz, U-NII-5 5.925-6.425GHz, U-NII-6 6.425-6.525GHz, U-NII-7 6.525-6.875GHz, U-NII-8 6.875-7.125GHz
• Channel Frequency: 320MHz
• Channelization: 20MHz, 40MHz, 80MHz, 160MHz, 320MHz
• Supported Channels: 2.4GHz channels 1-13, 5GHz channels 36-64, 100-144, 149-165, 6GHz channels 1-233
• Peak PHY Rates: 2.4GHz up to 650Mbps, 5GHz up to 5444.4Mbps, 6GHz up to 10888.9Mbps
• Measured Throughput: 2.4GHz 499Mbps, 5GHz 3424Mbps, 6GHz 4877Mbps
• Supported Rates: 802.11be 4 to 10888.9Mbps, 802.11ax 4 to 4803.9Mbps, 802.11ac 6.5 to 1733.3Mbps, 802.11n 6.5 to 800Mbps, 802.11a/g 6 to 54Mbps, 802.11b 1 to 11Mbps
• Frequency Modulation: 2.4GHz up to 4096-QAM, 5GHz up to 4096-QAM, 6GHz up to 4096-QAM
• OFDMA: Downlink and uplink
• Maximum Antenna Gain: 2.4GHz up to 3.76dBi, 5GHz up to 6.05dBi, 6GHz up to 6.71dBi
• Peak Transmit Power: 2.4GHz 23dBm, 5GHz 27dBm, 6GHz 25dBm
• Security: Open, OWE, WPA2 AES, WPA2-PSK AES, WPA3, WPA3-SAE, WPA3-SAE Mixed
• Encryption Standards: AES, WPA2, WPA3
• Power Save: STBC, U-APSD
• Wireless Features: WMM, TX Beamforming, 802.11r/k/v, BSS Coloring, TWT, LDPC
• Network Features: Guest Network, Hide SSID, Auto Channel Selection, MAC Address Filtering
• Operation Modes: Access Point, Bridge Mode
• OvrC Enabled: Yes
• Smart Tools: Wi-Fi Optimization, Proximity View, Bridge Mode
• VLAN Support: 802.1Q, one per BSSID
• Networking: IPv4
• Policy Management Tools: Rate limiting, L2 access control list, Wi-Fi scheduler, maximum client limit, wireless client isolation
• Management Features: Device fingerprinting through OvrC, band steering, STP, SNMP v2/v3, site survey, channel utilization
• Network Technology: 10GBase-T

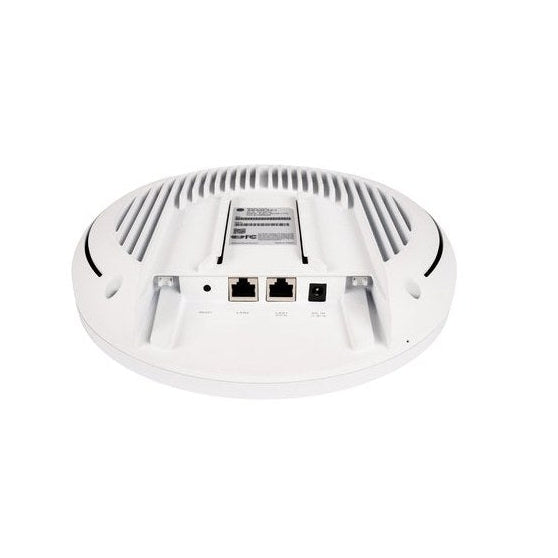

• Physical Interface: 2 x 10GBASE-T Ethernet RJ45 ports
• Ethernet: Yes
• Power over Ethernet: Yes
• PoE Standard: IEEE 802.3at/bt
• DC Power Input: 12V/4A for full functionality
• Input Voltage: 12V DC
• Maximum Power Consumption: 49.41W with 802.3bt Class 6
• DC Power Consumption: 47.7W with 12V/4A DC power
• Reduced 802.3at Mode Power Consumption: 25.05W with 2.4GHz radio 1x1, 5GHz radio 2x2, 6GHz disabled, Port 1 at 2.5Gbps, and Port 2 disabled
• Client Capacity: Up to 381 clients per access point
• SSID Capacity: Up to 26 SSIDs per access point

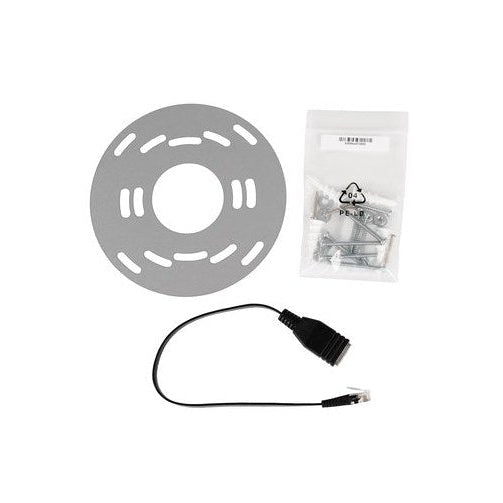

• Mounting: Ceiling mount
• Indoor/Outdoor: Indoor
• Dimensions: 9.29" x 9.29" x 1.89"
• Weight: 3.97 lbs
• Operating Temperature: 32°F to 122°F
• Operating Humidity: Up to 90% non-condensing
• Storage Temperature: -22°F to 158°F
• Certifications: Wi-Fi 7 Certified, Agile Multiband, WMM, WPA2/WPA3
• Standards Compliance: IEC 60950-1, IEC 62368-1 3rd Edition, FCC DFS, IC DFS, CE DFS, AS DFS
• Warranty: 2-Year Limited Warranty
• UPC: 842822070041
