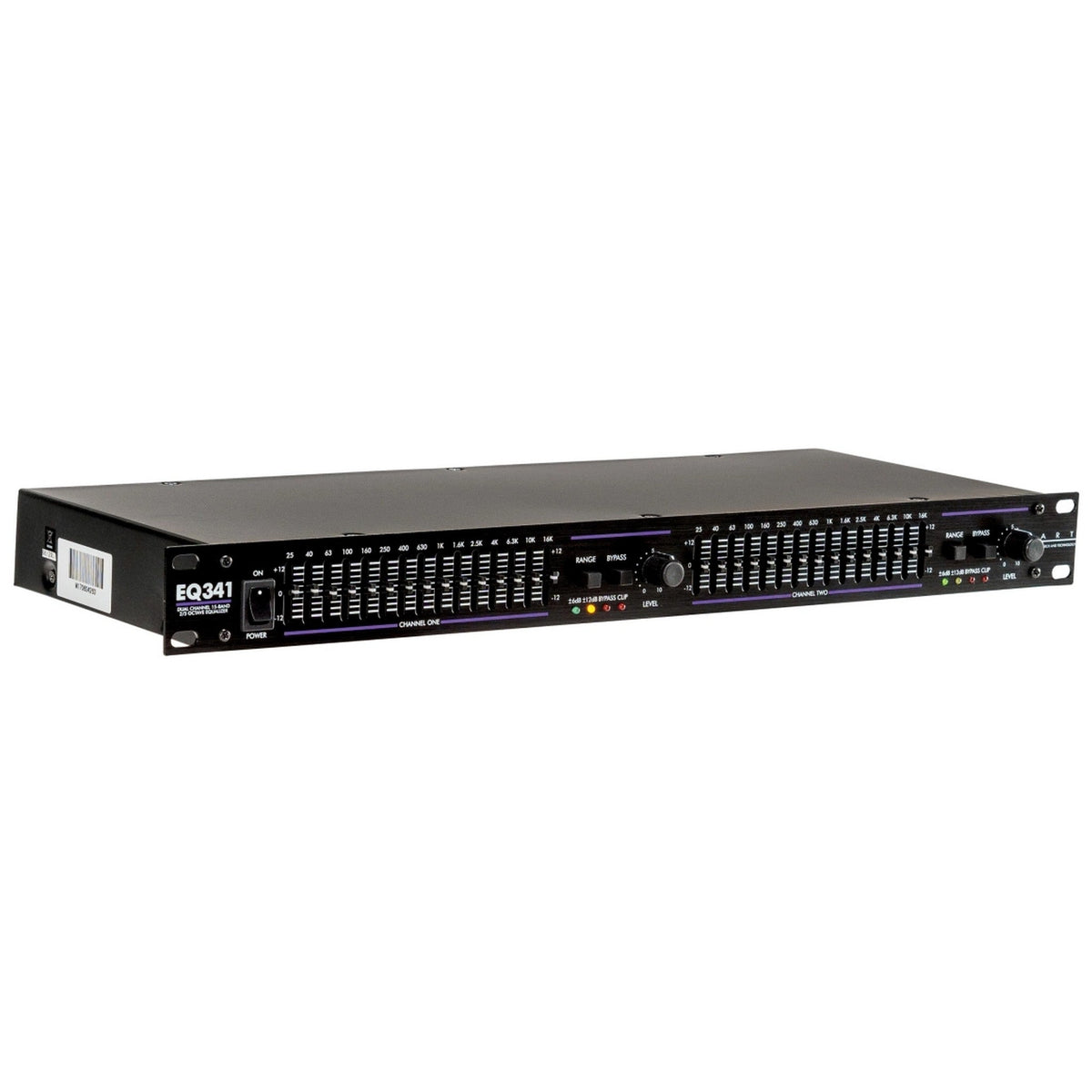

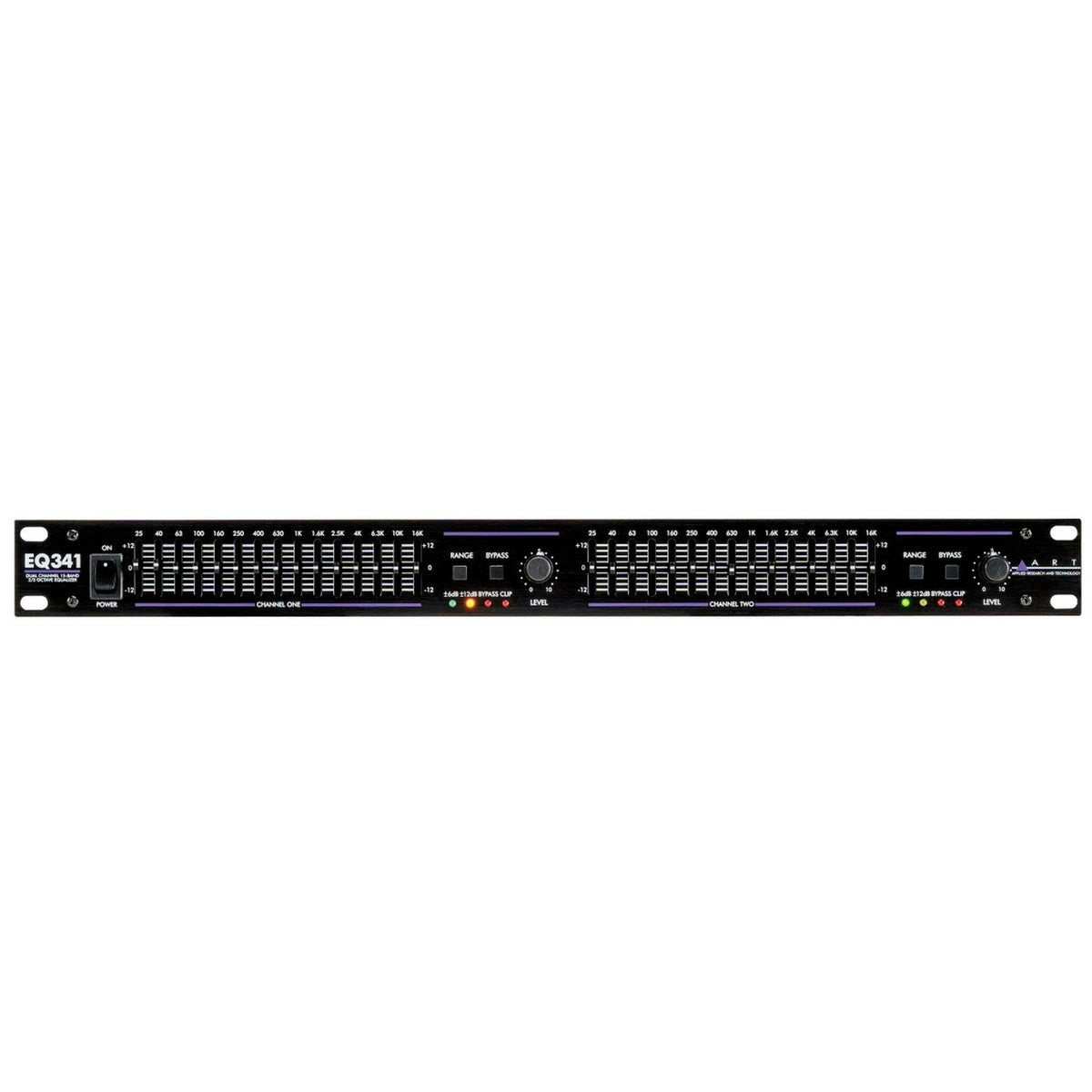

ART EQ341 Dual Channel 15-Band Graphic EQ (Used)

ART EQ341 Dual Channel 15-Band Graphic EQ

Like New: Open box product with no signs of use.

The ART EQ341 Dual 15-Band Graphic Equalizer is a versatile and precise audio processing tool designed for live sound, studio, and installation applications. This dual-channel equalizer offers intuitive sound shaping capabilities, allowing audio professionals to fine-tune their sound with exceptional accuracy. Each channel features 15 bands of equalization, providing detailed control over the audio spectrum to enhance the clarity and quality of your sound.

Engineered with user-friendly features, the EQ341 includes 20mm sliders with center detents for precise adjustments. The independently switchable boost/cut range of ±6 dB or ±12 dB per channel enables both subtle and dramatic tonal sculpting to suit various audio environments. Additionally, the master level control and bypass switch allow for quick comparisons between processed and unprocessed signals, ensuring optimal sound quality during live performances or recording sessions.

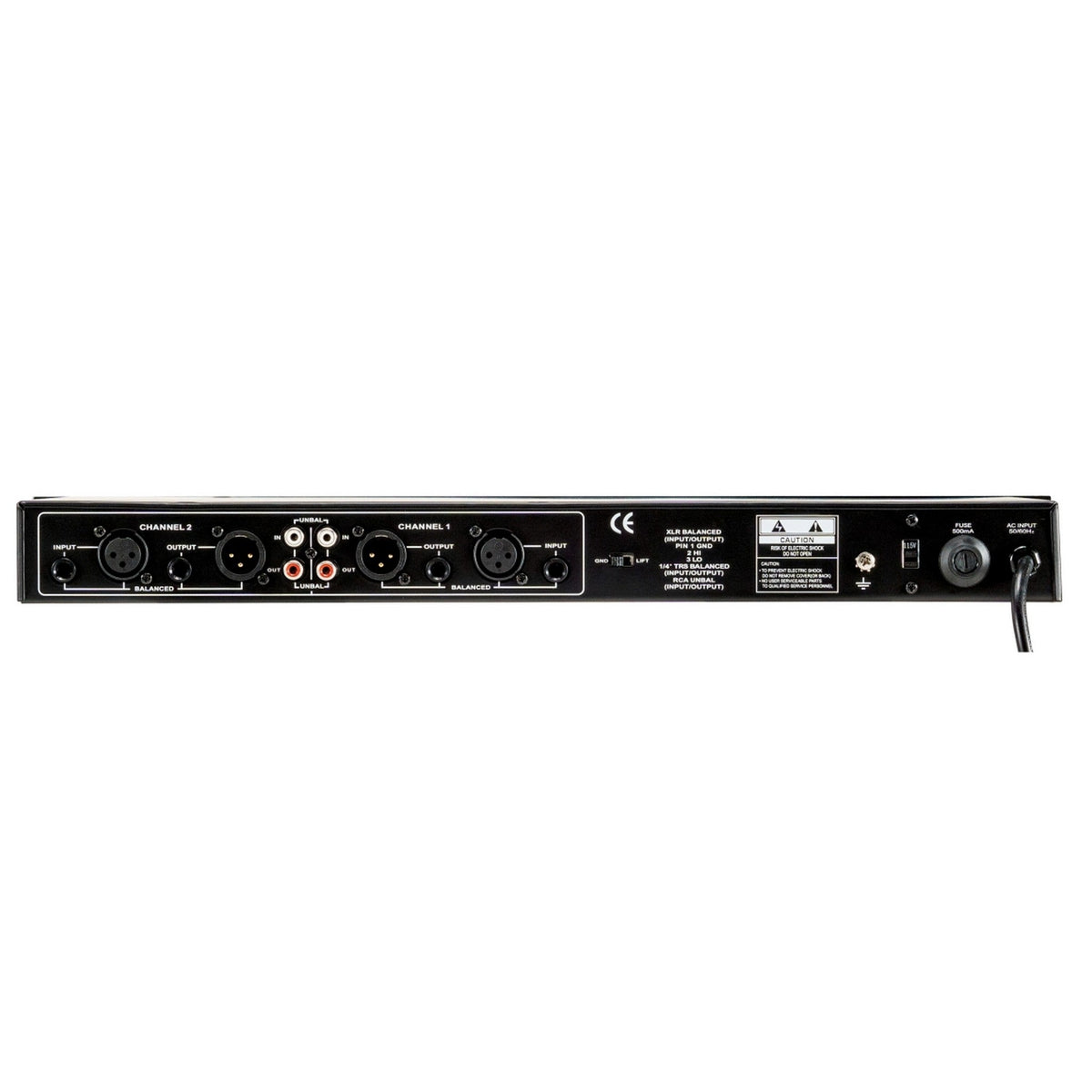

Integration into existing audio systems is seamless with the EQ341's diverse connectivity options. The rear panel is equipped with balanced XLR and 1/4" TRS inputs and outputs, as well as unbalanced RCA connectors, accommodating a wide range of audio equipment. A ground lift switch is also provided to eliminate hum and ensure silent operation, making the EQ341 a reliable choice for any professional audio setup.

Key Features

• Dual 15-Band Graphic Equalizer
• 20mm Sliders with Center Detent
• Independently Switchable ±6 dB or ±12 dB Range per Channel
• Master Level Controls
• Balanced XLR and 1/4" TRS Inputs and Outputs
• Unbalanced RCA Input and Output
• Ground Lift Switch
• 1U Rackmount Design

Technical Specifications

Channels: 2
Bands per Channel: 15 (2/3 Octave, ISO Spacing)
Accuracy: ±3% of Center Frequency
Sliders: 20 mm with Center Detent
Range: ±6 dB or ±12 dB
Inputs: 2x Balanced XLR and 1/4", 2x Unbalanced RCA
Input Impedance: 20 kΩ (Balanced), 15 kΩ (Unbalanced)
Maximum Input Level: +22 dBm (Level Control at Center)
Outputs: 2x Balanced XLR and 1/4", 2x Unbalanced RCA
Output Impedance Level: <150Ω (Typical)
Frequency Response: 20 Hz to 20 kHz (±0.5 dB)
Signal to Noise Ratio: -94 dB
Total Harmonic Distortion: 0.01%
Channel Separation: >50 dB
Overload LED Threshold: 6 dB below Clipping (All Filters Flat)
Dimensions (HWD): 1.75” x 19” x 5.5”
Weight: 4.85 lbs.

What's Included

• ART EQ341 Dual 15-Band Graphic Equalizer
• Power Cable
• User Manual
