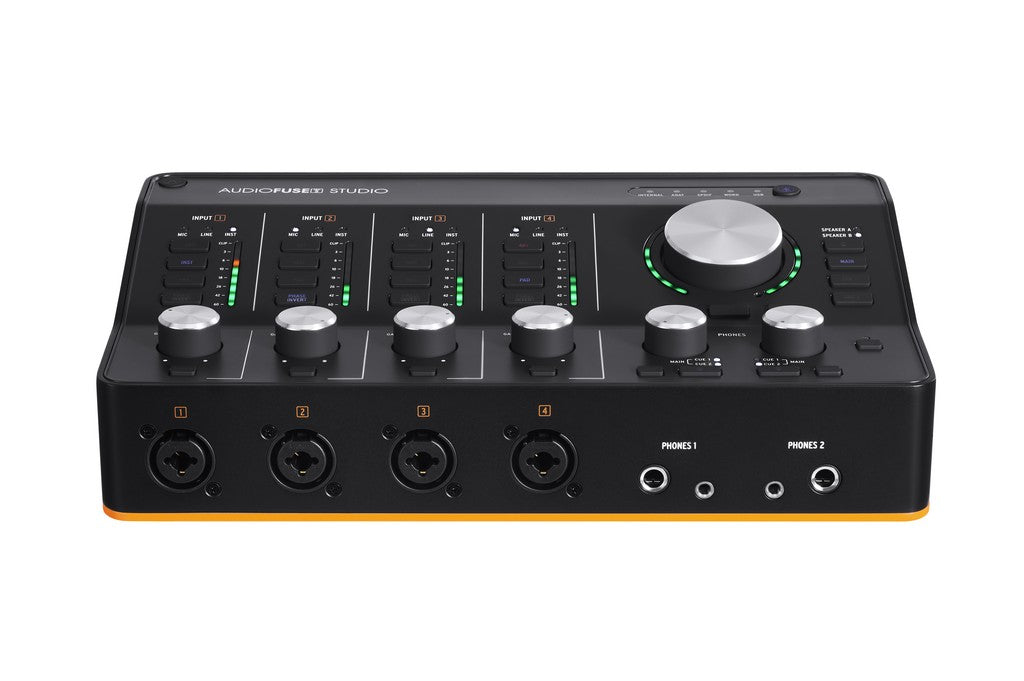

Arturia 830102 AudioFuse Studio Rev2 18x20 USB-C Audio Interface With Bluetooth

Arturia AudioFuse Studio Rev2 USB-C Audio Interface

The Arturia AudioFuse Studio Rev2 USB-C audio interface combines 18 inputs and 20 outputs with four DiscretePRO microphone preamps. It supports recording at up to 24-bit/192 kHz, Bluetooth audio reception, and direct monitoring. Eight analog inputs accommodate microphones, instruments, and line sources, while digital connections expand your recording setup.

For producers building a desktop recording studio, this interface brings instrument tracking, vinyl sampling, and monitor control together. Keep synthesizers connected through the rear line inputs, connect external processors through four analog inserts, and send recorded guitar tracks through amplifiers using dedicated reamping outputs. Independent headphone controls help you manage performer and engineer listening levels during sessions.

Mac and Windows compatibility supports established computer recording workflows, with dedicated ASIO audio drivers available for Windows. AudioFuse Control Center manages routing, monitoring, and synchronization settings. ADAT optical audio connections expand channel capacity, while S/PDIF digital audio and Word Clock support studio integration. An individual performance certificate documents unit measurements, and the included AudioFuse Creative Suite adds instruments and effects for production.

Key Features

• Four DiscretePRO preamps: Access 78 dB of typical microphone gain for recording a range of microphone sources.
• Eight analog inputs: Connect microphones, guitars, synthesizers, and turntables through dedicated input options.
• Hardware processing: Four analog inserts and two Aux/reamping outputs integrate external processors and guitar amplifiers.
• Flexible monitoring: Switch between two speaker pairs and adjust two headphone channels independently.
• Bluetooth reception: Monitor or record compatible wireless sources with AAC and aptX codec support.
• Digital expansion: Add ADAT channels and synchronize compatible equipment through digital clock connections.
• Integrated USB hub: Connect additional USB devices through three USB 2 ports.
• Production software: Explore 11 included instruments and effects in AudioFuse Creative Suite.

Technical Specifications

• Model: AudioFuse Studio Rev2
• Manufacturer part number: 830102
• Channel configuration: 18 inputs, 20 outputs
• Conversion: 24-bit analog-to-digital and digital-to-analog; up to 192 kHz
• Host connection: USB-C; USB 2.0 protocol
• Analog inputs: Four combo XLR/1/4-inch mic/line/instrument inputs; four additional 1/4-inch line inputs
• Phono input: Stereo RCA; shares channels 5-6 with line inputs; integrated RIAA phono equalization
• Analog outputs: Four monitor/line outputs; two Aux/reamping outputs
• Headphones: Two independently controlled channels with 1/4-inch and 3.5 mm sockets
• Inserts: Four 1/4-inch analog insert connections
• Phantom power: 48 V, individually selectable
• ADAT: Two optical inputs and two optical outputs; eight channels each direction at up to 96 kHz
• S/PDIF and clock: RCA input/output, shared with Word Clock input/output/thru functions
• MIDI: 3.5 mm TRS Type-A input and output
• USB hub: Three USB-A ports
• Bluetooth codecs: AAC, aptX, aptX HD, aptX Low Latency
• Monitoring controls: Speaker A/B, mono, dim, mute, direct monitoring, built-in talkback microphone
• Microphone performance: 3.4 kOhm impedance; +18 dBu maximum input; 78 dB typical gain; +17 dB boost
• Microphone noise and distortion: -129 dBu typical equivalent input noise, unweighted; 118 dB dynamic range; -107 dB THD+N, A-weighted
• Line input performance: 20 kOhm balanced/10 kOhm unbalanced; +24 dBu maximum; 45 dB typical gain; -20 dB pad; 119 dB dynamic range; -112 dB THD+N, A-weighted
• Aux line input performance: 20 kOhm balanced/10 kOhm unbalanced; +24 dBu maximum; -20 dB pad; 120 dB dynamic range; -108 dB THD+N, A-weighted
• Instrument input performance: 1.1 MOhm unbalanced; +18 dBu maximum; 45 dB typical gain; -20 dB pad; 119 dB dynamic range; -112 dB THD+N, A-weighted
• Speaker/Aux output performance: 240 Ohm balanced/120 Ohm unbalanced; +24 dBu maximum; -20 dB pad; 121 dB dynamic range; -108 dB THD+N, A-weighted
• Headphone performance: Supports 32-600 Ohm headphones; +13 dBu maximum at 1/4-inch and +10 dBu at 3.5 mm; 103 dB dynamic range; -92 dB THD+N, A-weighted
• Frequency response, 20 Hz-20 kHz: Manufacturer-listed tolerances: microphone +/-0.09 dB; line/instrument +/-0.01 dB; Aux line +/-0.02 dB; speaker/Aux outputs +/-0.07 dB
• Performance measurement method: AES17-compliant measurements using an Audio Precision APX555; analog input measurements taken at insert points
• Compatibility: macOS and Windows; USB audio class-compliant operation; dedicated Windows ASIO drivers
• Published software requirements: Windows 8.1 or later; Intel i5 or faster; 4 GB RAM; 1 GB free storage; OpenGL 2.0-compatible graphics
• Power: External AC/DC adapter, included
• Construction: Metal desktop chassis
• Dimensions: 6.3 x 10.4 x 2.9 inches (L x W x H)
• Weight: 3.5 lb
• Included software: Analog Lab Intro, Pre 1973, Pre TridA, Pre V76, Comp FET-76, Comp DIODE-609, Filter MINI, Delay TAPE-201, Rev PLATE-140, Chorus JUN-6, Phaser BI-TRON

What's In the Box

• Audio interface
• Power supply
• Two MIDI jack adapters
• USB-C to USB-A cable, 1.5 m
• USB-C to USB-C cable, 1.5 m
• Individual performance certificate
