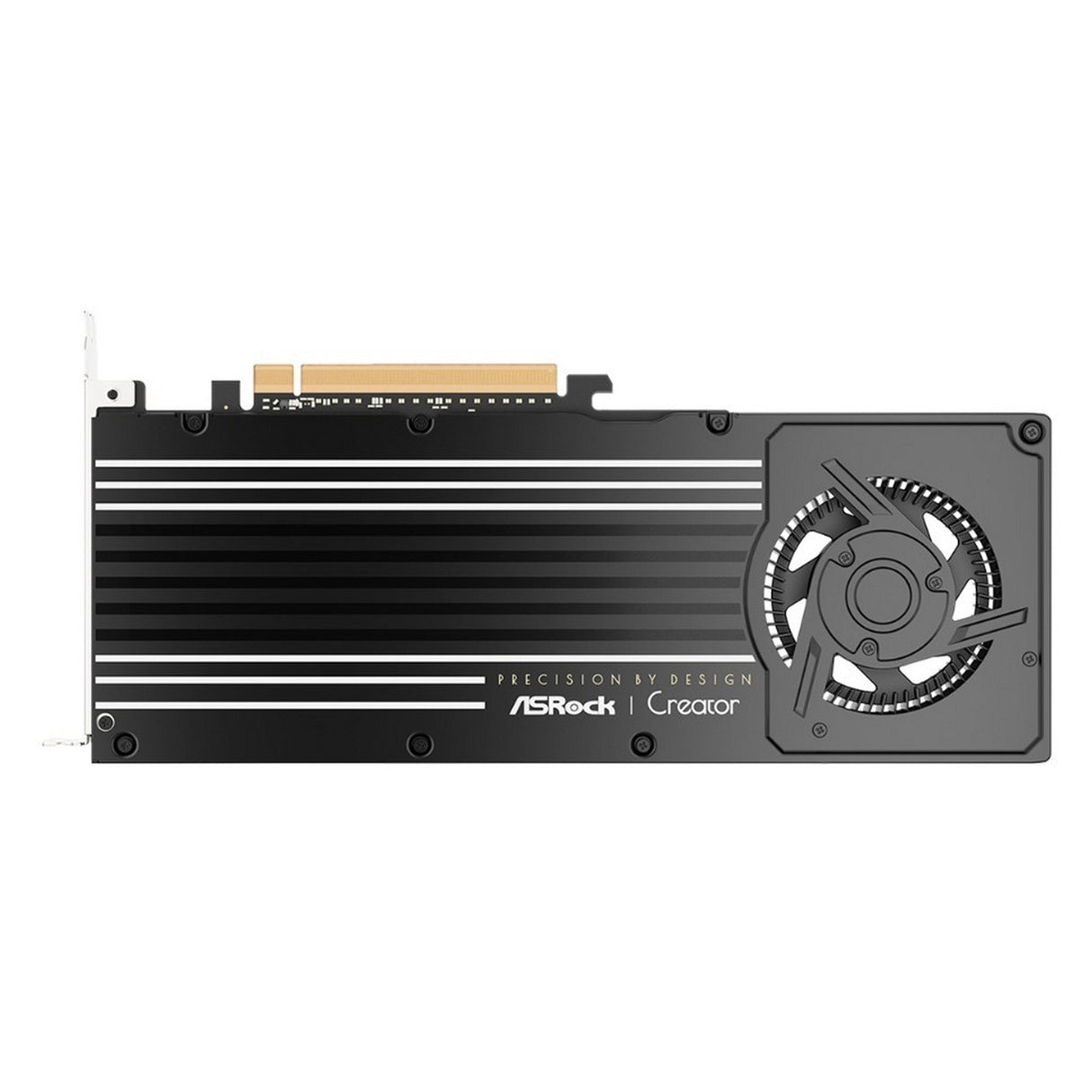

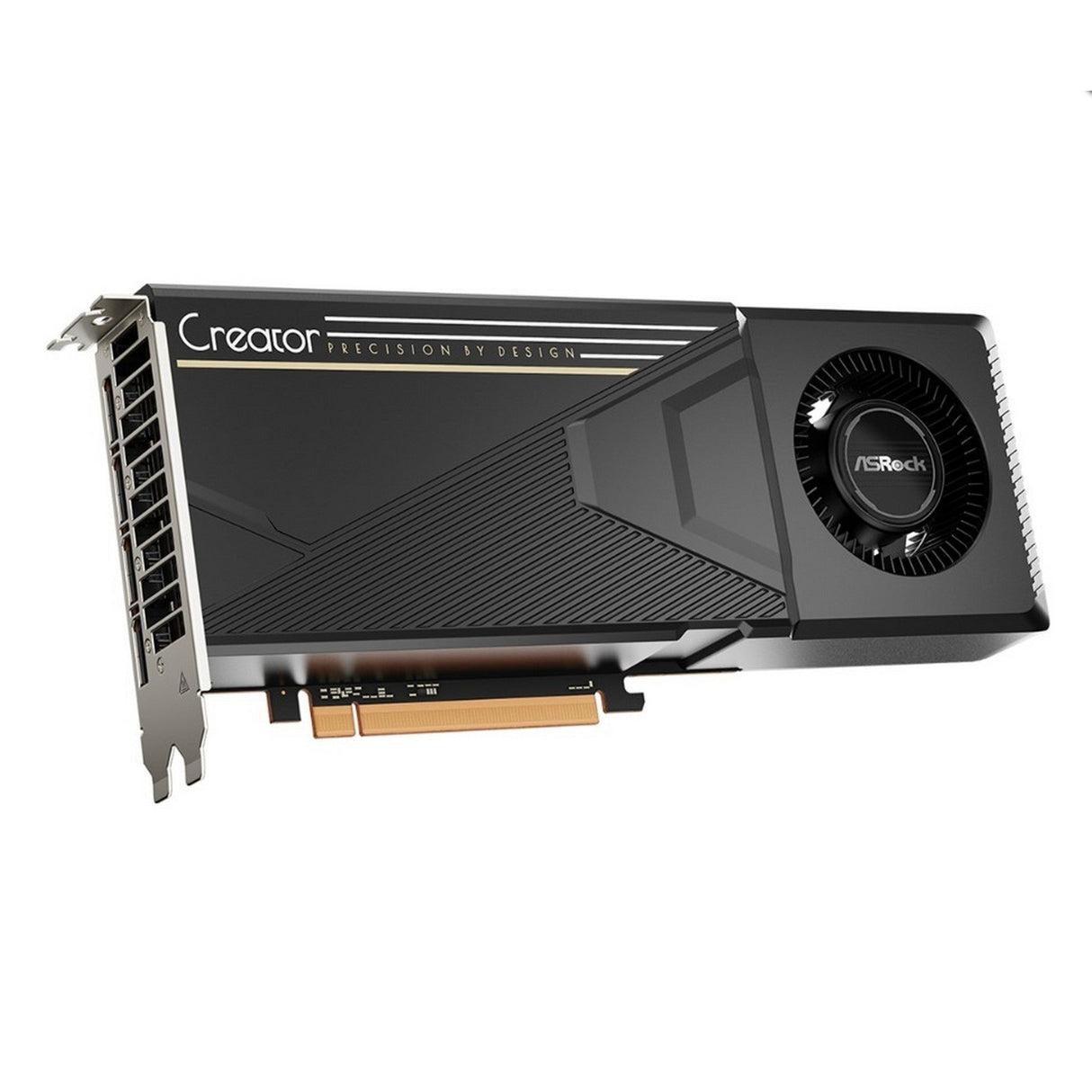

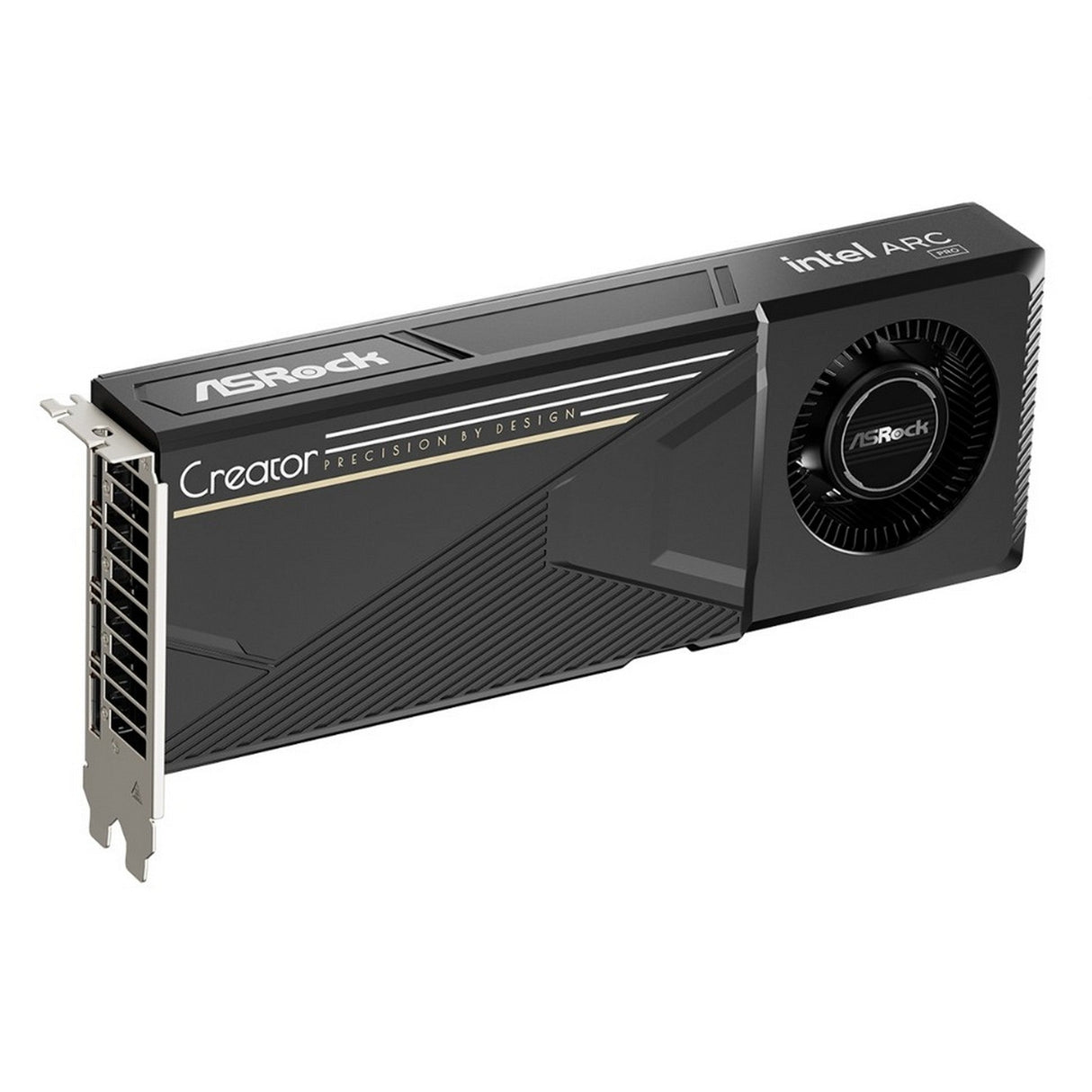

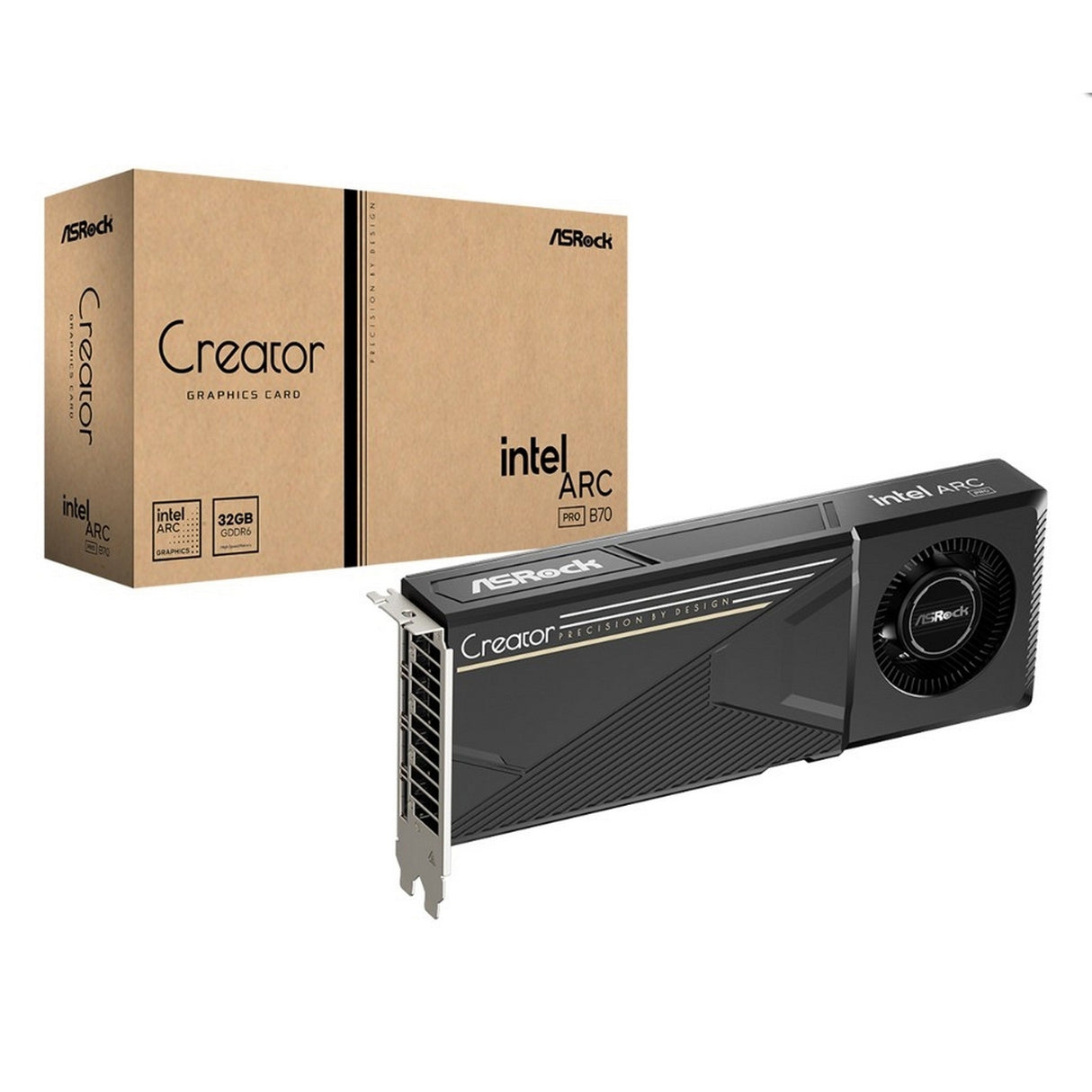

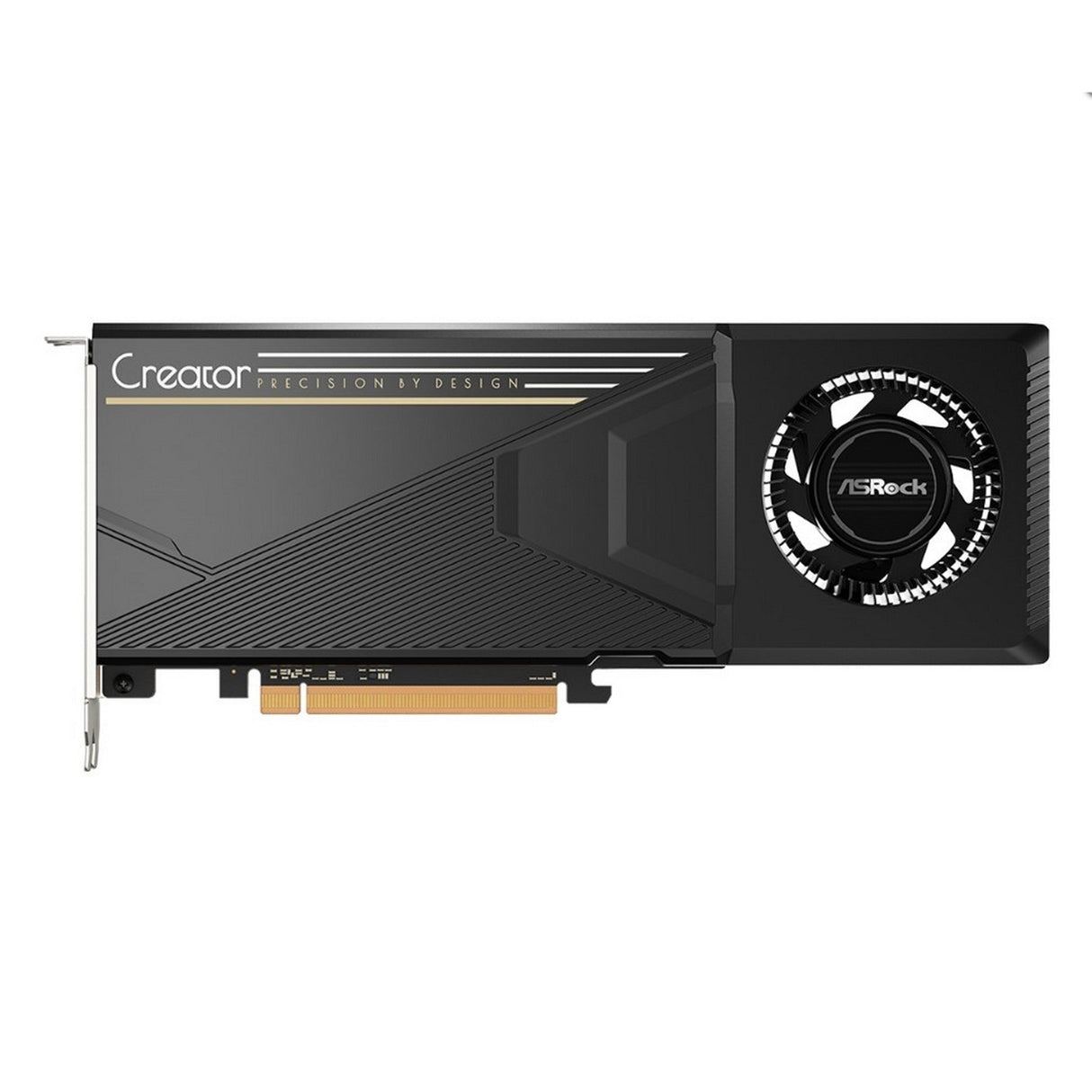

ASRock B70 CT 32G Intel Arc Pro B70 Creator 32GB Video Card

ASRock B70 CT 32G Intel Arc Pro B70 Creator 32GB Video Card

The ASRock B70 CT 32G Video Card is a PCI Express 5.0 x16 graphics card built around the Intel Arc Pro B70 GPU. It combines 32GB of GDDR6 memory, a 256-bit memory interface, and four DisplayPort 2.1 outputs for high-resolution creator and workstation display setups.

This Intel Arc Pro B70 Creator 32GB card fits systems that need strong graphics memory, multi-monitor output, and modern API support. It supports up to 7680 x 4320 digital resolution, DirectX 12 Ultimate, OpenGL 4.6, HDCP, and four-display multi-view operation for demanding desktop production environments.

The B70 CT 32G uses a blower-style cooling design with a vapor chamber, die-cast metal shroud, metal backplate, and 2-slot layout. Super Alloy graphics card construction and Honeywell PTM7950 thermal material help support stable operation in creator, AI, and professional computing builds.

Key Features

• Intel Arc Pro B70 GPU: Provides dedicated graphics processing for creator, AI, and workstation-focused desktop systems.
• 32GB GDDR6 memory: Handles large visual assets and graphics-heavy workflows with a 256-bit memory interface.
• PCI Express 5.0 x16 support: Connects through a modern high-bandwidth expansion interface for compatible workstations.
• Four DisplayPort 2.1 outputs: Supports up to four displays, including one primary DisplayPort output up to UHBR13.5.
• Intel Xe2-HPG architecture: Combines 32 compute units with 256 Intel XMX engines for accelerated graphics workloads.
• Blower cooling design: Uses directed airflow with a vapor chamber to manage heat inside workstation chassis.
• Durable card construction: Includes a die-cast metal shroud, metal backplate, 2-slot design, and Super Alloy graphics card components.

Technical Specifications

• Brand: ASRock
• Model: B70 CT 32G
• Product Type: Video Card
• Graphics Engine: Intel Arc Pro B70 GPU
• Architecture: Intel Xe2-HPG
• Bus Standard: PCI Express 5.0 x16
• DirectX Support: Microsoft DirectX 12 Ultimate
• OpenGL Support: OpenGL 4.6
• Memory: 32GB GDDR6
• Memory Speed: 19 Gbps
• Memory Interface: 256-bit
• Engine Clock: 2540 MHz
• Intel XMX Engines: 256
• Compute Units: 32
• Digital Maximum Resolution: 7680 x 4320
• Display Outputs: 1 x DisplayPort 2.1 primary up to UHBR13.5, 3 x DisplayPort 2.1 up to UHBR10
• HDCP Support: Yes
• Multi-View: 4 displays
• Power Connector: 1 x 12V-2x6-pin
• Cooling Design: Blower design with vapor chamber
• Card Design: 2-slot design
• Construction: Die-cast metal shroud, metal backplate, Super Alloy graphics card
• Thermal Interface Material: Honeywell PTM7950
• EAN: 4711581492363
• Dimensions: 16 x 9 x 4 inches
• Weight: 5 lb

What's In the Box

• Quick Installation Guide
• 12V-2x6 to 2 x 8-pin Power Cable
