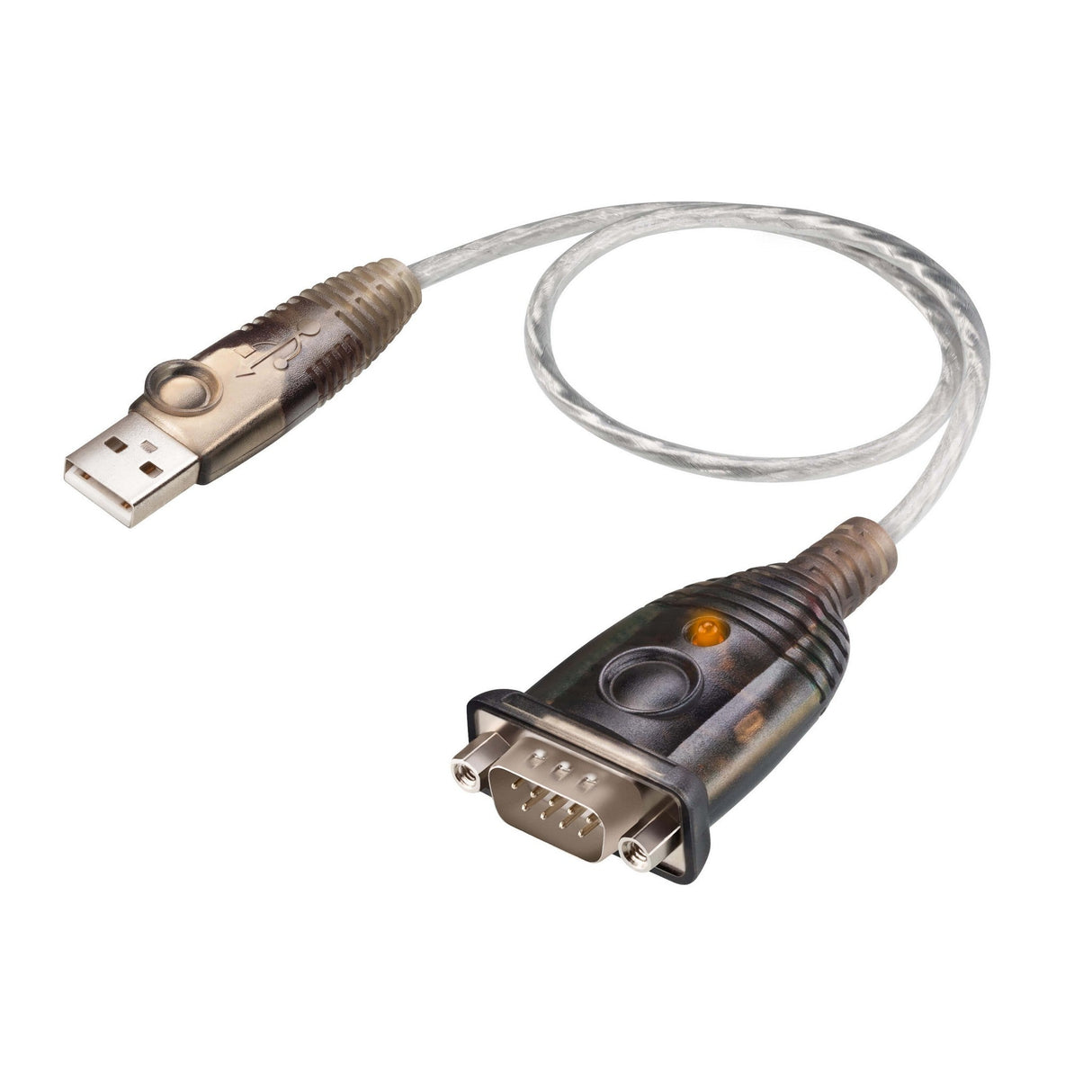

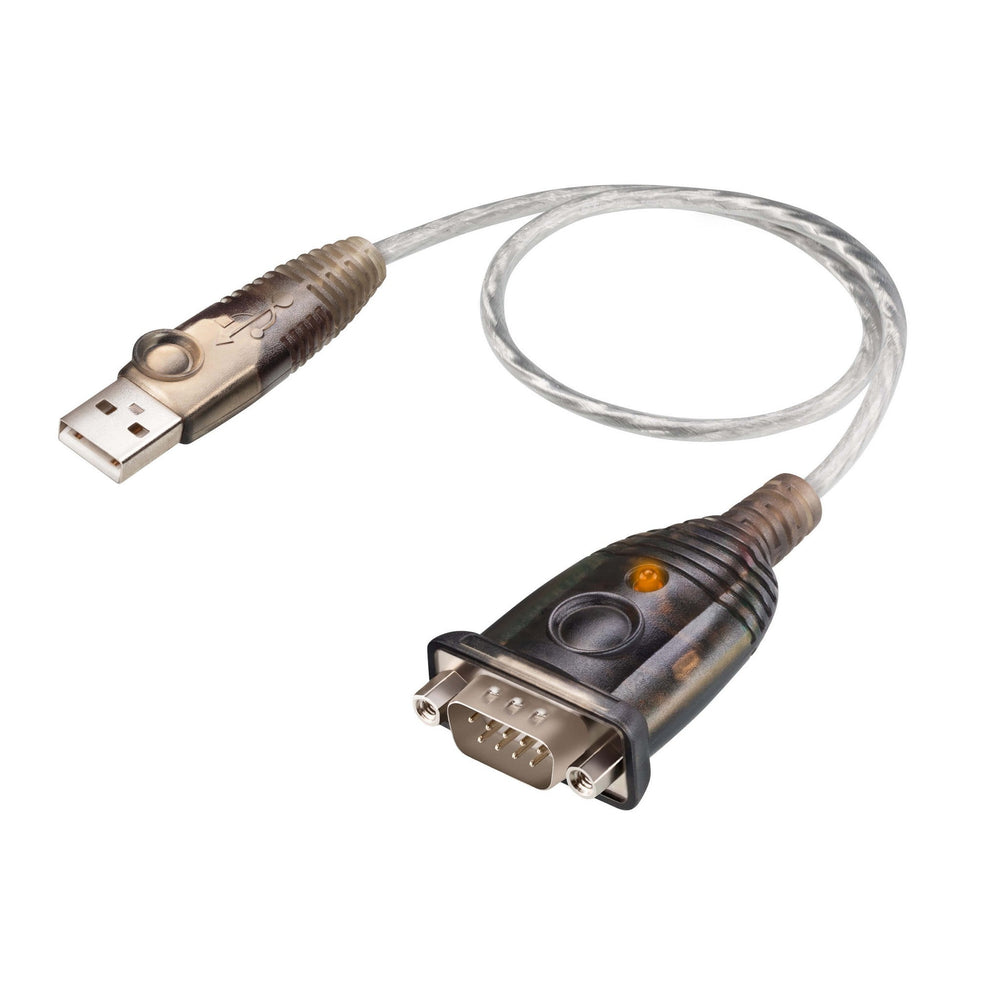

ATEN UC232A USB to RS-232 Adapter, 35 Centimeters
ATEN UC232A USB to RS-232 Adapter, 35 Centimeters
The UC232A USB-to-RS232 serial port converter is the ideal accessory for laptop and desktop computers that do not have a COM or DB9 serial port. Supporting both PC and Mac systems with baud rates up to 921.6 Kbps for rapid performance, it offers a convenient connectivity solution for industrial automation systems, scientific instruments, point of sale systems, and other specialized industrial and consumer applications.
Key Features
- Support the RS-232 Serial interface
- Full compliance with the USB Specification
- Up to 921.6 Kbps data transfer rate
- Works with cellular phones, PDAs, digital cameras, modems or ISDN terminal adapter
Technical Specifications
Connectors
USB Port
1 x USB Type A Male (White)
Serial
1 x DB-9 Male (Silver)
Data Rate
Up to 921.6 Kbps
Cable Length
35cm
LEDs
Power (Orange)
Power Mode
Bus Powered
USB Specification
USB compliant
Environmental
Operating Temperature
0-40C
Storage Temperature
-20-60C
Humidity
0-80% RH, Non-condensing
Physical Properties
Housing
Plastic
Weight
0.04 kg (0.09 lb)
Dimensions (L x W x H)
6.59 x 3.40 x 1.60 cm
(2.59 x 1.34 x 0.63 in.)
Note
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
