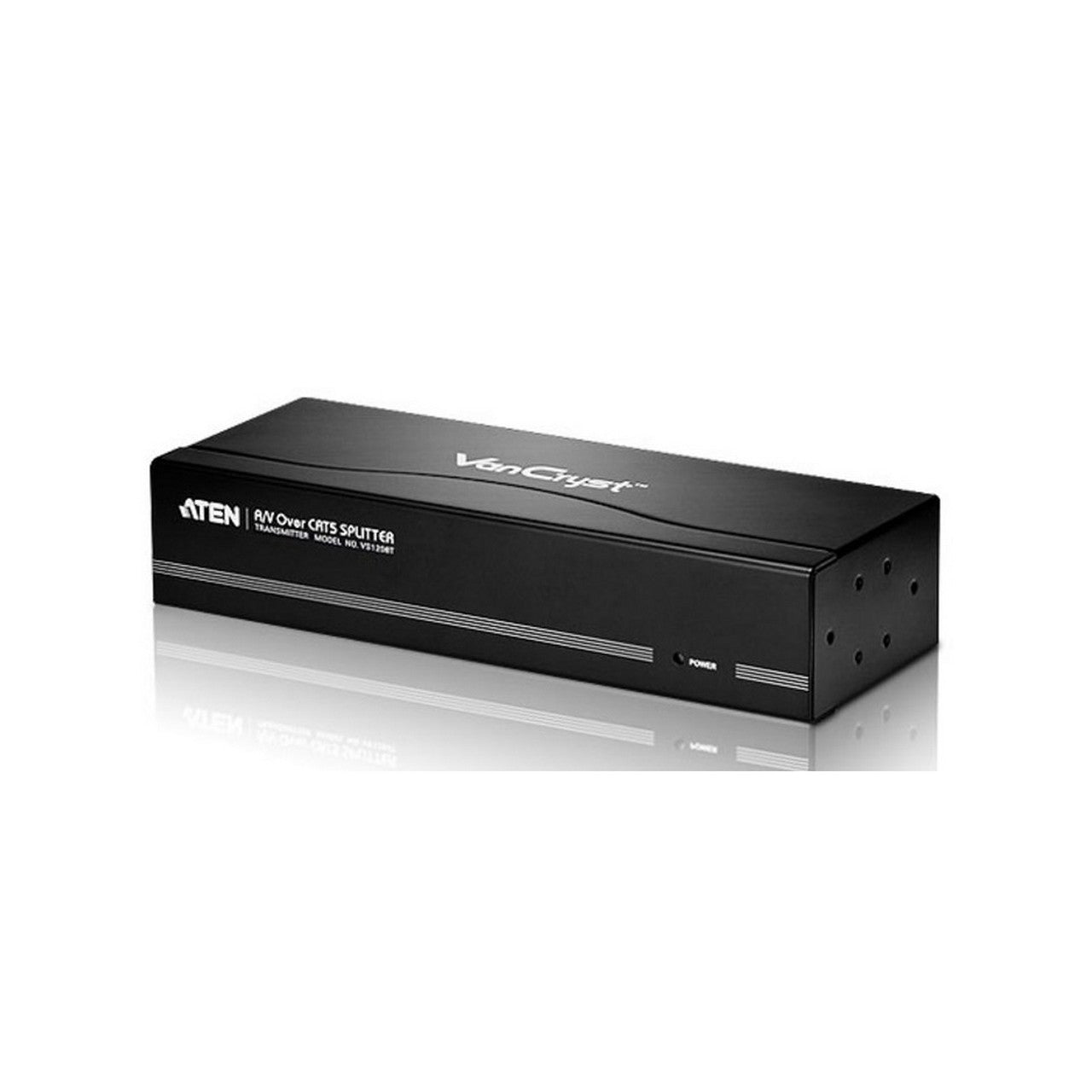

Aten VS1208T 8 Port VGA Audio Cat 5 Splitter
The VS1208T A/V Over Cat 5 Splitter is a splitter designed to connect one source to 8 displays over a long distance. Incorporating suggested compatible receivers*, the VS1208T A/V Over Cat 5 Splitter can be a complete solution ideal for any professional A/V installation that requires multimedia content to be delivered to multiple destinations located up to 300 m away from the source.
Key Features
- One audio/video input to 8 audio/video outputs via Cat 5e cable
- Supports local display + 8 remote displays
- Supports up to 225 MHz bandwidth
- Uses Cat 5e cable to extend displays up to 300 m
- Superior video quality up to 1920 x 1200@60Hz
- Audio enabled (mono)
- Built-in 8KV/15KV ESD protection
- Rack-mountable
Technical Specifications
Video Input
Interfaces
1 x HDB-15 Male (Blue)
Impedance
75
Max. Distance
1.8 m
Video Output
Interfaces
1 x HDB-15 Female (Blue) - Local Output
8 x RJ-45 Female
Impedance
75
Video
Max. Bandwidth
225 MHz
Max. Resolutions / Distance
Up to 1920 x 1200@60Hz@150m;
1280 x 1024@60Hz@300m
Audio
Input
1 x Mini Stereo Jack Female (Green)
Output
1 x Mini Stereo Jack Female (Green)
Power
Connectors
1 x DC Jack (Black)
Consumption
5.3 VDC, 1.64W
Environmental
Operating Temperature
0-50°C
Storage Temperature
-20 - 60°C
Humidity
0 - 80% RH, Non-Condensing
Physical Properties
Housing
Metal
Weight
0.64 kg ( 1.41 lb )
Dimensions (L x W x H)
20.00 x 7.51 x 4.40 cm
(7.87 x 2.96 x 1.73 in.)
Carton Lot
5 pcs
