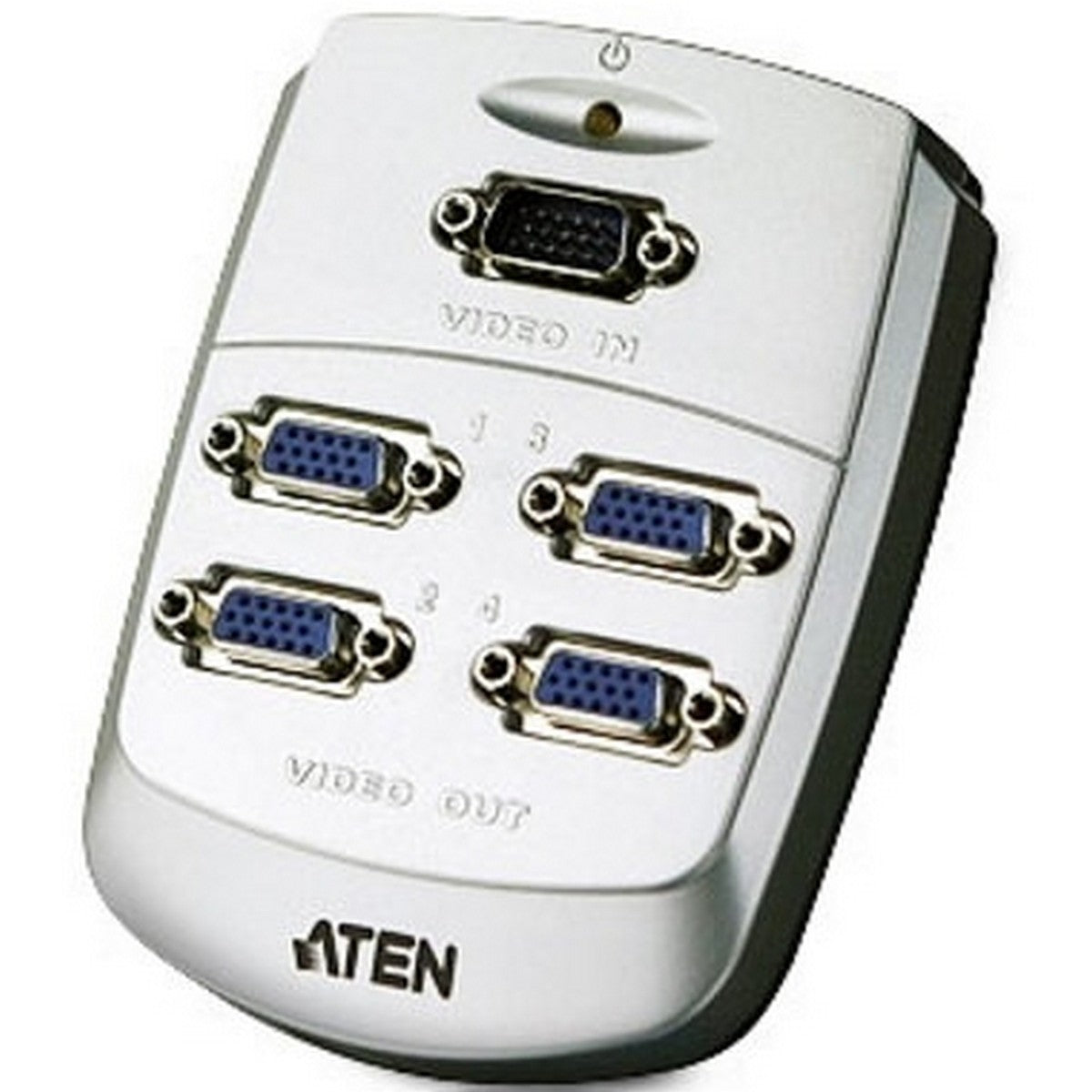

ATEN VS84 4 Port Video Splitter
ATEN VS84 4 Port Video Splitter
ATEN VS84 4 Port Video Splitter
The VS84 Video Splitter duplicates the video signal from an input source (i.e. a computer) and route it to up to 4 display devices (monitors, projectors, etc.). However, they go beyond being merely duplicators, in that they also enhance the video signals over distances up to 65 meters. Furthermore, they can be cascaded three levels to additional ATEN video splitters to support many numerous display devices. And they mount inconspicuously on the wall or out of sight.
Key Features
- One video input to 4 video outputs
- Cascadable to 3 levels - provides up to 64 video signals
- Supports up to 250 MHz bandwidth
- Long distance transmission - up to 65 m (210')
- High video resolution - up to 1920 x 1440
- DDC, DDC2, DDC2B Compatible (Port 1 only)
- Compact design with convenient topside connection, lays flat on a desktop or mounts on the wall
- Supports VGA, XGA, SVGA, UXGA and multisync monitors
- OS Support: Windows 2000, Windows XP, Linux, Mac and Sun
Technical Specifications
Video Input
Interface: 1 x HDB-15 Male (Blue)
Impedance: 75 ohm
Max Distance: 1.8 m
Video Output
Interface: 4 x HDB-15 Female (Blue)
Impedance: 75 ohm
Video
Max. Bandwidth: 250 MHz
Max. Resolutions: Up to 1920 x 1440
Max Distance: Up to 30 m
Power
Connector: 1 x DC Jack
Consumption: 9 VDC, 2.25W
Environment
Operating Temp.: 0-50 deg C
Storage Temp.: -20 - 60 deg C
Humidity
0-80% RH, Non-Condensing
Housing
Plastic
Weight
0.15 kg
Dimensions (L x W x H)
8.84 x 11.88 x 3.33 cm
