AtlasIED AH66‑212‑BSG 3‑Way Stadium Horn Speaker, 65-Degree Horizontal and Vertical Sound Dispersion

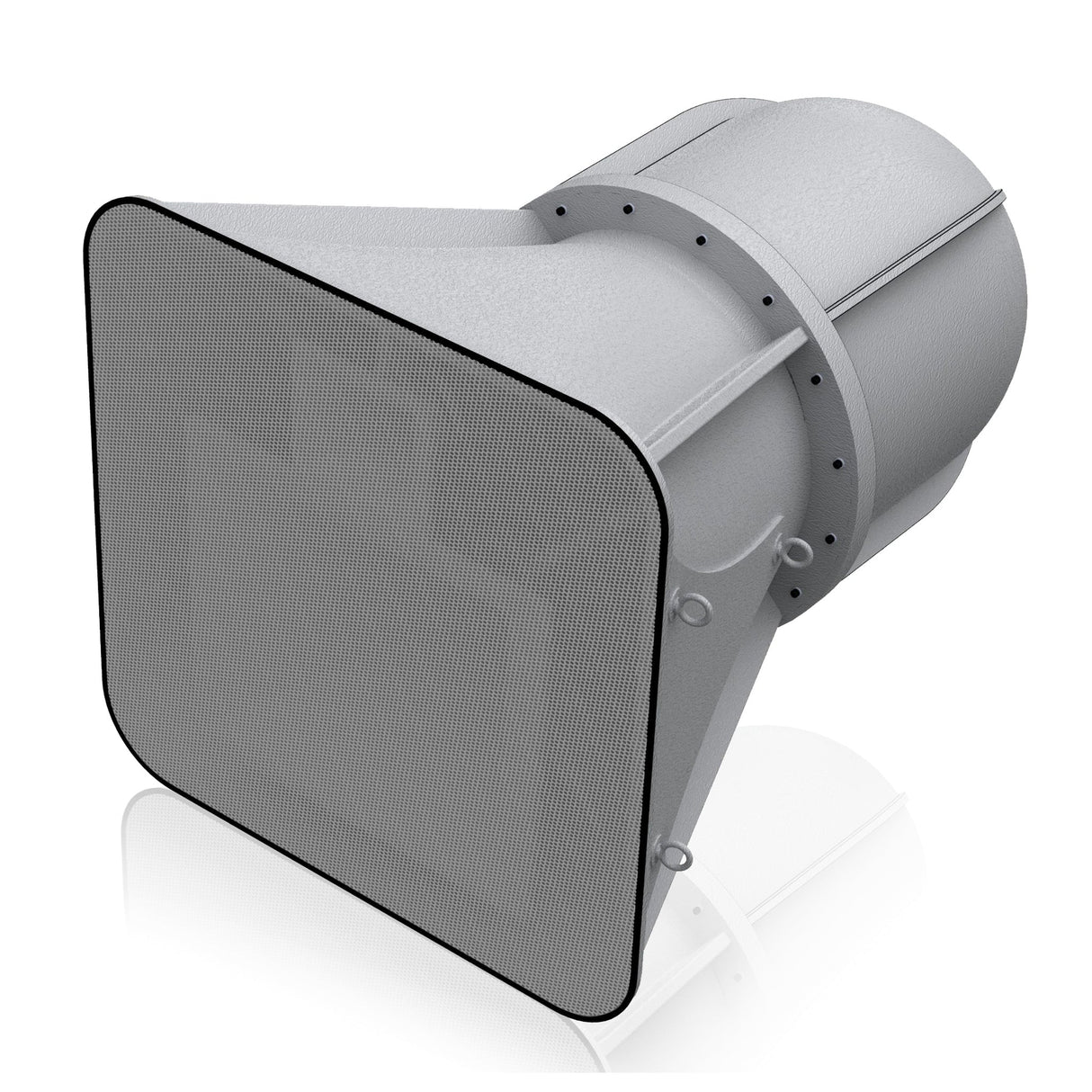

The AtlasIED AH66‑212‑BSG is a high-output, three-way stadium horn speaker designed for delivering clear, powerful sound in large venues. Featuring dual 12″ cast-frame woofers, a 1.5″ midrange compression driver, and a 1″ high-frequency compression driver, this rugged speaker handles up to 750 W RMS in full-range mode. Its 65° × 65° dispersion pattern and durable UV-resistant fiberglass enclosure make it ideal for outdoor settings like stadiums, arenas, and sports complexes.
Built to withstand harsh conditions, the AH66‑212‑BSG includes a three-stage stainless steel mesh filtering system and weather-resistant terminal block for secure protection. The speaker supports bi-amping (LF/MF + HF) when paired with the optional ASP‑MG24 controller, and features seven forged eyebolts for suspension mounting. With a 60-month warranty and AtlasIED’s reputation for rugged reliability, this stadium horn ensures powerful, intelligible audio performance even in the toughest environments.
Key Features
- Three-way design with dual 12″ woofers, 1.5″ midrange, and 1″ HF drivers
- 750 W RMS full-range power handling (8 Ω), bi-amp enabled
- 65° × 65° constant directivity consistent coverage
- Weather-resistant fiberglass enclosure with 3-stage stainless mesh filters
- Suspendable design: includes seven 10 mm forged eyebolts
- Recessed weather-resistant terminal block for secure connections
Technical Specifications
- Speaker Type: 3‑Way stadium horn (65° × 65°)
- Woofers: Dual 12″ cast-frame
- Midrange Driver: 1.5″ exit compression
- High-Frequency Driver: 1″ exit compression
- Power Handling: 750 W RMS full range
- Impedance: 8 Ω (bi-amp capable)
- Coverage Pattern: 65° horizontal × 65° vertical
- Enclosure: UV-resistant fiberglass
- Terminal Block: Recessed and weather-resistant
- Mounting: Includes seven 10 mm forged eyebolts
- Warranty: 60 months (5 years)
What’s Included in the Box
- AtlasIED AH66‑212‑BSG stadium horn speaker
- Seven 10 mm forged eyebolts for suspension mounting
- Recessed weather-resistant terminal block
- Product documentation and warranty information
