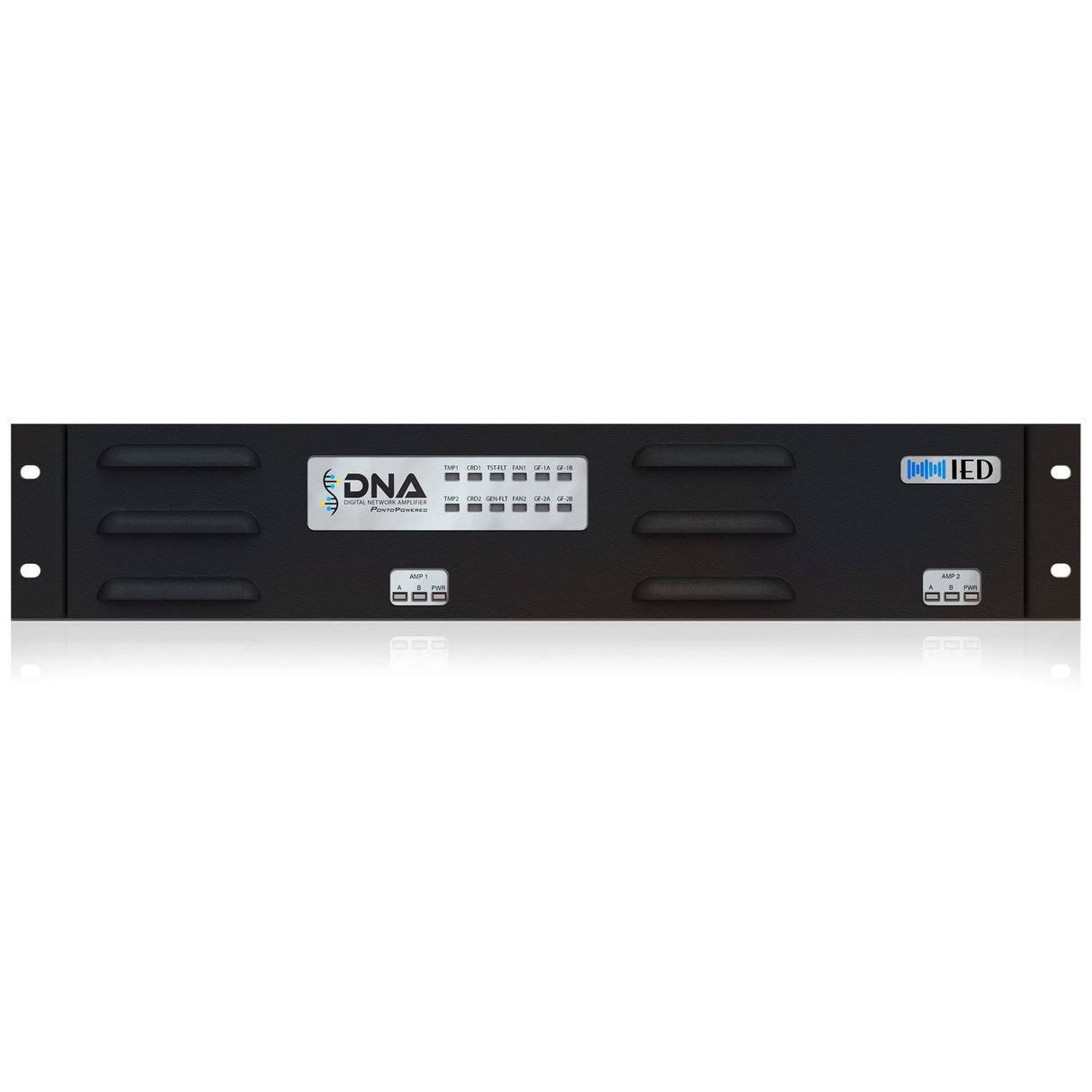

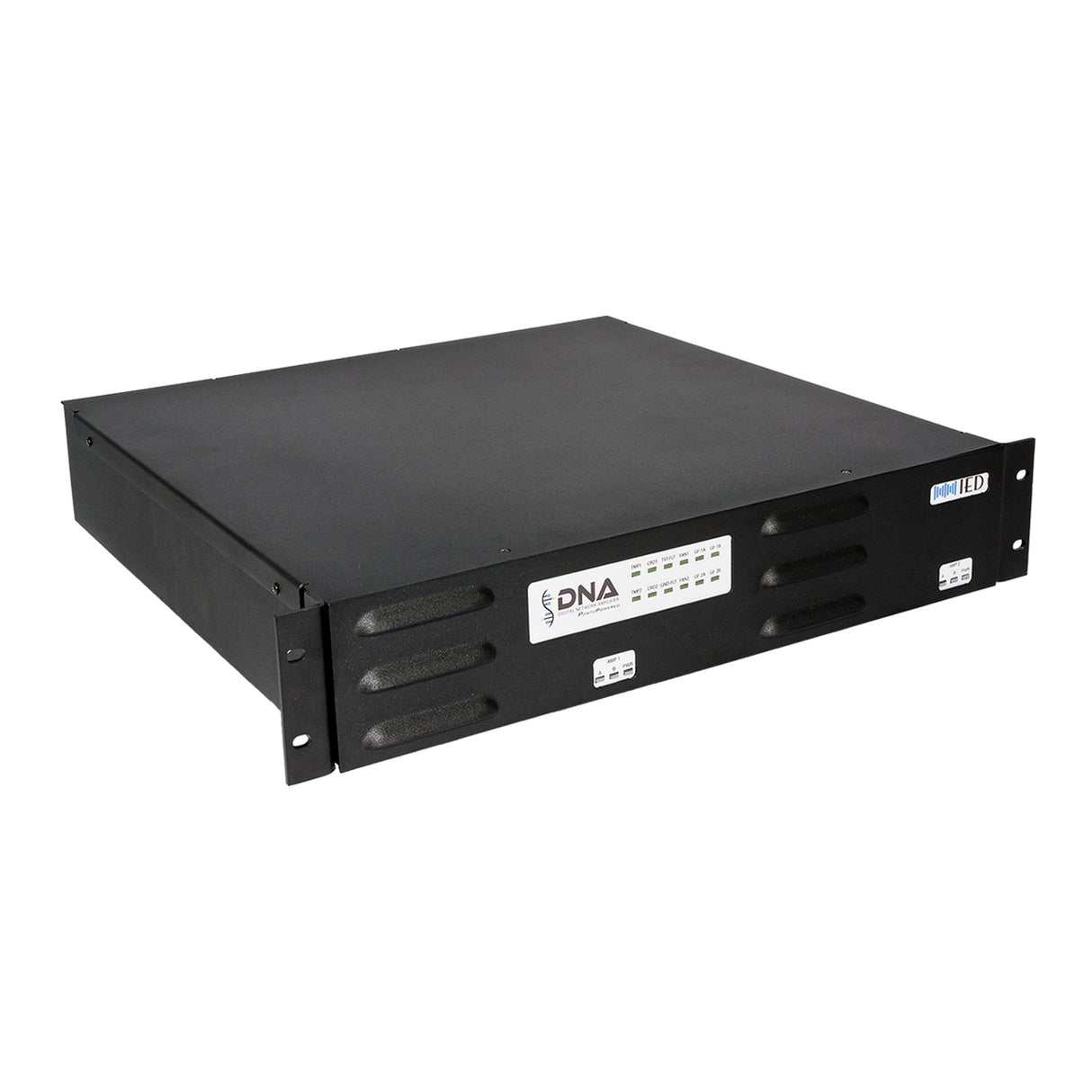

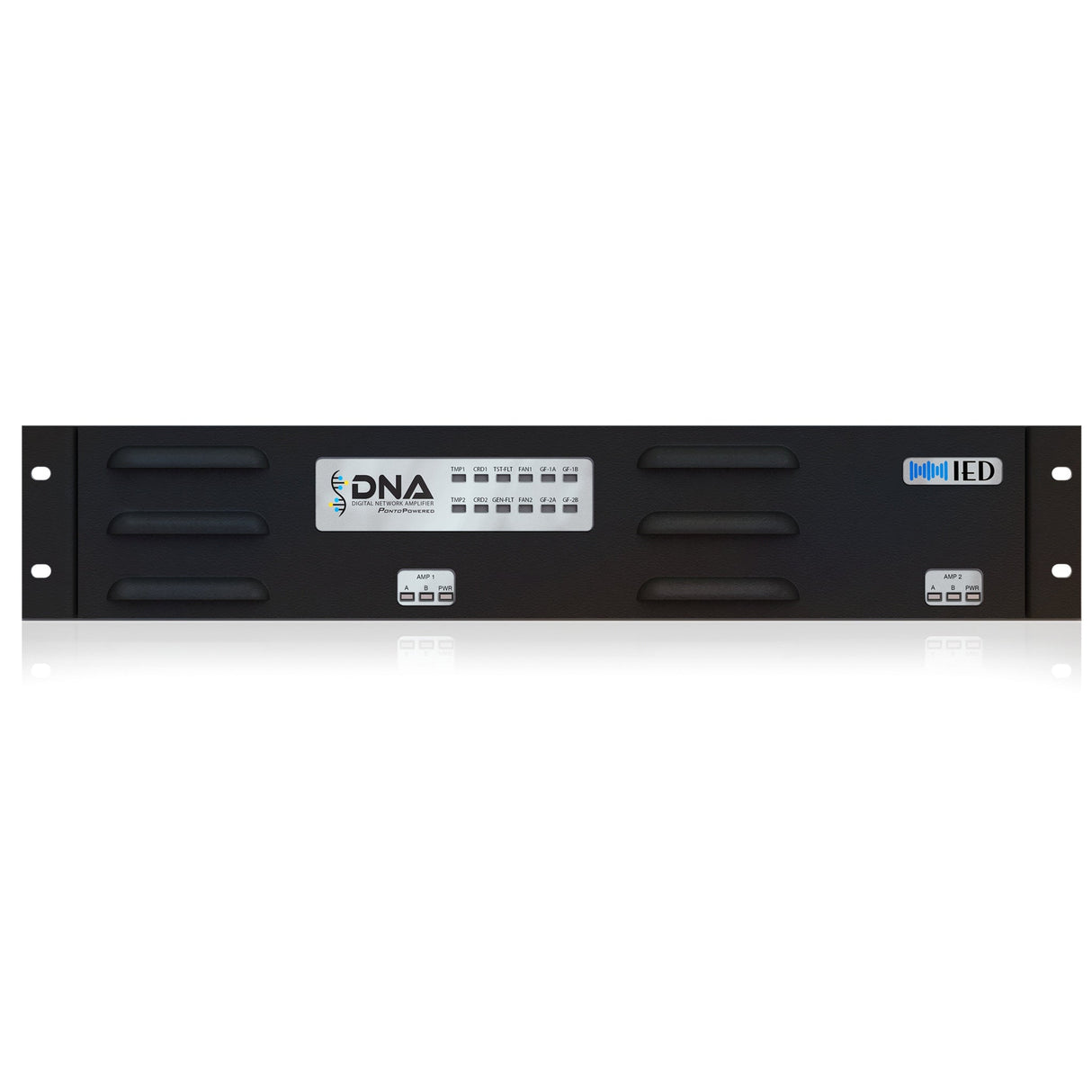

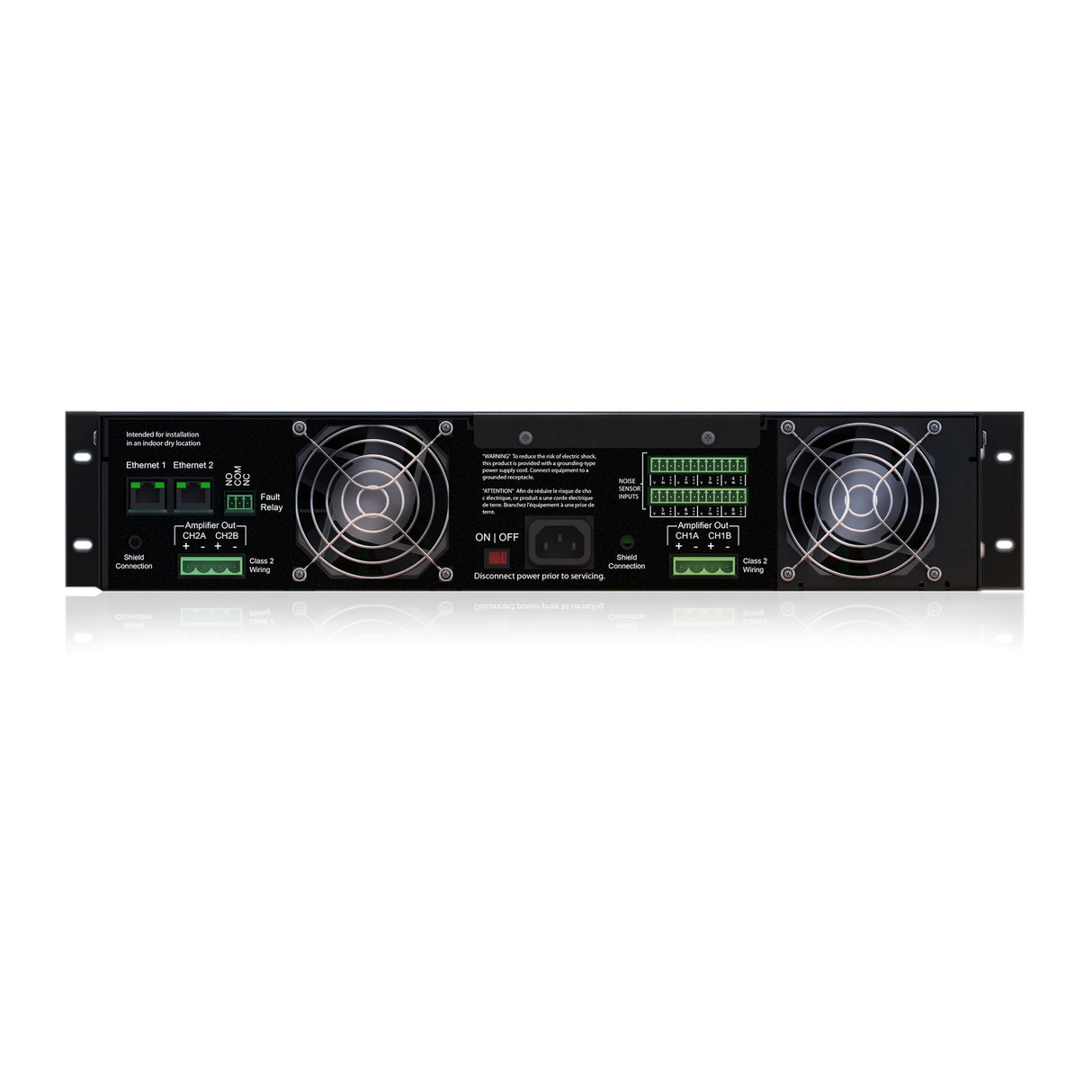

AtlasIED DNA2404 Series 4-Channel 2400W Digital Network Power Amplifier
The AtlasIED DNA2404 Series represents a highly advanced line of 4-channel networked power amplifiers, delivering 600 watts per channel (2400 W total) with transformer-isolated outputs at either 70.7-Volt or 100-Volt. Designed for robust integration within GLOBALCOM® and third-party audio systems, each model in the series offers precision Class D amplification, built-in DSP for EQ and filtering, ambient noise compensation, and redundant Ethernet ports. The amplifiers support CobraNet® or Dante™ digital audio transmission depending on the model, making them ideal for facilities requiring paging, background music, and sound masking across large distributed systems.
Equipped with support for real-time ambient noise analysis, the DNA2404 series automatically adjusts output levels to maintain clarity across all channels. Enhanced with SNMP monitoring, output supervision, and fault reporting, the amplifiers provide a scalable, supervised solution for mission-critical AV environments. All models are rack-mountable (2RU), made in the USA, and BAA compliant. Select from four model variations based on voltage and digital audio protocol requirements.
Available Variations
- DNA2404CL – 70.7-Volt output, CobraNet® audio, 120 VAC
- DNA2404DL – 70.7-Volt output, Dante™ audio, 120 VAC
- DNA2404CH – 100-Volt output, CobraNet® audio, 240 VAC
- DNA2404DH – 100-Volt output, Dante™ audio, 240 VAC
Key Features
- 4 × 600 W channels with Class D switching mode amplification
- Supports CobraNet® (CL/CH) or Dante™ (DL/DH) digital audio
- 7-band parametric EQ with HPF and LPF per channel
- Integrated DSP with real-time ambient noise analysis (up to 8 sensors)
- Redundant 100 Mbps Ethernet ports for control and audio
- Supports background music ducking and sound masking (CobraNet® models)
- LED indicators: signal, clipping, faults, temperature, and fan
- SNMP monitoring and fault relay output for system diagnostics
- Made in USA, BAA compliant
- UL60065 and UL1711 listed (CL/DL models)
Technical Specifications
- Output Power: 600 W per channel (70.7-Volt or 100-Volt)
- Frequency Response: 20 Hz – 20 kHz ±1 dB
- Signal-to-Noise Ratio: >85 dB (unweighted)
- Total Harmonic Distortion: <0.2% @ 200 W, 2 kHz
- Output Impedance: 0.67 ohms (CL/DL), 0.6 ohms (CH/DH)
- Ethernet: Dual 100 Mbps ports
- Ambient Sensor Inputs: 8 (3-pin Phoenix)
- Speaker Connections: 4-pin Phoenix (2 CH per block)
- Fault Relay: Form C (1A @ 30 VDC, 0.3A @ 125 VAC)
- AC Power: 120 VAC (CL/DL), 240 VAC (CH/DH)
- Quiescent Power: 95 W (CL/DL), 104 W (CH/DH)
- Max Power Consumption: 1100 W (CL/DL), 1200 W (CH/DH)
- Power Factor: 0.76 (CL/DL), 0.70 (CH/DH)
- Controls: Rear power switch, software control interface
What’s in the box
- DNA2404 Series Amplifier (Selected Model)
- Rack-mount ears and hardware
- Quick start guide and documentation
