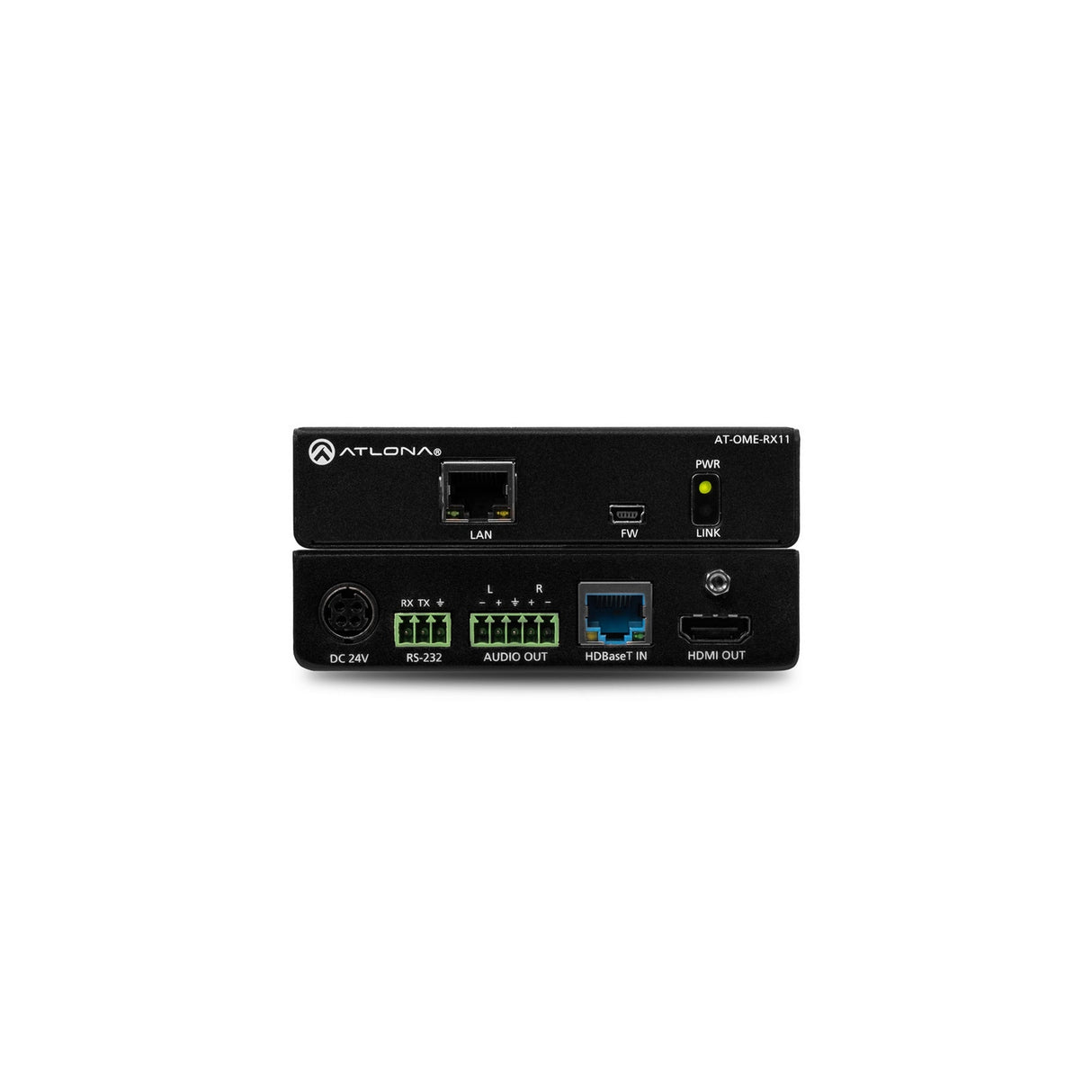

Atlona AT-OME-RX11 HDBaseT Receiver with Audio De-Embedding
The Atlona AT-OME-RX11 is a professional HDBaseT receiver designed for delivering HDMI video, audio, Ethernet, power, and control signals over a single category cable. Supporting up to 4K/UHD at 60 Hz (4:2:0) with HDCP 2.2 compliance, it ensures full compatibility with modern AV sources and displays. This receiver is ideal for meeting rooms, classrooms, and collaborative presentation environments that demand reliable signal extension and audio integration.
The OME-RX11 provides audio de-embedding via balanced analog stereo outputs, allowing seamless integration with amplifiers and speaker systems. It also delivers power (PoE) to compatible Atlona transmitters, including models from the Omega, HDVS-200, and UHD-EX-100CE series, simplifying system setup and reducing cabling requirements.
Compact and efficient, the AT-OME-RX11 includes field-upgradable firmware, LED signal indicators for quick diagnostics, and support for bidirectional RS-232 and IP pass-through. It’s built to meet professional AV standards for 4K performance, flexibility, and system interoperability.

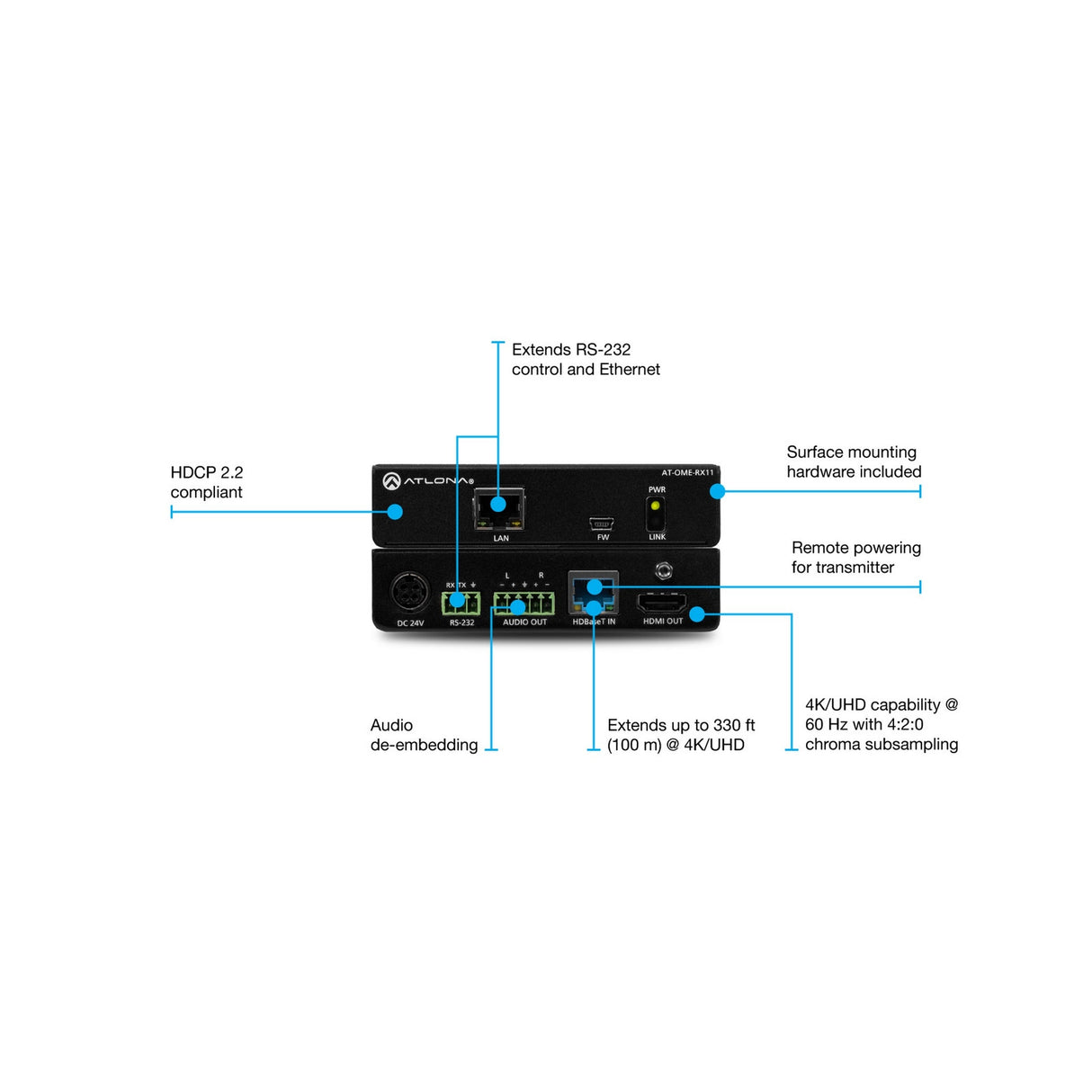

Key Features
- HDBaseT Receiver: Receives HDMI video, audio, Ethernet, control, and power up to 330 ft (100 m) over category cable.
- 4K/UHD Support: Handles video resolutions up to 4096×2160 @ 60 Hz with 4:2:0 chroma subsampling.
- Audio De-Embedding: Extracts two-channel PCM audio to balanced analog outputs for amplifiers or external audio systems.
- PoE Power Supply: Provides IEEE 802.3af power over HDBaseT to compatible transmitters.
- Control Integration: Supports RS-232, IP pass-through, and CEC for complete system control.
- Compact Design: Low-profile enclosure (1.02 in high) for installation behind displays or under tables.
- HDCP 2.2 Compliant: Ensures compatibility with protected 4K content sources.
Technical Specifications
- Video Input: 1 × HDBaseT (RJ45)
- Video Output: 1 × HDMI (Type A)
- Maximum Resolution: 4096×2160 @ 60/50/30/25/24 Hz
- Color Sampling: 4:4:4, 4:2:2, 4:2:0 (8/10/12-bit)
- Audio Output: 1 × 5-pin captive screw (balanced/unbalanced, stereo)
- Audio Formats: PCM, Dolby Digital, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, DTS:X
- Frequency Response: 20 Hz – 20 kHz, THD+N < 0.00009%, SNR > 141.49 dB
- Control: RS-232 (bidirectional), CEC, IP pass-through
- Power Supply: 100–240 VAC input, 24V DC output / 2.7 A
- Power Consumption: 15.12 W typical
- Operating Temperature: 32–122°F (0–50°C)
- Dimensions (H×W×D): 1.02 × 4.29 × 5.24 in (26 × 109 × 133 mm)
- Weight: 0.90 lb (0.41 kg)
- Certifications: CE, FCC, UL
