Atomos ATOM4K60L1/L2/L3 4K60 HDR Locking HDMI Cable - HDMI to Full HDMI

Atomos ATOM4K60L1/L2/L3 4K60 HDR Locking HDMI Cable

The Atomos 4K60 HDR Locking HDMI Cable is an 11.8" passive HDMI 2.0 cable designed for secure camera-to-monitor connections at resolutions up to 4096 x 2160 at 60 Hz. A locking full-size HDMI connector secures the monitor end, while full-size, mini, and micro HDMI camera-side options support different production setups.

Choose the ATOM4K60L1 for cameras with full-size HDMI, the ATOM4K60L2 for mini-HDMI outputs, or the ATOM4K60L3 for micro-HDMI cameras. This connector-based umbrella listing simplifies matching the cable to mirrorless cameras, cinema cameras, and compact video systems while maintaining the same short cable length and high-resolution video capability across all three variants.

The Atomos-designed locking connection is intended for compatible Atomos monitor ports where a more secure physical connection helps reduce accidental cable movement during handheld, tripod, or rig-mounted production. Atomos confirms compatibility with locking HDMI connections on products including the Shinobi II and Ninja Phone. Each variant uses a black, passive cable construction with HDMI 2.0 connectivity and support for 4K60 HDR workflows.

Key Features

• Three Connector Options: Choose full-size HDMI, mini-HDMI, or micro-HDMI on the camera end to match the required output.
• Locking Full HDMI Connection: The monitor-side connector uses the Atomos locking design for a more secure connection on compatible equipment.
• 4K60 HDR Support: Handles resolutions up to 4096 x 2160 at 60 Hz for high-resolution monitoring workflows.
• HDMI 2.0 Interface: Provides high-speed digital video connectivity for compatible cameras and external displays.
• 11.8" Cable Length: Keeps camera rigs compact while providing enough reach for nearby monitor mounting.
• Passive Design: Transfers the HDMI signal without an active conversion or amplification stage.
• Production-Friendly Construction: Designed for camera rigs, handheld shooting, tripod setups, and other professional video applications.

Technical Specifications

• Interface: HDMI 2.0
• Cable Length: 11.8"
• Active/Passive: Passive
• Maximum Resolution Support: 4096 x 2160 at 60 Hz
• Color: Black
• Shielded: No
• Locking Monitor-Side Connector: Full-size HDMI male

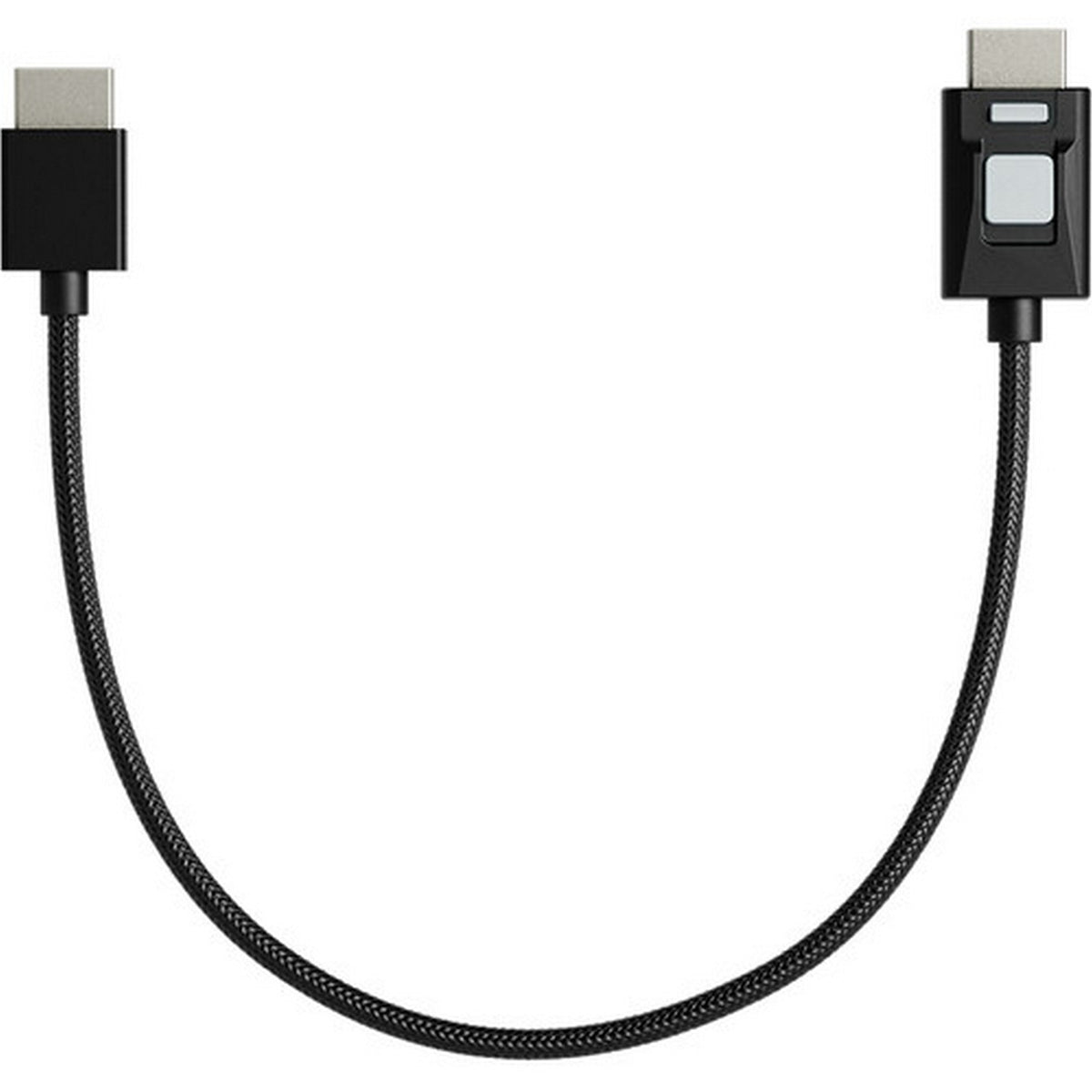

• ATOM4K60L1 Camera-Side Connector: Full-size HDMI male

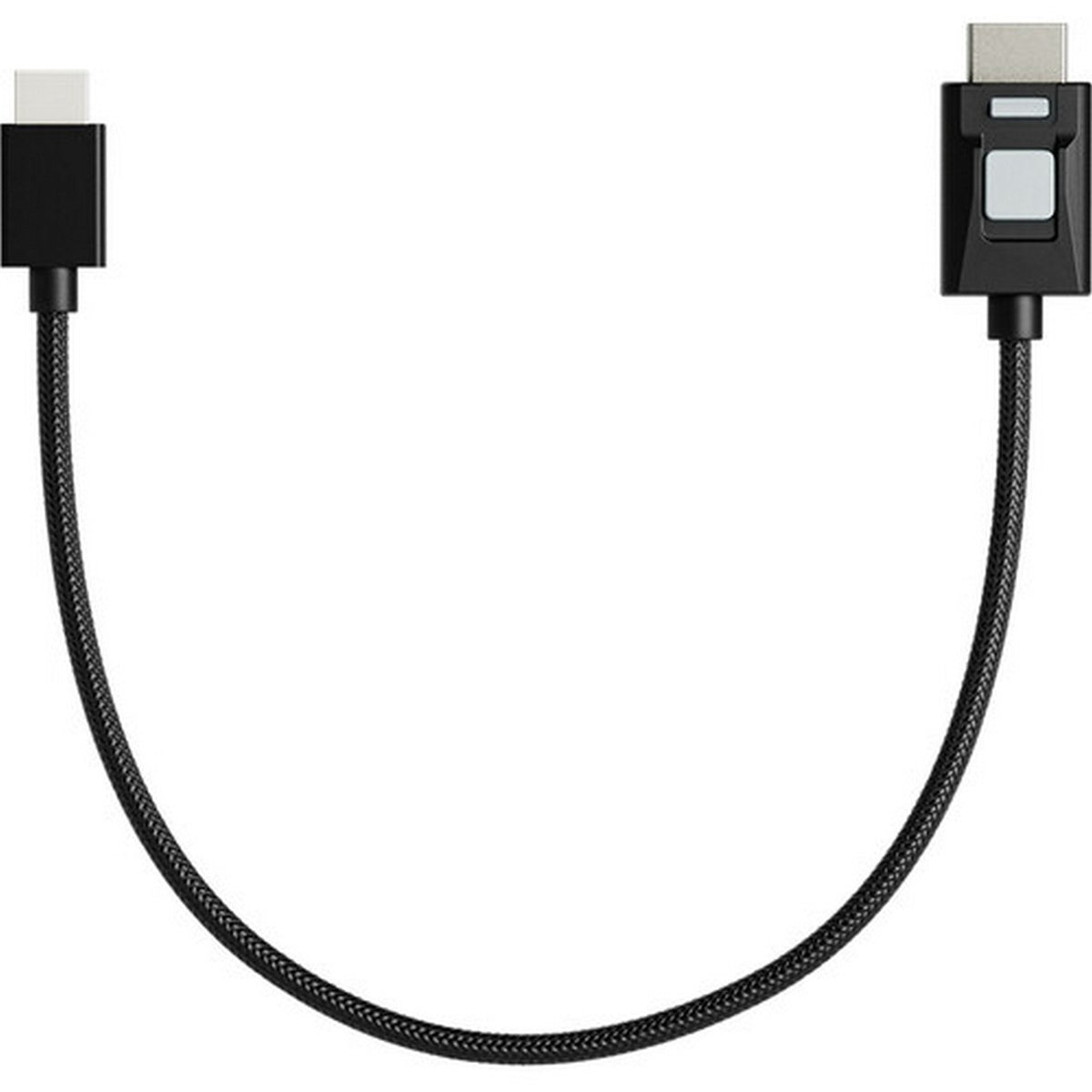

• ATOM4K60L2 Camera-Side Connector: Mini-HDMI male

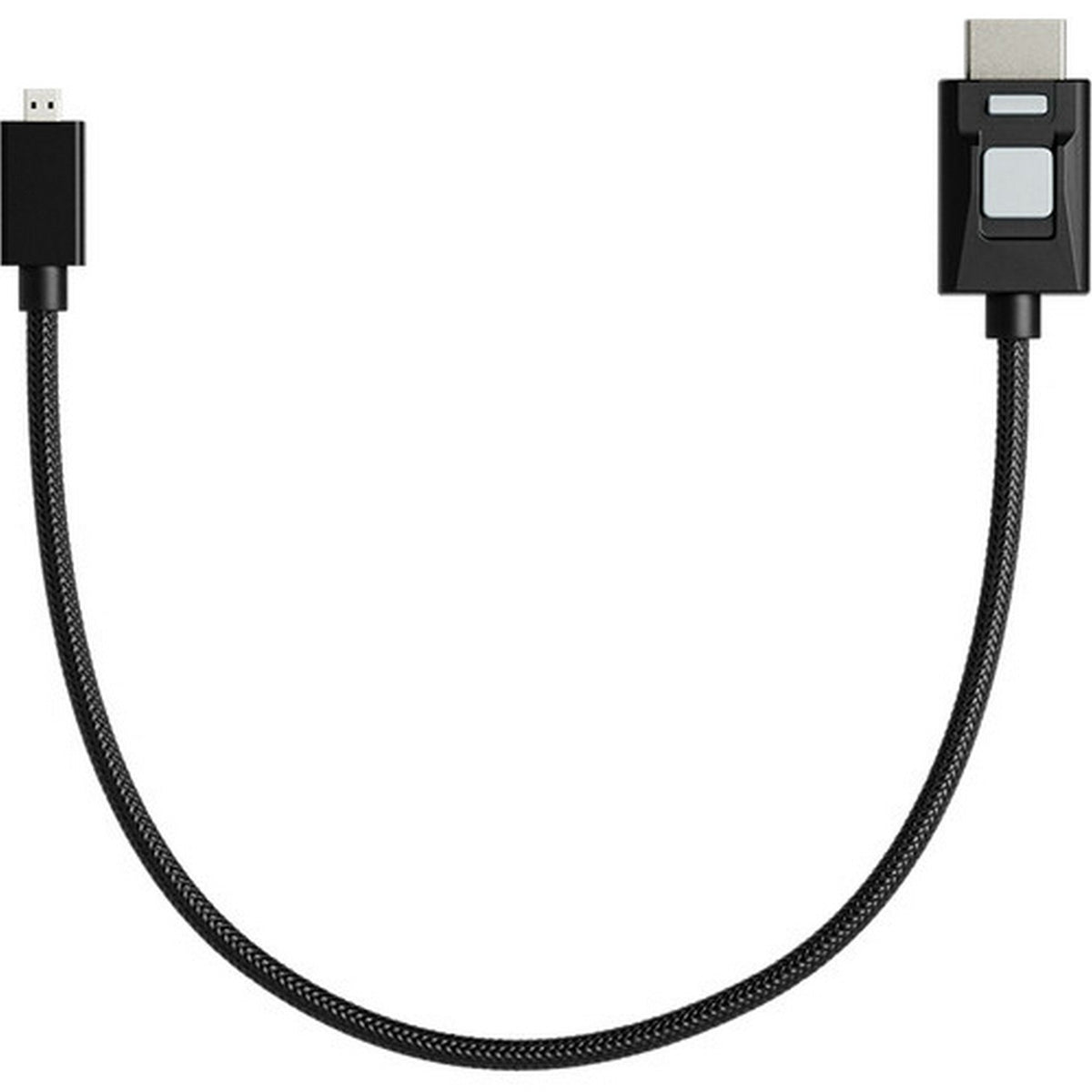

• ATOM4K60L3 Camera-Side Connector: Micro-HDMI male
• ATOM4K60L1 Package Weight: 0.1 lb
• ATOM4K60L1 Package Dimensions: 3.9 x 3.2 x 1"
• ATOM4K60L2 Package Weight: 0.1 lb
• ATOM4K60L2 Package Dimensions: 3.9 x 3.2 x 0.9"
• ATOM4K60L3 Package Weight: 0.1 lb
• ATOM4K60L3 Package Dimensions: 4 x 3.2 x 1"

What's In the Box

• Atomos 4K60 HDR Locking HDMI Cable in selected connector configuration
• Limited 1-Year Manufacturer Warranty
