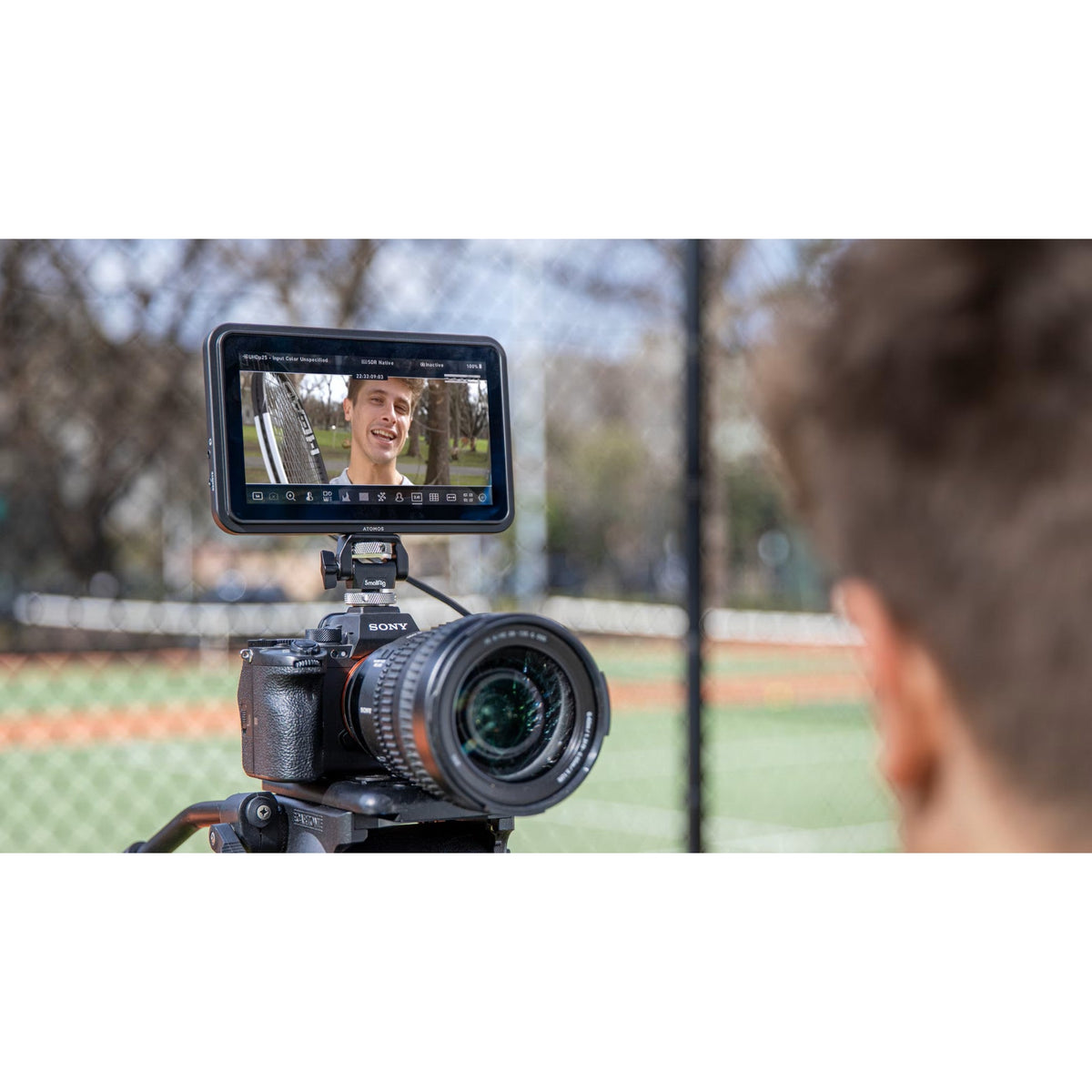

Atomos Shinobi 7 II 2800-Nit HDR Camera Monitor, 7 Inches

Atomos Shinobi 7 II 7-Inch 2800-Nit HDR Camera Monitor

The Atomos Shinobi 7 II is a 7" 2800-nit HDR touchscreen camera monitor designed for daylight-viewable video and photo production. It combines a 1920 x 1080 display with HDMI input and output, USB-C camera control, touch-to-focus support, 3D LUT monitoring, and professional exposure and focusing tools in a portable on-camera design.

Built for filmmakers, photographers, directors, camera assistants, and mobile production crews, the Shinobi 7 II displays more than 10 stops of dynamic range from compatible Log, PQ, and HLG signals. Its monitoring toolkit includes EL Zone, Atomos and ARRI false color, waveform, vectorscope, histogram, RGB parade, focus peaking, zebras, frame guides, anamorphic de-squeeze, and multiple zoom settings for precise on-set image evaluation.

Compatible cameras can be controlled through USB-C, allowing adjustment of aperture, ISO, white balance, shutter speed or angle, and supported focus functions from the touchscreen. The monitor accepts HDMI signals up to 4K30, supports on-device display calibration, and can operate from an NP-F battery, USB-C PD source, or optional battery eliminator for flexible field and studio power.

Key Features

• 2800-Nit 7" HDR Display: Provides a bright daylight-viewable touchscreen for monitoring indoors or outdoors without depending on a sun hood.
• 1920 x 1080 Resolution: Delivers a detailed Full HD monitoring image with a native 16:9 aspect ratio and Rec.709 color gamut.
• HDMI Input and Output: Accepts and loops through compatible video signals up to DCI and UHD 4K30 over HDMI 2.0.
• USB-C Camera Control: Controls supported camera settings including aperture, ISO, white balance, shutter speed, and shutter angle directly from the monitor.
• Touch-to-Focus Support: Allows compatible cameras to focus on a selected point by tapping the Shinobi 7 II touchscreen.
• Professional Exposure Tools: Includes EL Zone, false color, waveform, histogram, RGB parade, vectorscope, zebras, and MultiScope analysis.
• 3D LUT Monitoring: Loads .Cube LUT files from an SD card and supports 17-point and 33-point 3D LUTs for look preview and monitoring.
• Flexible Power Options: Operates from an NP-F/L-Series battery, USB-C Power Delivery, or an optional battery eliminator.

2800-Nit Daylight-Viewable HDR Monitoring

The 7" display reaches a calibrated peak brightness of 2800 nits, making the Shinobi 7 II suitable for exterior camera work and other bright environments. It supports Rec.709, PQ, HLG, and numerous manufacturer Log formats while displaying more than 10 stops of dynamic range from supported HDR and Log signals.

Camera Control and Touch-to-Focus

USB-C connectivity enables control of compatible Canon, Fujifilm, Nikon, Panasonic, and Sony cameras. Supported functions include white balance, aperture, ISO, shutter speed or angle, camera overlays, record indication, and touch-to-focus. Compatible Z CAM E2-series cameras require an additional control cable.

Exposure, Focus, and Framing Tools

The Shinobi 7 II provides EL Zone exposure visualization alongside Atomos false color and ARRI false color. Waveform, vectorscope, histogram, RGB parade, focus peaking, zebras, pixel mapping, zoom, safe areas, grid markers, and cine and social frame guides give camera crews a comprehensive toolset for evaluating an image before recording.

Anamorphic and LUT Workflows

Anamorphic de-squeeze settings include 2x, 1.8x, 1.79x, 1.65x, 1.6x, 1.5x, 1.33x, and 1.25x options. Custom .Cube LUTs can be loaded through the SD card slot, while supported monitoring modes include SDR Native, HDR HLG, HDR PQ, Rec.709 LUT, and User LUT operation.

On-Device Display Calibration

The Shinobi 7 II supports direct display calibration with compatible third-party calibration probes, reducing the need to connect the monitor to a separate computer during calibration. It can also work with the Atomos Calibrator application and supported calibration hardware for ongoing Rec.709 and HDR display maintenance.

Flexible On-Camera Power and Mounting

A rear NP-F/L-Series battery mount supports mobile operation, while USB-C Power Delivery provides continuous external power. An optional battery eliminator provides another DC power option. Anti-rotation 1/4"-20 and 3/8"-16 mounting points support integration with camera rigs, monitor arms, and related production hardware.

Technical Specifications

• Brand: Atomos
• Model: Shinobi 7 II
• SKU: ATOMSHB005
• Product Type: On-Camera HDR Monitor
• Display Size: 7"
• Panel Type: IPS-type LCD touchscreen
• Native Resolution: 1920 x 1080
• Aspect Ratio: 16:9
• Maximum Brightness: 2800 nits
• Backlight: Edge-lit
• Color Gamut: Rec.709
• Color Support: 10-bit monitoring
• HDR Monitoring: Log, PQ, and HLG with more than 10 stops of dynamic range
• Monitoring Modes: SDR Native, HDR HLG, HDR PQ, Rec.709 LUT, User LUT
• 3D LUT Support: .Cube format, 17-point and 33-point
• HDMI Input: 1 x HDMI 2.0
• HDMI Output: 1 x HDMI 2.0
• Maximum HDMI Video Resolution: DCI/UHD 4K30
• HDMI Video: 8/10-bit, 4:2:2
• Audio Input: 3.5mm, 2-channel
• Headphone Output: 3.5mm, 2-channel
• Media Slot: SD/SDHC/SDXC for LUTs and firmware updates
• USB-C: Camera control, calibration, and power functions
• Camera Control: White balance, aperture, ISO, shutter speed, shutter angle when supported, overlays, record indication, and touch-to-focus on compatible cameras
• MultiScope: Image, waveform, vectorscope, and histogram
• Waveform: 3 sizes with adjustable opacity and brightness
• Histogram: 3 sizes with adjustable opacity and brightness
• RGB Parade: 3 sizes with adjustable opacity and brightness
• Vectorscope: Supported
• Focus Peaking: Color, black-and-white, outline, and edge-sharpening modes
• False Color: Atomos, ARRI, and EL Zone
• Zebra: Adjustable from 50% to 105%
• Zoom: 1x, 2x, and 4x
• Cine Frame Guides: 2.41:1, 2.35:1, 1.91:1, 1.9:1, 1.85:1, 16:9
• Social Frame Guides: 9:16, 4:5, 2:3, 1:1, 5:4, 4:3, 3:2
• Safe Areas: SMPTE 93% and 90%
• Grid Markers: 9-grid
• Anamorphic De-Squeeze: 2x, 1.8x, 1.79x, 1.65x, 1.6x, 1.5x, 1.33x, 1.25x
• Display Flip: Horizontal and vertical
• Battery: 1 x NP-F/L-Series battery mount
• Input Voltage: 6.2 to 16.8 VDC
• USB-C Power Delivery: Supported
• Maximum Power Consumption: 13W
• Optional DC Power: Battery eliminator
• Mounting: Anti-rotation 1/4"-20 and 3/8"-16 mounting points
• Body Material: ABS polycarbonate
• Cooling: Passive heat sink
• Maximum Operating Temperature: 104°F
• Dimensions: 7.4" x 4.7" x 0.9"
• Weight: 0.9 lb

What's In the Box

• Atomos Shinobi 7 II
• USB-C 2.0 cable
• HDMI and USB-C locking cable adapter
• Quick Start Guide
