Atomos Shogun AV-19 19-Inch 4K HDR Monitor-Recorder-Switcher

Atomos Shogun AV-19 19-Inch 4K HDR Monitor-Recorder-Switcher

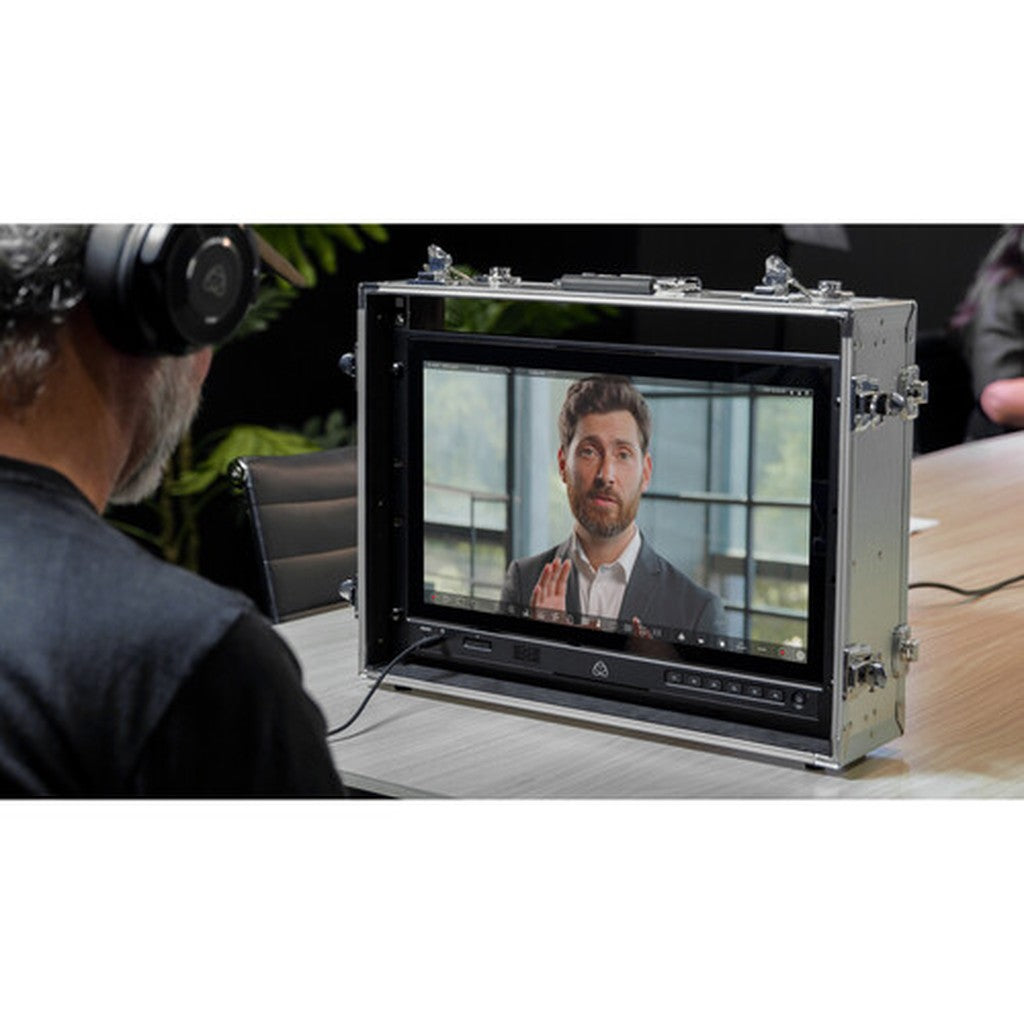

The Atomos Shogun AV-19 is a 7 RU rackmount 4K HDR monitor-recorder-switcher for live production, broadcast, and video village workflows. Its 19-inch 3840 x 2160 touchscreen combines color-accurate monitoring, multi-camera switching, ISO recording, program recording, and professional playback within one road-case-ready production system.

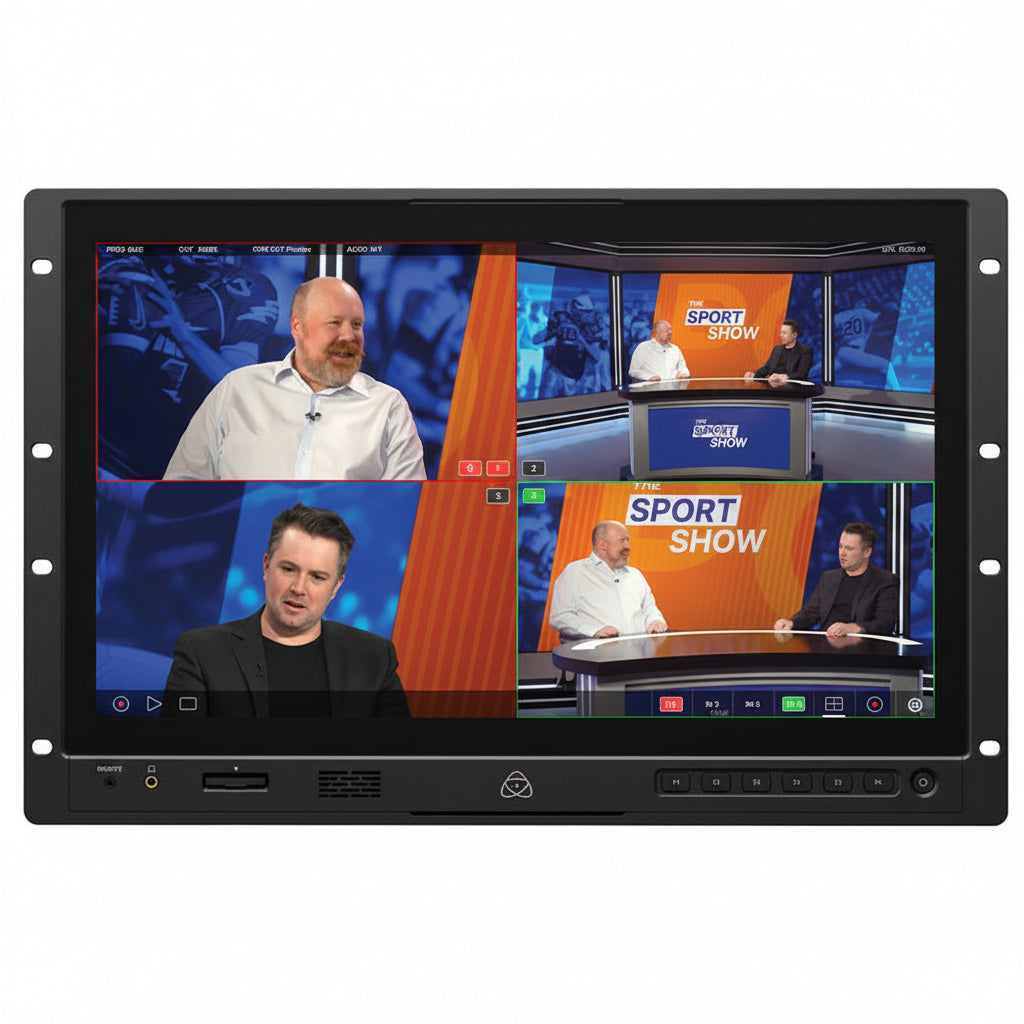

Directors, technical directors, DITs, camera operators, and event producers can monitor four camera feeds, switch sources in real time, and record each input separately at up to 1080p60. A fifth program recording captures the switched output. Internal CFexpress Type B and external USB-C recording options support rapid handoff for post-production and archiving.

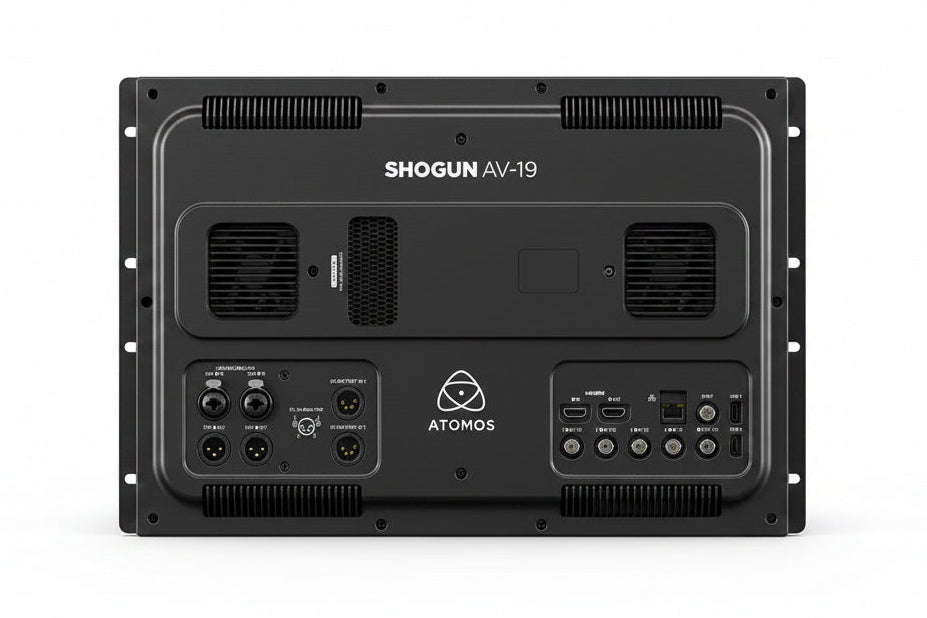

HDMI, 12G-SDI, 3G-SDI, XLR audio, LTC, LANC, USB-C, and Gigabit Ethernet connectivity integrate the Shogun AV-19 into professional production racks. NDI HX3 transmission and reception support IP video workflows, while custom LUTs, waveform, vectorscope, false color, focus peaking, and anamorphic desqueeze provide precise tools for evaluating exposure, focus, framing, and color.

Key Features

• Integrated Production System: Combines 4K HDR monitoring, multi-camera switching, recording, routing, and playback in one rackmount unit.
• 19-Inch 4K Touchscreen: The 3840 x 2160 capacitive display delivers 1200-nit brightness and broad professional color-gamut coverage.
• Multi-Camera ISO Recording: Records up to four isolated 1080p60 SDI feeds plus a fifth switched program output.
• Professional Recording Codecs: Captures Apple ProRes, ProRes RAW, Avid DNxHD, Avid DNxHR, and H.265 files.
• Flexible Recording Media: Records internally to CFexpress Type B media or externally to certified USB 3.0 storage.
• NDI HX3 Networking: Sends and receives low-latency video, audio, and metadata through the Gigabit Ethernet connection.
• Comprehensive Video I/O: Includes HDMI 2.0, two 12G-SDI inputs, two 3G-SDI inputs, and a 12G-SDI output.
• Professional Monitoring Tools: Provides waveform, RGB parade, vectorscope, false color, focus peaking, zebras, frame guides, and LUT support.

Technical Specifications

• Product Type: Rackmount 4K HDR Monitor-Recorder-Switcher
• Model: ATOMSHGAV1
• Display Size: 19"
• Display Resolution: 3840 x 2160 UHD 4K
• Panel Type: IPS-Type LCD
• Touchscreen: Capacitive
• Aspect Ratio: 16:9
• Display Bit Depth: 10-Bit with 8+2 FRC
• Backlight Type: Double Edge-Lit
• Maximum Brightness: 1200 cd/m²
• Color Support: 1.07 Billion Colors
• Color Gamut: 100% Rec.709, 99% DCI-P3, 99% NTSC, and 87% BT.2020
• HDR Monitoring Modes: Native, HLG, PQ, and 3D LUT
• HDR Output Conversion: Log or HDR to HLG or PQ
• 3D LUT Support: 17-Point and 33-Point .cube Files
• LUT Loop Output: Supported
• 3D LUT Split View: 50/50
• Calibration Support: Calibrite Display Pro or Display Plus with Compatible Computer and Optional Atomos LANC Cable
• HDMI Input: 1 x HDMI 2.0, Up to 4K60p
• SDI Inputs: 2 x 12G-SDI with 6G/3G Compatibility and 2 x 3G-SDI
• HDMI Output: 1 x HDMI 2.0, Up to 4K60p
• SDI Output: 1 x 12G-SDI
• USB Ports: 2 x USB-C 2.0/3.0
• Network Connection: 1 x RJ45 Gigabit Ethernet
• Network Video: NDI HX3 Send and Receive
• Video Input Bit Depth: 8/10-Bit Video and Up to 12-Bit RAW
• Video Chroma Subsampling: YCbCr 4:2:0 and 4:2:2
• Video Output Bit Depth: 8/10-Bit
• HDMI-to-SDI Conversion: Supported
• SDI-to-HDMI Conversion: Supported
• LANC: Supported
• Bluetooth: No
• Wi-Fi: No
• Maximum 8K RAW: Up to 8K30p via SDI
• Maximum 6K RAW: Up to 6K60p via SDI
• Maximum 4K RAW: Up to 4K60p via SDI
• Maximum 2K RAW: Up to 2K240p via SDI
• Maximum DCI 4K: Up to 4K60p
• Maximum UHD 4K: Up to UHD 60p
• Maximum DCI 2K: Up to 2K60p
• Maximum 1080p: Up to 1080p120
• 1080i Support: 1080i50 and 1080i60
• Maximum 720p: Up to 720p60
• Recording Media: Certified CFexpress Type B or USB 3.0 Storage
• File System: ExFAT
• Apple ProRes RAW Codecs: ProRes RAW and ProRes RAW HQ
• Apple ProRes Codecs: ProRes LT, 422, and 422 HQ
• Avid DNxHD Codecs: DNxHD 220x, 220, 145, and 36
• Avid DNxHR Codecs: DNxHR LB, SQ, HQ, and HQX
• H.265 Codecs: LQ, MQ, HQ, and XQ in 8/10-Bit 4:2:2 or 4:2:0
• H.264 Recording: Not Supported
• ISO Recording: 4 x Isolated Feeds at Up to 1080p60
• Switched Program Recording: Supported
• Multi-Input Switching: Up to Four 1080p60 SDI Inputs
• Multiview Display: Multi-ISO Input Mode
• Pre-Roll Recording: 8 Seconds in HD or 2 Seconds in 4K with ProRes and DNxHD
• Time-Lapse Recording: Supported
• Playlist Playback: Supported
• Loop Playback: Supported with Customizable In and Out Markers
• Audio Quality: 24-Bit/48 kHz PCM
• HDMI Embedded Audio: Up to 8 Channels, Input Dependent
• SDI Embedded Audio: Up to 12 Channels, Input Dependent
• Analog Audio Inputs: 2 x 3-Pin Female XLR Mic/Line Inputs
• Phantom Power: Selectable 48V
• Analog Audio Outputs: 2 x 3-Pin Male XLR Monitor/Line Outputs
• Headphone Output: 1 x 3.5mm Two-Channel Output
• Built-In Speaker: Mono Confidence Speaker, Up to 1.5W
• Embedded Timecode: HDMI and SDI
• Time-of-Day Timecode: Supported
• LTC Input: Dedicated BNC Input in Record Mode
• Reference/Genlock Input: Supported in Playback Mode
• Monitoring Tools: Waveform, RGB Parade, Vectorscope, Focus Peaking, False Color, ARRI False Color, EL Zone, Zebras, Blue-Only, Safe Areas, and Grid Markers
• Zoom: 1:1 Pixel Mapping and 2x Zoom
• Cinema Frame Guides: 2.4:1, 2.35:1, 1.9:1, 1.85:1, and 4:3
• Social Frame Guides: 9:16, 1:1, 1.91:1, and 4:5
• Anamorphic Desqueeze: 1.25x, 1.33x, 1.5x, 1.6x, 1.65x, 1.79x, 1.8x, and 2x
• Display Flip: Vertical
• Onboard Processing: UHD-to-HD Downscaling, DCI Crop, and Pulldown Removal
• Camera Trigger: HDMI and SDI
• Function Buttons: Power Plus 6 Assignable Buttons
• Tally Light: Front LED
• Rack Height: 7 RU
• Mounting: Integrated 19" Rack Ears
• VESA Mount: No
• Construction: Aluminum with ABS Plastic
• Cooling: Actively Controlled Fan and Heat Sink
• Input Voltage: 12 to 16.8 VDC
• Operating Power: 75W
• DC Power Connection: 4-Pin XLR
• Compatible Battery Voltage: 14.4V Nominal through 4-Pin XLR
• Maximum Operating Temperature: 104°F
• Dimensions (W x H x D): 19" x 12.2" x 2.4"
• Weight: 11.51 lbs
• Warranty: 1 Year; Extendable to 2 Years with Product Registration, Excluding the Screen

What's In the Box

• Atomos Shogun AV-19 Monitor-Recorder-Switcher
• 4-Pin XLR Power Supply
• Five International IEC Power Cables
• Ten Rack Nuts and Bolts
• Screen Cleaning Cloth
• Quick Start Guide
