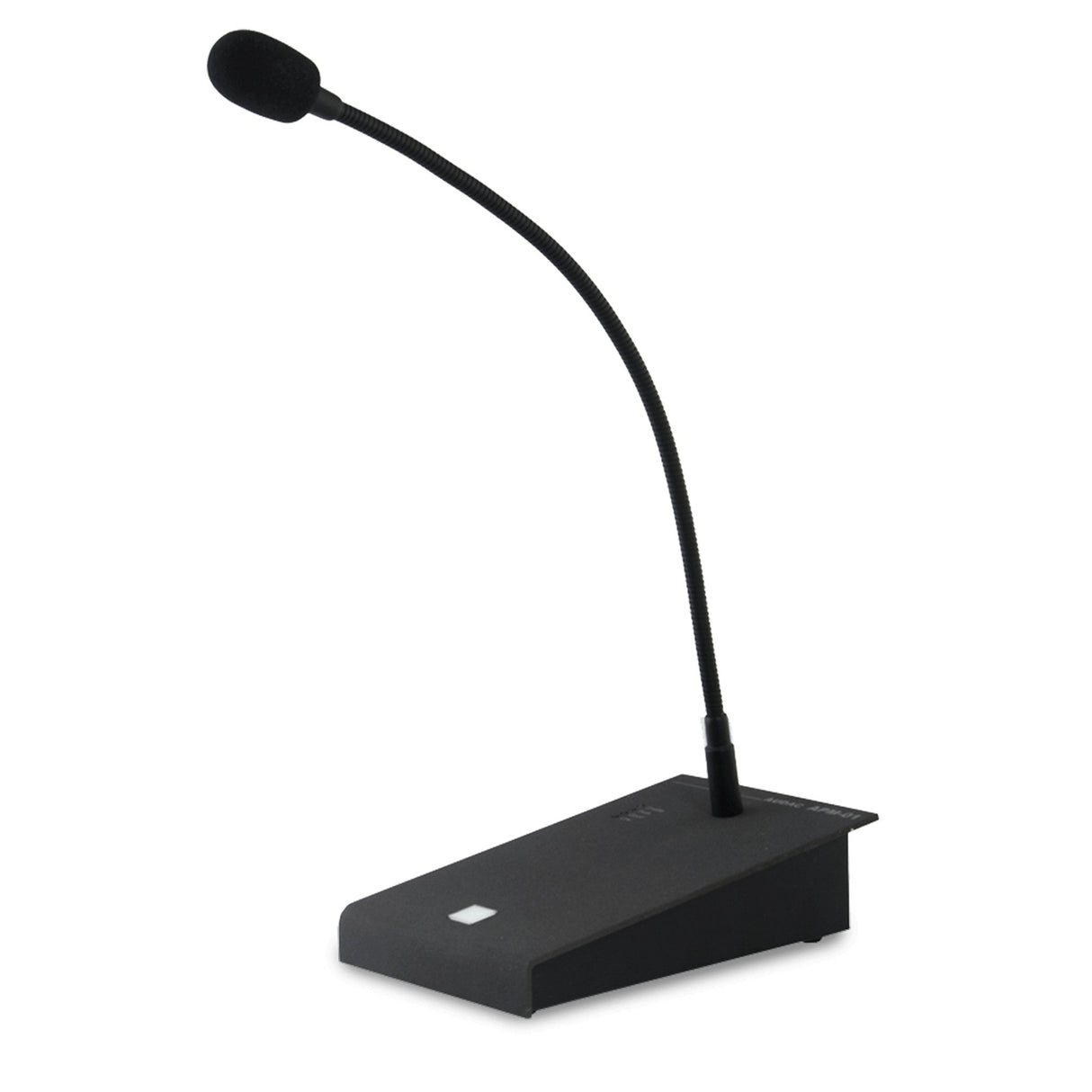

Audac APM101 MK2 Digital Paging Microphone, 1 Zone
Audac APM101 MK2 Digital Paging Microphone, 1 Zone
The Audac APM101MK2 Digital Paging Microphone, 1 Zone is a cutting-edge digital paging microphone designed specifically for use in a single zone. It features a high-quality condenser element with a cardioid characteristic, which is securely mounted on a flexible 30 cm gooseneck. With its built-in compressor/limiter, the microphone ensures a consistent output level for the signal, guaranteeing clear and audible messages at all times. The front panel of the microphone conveniently displays the status of the reproduced signal, providing reassurance to the speaker that their message is being effectively transmitted. Additionally, the console is equipped with a user-friendly Push To Talk button for seamless operation.
Key Features
- Back electret condenser capsule designed for superior audio quality
- Cardioid pickup pattern for focused sound capture
- Flexible 35 cm gooseneck microphone for easy positioning
- Built-in memory for storing and playing back voice files
- LED indicators for monitoring levels and status
- Convenient push-to-talk button for seamless communication
Technical Specifications
Available models
APM101MK2
MK2 version
System specifications
Microphone Type
Back electret condenser
Gooseneck length
13.78 "
Polar Pattern
Cardioid (unidirectional)
Frequency Response (Ā± 3 dB)
100 Hz - 20 kHz
Sensitivity (1W/1m)
-42 dB
Buttons
1 x programmable PTT (push-to-talk)
Indicators
3 Colours illuminated push button
Level & status indication LEDās
Internal storage
10 minutes audio or messages spread over max 30 files
Power Consumption
4.8 W (max.)
Supply
24 V DC (min. 16V DC)
Connectors
RJ45 (data + Power)
Max. cable length
Without external PSU
4448.82 "
With external PSU
11811.024 "
Connection standard
TIA/EIA T568B
Product Features
Dimensions
4.72 x 2.17 x 7.48 " (W x H x D)
Weight
2.98 lb
Data protocol
RS-485
Audio protocol
Analogue
Digital (configurable)
Required cabling
Analog
UTP CAT5E
Digital
UTP CAT6
Colours
Grey metallic front panel
Construction
Steel
Accessories
Included
Windscreen (MWS05/B)
Optional (Not Included)
ARJ03P junction box
CP45ARJ RJ45 junction plate
PSD24x external Power supply
Recommended applications
Corporate
Sporting facilities
