Audac APM104 MK2 Digital Paging Microphone, 4 Zones
Audac APM104 MK2 Digital Paging Microphone, 4 Zones

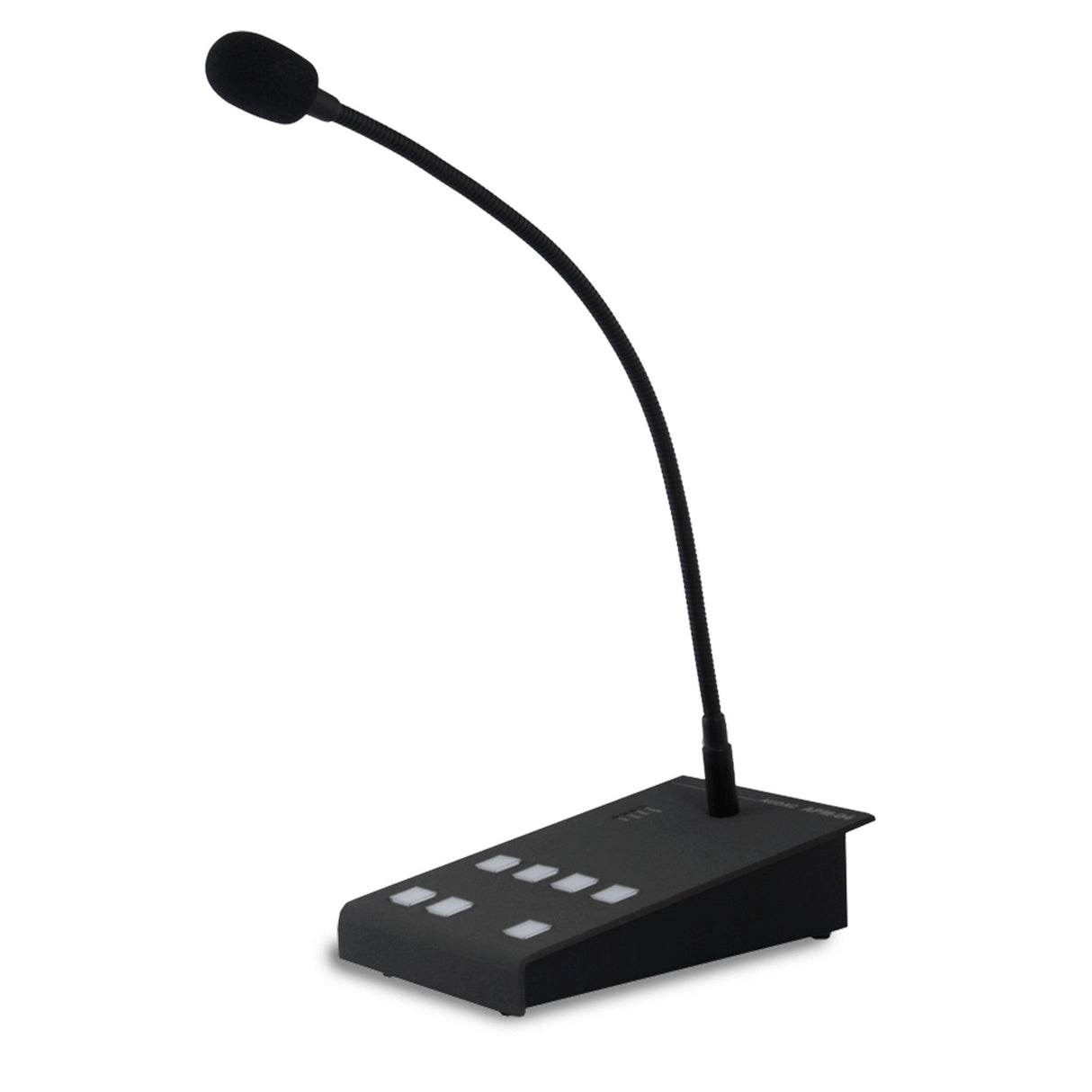

The Audac APM104MK2 Digital Paging Microphone, 4 Zones is a digital paging microphone designed for use in 4 different zones. It features a condenser element with a cardioid characteristic, which is mounted on a 30 cm gooseneck. The microphone signal is constantly maintained at the desired output level thanks to the built-in compressor/limiter. The front panel of the microphone indicates the status of the reproduced signal, ensuring that the message is clear and audible in all situations. The console includes 4 zone selection buttons and three standard buttons with preassigned functions: Push To Talk (PTT), select all, and clear. These functions can be customized using the APM configuration software. When used in conjunction with the AUDAC ARU relay groups, the APM paging consoles offer a wide range of possibilities.
Key Features
- Premium back electret condenser capsule featuring a cardioid pickup pattern
- Built-in memory for storing and playing back voice files
- LED indicators for displaying level and status information
- Illuminated push button available in four different colors
- Flexible gooseneck design for precise and adjustable positioning
Technical Specifications
Available models
APM104MK2
MK2 version
System specifications
Microphone Type
Back electret condenser
Gooseneck length
13.78 "
Polar Pattern
Cardioid (unidirectional)
Frequency Response (± 3 dB)
100 Hz - 20 kHz
Sensitivity (1W/1m)
-42 dB
Indicators
3 Colours illuminated push button
Level & status indication LED’s
Internal storage
10 minutes audio or messages spread over max 30 files
Power Consumption
4.8 W (max.)
Supply
24 V DC (min. 16V DC)
Connectors
RJ45 (data + Power)
Max. cable length
Without external PSU
4448.82 "
With external PSU
11811.024 "
Connection standard
TIA/EIA T568B
Buttons
4 x programmable zone/function
1 x PTT (push-to-talk)
1 x select & clear all
Product Features
Dimensions
4.72 x 2.17 x 7.48 " (W x H x D)
Weight
2.98 lb
Data protocol
RS-485
Audio protocol
Analogue
Digital (configurable)
Required cabling
Analog
UTP CAT5E
Digital
UTP CAT6
Colours
Grey metallic front panel
Construction
Steel
Accessories
Included
Windscreen (MWS05/B)
Optional (Not Included)
ARJ03P junction box
CP45ARJ RJ45 junction plate
PSD24x external Power supply
Recommended applications
Corporate
Sporting facilities
