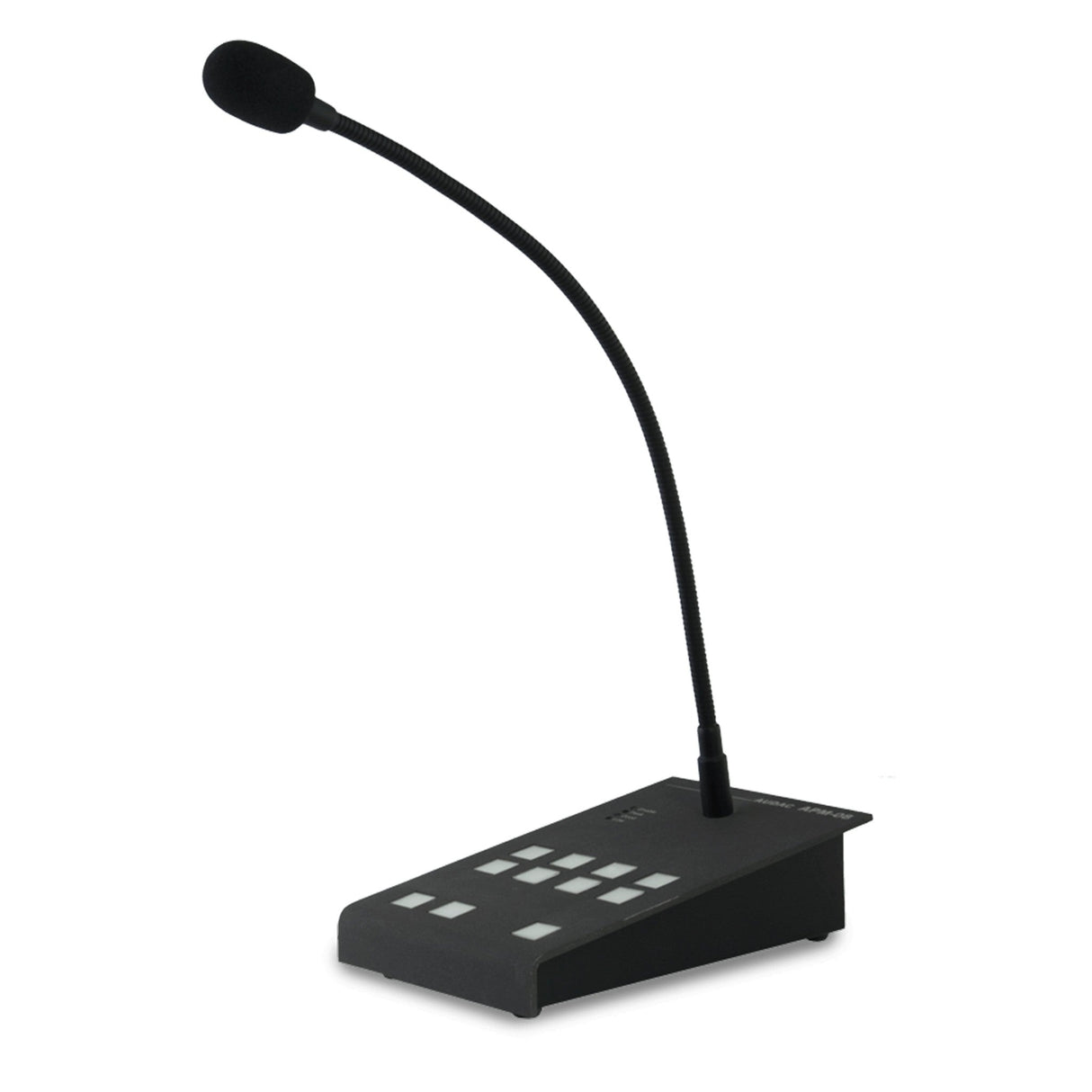

The Audac APM108MK2 Digital Paging Microphone, 8 Zones is an advanced digital paging microphone designed for use in 8 different zones. It features a high-quality condenser element with a cardioid characteristic, which is mounted on a flexible 30 cm gooseneck for easy positioning. One of the key features of this microphone is its built-in compressor/limiter, which ensures that the output level of the microphone signal remains consistent at all times. This helps to maintain clear and audible messages, which is crucial in various situations. The front panel of the microphone displays the status of the reproduced signal, providing reassurance to the speaker that their message is being effectively transmitted. The console itself is equipped with 8 zone selection buttons, as well as three standard buttons with pre-assigned functions: Push To Talk (PTT), select all, and clear. These functions can be customized and programmed according to specific requirements using the APM configuration software. When used in conjunction with the AUDAC ARU Relay Groups, the APM paging consoles offer a wide range of possibilities and enhanced functionality.

Key Features

• Back electret condenser capsule designed for superior audio quality

• Cardioid pickup pattern for focused sound capture

• Flexible 35 cm gooseneck microphone for easy positioning

• Built-in memory for storing and playing back voice files

• LED indicators for monitoring levels and status

• Illuminated push buttons available in 8 different colors for easy identification and operation

Technical Specifications

Available models
APM108MK2
MK2 version

System specifications
Microphone Type
Back electret condenser
Polar Pattern
Cardioid (unidirectional)
Frequency Response (± 3 dB)
100 Hz - 20 kHz
Sensitivity (1W/1m)
-42 dB ± 3 dB / Pa
Buttons
8 x programmable zone/function
1 x PTT (push-to-talk)
1 x select & clear all
Indicators
3 Colours illuminated push button
Level & status indication LED’s
Internal storage
10 minutes audio or messages spread over max 30 files
Power Supply
24 V DC (min. 16V DC)
Consumption
4.8 W
Microphone
Gooseneck length
13.78 "
Connectors
RJ45 (data + Power)
Connection standard
TIA/EIA T568B
Max. cable length
With external PSU
11811.024 "
Without external PSU
5236.22 "

Product Features
Dimensions
4.72 x 2.17 x 7.48 " (W x H x D)
Weight
2.98 lb
Data protocol
RS-485
Audio protocol
Analogue
Digital (configurable)
Colours
Grey metallic front panel
Construction
Steel
Required cabling
Analog
UTP CAT5E
Digital
UTP CAT6
Accessories
Included
Windscreen (MWS05/B)
Optional (Not Included)
ARJ03P junction box
CP45ARJ RJ45 junction plate
PSD24x external Power supply

Recommended applications
Corporate
Sporting facilities
