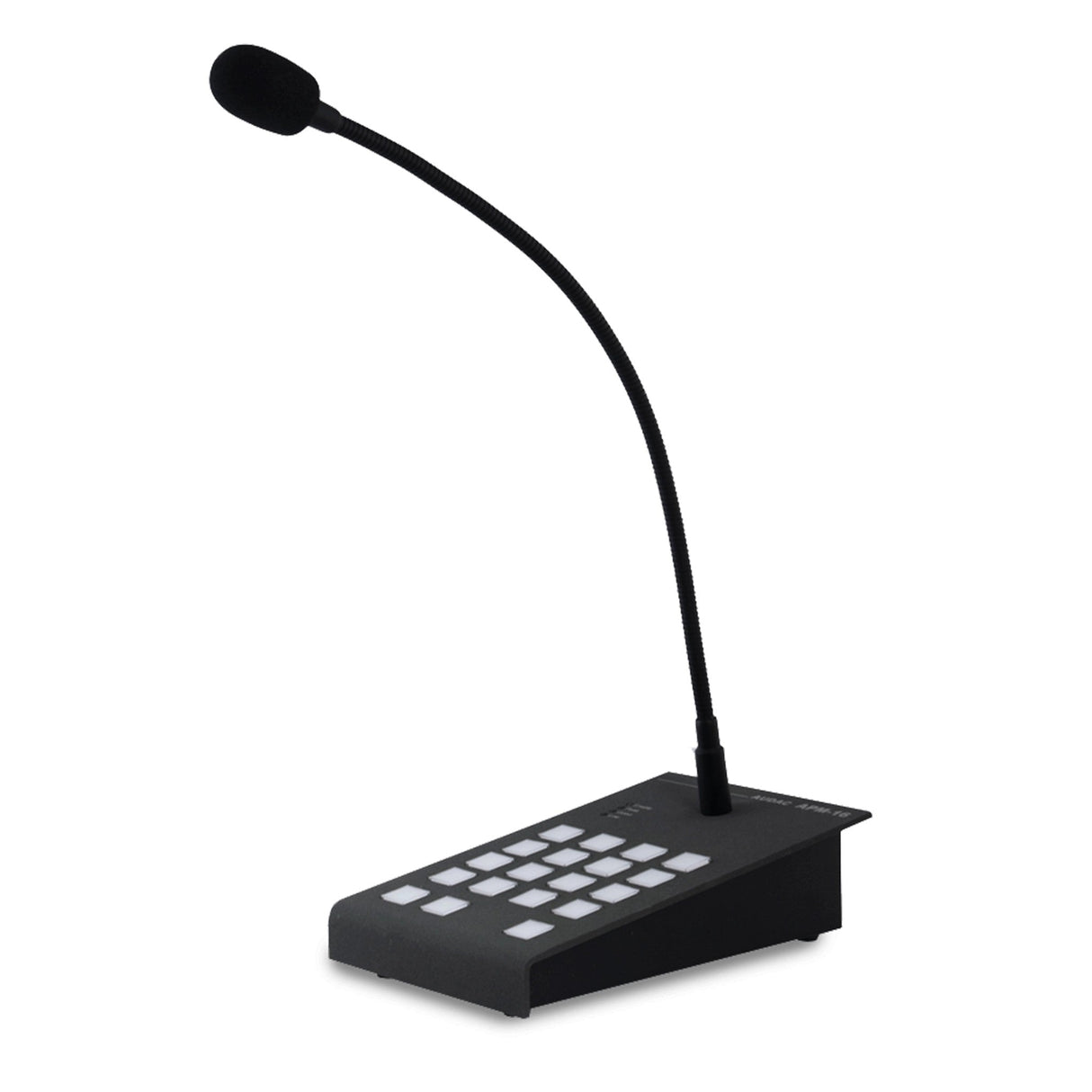

The Audac APM116MK2 Digital Paging Microphone, 16 Zones is a cutting-edge digital paging microphone designed for use in 16 different zones. Equipped with a 32 cm gooseneck microphone featuring a back electret condenser cell with a cardioid pickup pattern, this microphone ensures high-quality sound capture. With a built-in limiter that continuously monitors input levels, users can expect a consistently clear output signal. The microphone's base is equipped with LED indicators that display the status of the reproduced signal, providing users with a visual confirmation of clear and audible sound in all scenarios.

Each APM116 console comes with three standard buttons, with the exception of the APM101MK2 model which only features a PTT (Push To Talk) button. These buttons are pre-assigned with functions such as PTT, select all, and clear all. Additionally, users have the flexibility to configure other function buttons to cater to specific needs, such as making announcements to particular zones, grouping zones, or triggering switch relay and voice-file announcements. Standard configurations can be easily set up using matrix systems (R2 & M2), while more customized configurations can be programmed using the APC100 configurator tool in conjunction with the 'AUDAC system manager' software.

Key Features

• Back electret condenser capsule designed for superior audio quality

• Cardioid pickup pattern for focused sound capture

• Flexible gooseneck microphone measuring 35 cm for easy positioning

• Built-in memory for storing and playing back voice files

• LED indicators for monitoring levels and status

• Illuminated push button with 16 color options for easy operation

Technical Specifications

Available models
APM116MK2
MK2 version

System specifications
Microphone Type
Back electret condenser
Polar Pattern
Cardioid (unidirectional)
Frequency Response (± 3 dB)
100 Hz - 20 kHz
Sensitivity (1W/1m)
-42 dB ± 3 dB / Pa
Buttons
16 x programmable zone/function
1 x PTT (push-to-talk)
1 x select & clear all
Indicators
3 Colours illuminated push button
Level & status indication LED’s
Internal storage
10 minutes audio or messages spread over max 30 files
Power Supply
24 V DC (min. 16V DC)
Consumption
4.8 W
Microphone
Gooseneck length
13.78 "
Connectors
RJ45 (data + Power)
Connection standard
TIA/EIA T568B
Max. cable length
With external PSU
11811.024 "
Without external PSU
5236.22 "

Product Features
Dimensions
4.72 x 2.17 x 7.48 " (W x H x D)
Weight
2.98 lb
Data protocol
RS-485
Audio protocol
Analogue
Digital (configurable)
Colours
Grey metallic front panel
Construction
Steel
Required cabling
Analog
UTP CAT5E
Digital
UTP CAT6
Accessories
Included
Windscreen (MWS05/B)
Optional (Not Included)
ARJ03P junction box
CP45ARJ RJ45 junction plate
PSD24x external Power supply

Recommended applications
Corporate
Sporting facilities
