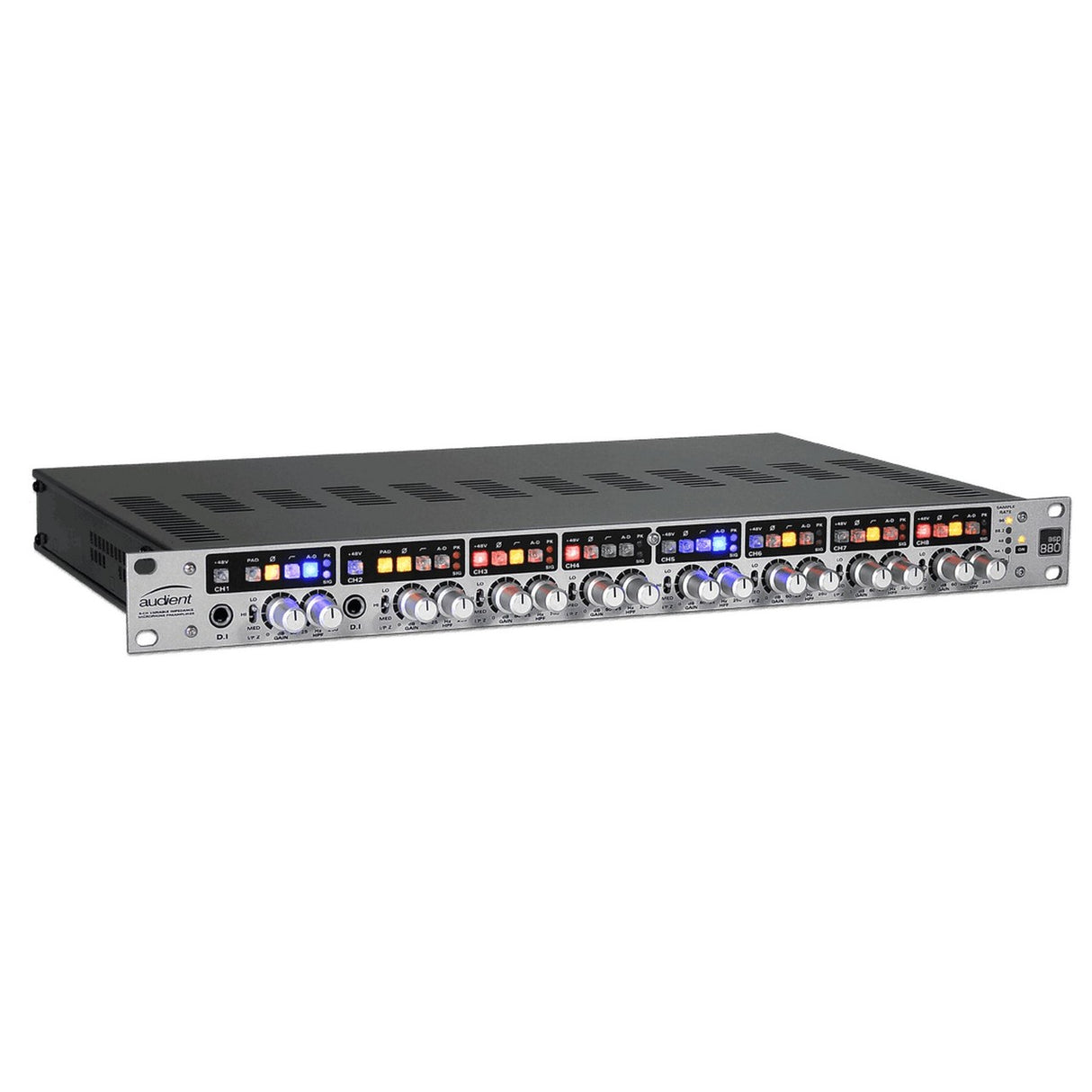

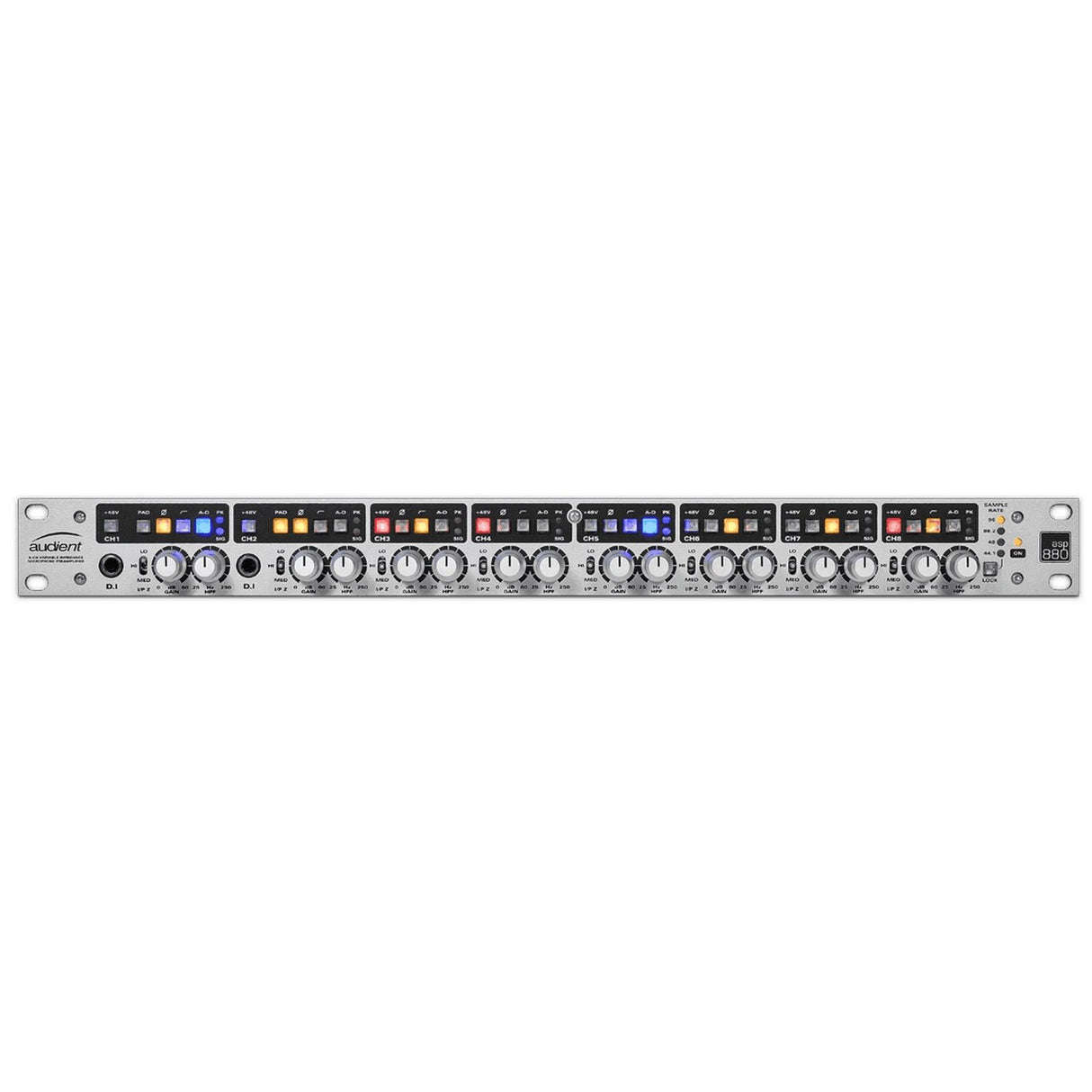

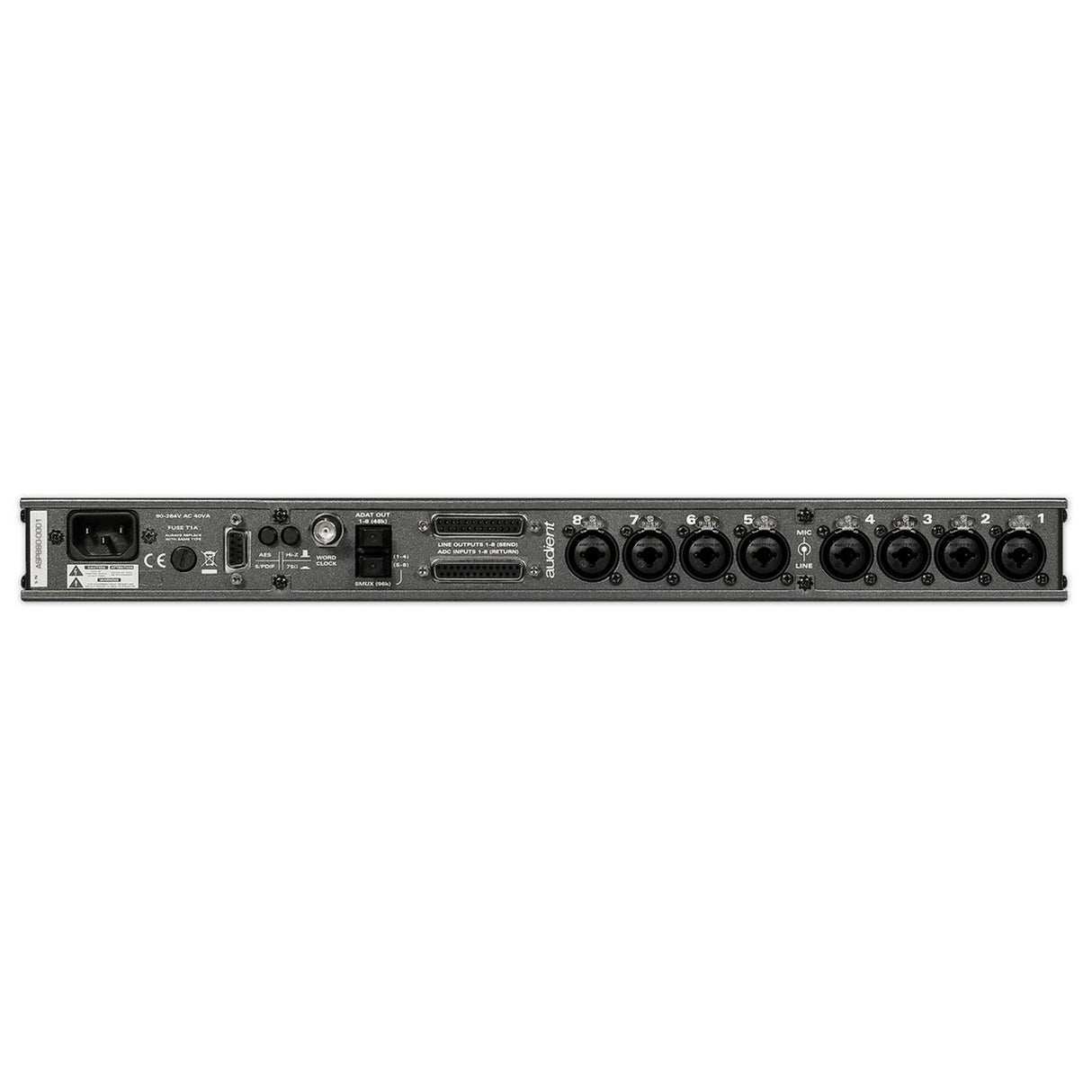

Audient ASP880 8 Channel Class A Microphone Pre-Amplifier
ASP880 is an 8-channel microphone preamplifier & ADC that will transform your sessions into world class recordings, the perfect addition to your set-up. ASP880 provides eight of Audient's renowned console mic pres, pristine converter technology and a versatile feature set that includes Variable Impedance and Variable High Pass Filters. All in a 1RU rack!
Key Features
- 8 x Class-A Audient Console Mic Preamplifiers
- High Performance Burr Brown AD Converters
- Variable Input Impedance
- Variable High Pass Filters
- 2 x Discrete JFET Instrument Inputs
- 8 x Insert points (between the mic preamps and AD converters)
- Digital Outputs - ADAT, AES & S/PDIF
- All-Metal Enclosure
Technical Specifications
MICROPHONE PREAMPLIFIERS
MIC GAIN
-10 to +60dB (-10dB Pad)
LINE GAIN
-16 to +44dB (-10dB Pad)*
PHANTOM POWER
48v +/-4v @ 10mA/Channel
MIC EIN
<-127.5dBu
CMRR
>80dB @ 100 to 10kHz
MAXIMUM INPUT LEVEL
+22dBu (+32dBu with Pad)
INPUT IMPEDANCE
Mic LO: 220 Balanced
Mic MED: 1k2 Balanced
Mic HI: 2k8 Balanced
Line (All Z): >6k Balanced
FREQUENCY RESPONSE
+/-0.5dB 10Hz to 100kHz
CROSSTALK
<-85dBu @ 1kHz & 10kHz
THD+N @ 0dBu (1kHz)
0.003% (-90.5dBu)
SNR
>90dB
HPF
Sweepable from 25Hz to 250 Hz, 2nd Order (12dB/Octave)
XLR
Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield)
1/4” JACK
TIP (Hot), RING (Cold) & SLEEVE (Shield)
WEIGHT
4.0kg
Height
44.4mm
Width
440mm
Depth
280mm
