Audinate AVIO-A-2IN2OUT-EB Dante AVIO Install 2-Ch In/2-Ch Out Adapter

Audinate AVIO-A-2IN2OUT-EB Dante AVIO Install 2-Ch In/2-Ch Out Adapter

The Audinate AVIO-A-2IN2OUT-EB Dante AVIO Install 2-Ch In/2-Ch Out Analog Adapter provides bidirectional conversion between line-level analog audio and Dante network audio. It handles two analog inputs and two analog outputs, supports sample rates through 96 kHz, and uses dual switched Ethernet ports for installation-friendly daisy chaining.

Designed for permanent Pro AV systems, this adapter connects mixers, DSPs, amplifiers, conferencing equipment, and other analog devices with Dante networks. Two 6-pin Euroblock terminals support secure fixed wiring, while Class 3 PoE supplies operating power through the network. Up to four compatible adapters can share one network drop through the integrated Ethernet switch.

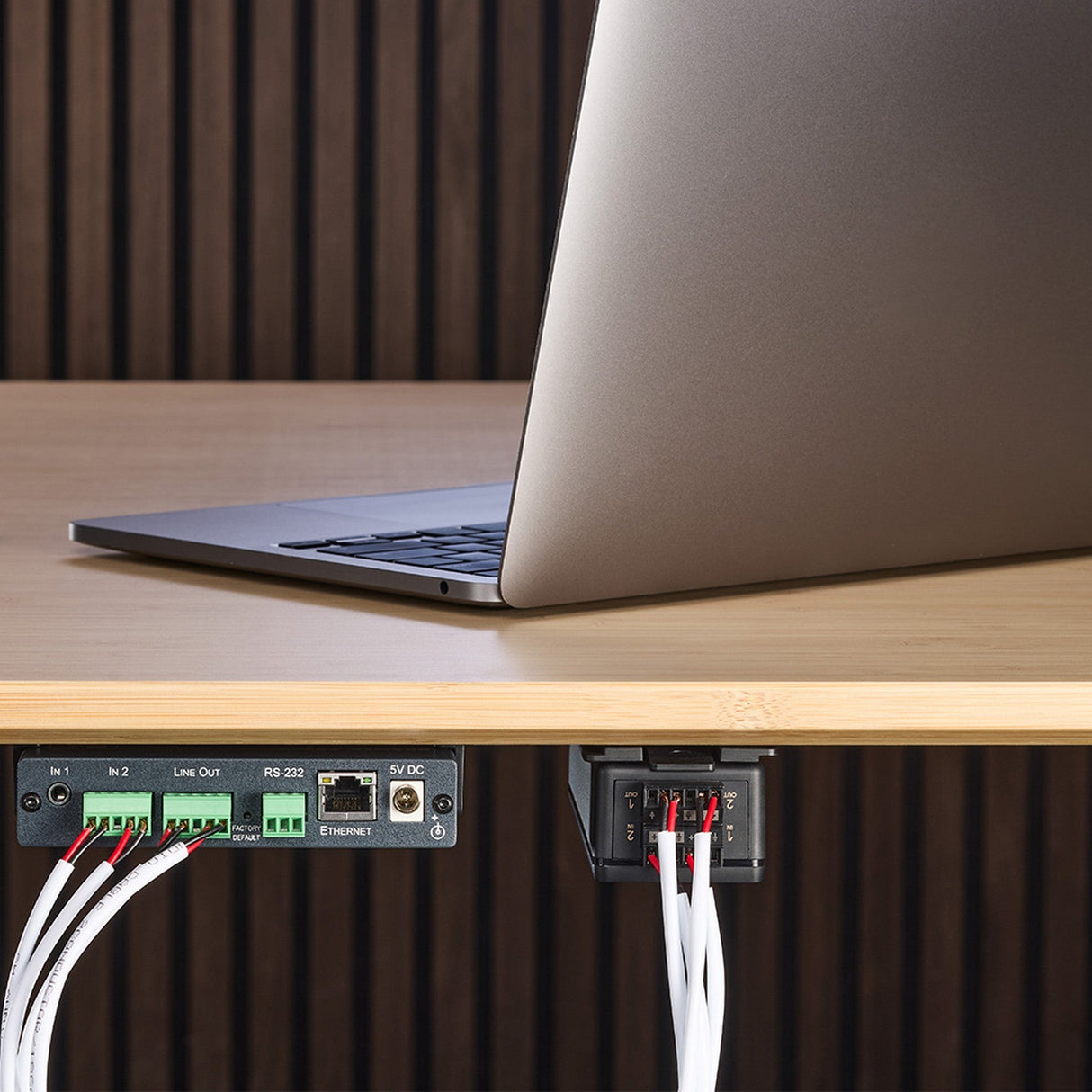

The adapter supports 16-, 24-, and 32-bit PCM audio and provides selectable Dante device latency settings of 1, 2, or 5 ms. Dante Controller handles network discovery, configuration, and signal routing. An included mounting bracket and Dante AVIO ClickGrid design support organized installation beneath tables, on shelves, along rack rails, or on other fixed surfaces.

Key Features

• Bidirectional Analog Conversion: Converts two line-level analog channels to Dante while converting two Dante channels back to analog.
• Up to 96 kHz Audio: Supports 44.1, 48, 88.2, and 96 kHz sample rates with uncompressed PCM audio.
• 32-Bit Capability: Supports selectable 16-, 24-, and 32-bit PCM operation for professional networked audio systems.

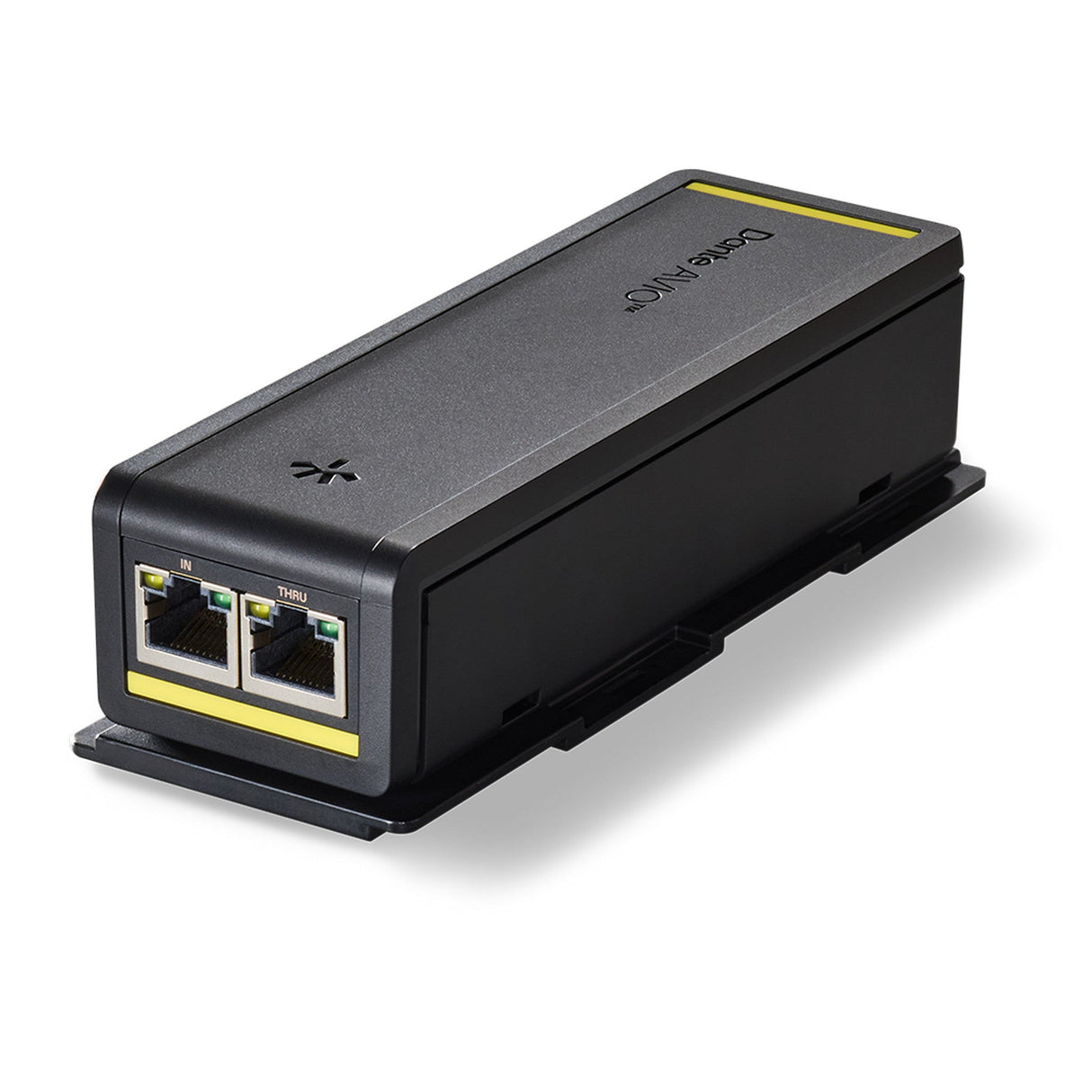

• Dual Ethernet Ports: Two switched 100 Mbps ports provide network connectivity and daisy-chain support.
• PoE Powered: Class 3 IEEE 802.3af PoE eliminates the need for a separate local power supply.

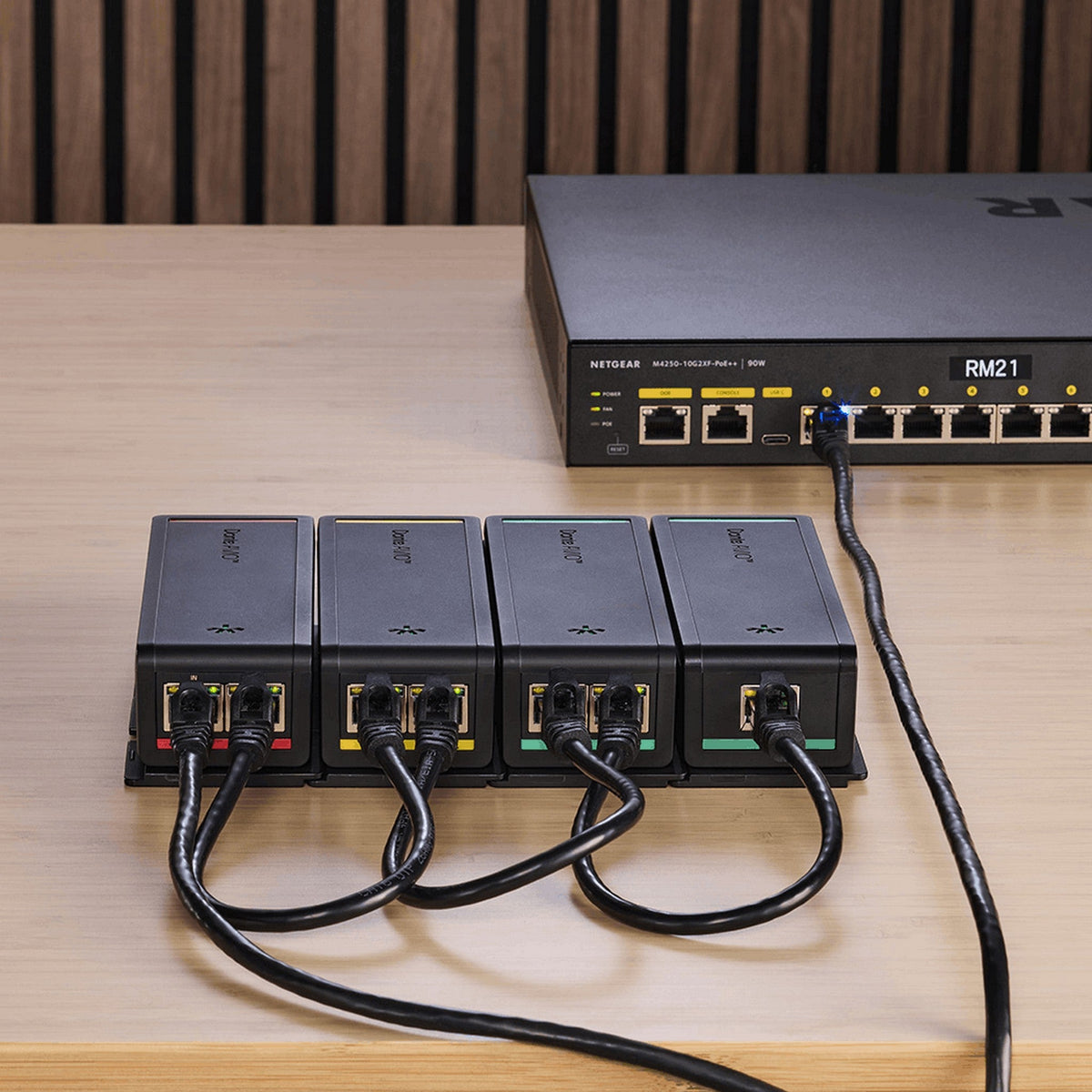

• Daisy-Chain Deployment: Passes network connectivity and PoE downstream so up to four adapters can share one network drop.

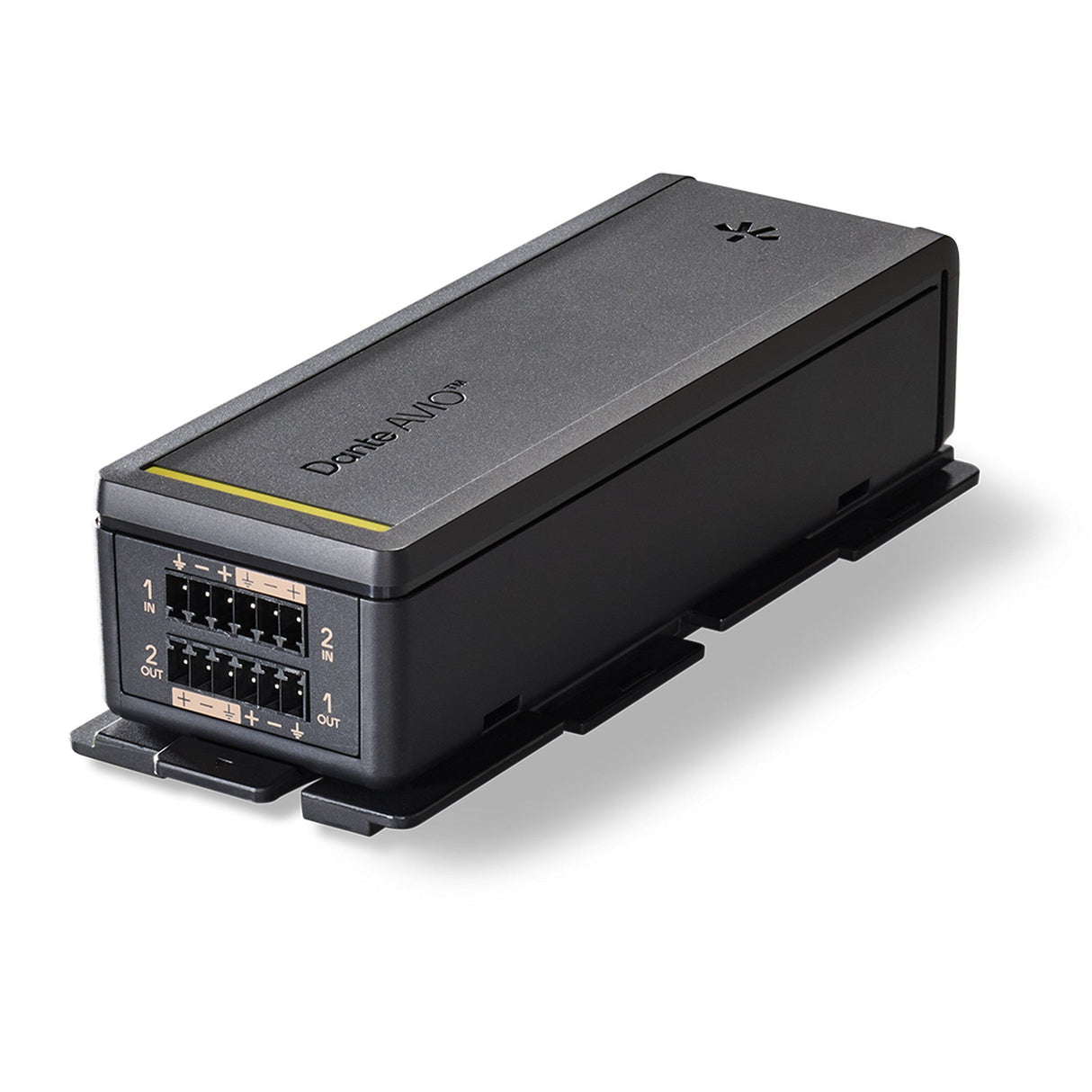

• Euroblock Connectivity: Two 6-pin, 3.5 mm-pitch terminals provide secure analog wiring for permanent installations.

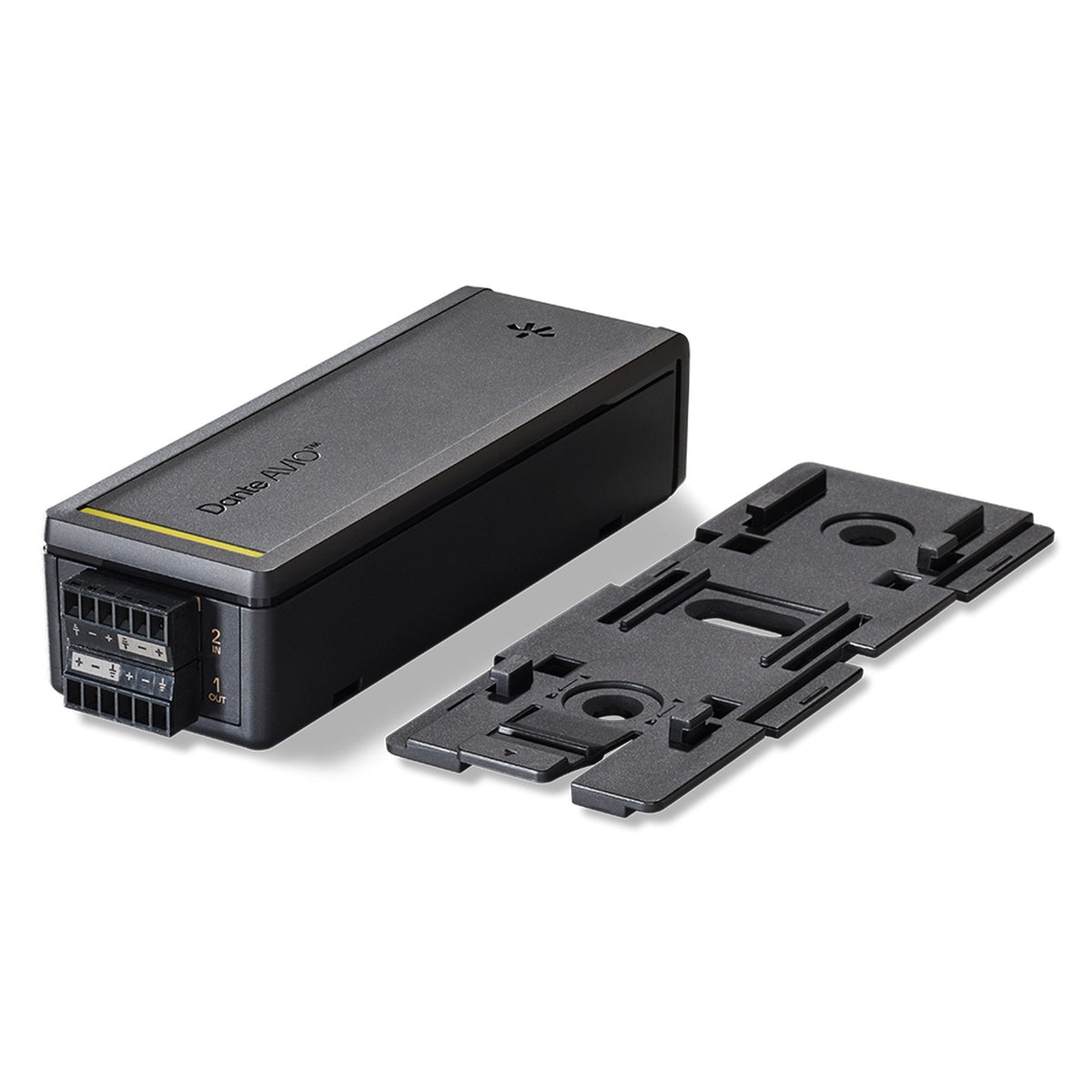

• Flexible Mounting: Includes a mounting bracket and supports the Dante AVIO ClickGrid mounting system.

Technical Specifications

• Part Number: AVIO-A-2IN2OUT-EB
• Product Type: Dante AVIO Install 2-Channel Input / 2-Channel Output Analog Adapter
• Audio I/O: 2 analog inputs and 2 analog outputs
• Mounting Options: Mounting bracket included
• Connector Type: 2 x 6-pin Euroblock terminals, 3.5 mm pitch
• Power: Class 3 IEEE 802.3af PoE
• Power Consumption: 2.5 W standalone; up to 12 W in daisy-chain configuration
• Operating Temperature: -10 to +45 degrees C
• Storage Temperature: -15 to +60 degrees C
• Frequency Response: 20 Hz to 20 kHz (+/-0.2 dB)
• Input Dynamic Range: 108 dB AES17 A-weighted at +4 dBu, 997 Hz
• Output Dynamic Range: 105 dB AES17 A-weighted at 0 dBFS, 997 Hz
• Input THD+N: 0.0008% (-103 dB), A-weighted
• Output THD+N: 0.0019% (-94.5 dB), A-weighted
• Input Crosstalk: -123 dB at 10 kHz, +4 dBu input
• Output Crosstalk: -118.5 dB at 10 kHz, 0 dBFS input
• Input Impedance: 20 kohms balanced; 10 kohms unbalanced
• Output Impedance: 300 ohms balanced; 150 ohms unbalanced
• Maximum Balanced Signal Level: +4 dBu / 0 dBu / 0 dBV / -10 dBV
• Sample Rates: 44.1 / 48 / 88.2 / 96 kHz
• Bit Depth: 16-, 24-, or 32-bit PCM
• Audio Transport Protocol: Dante Audio over IP
• Dante Device Latency: 1, 2, or 5 ms
• Network: 2 x 100 Mbps Ethernet ports with integrated switch and daisy-chain support
• Dimensions: 5.9 x 2.1 x 1.5"
• Weight: 0.4 lb
• Individual Package Dimensions: 7.5 x 3.6 x 1.8"
• Individual Package Weight: 0.6 lb
• Master Carton Dimensions: 11.9 x 8.2 x 8.6"
• Master Carton Weight: 7.5 lb
• Master Carton Quantity: 12 units
• Harmonized Code: 8517.62.0090
• Country of Origin: China

What's In the Box

• Audinate Dante AVIO Install 2-Ch In/2-Ch Out Analog Adapter
• Mounting Bracket
