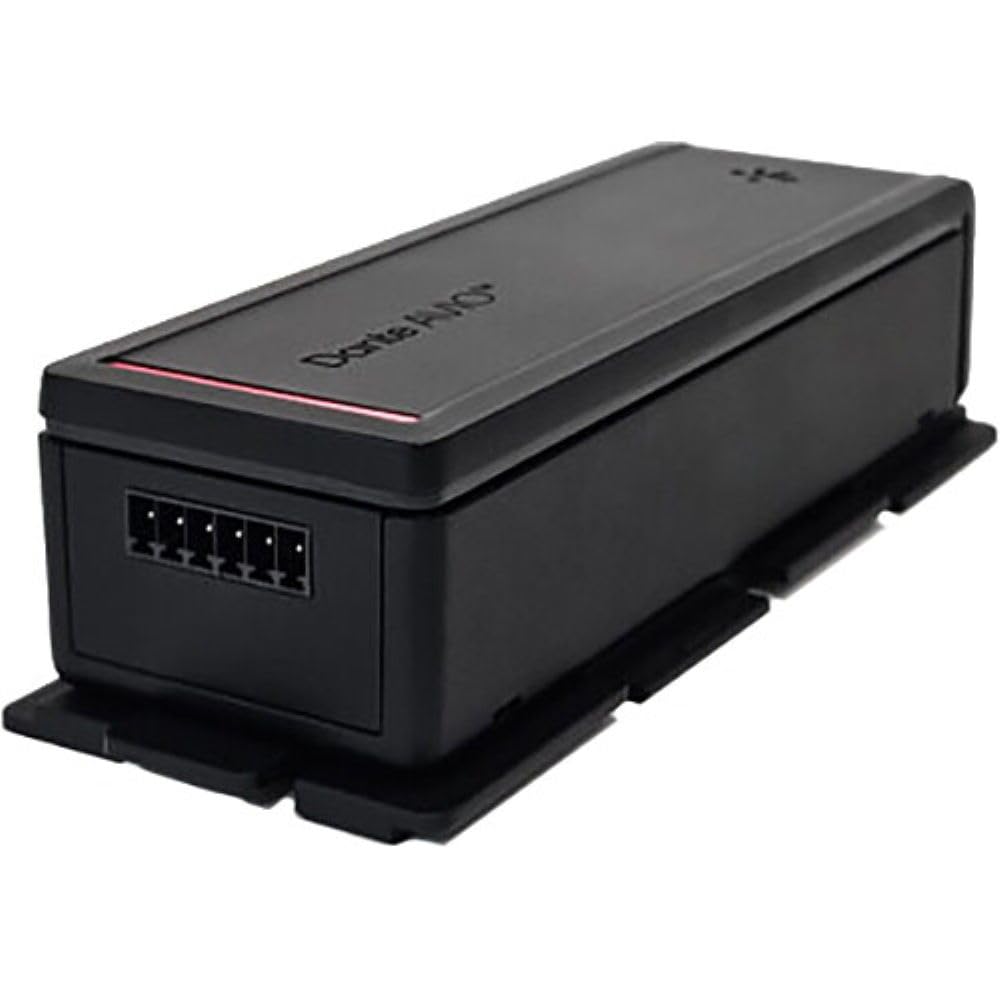

Audinate AVIO-A-2OUT-EB Dante AVIO Install 2-Channel Analog Output Adapter

The Audinate AVIO-A-2OUT-EB is a Dante AVIO Install series adapter that converts two channels of Dante audio out to balanced line-level analog equipment, bringing networked audio to installed AV systems without replacing existing equipment. Part of Audinate's installation-focused AVIO line, it pairs professional 6-pin Euroblock terminals (3.5mm pitch) with a compact, mount-anywhere form factor built for meeting rooms, classrooms, lecture halls, houses of worship, and commercial AV installations.

Powered entirely over the network via IEEE 802.3af PoE (Class 1, under 2W draw), the adapter needs no local power supply — a single Ethernet run delivers both audio and power. The ClickGrid mounting system snaps adapters together and secures them under tables, on shelves, or in equipment racks for a clean, serviceable installation. Like all Dante devices, it is discovered and routed instantly in Dante Controller, with full support for Dante Domain Manager environments.

For integrators standardizing on Dante, the AVIO Install series is the fastest way to connect legacy analog output equipment to the network with reliable, near-zero-latency, sample-accurate audio.

Features

• 2-channel analog output to/from Dante over a single Ethernet cable
• 6-pin Euroblock terminals (3.5mm pitch) for installed-sound wiring
• PoE powered (IEEE 802.3af Class 1, <2W) — no local power supply
• ClickGrid mounting system for under-table, shelf, or rack mounting
• Configured with Dante Controller; Dante Domain Manager ready

Technical Specifications

• Model: AVIO-A-2OUT-EB
• Channels: 2 (output)
• Connectors: 6-pin Euroblock, 3.5mm pitch; RJ45 (PoE)
• Power: PoE IEEE 802.3af Class 1, <2W
• Dimensions: 150.7 x 53.8 x 38.1 mm; 145 g
• GTIN: 9353345000107
