Audinate AVIO-A-4IN-EB Dante AVIO Install 4-Channel Analog Input Adapter

Audinate AVIO-A-4IN-EB Dante AVIO Install 4-Channel Analog Input Adapter

The Audinate AVIO-A-4IN-EB Analog Input Adapter converts up to four channels of line-level analog audio into Dante network audio for permanent Pro AV installations. It supports four input channels at 44.1 or 48 kHz, two channels at 88.2 or 96 kHz, and dual switched 100 Mbps Ethernet ports for daisy-chain deployment.

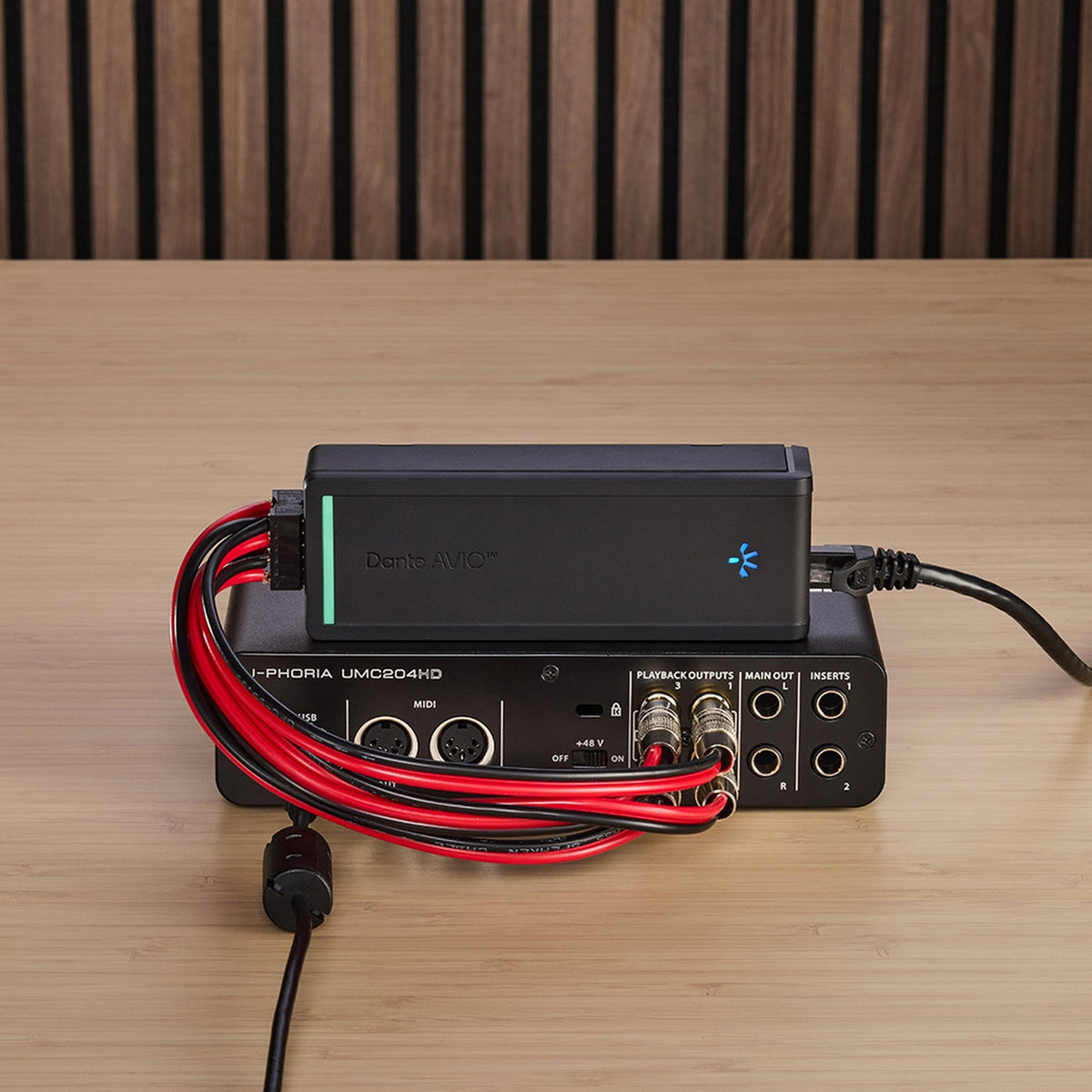

Designed for integrators, the adapter connects preamps, line mixers, DSPs, processors, and other analog sources to a Dante-enabled system. Euroblock terminals simplify fixed installation wiring, while PoE eliminates a separate local power supply. Daisy-chain support lets up to four compatible adapters share one network drop, helping reduce switch-port and cabling requirements in larger installations.

The adapter operates as a full Dante Audio over IP endpoint and is configured and routed through Dante Controller. Its included mounting bracket and Dante AVIO ClickGrid system support organized installation on surfaces, rack rails, shelves, or posts. Professional specifications include 108 dB dynamic range, 20 Hz to 20 kHz frequency response, and selectable 16-, 24-, or 32-bit PCM operation.

Key Features

• Four Analog Inputs: Converts four channels of line-level analog audio to Dante at 44.1 or 48 kHz.
• High-Rate Operation: Supports two input channels at 88.2 or 96 kHz when higher sample rates are required.

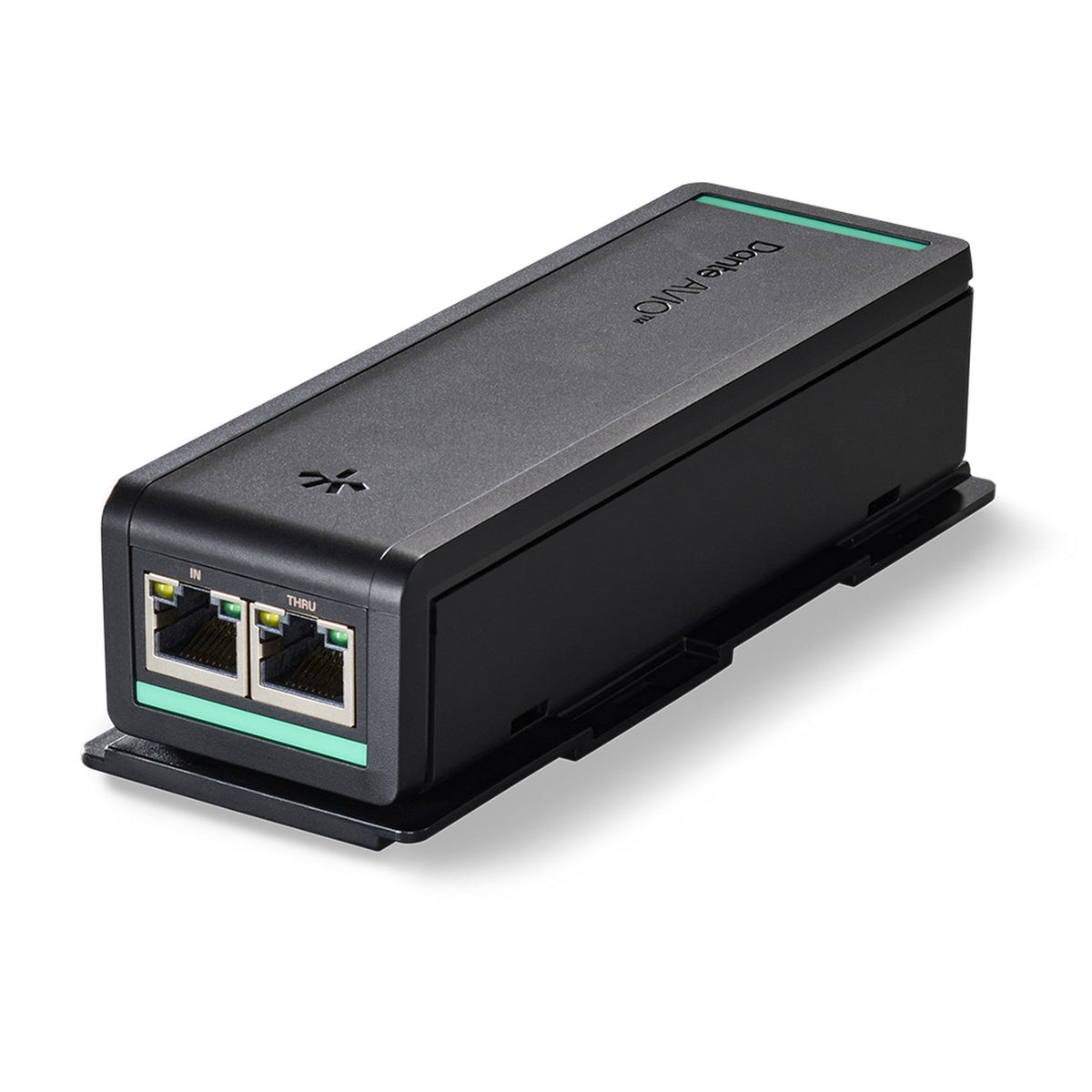

• Dual Ethernet Ports: Integrated 100 Mbps switching enables streamlined daisy-chain network installations.
• PoE Operation: Receives network connectivity and power through Ethernet without a separate power adapter.

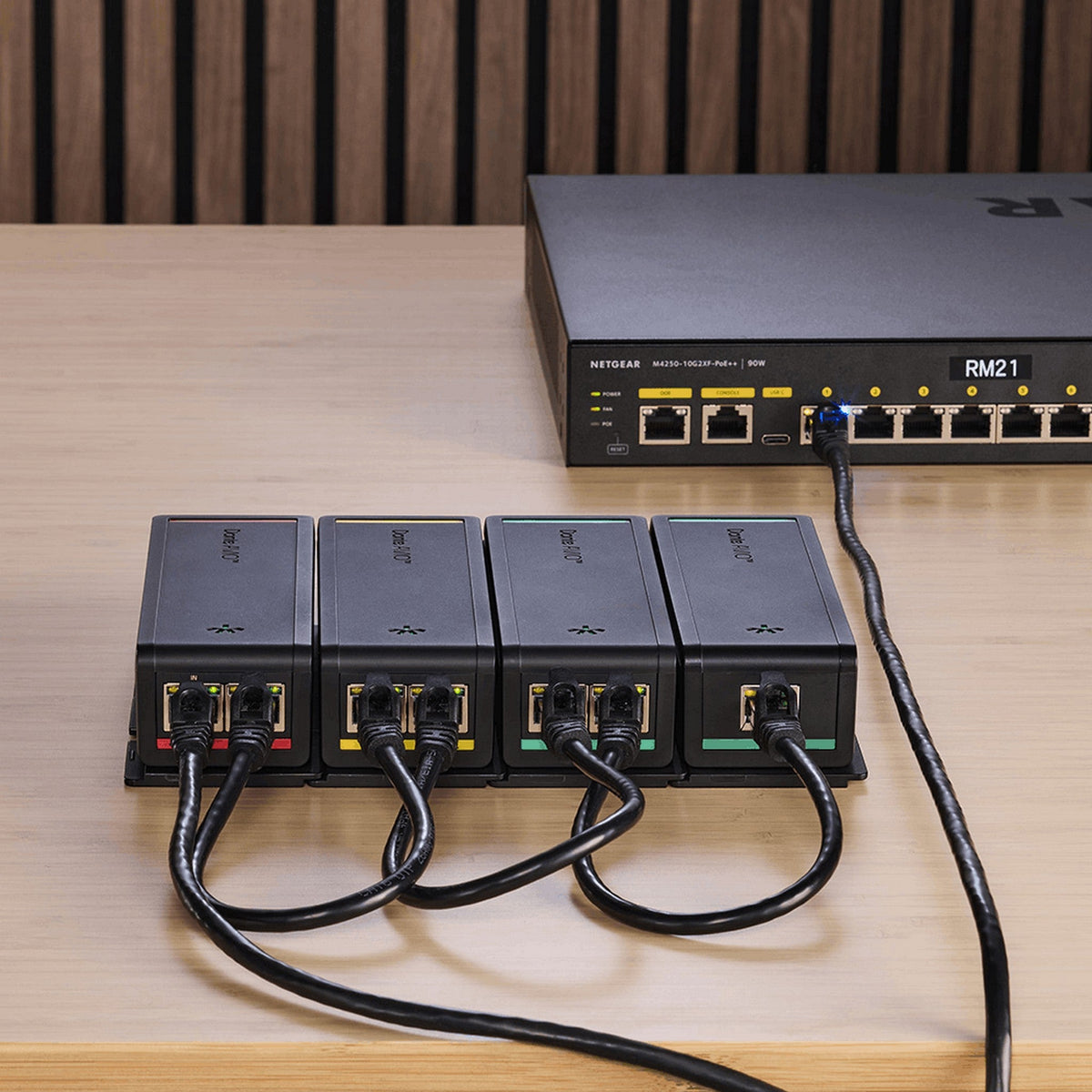

• Daisy-Chain Power: Passes network connectivity and PoE downstream to support chains of up to four compatible adapters.

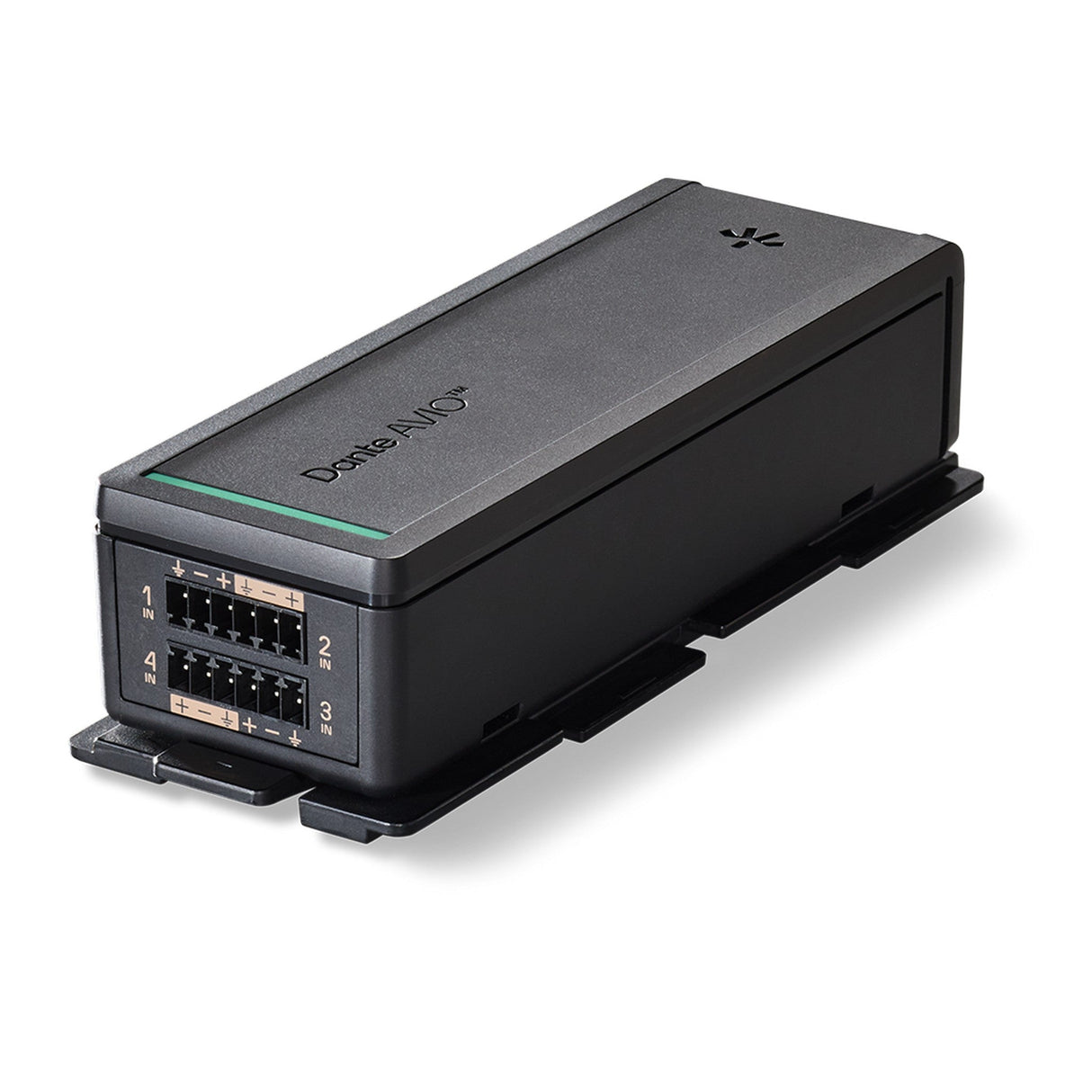

• Euroblock Connections: Two 6-pin terminals provide secure 3.5 mm-pitch connections for permanent analog wiring.

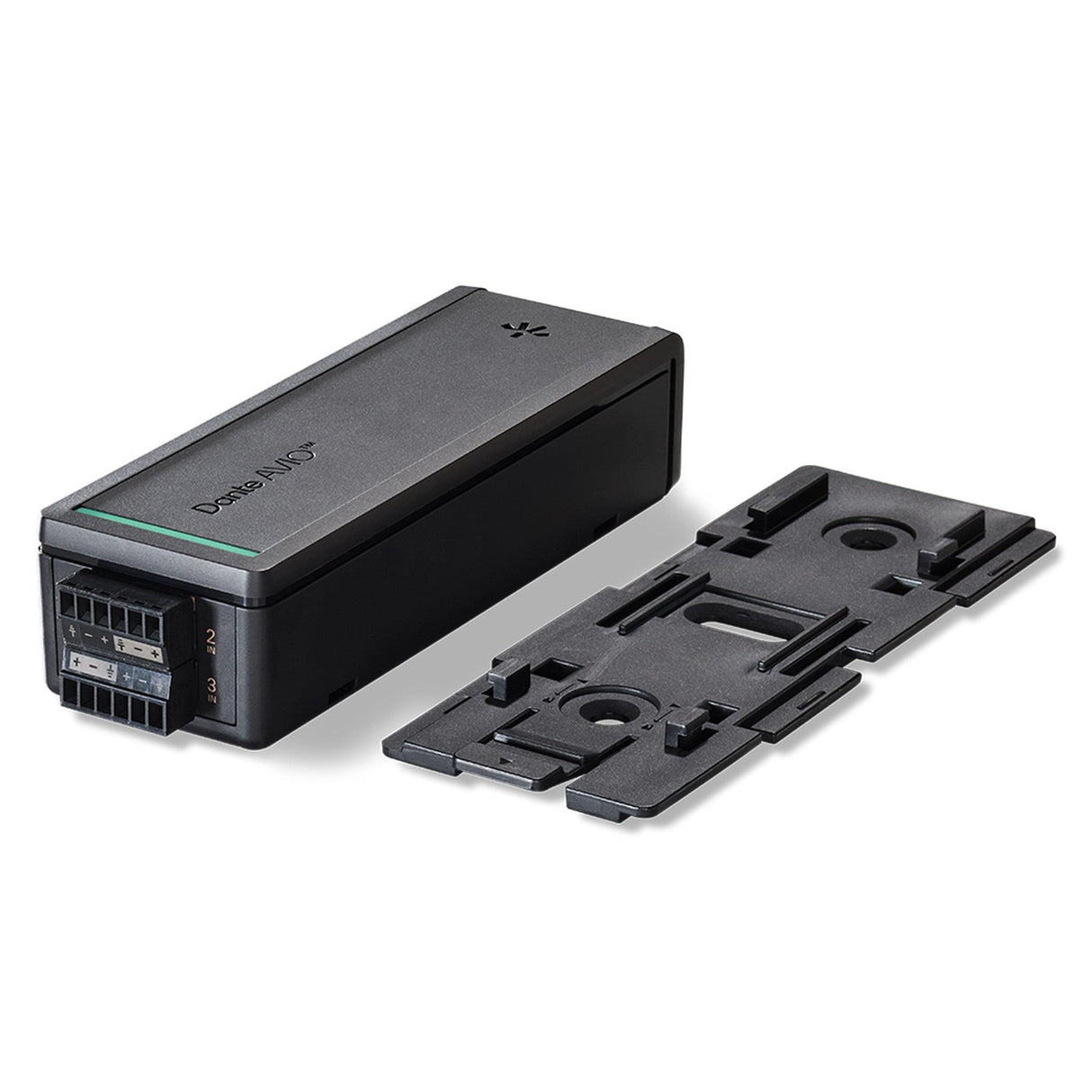

• Flexible Mounting: Includes a mounting bracket and supports the Dante AVIO ClickGrid system for organized installations.
• Dante Controller Integration: Provides standard Dante discovery, configuration, and audio routing within networked AV systems.

Technical Specifications

• Model: AVIO-A-4IN-EB
• Product Type: Dante AVIO Install 4-Channel Analog Input Adapter
• Signal Flow: Analog to Dante
• Audio I/O: 4 inputs, 0 outputs
• Mounting: Mounting bracket included
• Analog Connectors: 2 x 6-pin Euroblock terminals, 3.5 mm pitch
• Power: Class 3 IEEE 802.3af PoE
• Power Consumption: 2.5 W standalone; up to 12 W in daisy-chain configuration
• Operating Temperature: -10 to +45 degrees C
• Storage Temperature: -15 to +60 degrees C
• Frequency Response: 20 Hz to 20 kHz (+/-0.2 dB)
• Dynamic Range: 108 dB, AES17 A-weighted at +4 dBu, 997 Hz
• THD+N: 0.0008% A-weighted at 1 kHz and +4 dBu input, approximately -103 dB
• Crosstalk: -123 dB at 10 kHz and +4 dBu input
• Input Impedance: 20 kohms balanced; 10 kohms unbalanced
• Maximum Balanced Signal Level: +4 dBu / 0 dBu / 0 dBV / -10 dBV
• Sample Rates: 4 channels at 44.1/48 kHz; 2 channels at 88.2/96 kHz
• Bit Depth: 16-, 24-, or 32-bit PCM
• Audio Transport: Dante Audio over IP
• Dante Device Latency: 1, 2, or 5 ms
• Network: 2 x 100 Mbps Ethernet ports with integrated switch and daisy-chain support
• Dimensions: 5.9 x 2.1 x 1.5"
• Weight: 0.4 lb
• Individual Package Dimensions: 7.5 x 3.6 x 1.8"
• Individual Package Weight: 0.6 lb

What's In the Box

• Audinate Dante AVIO Install 4-Channel Analog Input Adapter
• Mounting Bracket
