Audinate AVIO-A-4OUT-EB Dante AVIO Install 4-Channel Analog Output Adapter

Audinate AVIO-A-4OUT-EB Dante AVIO Install 4-Channel Analog Output Adapter

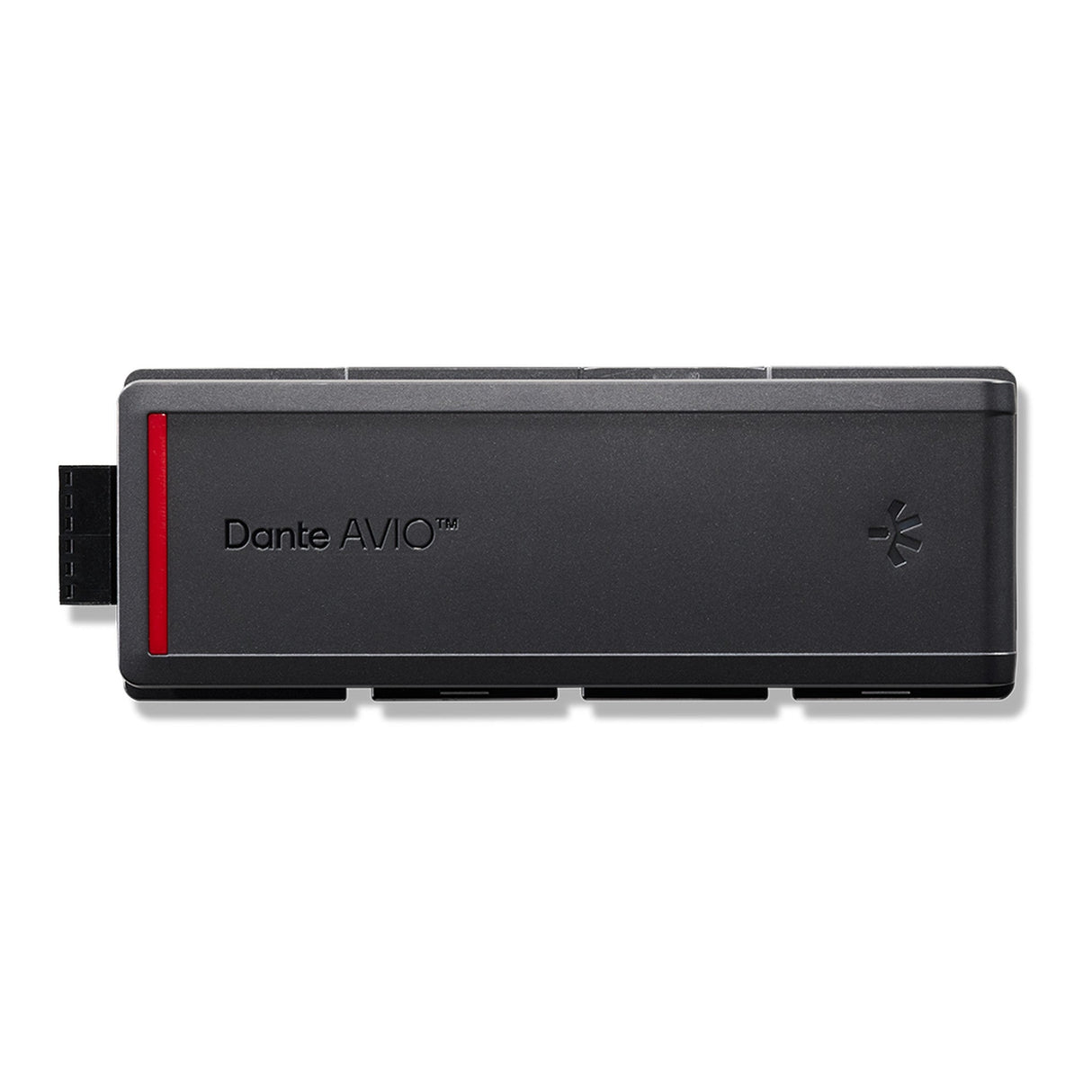

The Audinate AVIO-A-4OUT-EB Dante AVIO Install 4-Channel Analog Output Adapter converts Dante network audio into line-level analog signals for permanent Pro AV systems. It delivers four output channels at 44.1 or 48 kHz, or two channels at 88.2 or 96 kHz, with dual switched Ethernet ports for daisy-chain installations.

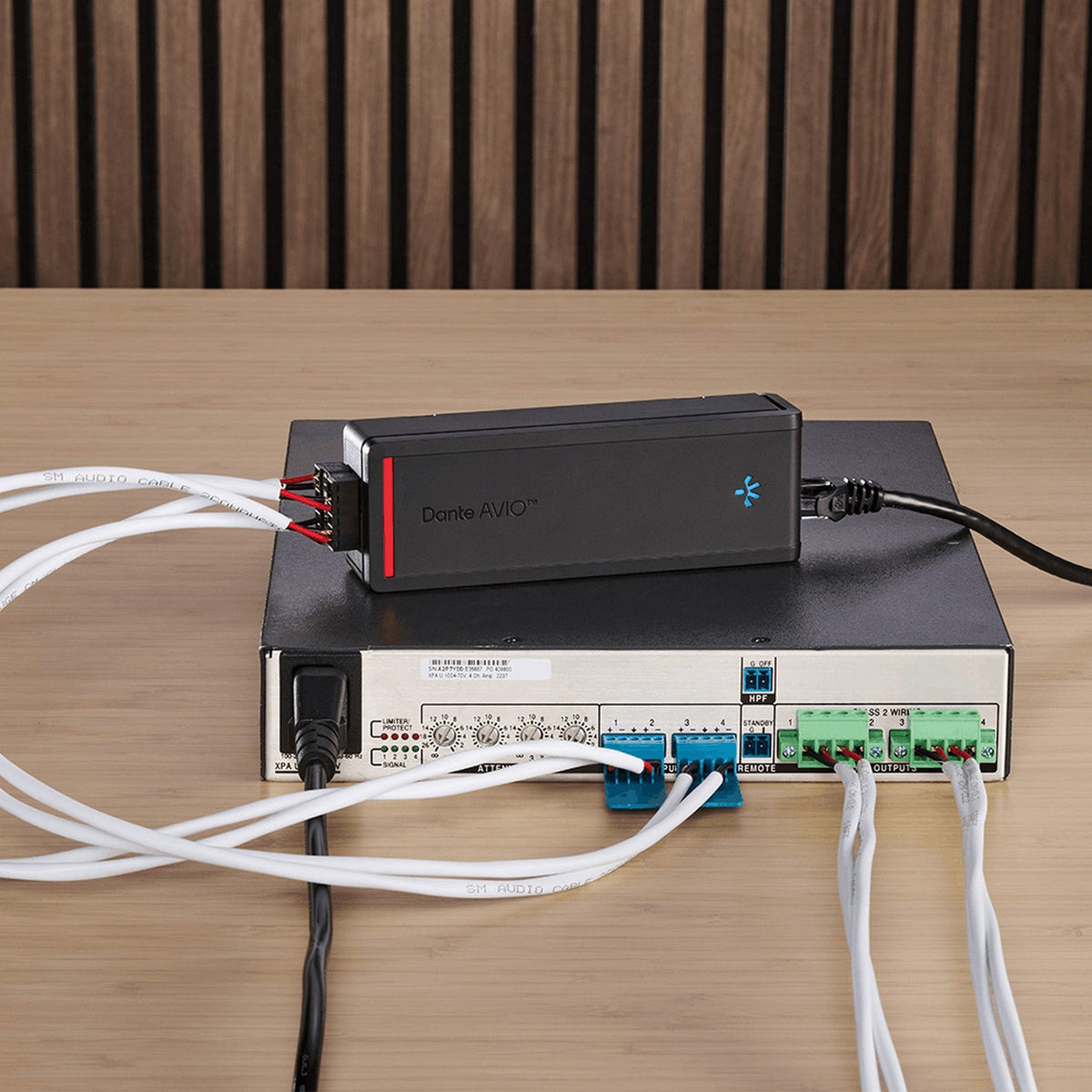

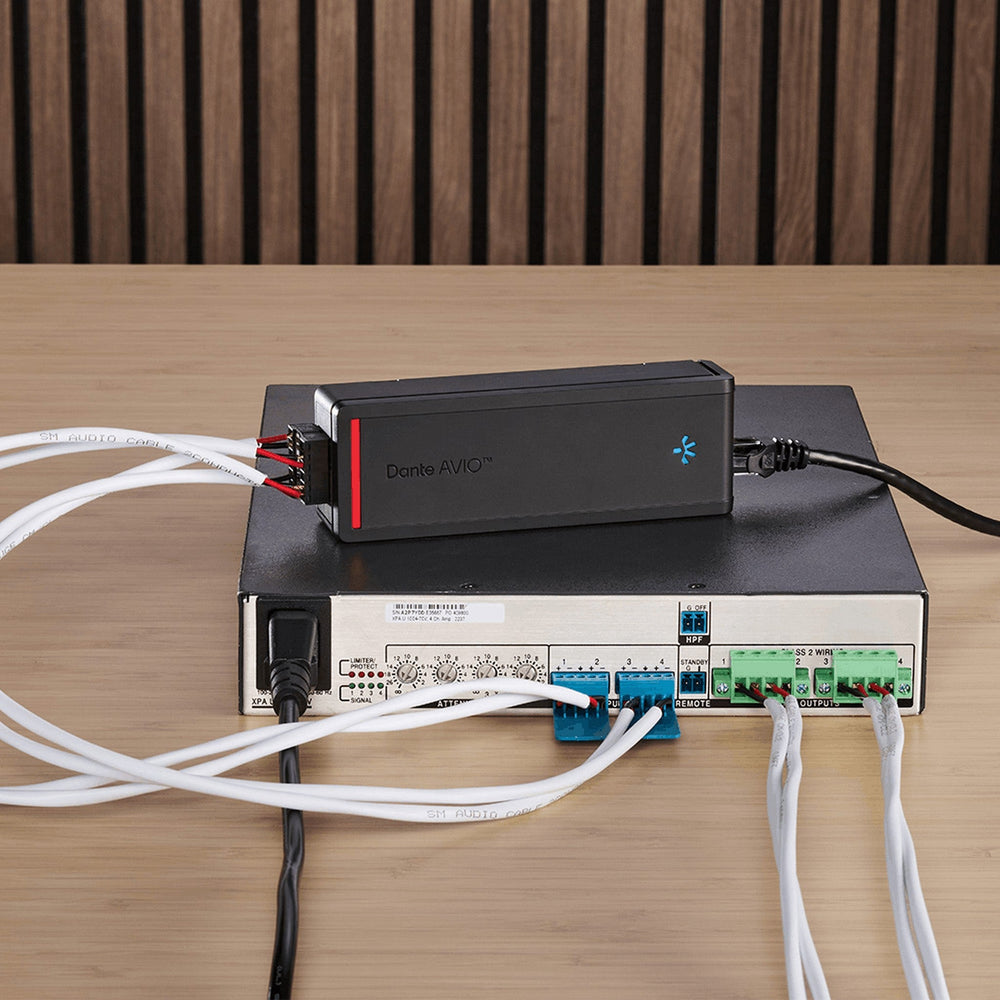

Designed for integrators, the adapter connects Dante audio networks directly to amplifiers, DSPs, line mixers, and other analog playback equipment. Two Euroblock terminals support secure fixed wiring, while Power over Ethernet simplifies system deployment. Compatible units can share a network drop through daisy chaining, helping reduce switch-port usage and infrastructure cabling in multi-zone audio installations.

The AVIO-A-4OUT-EB supports Dante Controller for audio routing and configuration within managed networked systems. Its included mounting bracket and Dante AVIO ClickGrid design provide flexible placement under tables, on shelves, along rack rails, or on other installation surfaces. Professional audio performance includes up to 96 kHz sampling, 32-bit PCM support, 105 dB dynamic range, and balanced or unbalanced line-level outputs.

Key Features

• Four-Channel Analog Output: Routes up to four Dante audio channels to compatible line-level analog equipment.
• High-Resolution Audio: Supports four channels at 44.1/48 kHz and two channels at 88.2/96 kHz.

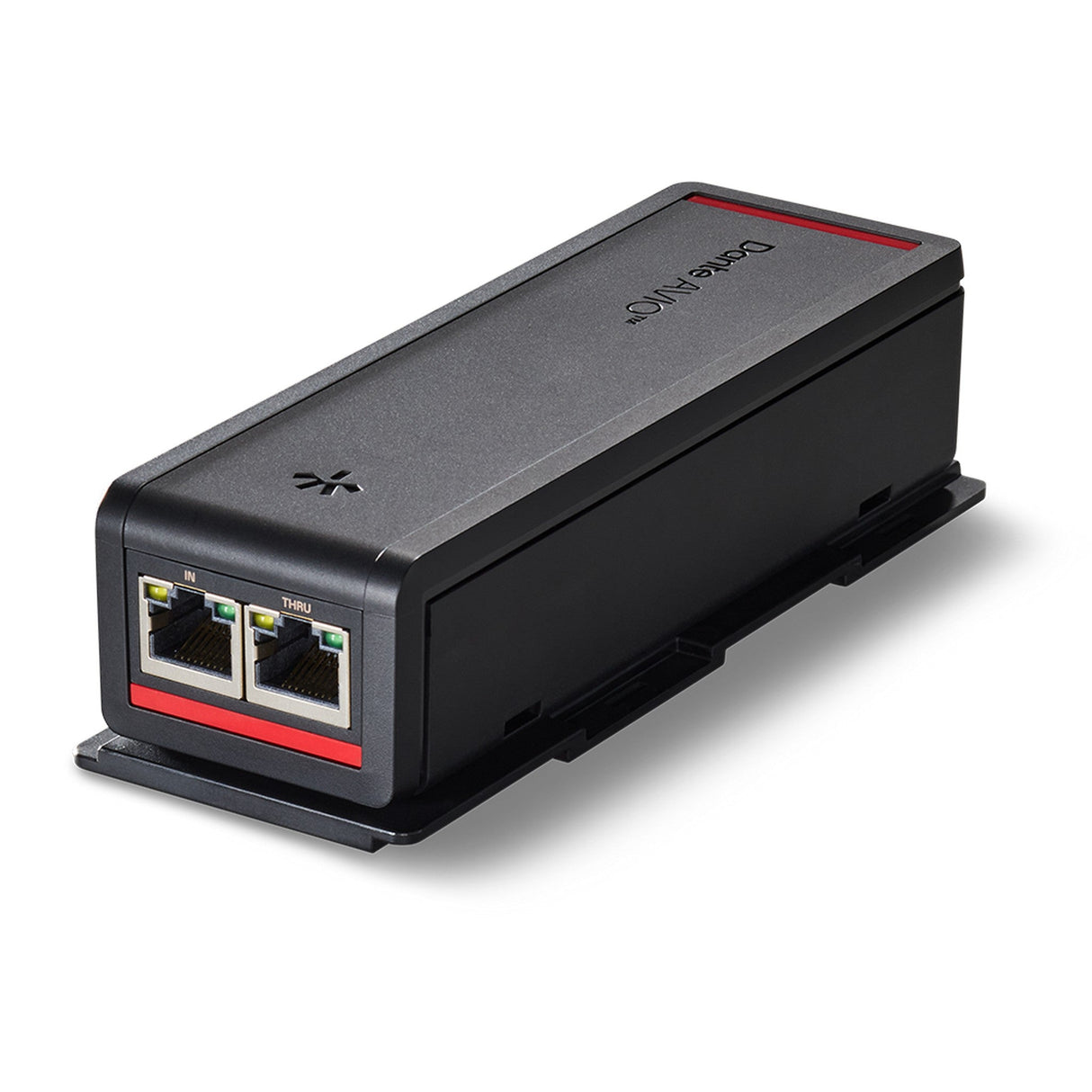

• Dual Ethernet Connectivity: Two integrated 100 Mbps ports support switched networking and daisy-chain deployment.
• PoE Operation: Class 3 IEEE 802.3af PoE supplies network connectivity and operating power through Ethernet.

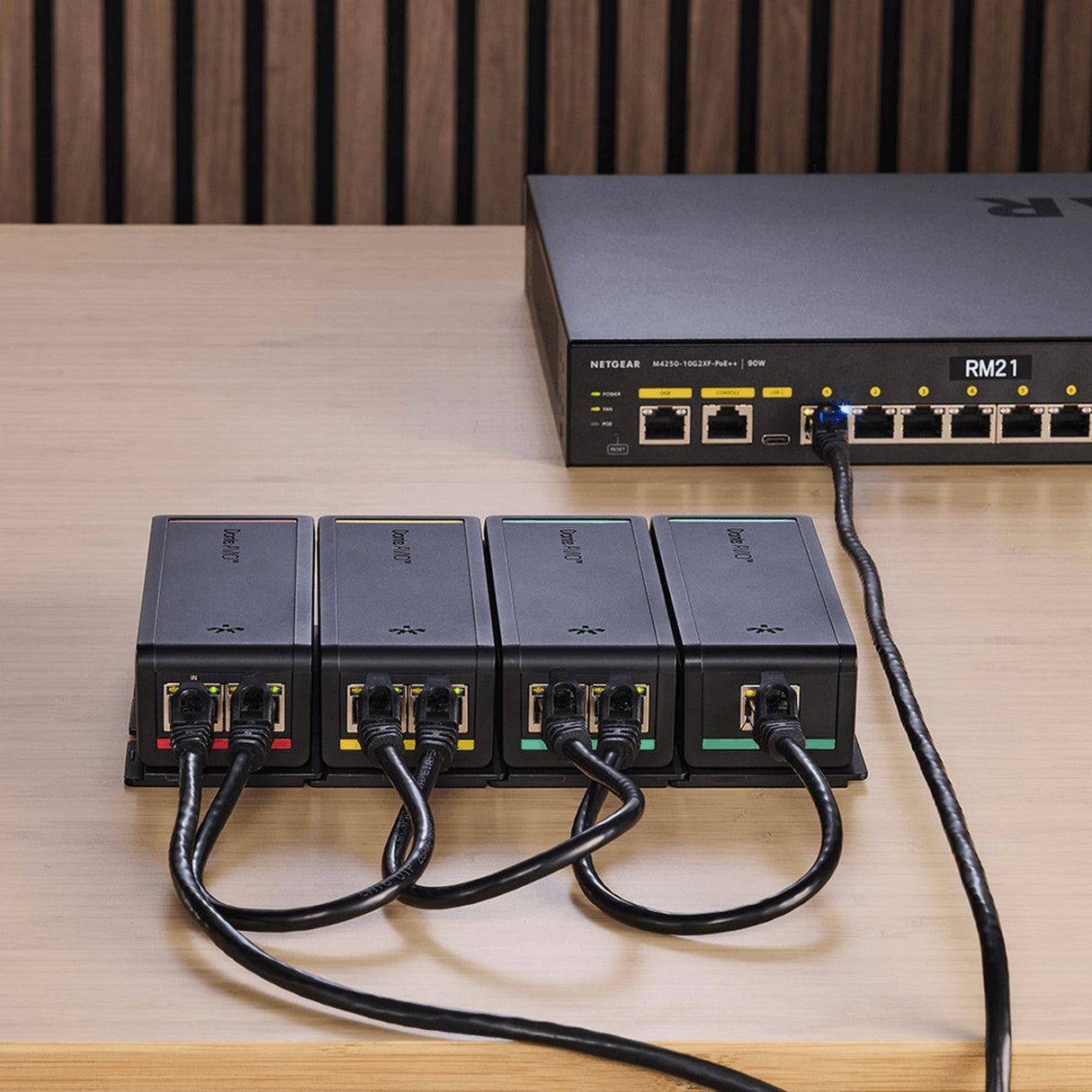

• Daisy-Chain Support: Passes network connectivity and PoE to downstream adapters for chains of up to four units.

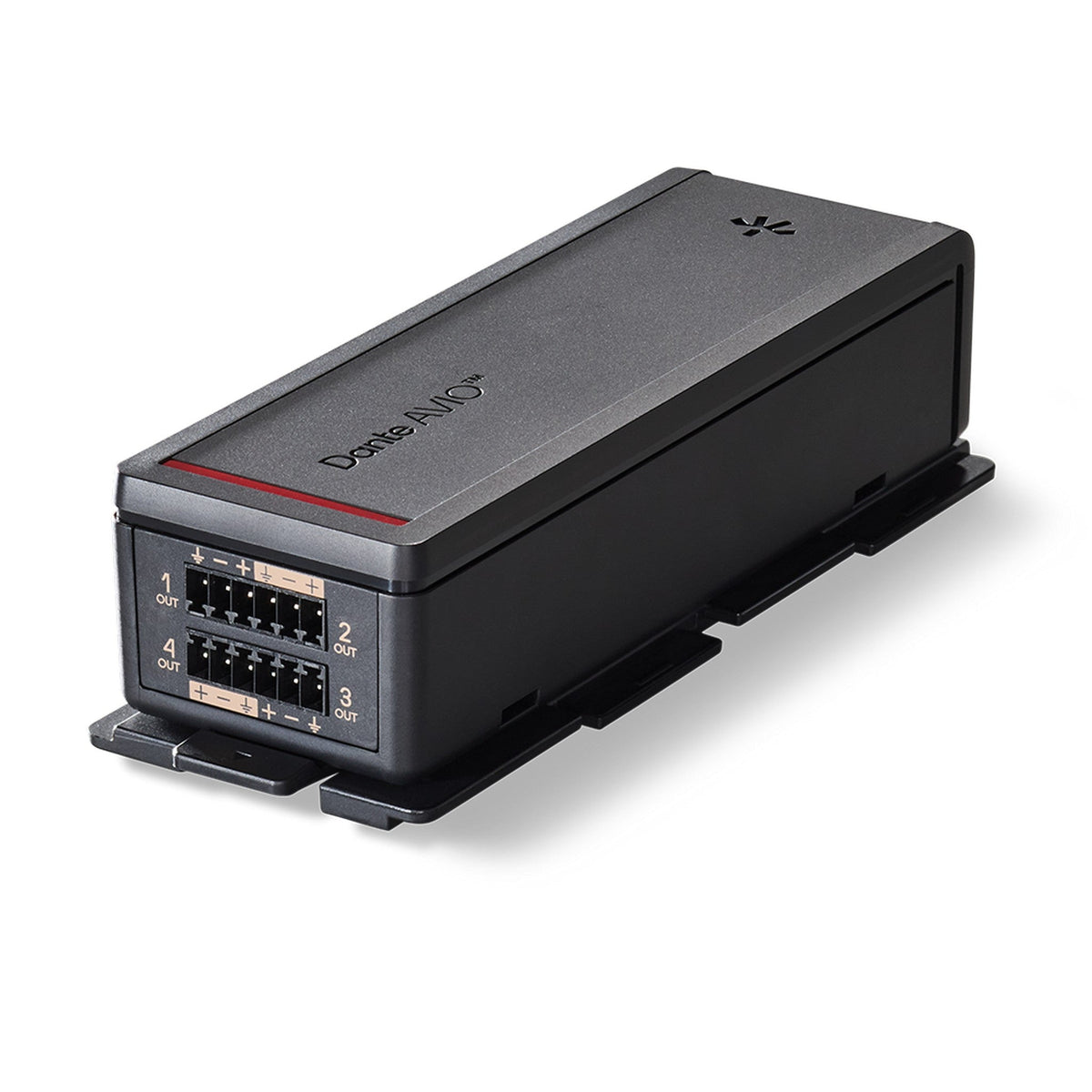

• Euroblock Wiring: Two 6-pin, 3.5 mm-pitch terminals provide secure connections for fixed Pro AV installations.

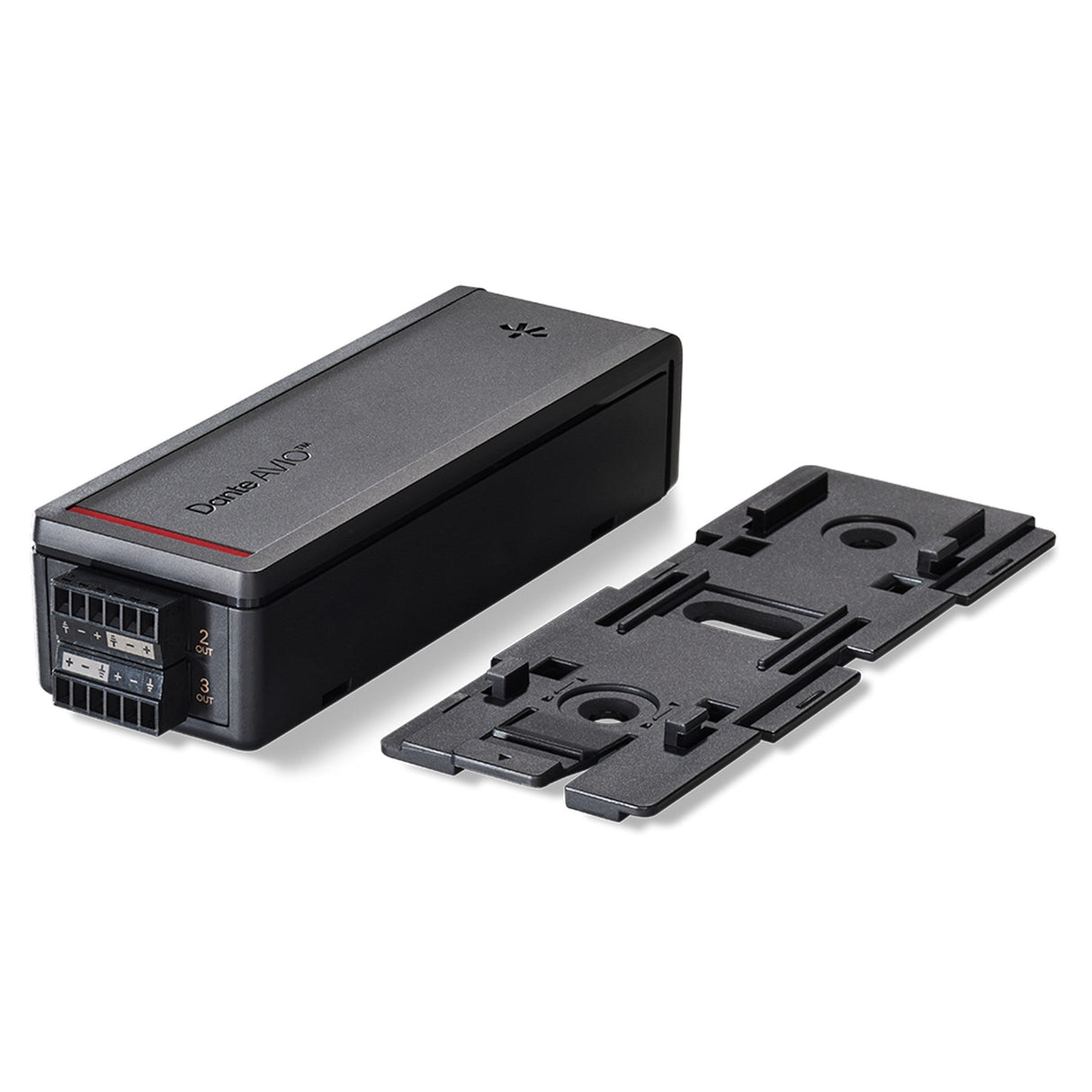

• Flexible Mounting: Includes a mounting bracket and works with the Dante AVIO ClickGrid mounting system.
• Dante Integration: Supports Dante Controller for device configuration and network audio routing.

Technical Specifications

• Part Number: AVIO-A-4OUT-EB
• Product Type: Dante AVIO Install 4-Channel Analog Output Adapter
• Audio Output Channels: Up to 4
• Mounting: Mounting bracket included
• Connector Type: 2 x 6-pin Euroblock terminal, 3.5 mm pitch
• Power: Class 3 IEEE 802.3af PoE
• Power Consumption: 2.5 W standalone; up to 12 W in daisy-chain configuration
• Operating Temperature: -10 to +45 degrees C
• Storage Temperature: -15 to +60 degrees C
• Frequency Response: 20 Hz to 20 kHz (+/-0.2 dB)
• Dynamic Range: 105 dB AES17 A-weighted at 0 dBFS, 997 Hz
• THD+N: 0.0019% A-weighted at 1 kHz and +4 dBu input, approximately -94.5 dB
• Crosstalk: -118.5 dB at 10 kHz, 0 dBFS input
• Output Impedance: 300 ohms balanced; 150 ohms unbalanced
• Maximum Balanced Signal Level: +4 dBu / 0 dBu / 0 dBV / -10 dBV
• Sample Rates: 4 channels at 44.1/48 kHz; 2 channels at 88.2/96 kHz
• Bit Depth: 16-, 24-, or 32-bit PCM
• Audio Transport Protocol: Dante Audio over IP
• Dante Device Latency: 1, 2, or 5 ms
• Network: 2 x 100 Mbps Ethernet ports with integrated switch and daisy-chain support
• Net Dimensions: 5.9 x 2.1 x 1.5"
• Net Weight: 0.4 lb
• Individual Package Dimensions: 7.5 x 3.6 x 1.8"
• Individual Package Weight: 0.6 lb
• Master Carton Dimensions: 11.9 x 8.2 x 8.6"
• Master Carton Weight: 7.5 lb
• Master Carton Quantity: 12 units

What's In the Box

• Audinate Dante AVIO Install 4-Channel Analog Output Adapter
• Mounting Bracket
