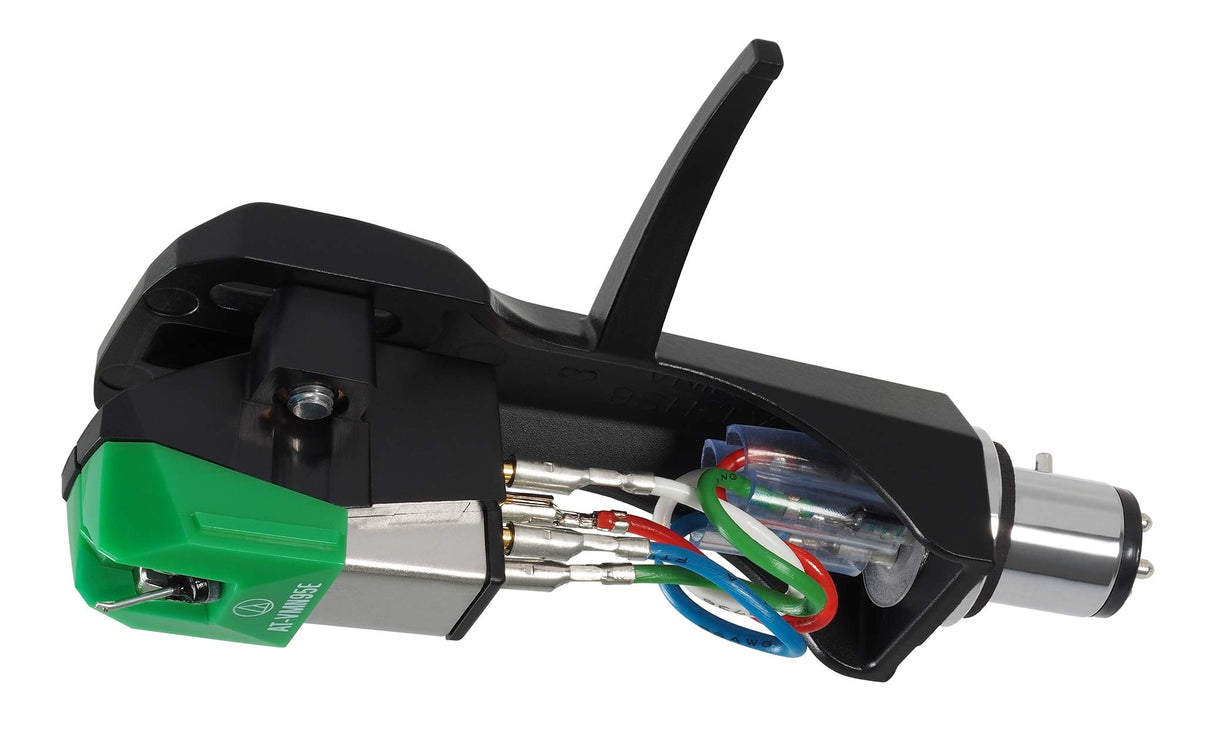

Audio-Technica AT-VM95E/H Headshell/Cartridge Combo Kit
The AT-VM95E/H combo kit includes the AT-VM95E dual moving magnet cartridge premounted on the AT-HS6BK head shell.
Key Features
- VM dual magnet cartridge with 0.3 x 0.7 mil elliptical stylus
- Aluminum cantilever
- Specially wound coils increase output voltage
- Durable low-resonance polymer housing
- Threaded inserts in cartridge body enable cartridge to be mounted to head shell with just two screws - no nuts or washers required
- Compatible with any AT-VMN95 replacement stylus
- Universal Ā½ā-mount headshell for 4-pin turntable cartridges
Technical Specifications
Cartridge & Stylus
Frequency Response
20-22,000 Hz
Channel Separation
20 (dB at 1 kHz)
Vertical Tracking Angle
23Ā°
Vertical Tracking Force
1.8-2.2 g (2.0 g standard)
Stylus Construction
Bonded round shank
Recommended Load Impedance
47,000 ohms
Coil Impedance
3.3 k ohms (1 kHz)
DC Resistance
485 ohms
Coil Inductance
550 mH (1 kHz)
Output Voltage
4.0 mV (1 kHz, 5 cm/sec.)
Output Channel Balance
2.0 dB (1 kHz)
Stylus Shape
0.3 x 0.7 mil elliptical
Cantilever
Aluminum pipe
Static Compliance
17 x 10 - 6 cm / dyne
Dynamic Compliance
7 x 10 - 6 cm / dyne (100 Hz)
Mounting
Half-inch
Dimensions
Cartridge 17.2 mm (0.68ā) H Ć 18.9 mm (0.74ā) W Ć 28.3 mm (1.20ā) D; Cartridge & Headshell 21.2 mm (0.83ā) H Ć 21.4 mm (0.84ā) W Ć 62.4 mm (2.46ā) D
Accessories Included
Two 11 mm installation screws, two 8 mm installation screws, two washers
Model
AT-VM95E/H
Mounting Feature
Half-inch mount
Recommended Load Capacitance
100 to 200 pF
Replacement Stylus
AT-VMN95E
Stylus Size
0.3 x 0.7 mil
Type
VM Stereo Dual Magnet
Weight Cartridge
6.1 g (0.22 oz); Cartridge & Headshell 15.5 g (0.55 oz)
Wire Used for Coil
T.P. Copper
