Audio-Technica AT8202 Adjustable In-Line Attenuator
Audio-Technica AT8202 Adjustable In-Line Attenuator
Audio-Technica AT8202 Adjustable In-Line Attenuator

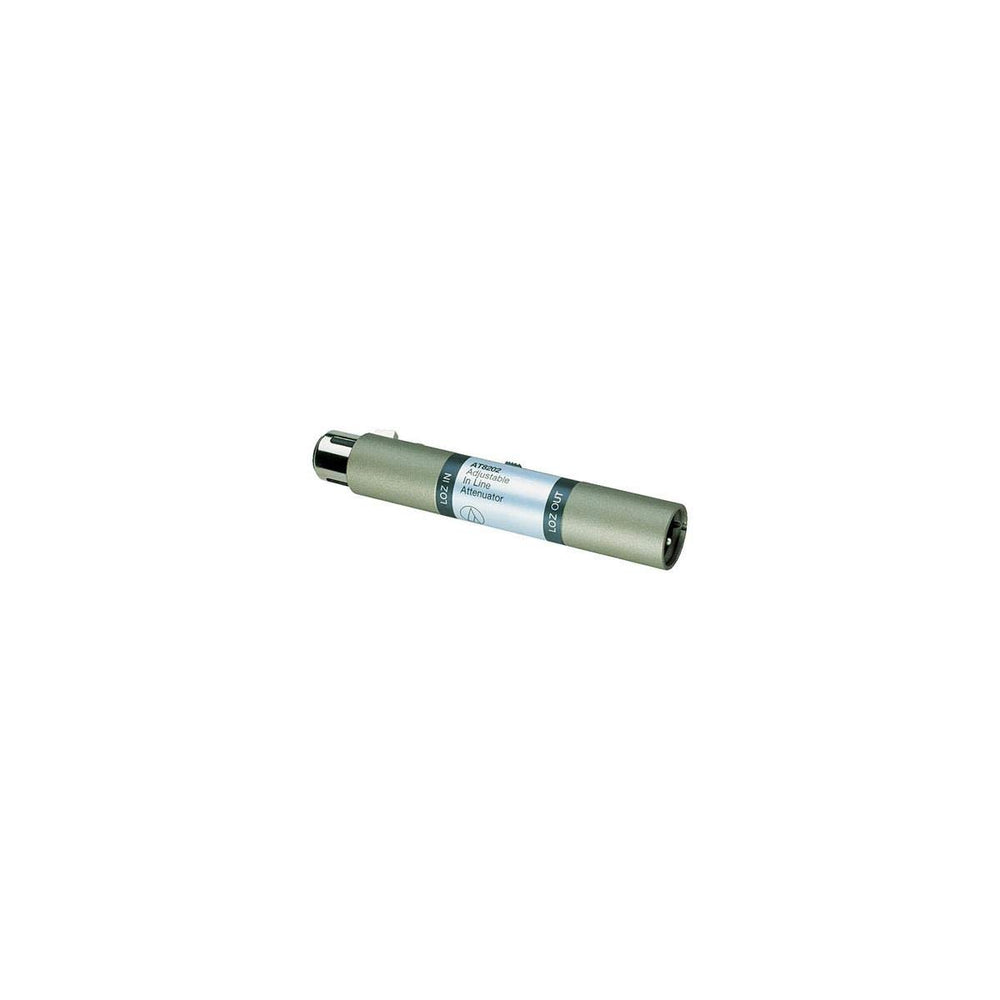

The Audio-Technica AT8202 Adjustable In-line Attenuator is designed to prevent balanced low-impedance microphones from overloading electronics having low- to mid-impedance inputs in high-SPL applications. The adjustable attenuator is designed to assure the proper match of the microphone to the inputs of mixing consoles and portable recording devices without experiencing input overload of the electronics due to high-level signals. The AT8202 is compatible for use in phantom power applications.
Key Features
- Prevents overload of sensitive input stages
- Provides -10 dB, -20 dB or -30 dB attenuation
- Compatible for use in phantom power applications
- Durable steel case provides optimum shielding from hum
- For use with balanced Lo-Z microphones
- Can be plugged directly into an XLRF-type chassis-mount connector
Technical Specifications
Input Impedance
1000 ohms (-10 dB)
Output Impedance
200 ohms (-10 dB)
Frequency Response
20-20,000 Hz
Attenuation
-10 dB, -20 dB, -30 dB
Input Connector
XLRF-type
Output Connector
XLRM-type
Weight
2.8 oz (80 grams)
Dimensions
3.94" (100 mm) long,
0.75" (19 mm) diameter
