Audio-Technica ATH-M20xSTS Streaming Headset with USB Adapters

Audio-Technica ATH-M20xSTS Streaming Headset

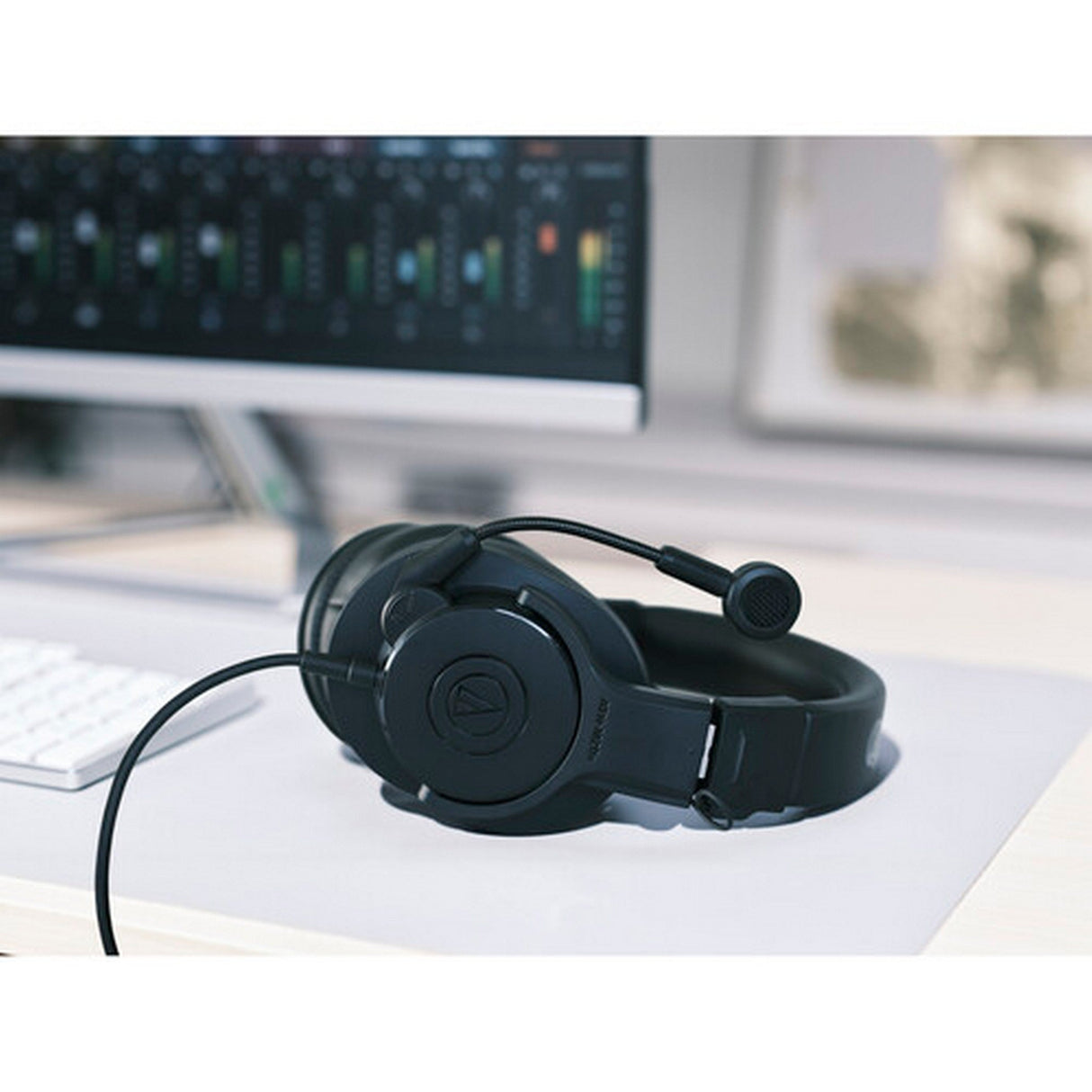

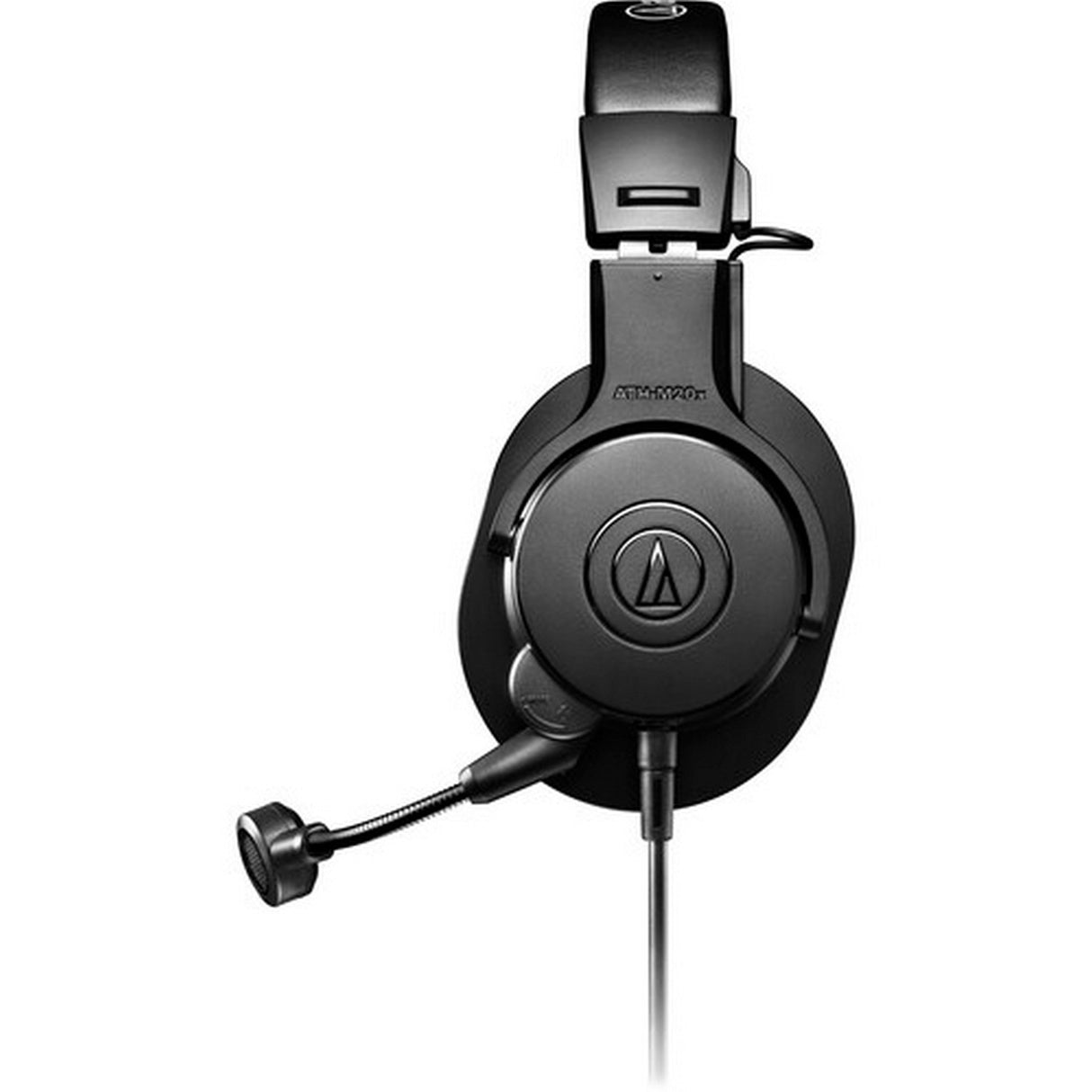

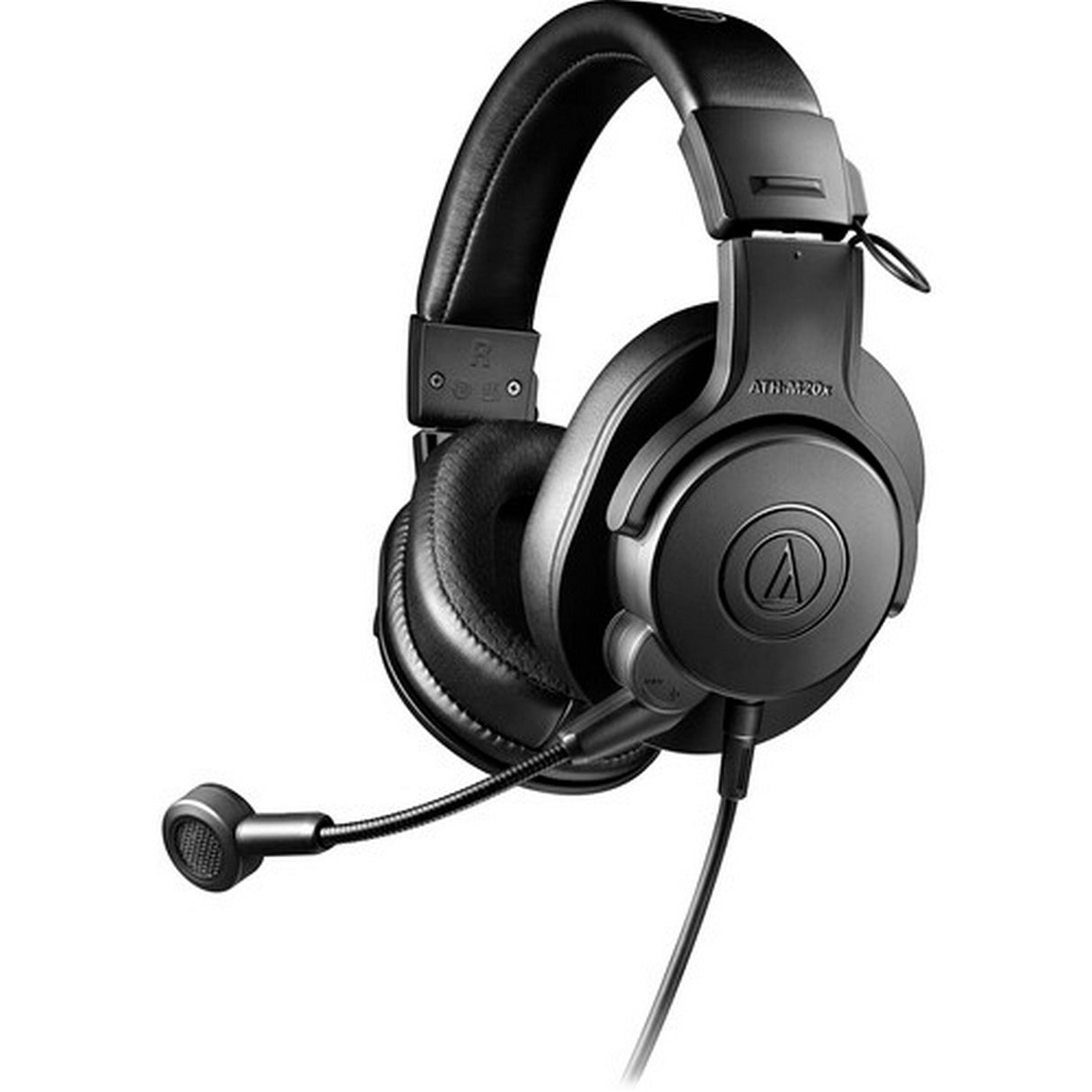

The Audio-Technica ATH-M20xSTS Streaming Headset combines 40mm closed-back monitoring headphones with an integrated cardioid condenser microphone for streaming, gaming, podcasting, and content creation. A detachable 3.5mm TRRS cable plus included USB-A and USB-C adapters provides flexible plug-and-play connectivity across computers, mobile devices, and compatible consoles.

Built around Audio-Technica's M-Series monitoring design and AT20-series microphone technology, the headset delivers a 15 Hz to 20 kHz headphone response with a balanced monitoring character. The flexible boom keeps the microphone close to the user's mouth for focused voice pickup, while raising the boom instantly mutes the mic. Breathable mesh earpads and a lightweight 0.5 lb design support extended streaming and gaming sessions.

The ATH-M20xSTS also simplifies multi-device workflows by using one detachable cable rather than separate headset versions for analog and USB connections. Its elliptical earcups improve passive isolation, while the 40mm CCAW voice-coil drivers use high-strength magnets for accurate monitoring. When connected through the supplied USB adapters, the headset supports high-resolution digital playback and recording formats.

Key Features

• Streaming Headset Design: Combines M-Series headphone technology with an integrated condenser microphone for monitoring and voice capture.
• 40mm CCAW Drivers: Delivers broad 15 Hz to 20 kHz frequency response with balanced sound for production and gaming.
• Cardioid Condenser Microphone: Focuses voice pickup toward the user while reducing sound arriving from other directions.

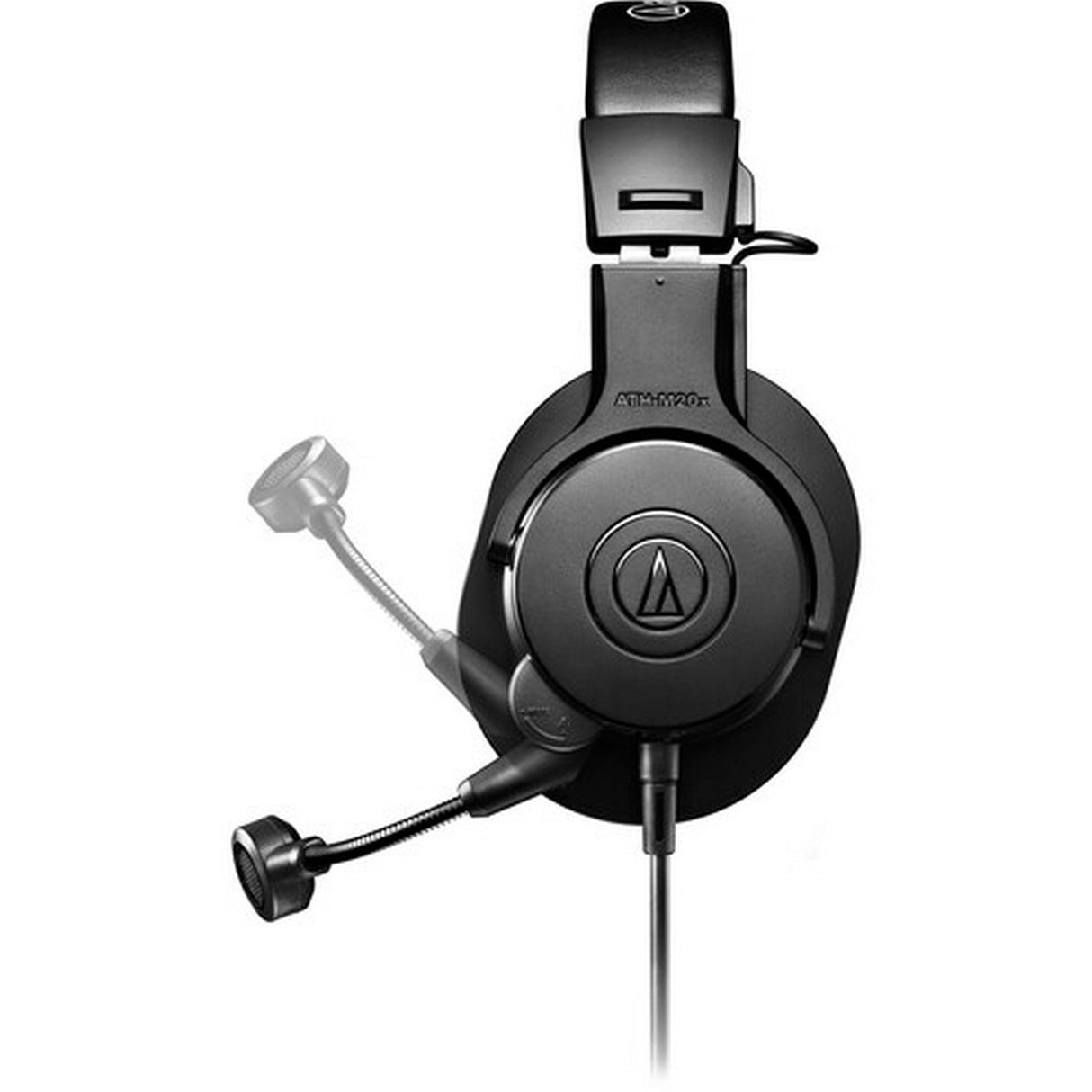

• Flip-to-Mute Boom: Mutes the microphone immediately when the flexible boom arm is raised.
• Three Connection Options: Supports 3.5mm TRRS, USB Type-A, and USB Type-C connections using the included adapters.
• Detachable Cable: Allows easier cable replacement and maintenance than a permanently attached connection.

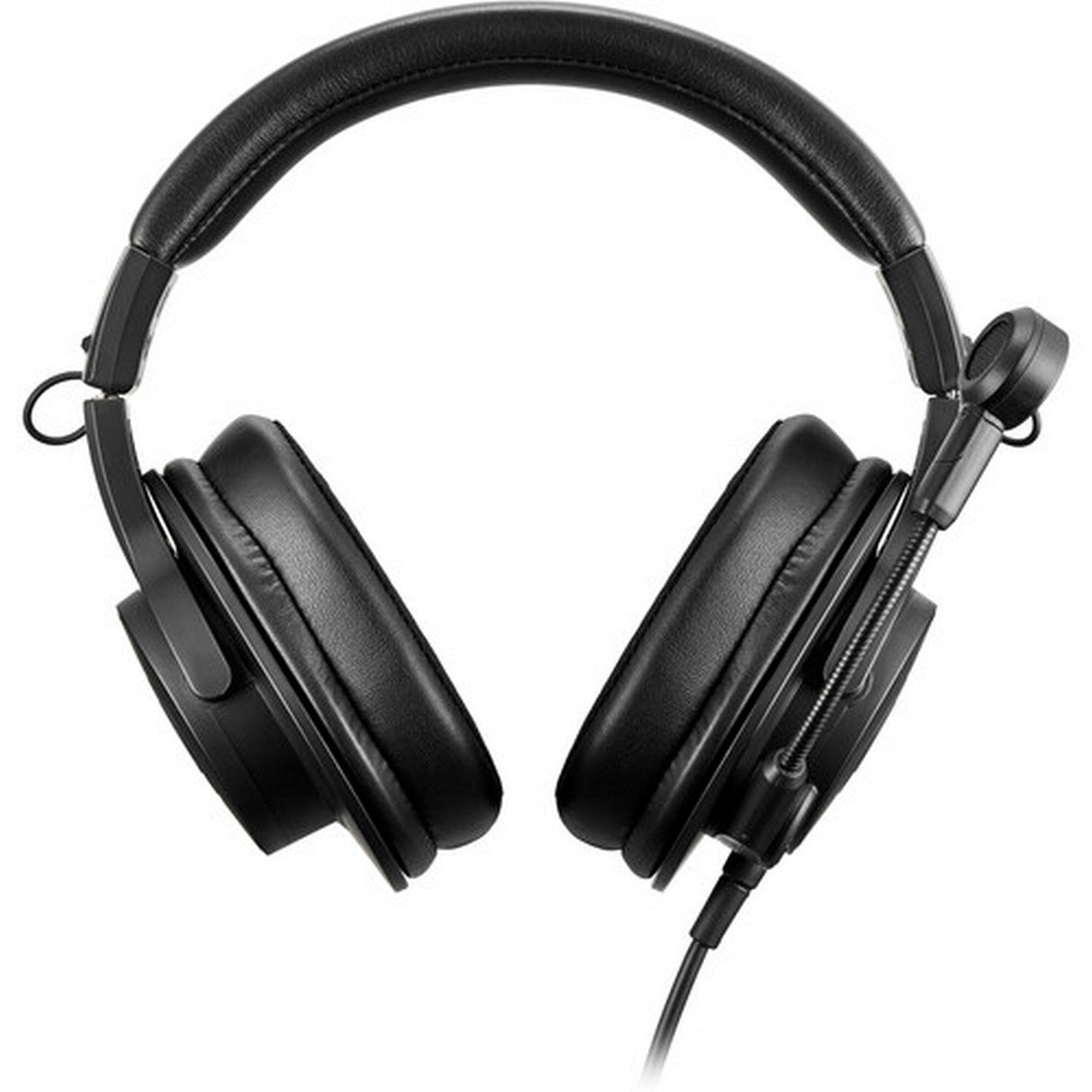

• Breathable Mesh Earpads: Improves comfort during lengthy streaming, gaming, podcasting, and communication sessions.
• Closed-Back Over-Ear Design: Uses elliptical earcups to provide passive isolation and focused monitoring.

Technical Specifications

Headphones

• Brand: Audio-Technica
• Model: ATH-M20xSTS
• Product Type: Streaming headset
• Headphone Type: Closed-back dynamic
• Driver Diameter: 1.6" / 40 mm
• Voice Coil: CCAW
• Headphone Sensitivity: 96 dB/mW
• Headphone Frequency Response: 15 Hz to 20 kHz
• Maximum Input Power: 700 mW
• Impedance: 47 ohms

Microphone

• Microphone Type: Back electret condenser
• Polar Pattern: Unidirectional cardioid
• Microphone Sensitivity: -44.5 dB, 0 dB = 1 V/Pa at 1 kHz
• Microphone Frequency Response: 50 Hz to 20 kHz at 1.2"
• Mute Control: Flip-up boom arm

Connections and Digital Audio

• Primary Connector: 3.5mm gold-plated 4-pole stereo mini plug
• Cable: Detachable
• Cable Length: 6.6 ft
• USB Connections: USB Type-A and USB Type-C through included conversion adapters
• USB Standard: USB 2.0
• Supported USB Input Sample Rates: 48 kHz, 96 kHz
• Supported USB Output Sample Rates: 48 kHz, 96 kHz, 192 kHz, 384 kHz
• Supported USB Input Bit Depths: 16-bit, 24-bit
• Supported USB Output Bit Depths: 16-bit, 24-bit, 32-bit
• Supported USB Operating Systems: Windows 11, macOS Sequoia, macOS Tahoe

Physical

• Color: Black
• Weight Without Cable: 0.5 lb
• Operating Temperature: 41°F to 104°F

What's In the Box

• Audio-Technica ATH-M20xSTS Streaming Headset

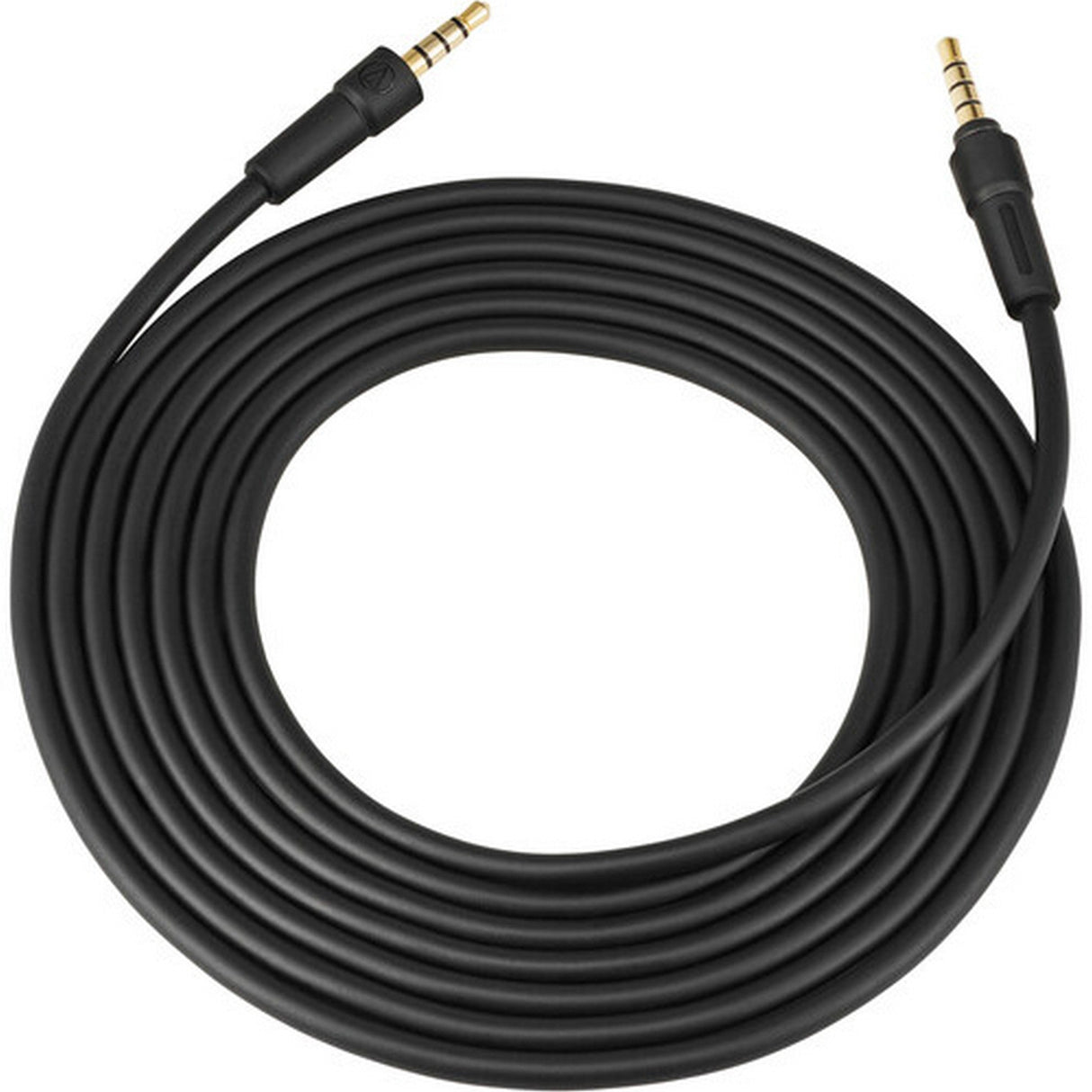

• 6.6 ft Detachable PC/Game Console Cable with 3.5mm Gold-Plated 4-Pole Stereo Mini Plug

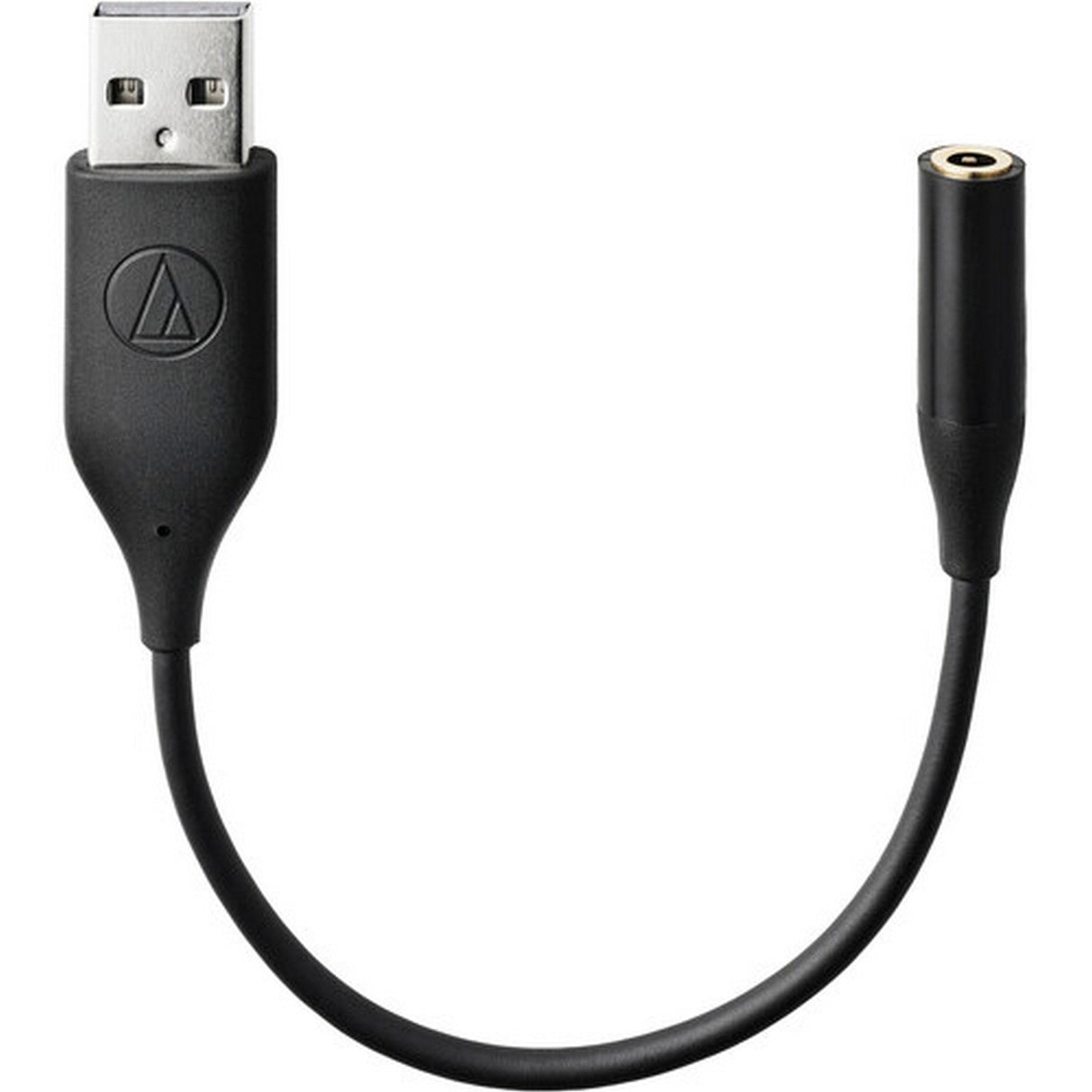

• 3.5mm to USB Type-A Adapter

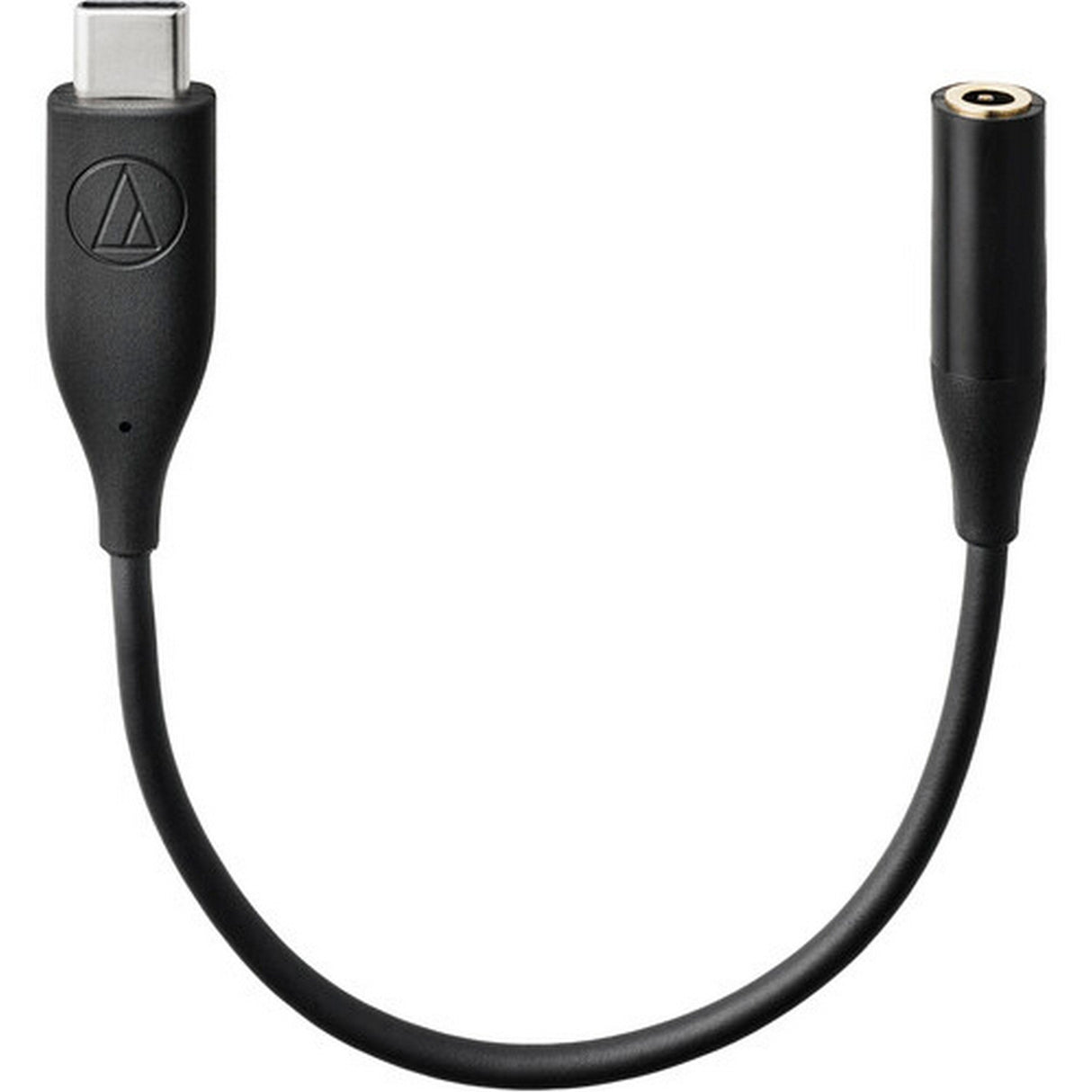

• 3.5mm to USB Type-C Adapter
