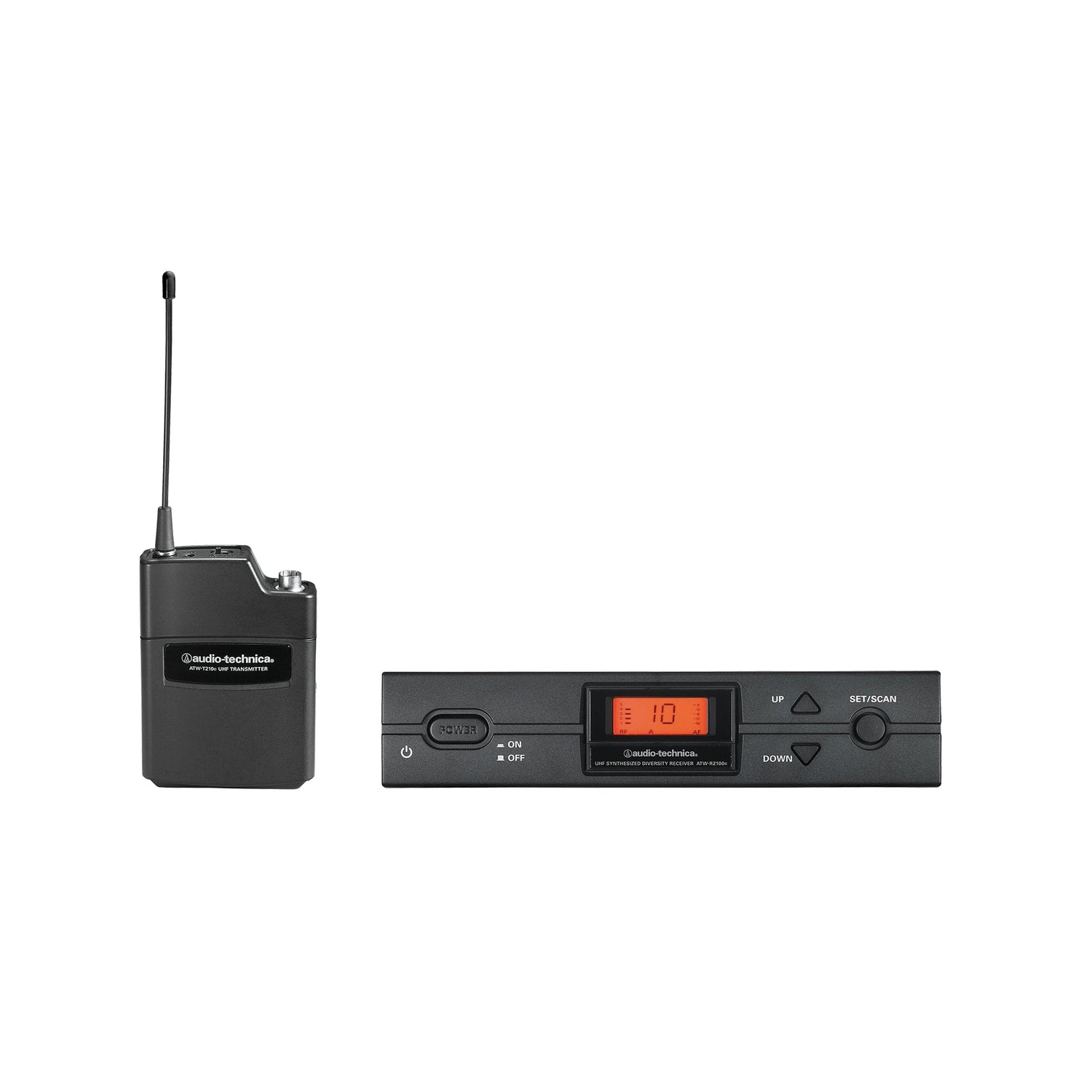

Audio-Technica ATW-2110C Wireless Bodypack System

Audio-Technica's 2000 Series has been upgraded with increased RF power on both the handheld and beltpack transmitters, resulting in greater link stability. The transmitters also have charging contacts for easy use with rechargeable batteries. Additionally, the 12VDC bias voltage on both BNC antenna inputs enables operation with the ATW-B80 antenna booster or other active components. With this new series, Audio-Technica provides affordable access to easy setup, automatic scanning, and other advanced wireless features. The 2000c Series wireless receivers come standard with automatic frequency scanning, which locates and sets the best available channel with the push of a button. For those simultaneously using multiple wireless systems, the 2000c Series allows any of its 10 channels to be utilized together, eliminating confusing frequency groups and other frequency-coordination issues.

Key Features

• With just a simple button press, the automatic frequency scanning feature quickly detects an available channel.
• Users have the option to choose from up to 10 different channels.
• The compatibility of the system may differ depending on the country.
• The True Diversity operation ensures a more reliable signal by selecting the stronger signal between two receiver sections, minimizing signal dropouts.
• The Tone Lock squelch function effectively combats interference.

Technical Specifications

Number Of Channels
10 total
Frequency Stability
-0.005%, Phase Lock Loop frequency control
Modulation Mode
FM
Frequency Response
100 Hz to 15,000 Hz
Operating Range
100 m (300′) typical
Operating Temperature Range
41 F (5 C) to 113 F (45 C)

Receiver
Receiving System
True Diversity
Image Rejection
55 dB nominal, 50 dB minimum
Signal-To-Noise Ratio
>100 dB at 40kHz deviation (A-weighted), maximum modulation 40 kHz
Sensitivity
20dBV (S/N 60dB at 5 kHz deviation, IEC-weighted)
Total Harmonic Distortion
1% (at 1 kHz, -20 kHz deviation)
Audio Output Attenuator (ATTN)
Unbalanced: 25mV (100k ohms load), 1/4" phone jack
Balanced: 50mV (Attenuator; 0dB)
12.5mV (Attenuator; -12dB) at 1 kHz – 5kHz deviation, 100k ohm load, XLRM-type
Antenna Input
BNC-type 50 Bias voltage 12V DC, 60mA each
Dimensions
210 mm x 44 mm x 162.2 mm (W x H x D)
Weight
1.0kg
Accessories Included
Two flexible UHF antennas, rack mount adapters, AC adapters

Belt Pack
RF Power Output
High: 30mW; Low: 10mW, nominal
Spurious Emissions
According to National Regulations
Battery Type
1.5V AA alkaline or rechargeable AA NiMH (not included)
Current Consumption
150 mA typical
Battery Life
Approximately 9 hours (low), 7 hours (high)
Dimensions
66 mm x 92.3 mm x 22.5 mm (W x H x D)
Net Weight
80g
