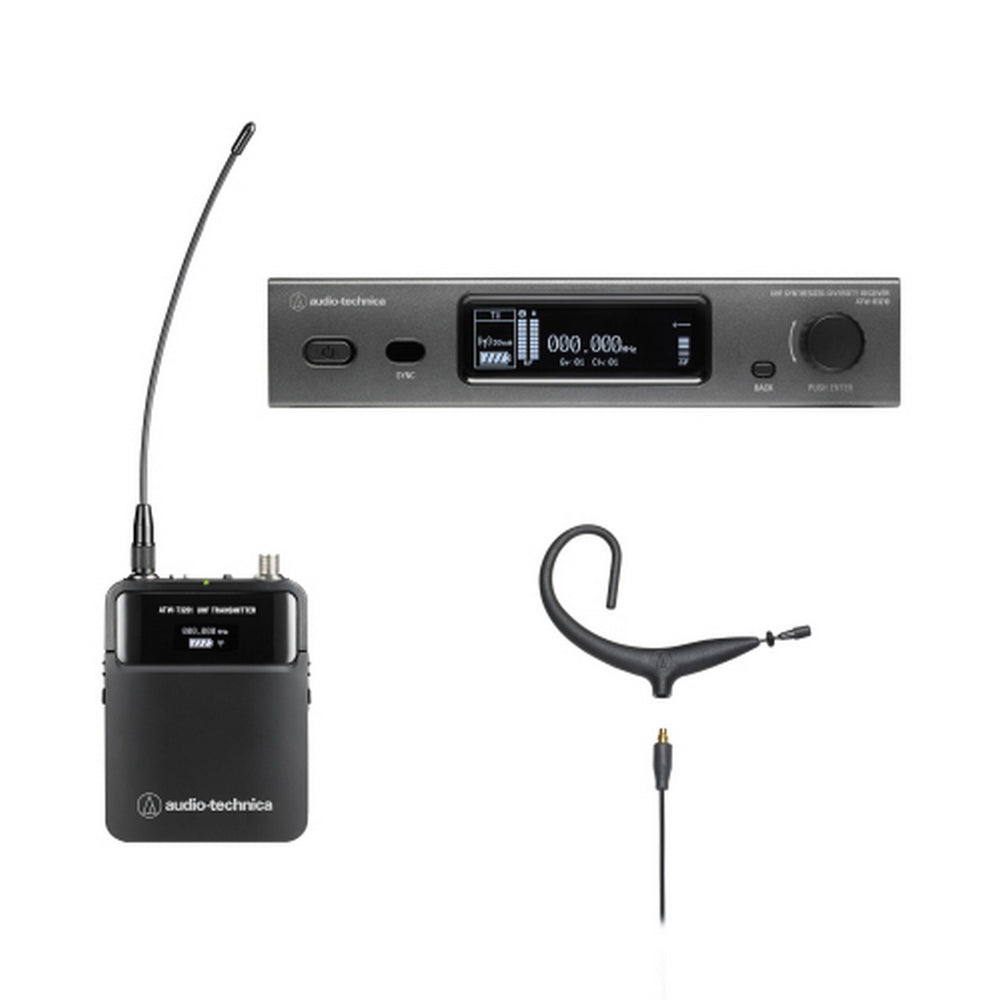

Audio-Technica ATW-3211N893X DE2 3000 Series Network Wireless MicroEarset System, DE2 470-530 MHz, Black

Audio-Technica ATW-3211N893X DE2 3000 Series Network Wireless MicroEarset System, DE2 470-530 MHz, Black

The Audio-Technica ATW-3211N893X DE2 3000 Series Network Wireless MicroEarset System is designed to deliver exceptional audio quality and reliable performance in even the most crowded RF environments. With its extensive 60 MHz tuning range, this fourth-generation wireless system provides the versatility and power needed to overcome the challenges of congested UHF spectra. Operating within the DE2 frequency band (470-530 MHz), this system boasts a 300-foot (100 meters) operating range, ensuring you stay connected, whether on stage, in a conference, or during a broadcast.

Setting up the Audio-Technica 3000 Series is simple, thanks to its easy frequency scan and selection functionality. The receiver and transmitter can be quickly synced via IR, and users can even set a backup frequency to avoid unexpected interference. The system's network-enabled capabilities allow for remote monitoring and control via the Wireless Manager software, making it a robust solution for any professional audio environment. Its durable construction, dual-mode display options, and a variety of transmitter and receiver features ensure that it meets the demands of any situation where high-quality audio is essential.

Key Features

• Extremely wide 60 MHz UHF tuning bandwidth for maximum versatility
• Unique multifunction button on transmitters for quick frequency switching
• Network-enabled system with ATW-R3210N receiver for remote control
• True Diversity operation to reduce dropouts
• Auto Squelch feature to maximize range and minimize interference
• Frequency scan and IR sync functionality for easy setup
• Dual-mode receiver display for standard and performance views
• Transmitters and receivers include OLED screens for clear readout
• Handheld transmitter with low handling noise and interchangeable mic capsules
• New rugged cH-style connector on body-pack transmitter for secure connections
• Charging terminals on transmitters for use with optional smart charging docks
• Antenna power available for powered antennas and in-line RF devices
• Ground-lift switch to eliminate hum caused by ground loops
• Balanced and unbalanced audio output jacks

Specifications

• Operating Frequencies: DE2 (470.125 to 529.975 MHz), EE1 (530.000 to 589.975 MHz), EF1 (590.000 to 649.975 MHz), FG1 (650.000 to 699.875 MHz)
• Minimum Frequency Step: 25 kHz
• Modulation Mode: FM
• Maximum Deviation: ATW-T3201: ±38 kHz, ATW-T3202: ±36 kHz
• Dynamic Range: ATW-T3201 Mic input: >115 dB (A-weighted), ATW-T3201 Inst input: >112 dB (A-weighted), ATW-T3202: >115 dB (A-weighted)
• Total Harmonic Distortion: <1.0% (at 1 kHz ±17.5 kHz deviation)
• Operating Range: 100 m (328') in an open range, no interfering signals
• Operating Temperature Range: -5° C to +45° C (23° F to 113° F)
• Frequency Response: ATW-T3201: 31 Hz to 15,500 Hz, ATW-T3202: 25 Hz to 16,700 Hz
• Maximum Simultaneous Use (Recommended): 40 Channels per band (region-dependent)
• Receiving System: True Diversity
• Image Rejection: 60 dB nominal
• RF Sensitivity: 20 dBuV at 60 dBA S/N ratio (50 ohms termination)
• Antenna Power: 12 V DC, 160 mA (combined)
• Maximum Output Level: XLR, balanced: +14 dBV; 6.3 mm (1/4"), unbalanced: +8 dBV
• Antenna Input: BNC-type, 50 ohms
• Power Supply: 100-240V AC (50/60 Hz) to 12V DC 1A
• Dimensions: 210.0 mm x 191.0 mm x 43.4 mm
• Net Weight: 1100 g (38.8 oz), without accessories

Package Contents

• Two flexible UHF antennas
• AC adapter (country dependent)
• Rack-mount adapters
