Audio-Technica  |  SKU: ATH-ATW3211N893XTHEE1

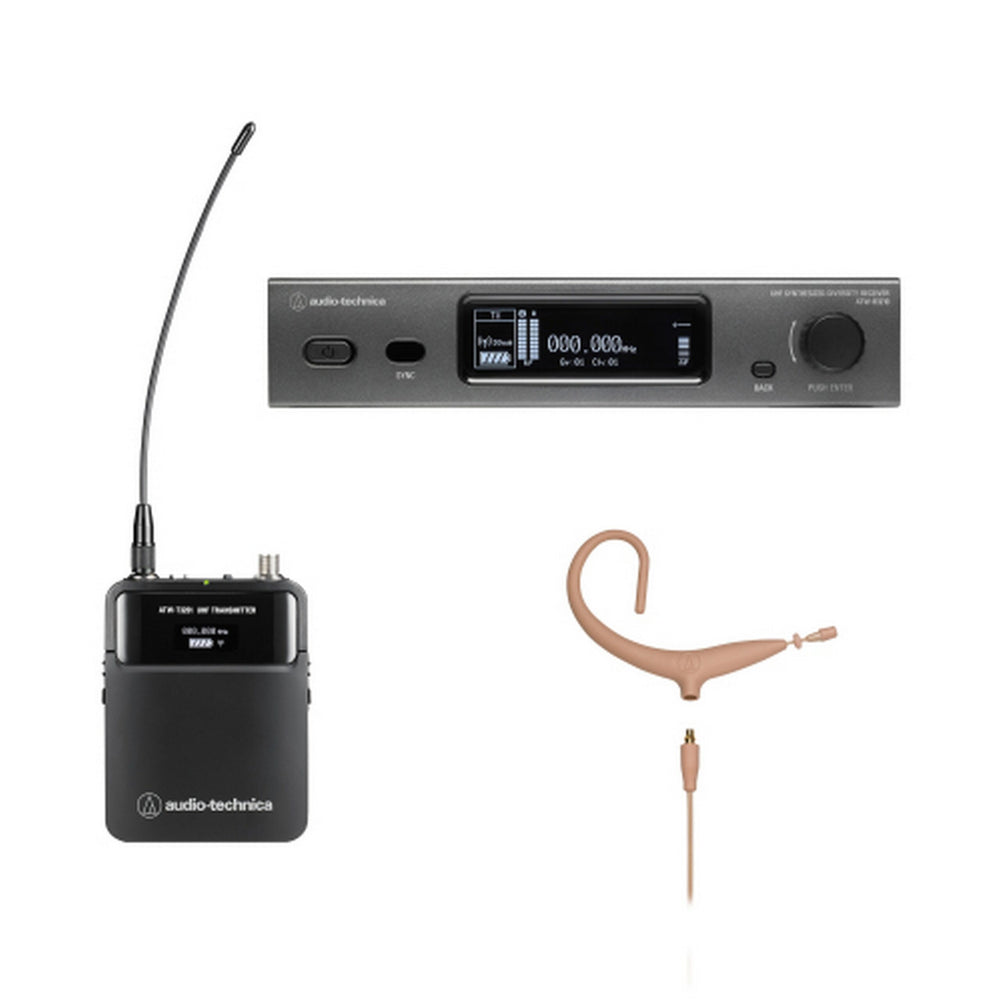

Audio-Technica ATW-3211N893XTH EE1 3000 Series Network Wireless MicroEarset System, EE1 530-590 MHz, Beige

$87900
Shipping calculated at checkout.

Condition: New



Description

Audio-Technica ATW-3211N893XTH EE1 3000 Series Network Wireless MicroEarset System, EE1 530-590 MHz, Beige

The Audio-Technica fourth-generation 3000 Series wireless systems give you the power and flexibility to operate within the congested UHF spectrum. 3000 Series systems have an operating range of 300' (100 m) and are available in two frequency bands - DE2 (470-530 MHz) and EE1 (530-590 MHz) - that provide a class-leading 60 MHz tuning range, which is more than twice that offered by the previous 3000 Series models. Frequencies can be easily scanned and selected on the receiver and then synced with the transmitter via IR sync functionality. The 3000 Series even lets you set a backup frequency that can be quickly swapped by pressing the transmitter's multifunction button in the event of unexpected interference.

Key Features

  • Extremely wide 60 MHz UHF tuning bandwidth for maximum versatility in an increasingly congested RF environment; available in two frequency bands: DE2 (470-530 MHz) and EE1 (530-590 MHz)
  • Unique multifunction button on the handheld and body-pack transmitters can be used to switch to a backup frequency (on both transmitter and receiver) should interference be encountered
  • Network-enabled system, featuring the ATW-R3210N receiver, offers network monitoring and control via Wireless Manager software
  • True Diversity operation reduces dropouts
  • Auto Squelch feature automatically adjusts squelch setting to maximize range while minimizing potential interference
  • Frequency scan and IR sync functionality for ease of setup
  • Dual-mode receiver display can switch between standard view or a performance view that highlights key metering
  • Transmitters and receivers include OLED screens for optimal readout of key settings and alerts
  • Handheld transmitter offers extremely low handling noise and includes an industry-standard thread mount for use with six interchangeable A-T microphone capsules, as well as other compatible capsules
  • New rugged cH-style connector on body-pack transmitter provides secure connection to lavalier mics, headworn mics, and cables with cH-style screw-down 4-pin connector
  • Body-pack transmitter features tactile mute toggle switch (defeatable) for physical confirmation of mute status when transmitter display is not visible
  • Charging terminals on transmitters work with optional ATW-CHG3 and ATW-CHG3N smart charging docks to recharge NiMH batteries
  • Antenna power available for powered antennas and other in-line RF devices
  • Ground-lift switch helps eliminate audible hum caused by ground loops
  • Balanced and unbalanced audio output jacks

Technical Specifications

Operating Frequencies
Band DE2: 470.125 to 529.975 MHz (2395 frequencies)
Band EE1: 530.000 to 589.975 MHz (2400 frequencies)
Band EF1: 590.000 to 649.975 MHz (2400 frequencies)
Band FG1: 650.000 to 699.875 MHz (1996 frequencies)
Minimum Frequency Step
25 kHz
Modulation Mode
FM
Maximum Deviation
ATW-T3201: ±38 kHz (THD:10%)
ATW-T3202: ±36 kHz (THD:10%)
Dynamic Range
ATW-T3201 Mic input: > 115 dB (A-weighted), typical
ATW-T3201 Inst input: > 112dB (A-weighted), typical
ATW-T3202: > 115 dB (A-weighted), typical
Total Harmonic Distortion
<1.0% (at 1 kHz, ±17.5 kHz deviation)
Operating Range
100 m (328')
Open range environment with no interfering signals.
Operating Temperature Range
-5° C to +45° C (23° F to 113° F)
Frequency Response
ATW-T3201: 31 Hz to 15,500 Hz
ATW-T3202: 25 Hz to 16,700 Hz
Frequency response depends on attached microphone element
Maximum Simultaneous Use (Recommended)
40 Channels per band*
For assistance with multi-band operation or other frequency coordination issues, please contact your regional Audio-Technica customer service representitive. *Region and band dependent
Receiving System
True Diversity
Image Rejection
60 dB nominal
RF Sensitivity
20 dBuV at 60 dBA S/N ratio (50 ohms termination)
Antenna Power
12 V DC, 160 mA (combined)
Maximum Output Level
XLR, balanced: +14 dBV
6.3 mm (1/4"), unbalanced: +8 dBV
Antenna Input
BNC-type, 50 ohms
Power Supply
100-240V AC (50/60 Hz) to 12V DC 1A (center positive) switched mode external power supply
Dimensions
210.0 mm x 191.0 mm x 43.4 mm (W x D x H)
8.27" x 7.52" x 1.71" (W x D x H)
Net Weight
1100 g (38.8 oz), without accessories
Accessories Included
Two flexible UHF antennas; AC adapter (country dependent); rack-mount Adapters
BODY-PACK TRANSMITTER
RF Power Output
High: 30 mW, Low: 10 mW (switchable), at 50 ohms
Spurious Emissions
Following Federal and National Regulations
Input Connections
cH-style screw-down 4-pin connector
Pin 1: GND
Pin 2: INST INPUT
Pin 3: MIC INPUT
Pin 4: DC BIAS +5V
High-pass (low-freq. roll-off)
125Hz, 12dB/octave
Batteries
Two 1.5V AA, not included
Battery Life
High: 8.0 hours (alkaline), Low: 9.0 hours (alkaline)
High: 9.0 hours (Ni-MH 1900mAh), Low: 9.5 hours (Ni-MH 1900mAh)
Depending on battery type, usage, and environmental conditions.
Dimensions
64 mm x 82 mm x 23 mm (W x D x H)
2.52" x 3.22" x 0.91" (W x D x H)
Net Weight
102 g (3.6 oz), without batteries
RF Power Output
High: 30 mW, Low: 10 mW (switchable), at 50 ohms
Spurious Emissions
Following Federal and National Regulations
Microphone Capsule
Interchangable industry standard thread
Batteries
Two 1.5V AA, not included
Battery Life
High: 8.0 hours (alkaline), Low: 9.0 hours (alkaline)
High: 9.0 hours (Ni-MH 1900mAh), Low: 9.5 hours (Ni-MH 1900mAh)
Depending on battery type, usage, and environmental conditions.
Dimensions
ATW-T3202 (without capsule): 193 mm (7.60") long, 37 mm (1.46") maximum diameter
ATW-T3202/C510: 265 mm (10.43") long, 54 mm (2.13") maximum diameter
ATW-T3202/C710: 271 mm (10.67") long, 50 mm (1.97") maximum diameter
Net Weight
ATW-T3202 (without capsule): 200 g (7.1 oz), without batteries
ATW-T3202/C510: 330 g (11.6 oz), without batteries
ATW-T3202/C710: 314 g (11.1 oz), without batteries
