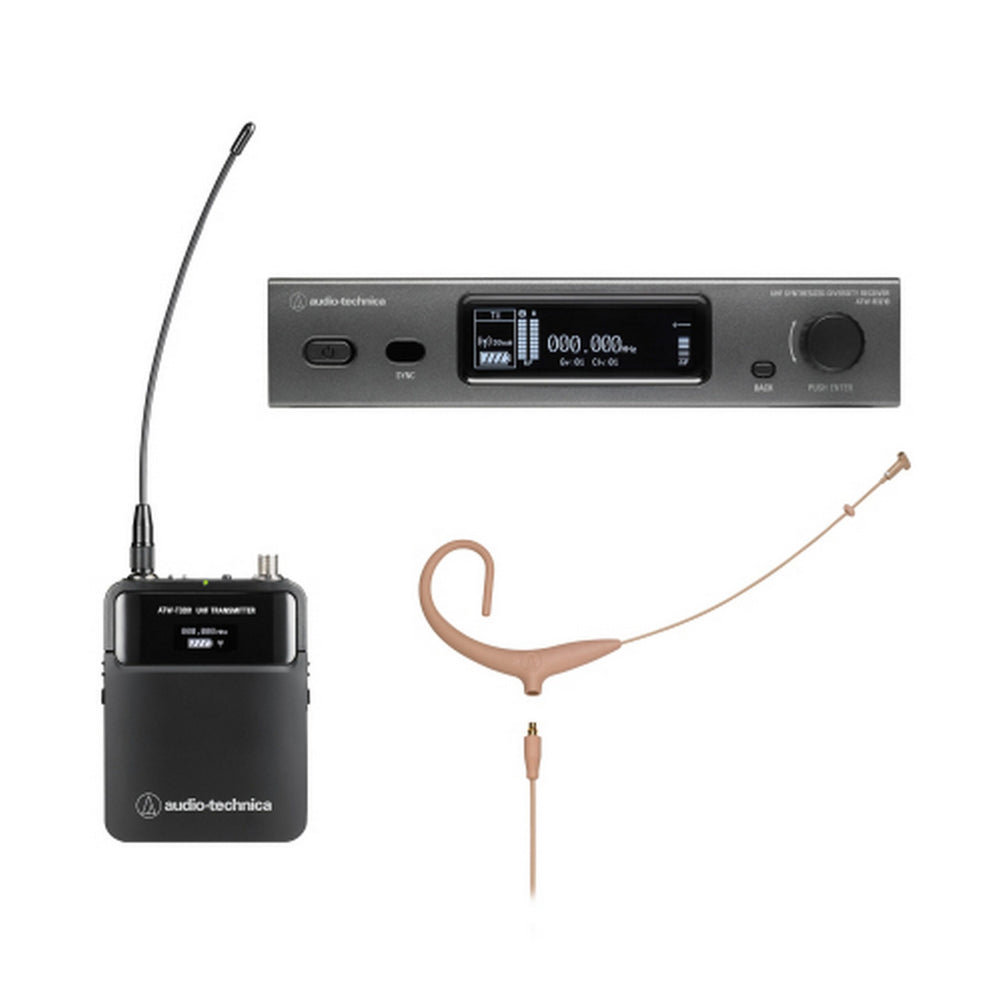

Audio-Technica ATW-3211N894XTH DE2 3000 Series Network Wireless Cardioid Earset System, DE2 470-530 MHz, Beige

Audio-Technica ATW-3211N894XTH DE2 3000 Series Network Wireless Cardioid Earset System, DE2 470-530 MHz, Beige

The Audio-Technica ATW-3211N894XTH DE2 3000 Series Network Wireless Cardioid Earset System offers unparalleled performance and versatility, making it an excellent choice for professionals who need reliable and high-quality audio transmission. This fourth-generation 3000 Series system features a robust build and cutting-edge technology designed for seamless operation in even the most congested UHF environments. Operating in the DE2 frequency band (470-530 MHz), this system provides an impressive 60 MHz tuning range, significantly surpassing previous models. Whether used in live performances, conferences, or broadcasting, this wireless system ensures crystal-clear audio with minimal interference and maximum flexibility.

The ATW-3211N894XTH is equipped with a unique multifunction button on both the handheld and body-pack transmitters, allowing users to quickly switch to a backup frequency if interference is detected. Additionally, this network-enabled system features the ATW-R3210N receiver, enabling network monitoring and control via Wireless Manager software. True Diversity operation minimizes dropouts, while the Auto Squelch feature optimizes range and minimizes potential interference. The inclusion of OLED screens on the transmitters and receivers allows for optimal readout of essential settings and alerts, ensuring efficient and easy operation even in challenging environments.

Key Features

• Extremely wide 60 MHz UHF tuning bandwidth for maximum versatility in congested RF environments.
• Available in DE2 (470-530 MHz) frequency band.
• Multifunction button on transmitters for quick frequency swaps in case of interference.
• Network-enabled with ATW-R3210N receiver for network monitoring and control.
• True Diversity operation to reduce dropouts.
• Auto Squelch feature for maximizing range while minimizing interference.
• Frequency scan and IR sync functionality for ease of setup.
• OLED screens on transmitters and receivers for optimal readout of key settings and alerts.
• Industry-standard thread mount on handheld transmitter for various A-T microphone capsules.
• Rugged cH-style connector on body-pack transmitter for secure connections.
• Charging terminals for use with optional smart charging docks.
• Antenna power available for powered antennas and other in-line RF devices.
• Ground-lift switch to eliminate audible hum from ground loops.

Specifications

• Operating Frequencies: DE2 (470.125 to 529.975 MHz).
• Minimum Frequency Step: 25 kHz.
• Modulation Mode: FM.
• Maximum Deviation: ATW-T3201: ±38 kHz, ATW-T3202: ±36 kHz.
• Dynamic Range: ATW-T3201 Mic input: > 115 dB (A-weighted).
• Total Harmonic Distortion: <1.0% (at 1 kHz ±17.5 kHz deviation).
• Operating Range: 100 meters (328 feet) in open-range environments.
• Operating Temperature Range: -5°C to +45°C (23°F to 113°F).
• Frequency Response: ATW-T3201: 31 Hz to 15,500 Hz, ATW-T3202: 25 Hz to 16,700 Hz.
• Maximum Simultaneous Use: 40 channels per band (depending on region and band).
• Receiving System: True Diversity.
• Image Rejection: 60 dB nominal.
• RF Sensitivity: 20 dBuV at 60 dBA S/N ratio.
• Antenna Power: 12 V DC, 160 mA (combined).
• Maximum Output Level: XLR, balanced: +14 dBV; 6.3 mm, unbalanced: +8 dBV.
• Power Supply: 100-240V AC to 12V DC 1A external power supply.
• Dimensions: 210.0 mm x 191.0 mm x 43.4 mm (W x D x H).
• Net Weight: 1100 g (38.8 oz), without accessories.
• Battery Life: Up to 9.5 hours (depending on battery type).

Package Contents

• Two flexible UHF antennas.
• AC adapter (country dependent).
• Rack-mount adapters.
