Audio-Technica ATW-CHG6AD D50 HH-BP Charger with Power

Audio-Technica ATW-CHG6AD D50 HH-BP Charger with Power

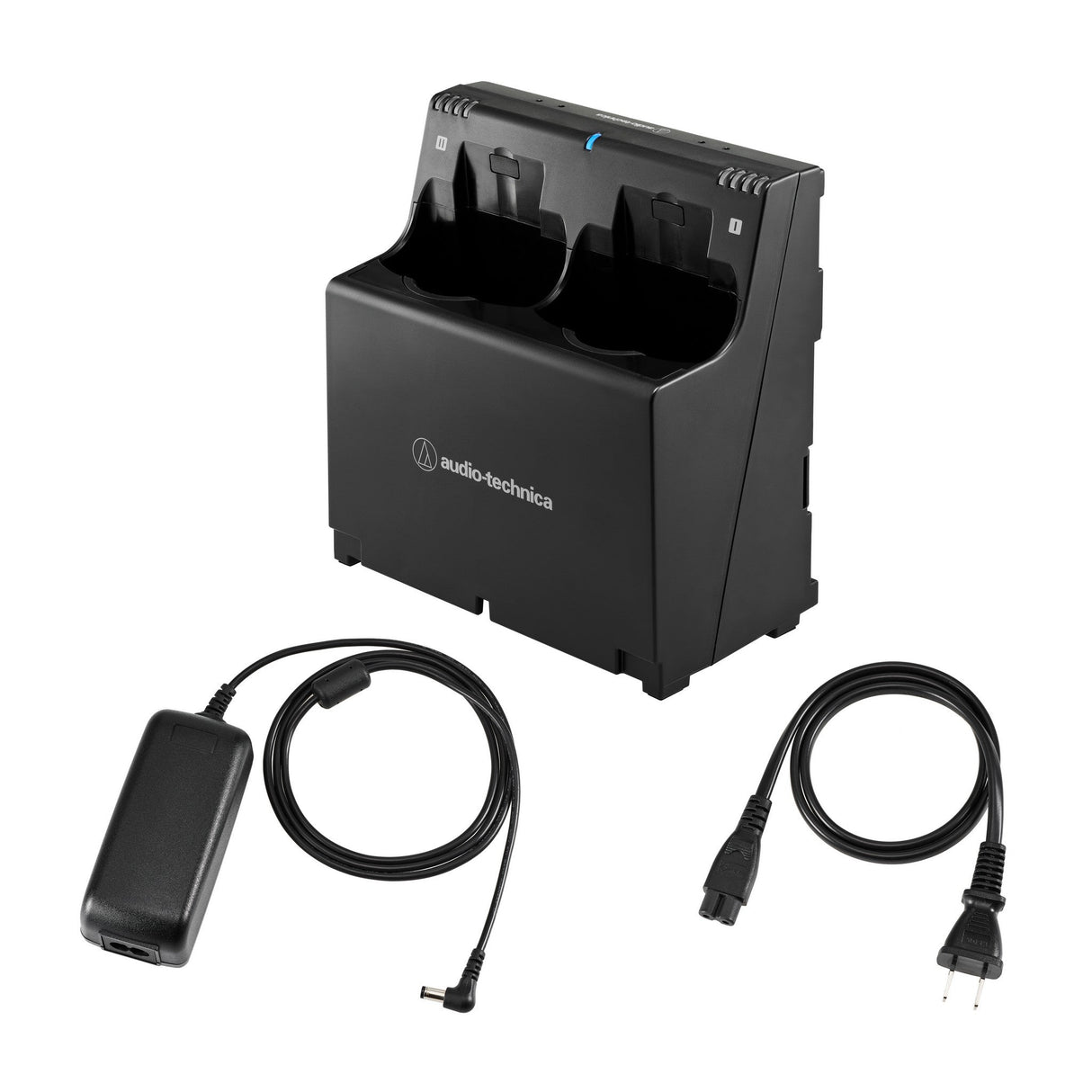

The Audio-Technica ATW-CHG6AD D50 HH-BP Charger w/Power is a two-bay charging station designed for D50 wireless system body-pack and handheld transmitters. Built for professional wireless audio users, this charger supports the ATW-DT3201 body-pack transmitter and ATW-DT3202 handheld transmitter, making it a practical charging solution for live sound, broadcast, houses of worship, corporate AV, education, production, and installed audio environments using the Audio-Technica D50 digital UHF wireless system.

This charging station is designed to simplify daily transmitter charging and system maintenance. Front-panel indicator lamps make it easy to monitor charging status and battery level directly from the charger, while the same information can also be viewed in Audio-Technica Wireless Manager software. For added workflow efficiency, transmitter firmware can be updated while compatible transmitters are docked in the charging station, helping users keep their D50 wireless equipment maintained and ready for professional use.

The ATW-CHG6AD includes power and supports scalable charging station setups for larger wireless systems. Up to four charging stations can be linked together with Cat5e cable and powered by a single AC adapter, while up to three charging stations can be linked and powered by PoE+. The charger can also accept the ATW-CHGA6 single battery charger, providing added flexibility for charging compatible lithium-ion batteries. Its design allows vertical or horizontal mounting on a rack, wall, or other location, and up to three ATW-CHG6 charging stations can be mounted in a single 2U rack space using the optional AT8620 rack-mount tray, sold separately.

Key Features

• Two-bay charging station with power supply for Audio-Technica D50 wireless system transmitters
• Charges ATW-DT3201 body-pack transmitters and ATW-DT3202 handheld transmitters
• Accepts the ATW-CHGA6 single battery charger for additional charging flexibility
• Up to four charging stations can be linked with Cat5e cable and powered by one AC adapter
• Up to three charging stations can be linked and powered by PoE+
• Front-panel LED indicators display charging status and battery level
• Charging status and battery level can also be monitored in Audio-Technica Wireless Manager software
• Transmitter firmware can be updated while transmitters are docked in the charging station

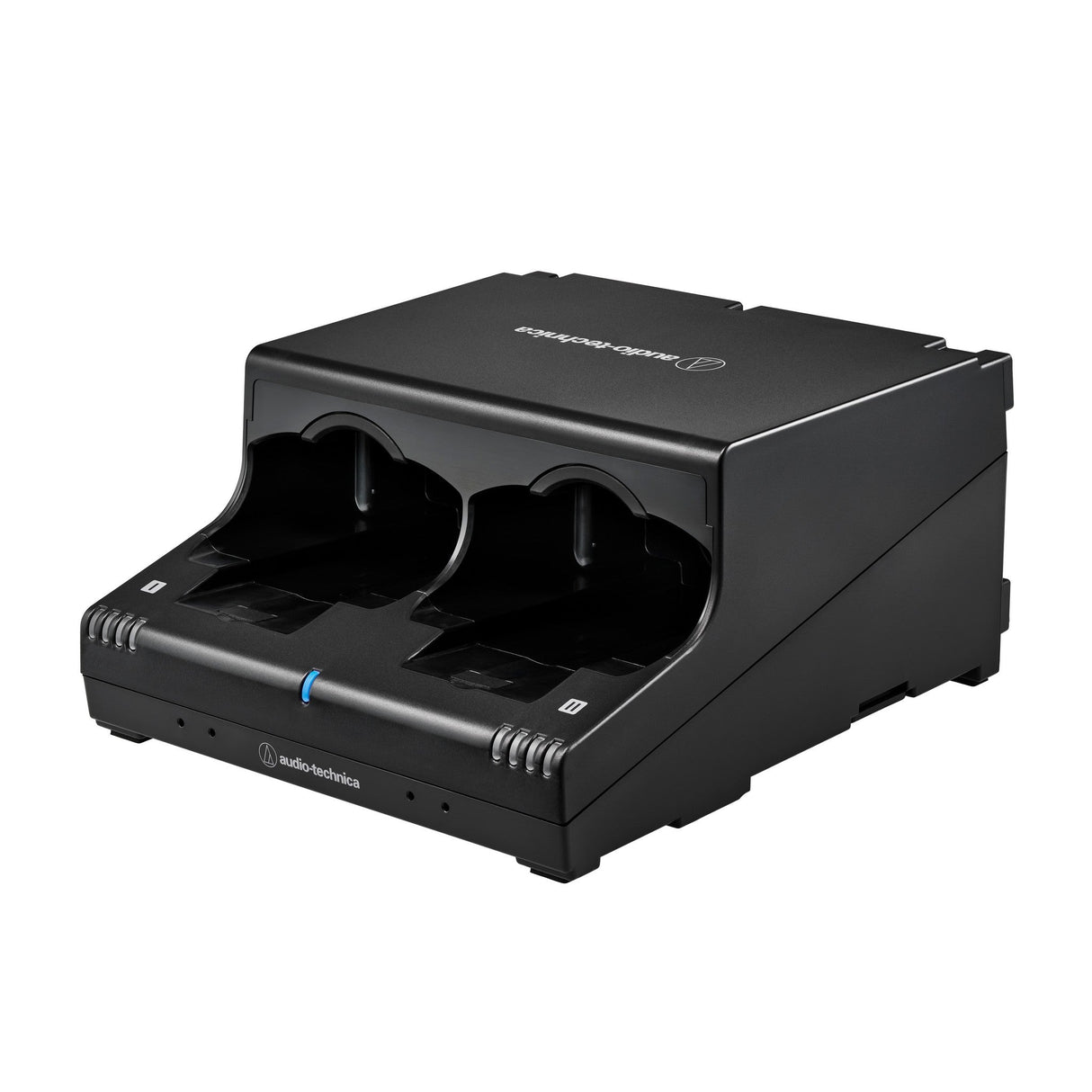

• Can be mounted vertically or horizontally on a rack, wall, or other installation location
• Optional AT8620 rack-mount tray allows three ATW-CHG6 charging stations to fit in a 2U rack space
• Includes mounting plate, lavalier microphone hangers, link cables, link plate, link plate screws, microphone holder, and power supply

Technical Specifications

Overall System

Operating Frequencies: DF2: 470.125 to 607.875 MHz
Modulation Mode: Standard: 8-PSK
HD mode: 16QAM
Occupied Bandwidth: Standard: 192 kHz
HD mode: 96 kHz
Frequency Response: Standard: 20 to 20,000 Hz
HD mode: 20 to 20,000 Hz
Depending on attached microphone element.
Operating Range: 328 ft
Open range environment with no interfering signals.
Dynamic Range: ATW-DT3201 Mic input: 120 dB, A-weighted, typical
ATW-DT3201 Instrument input: 109 dB, A-weighted, typical
ATW-DT3202: 120 dB, A-weighted, typical
ATW-DT3207: 120 dB, A-weighted, typical
Total Harmonic Distortion: 0.1% or less at 1 kHz, -20 dBFS
Maximum Simultaneous Use Recommended: Standard: 17 channels / 6 MHz
Results may vary depending on the radio environment and usage conditions.
Delay: Standard: 2.1 ms typical
HD mode: 3.3 ms typical
Audio Sampling Rate: Standard: 48 kHz
HD mode: 48 kHz
Encryption System: AES256
Notes: For product improvement, the product is subject to modification without notice.

ATW-CHG6AD Charging Station

Power Supply: 12 V DC, 3.0 A
Charging Output: AC adapter: When charging one to four transmitters: 5 V 1.1 A
When charging five or six transmitters: 5 V 0.8 A
When charging seven or eight transmitters: 5 V 0.5 A
PoE+: When charging one to two transmitters: 5 V 1.1 A
When charging three to six transmitters: 5 V 0.5 A
Energy-saving mode: 12 V 0.2 A
Maximum Power Consumption: When charging two transmitters: AC adapter: 15 W, 51 Btu/h
PoE+: 16 W, 55 Btu/h
Charging Time With AC Adapter: ATW-DT3201 LI-220: When charging one to four transmitters: Approx. 2 hours 30 minutes
When charging five to six transmitters: Approx. 3 hours 10 minutes
When charging seven to eight transmitters: Approx. 5 hours
ATW-DT3202 LI-320: When charging one to four transmitters: Approx. 3 hours 50 minutes
When charging five to six transmitters: Approx. 5 hours
When charging seven to eight transmitters: Approx. 7 hours 10 minutes
Charging Time With PoE+: ATW-DT3201 LI-220: When charging one to two transmitters: Approx. 2 hours 30 minutes
When charging three to six transmitters: Approx. 5 hours
ATW-DT3202 LI-320: When charging one to two transmitters: Approx. 3 hours 50 minutes
When charging three to six transmitters: Approx. 7 hours 10 minutes
Charging Time In Energy-Saving Mode: ATW-DT3201 LI-220: Approx. 5 hours
ATW-DT3202 LI-320: Approx. 7 hours 10 minutes
Results may vary depending on usage conditions.
Network: 100 Mbps
Operating Temperature Range: 32°F to 104°F
Storage Temperature Range: -4°F to 131°F
Cooling Method: Fan-assisted air cooling
Airflow Direction: Front intake / rear exhaust
Dimensions: 5.7" x 3.1" x 6.1" W x D x H
Weight: 24 oz

What’s Included

Included Accessories: ATW-CHG6 charger
Mounting plate
Two lavalier microphone hangers
Link cable, short
Link cable, long
Link plate
Link plate screws
Microphone holder
Power supply
