Description
Audio-Technica ATW-CHG7AD D50 4-Bay TX Charger with Power
The Audio-Technica ATW-CHG7AD D50 4B TX Charger w/Power is a four-bay charging station designed for charging D50 wireless system desk stand transmitters. Built for professional wireless audio installations, this charging station supports ATW-DT3207 desk stand transmitters and is ideal for conference rooms, boardrooms, education spaces, houses of worship, broadcast facilities, corporate AV systems, and installed audio environments that rely on the Audio-Technica D50 digital UHF wireless system.
The ATW-CHG7AD helps keep multiple desk stand transmitters charged, organized, and ready for daily use. Charging status and battery level can be monitored directly from the station’s LED indicators, and the same charging information can also be viewed through Audio-Technica Wireless Manager software. For system maintenance, compatible transmitter firmware can be updated while transmitters are docked in the charging station, helping simplify service and setup for professional D50 wireless deployments.
Designed for expanded system use, two ATW-CHG7 charging stations can be linked together with Cat5e cable and powered by a single AC adapter. The charger provides rapid recharge in as little as two hours depending on the number of transmitters being charged and usage conditions. With its included power supply, mounting plate, link cables, link plate, and link plate screws, the ATW-CHG7AD offers a complete charging solution for D50 desk stand transmitter systems that require clean setup, fast charging, and reliable transmitter readiness.
Key Features
- Four-bay charging station with power supply for Audio-Technica D50 wireless system desk stand transmitters
- Designed for charging ATW-DT3207 desk stand transmitters
- Rapid recharge in as little as two hours depending on charging conditions
- Two ATW-CHG7 stations can be linked with Cat5e cable and powered by a single AC adapter
- ATW-CHG7 stations cannot be linked with ATW-CHG6 stations
- Charging status and battery level can be monitored with station LED indicators
- Charging status and battery level can also be monitored in Audio-Technica Wireless Manager software
- Transmitter firmware can be updated while transmitters are docked in the charging station
- Designed for conference rooms, meeting spaces, installed audio systems, education, broadcast, worship, and professional AV applications
- Includes charger, mounting plate, link cables, link plate, link plate screws, and power supply
Technical Specifications
Overall System
Operating Frequencies: DF2: 470.125 to 607.875 MHz
Modulation Mode: Standard: 8-PSK
HD mode: 16QAM
Occupied Bandwidth: Standard: 192 kHz
HD mode: 96 kHz
Frequency Response: Standard: 20 to 20,000 Hz
HD mode: 20 to 20,000 Hz
Depending on attached microphone element.
Operating Range: 328 ft
Open range environment with no interfering signals.
Dynamic Range: ATW-DT3201 Mic input: 120 dB, A-weighted, typical
ATW-DT3201 Instrument input: 109 dB, A-weighted, typical
ATW-DT3202: 120 dB, A-weighted, typical
ATW-DT3207: 120 dB, A-weighted, typical
Total Harmonic Distortion: 0.1% or less at 1 kHz, -20 dBFS
Maximum Simultaneous Use Recommended: Standard: 17 channels / 6 MHz
Results may vary depending on the radio environment and usage conditions.
Delay: Standard: 2.1 ms typical
HD mode: 3.3 ms typical
Audio Sampling Rate: Standard: 48 kHz
HD mode: 48 kHz
Encryption System: AES256
Notes: For product improvement, the product is subject to modification without notice.
ATW-CHG7AD Charging Station
Power Supply: 12 V DC, 3.0 A
Charging Output: When charging one to four transmitters: 4.2 V DC 1.5 A
When charging five or six transmitters: 4.2 V DC 1.1 A
When charging seven or eight transmitters: 4.2 V DC 0.7 A
Maximum Power Consumption: When charging four transmitters: 30.6 W
Charging Time: When charging one to four transmitters: Approx. 2 hours
When charging five or six transmitters: Approx. 2 hours 50 minutes
When charging seven or eight transmitters: Approx. 3 hours 40 minutes
Energy-saving mode: Approx. 3 hours 40 minutes
Results may vary depending on usage conditions.
Network: 100 Mbps
Operating Temperature Range: 32°F to 104°F
Storage Temperature Range: -4°F to 131°F
Dimensions: 8.3" x 12" x 2.6" W x D x H
Weight: 31 oz

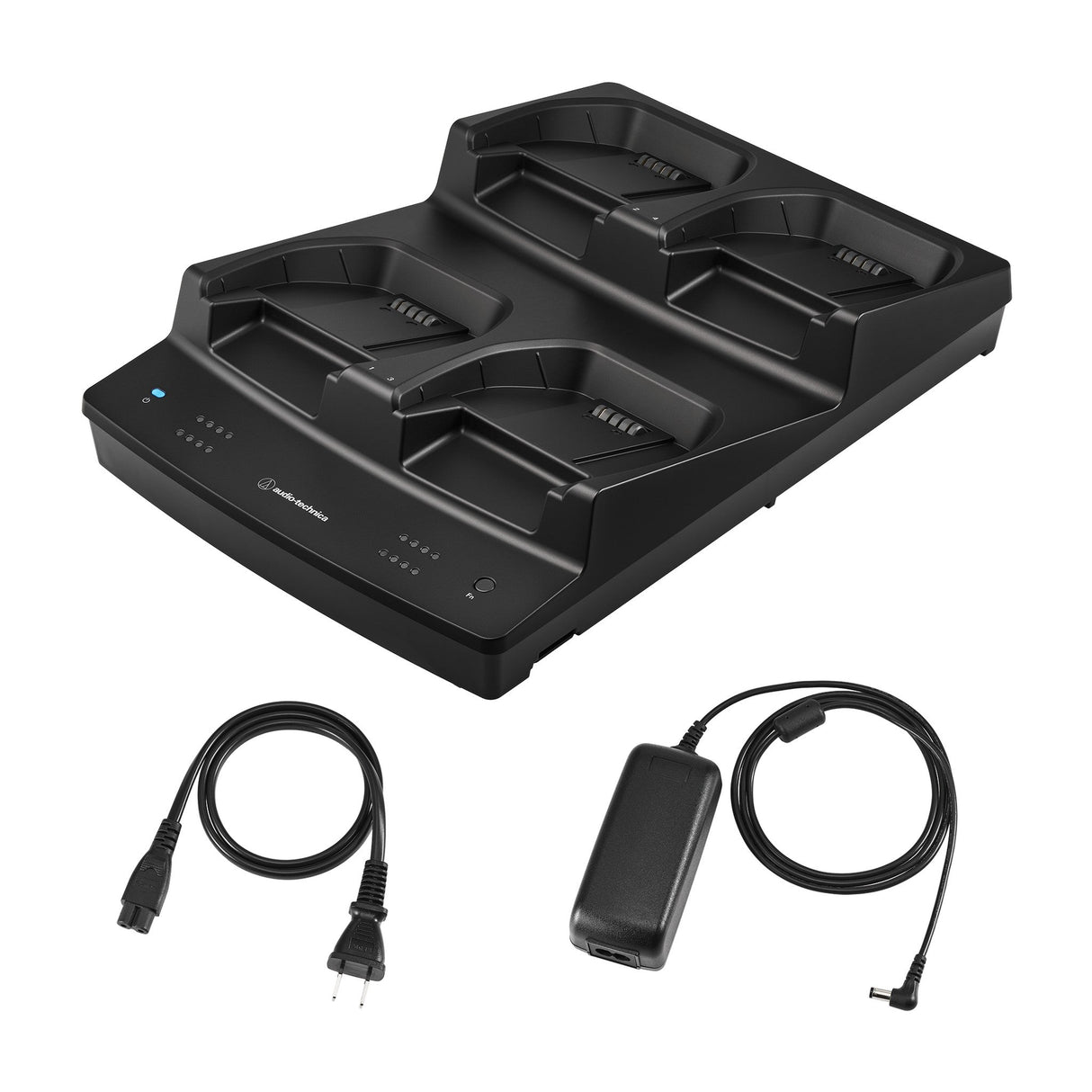

What’s Included
Included Accessories: ATW-CHG7 charger
Mounting plate
Link cables to connect multiple chargers
Power supply
Link plate
Link plate screws
