Audio-Technica ATW-D50-DRX-2B 2-Person Wireless Bodypack Audio System, DF2 470-608 MHz

Audio-Technica ATW-D50-DRX-2B 2-Person Wireless Bodypack Audio System, DF2 470-608 MHz

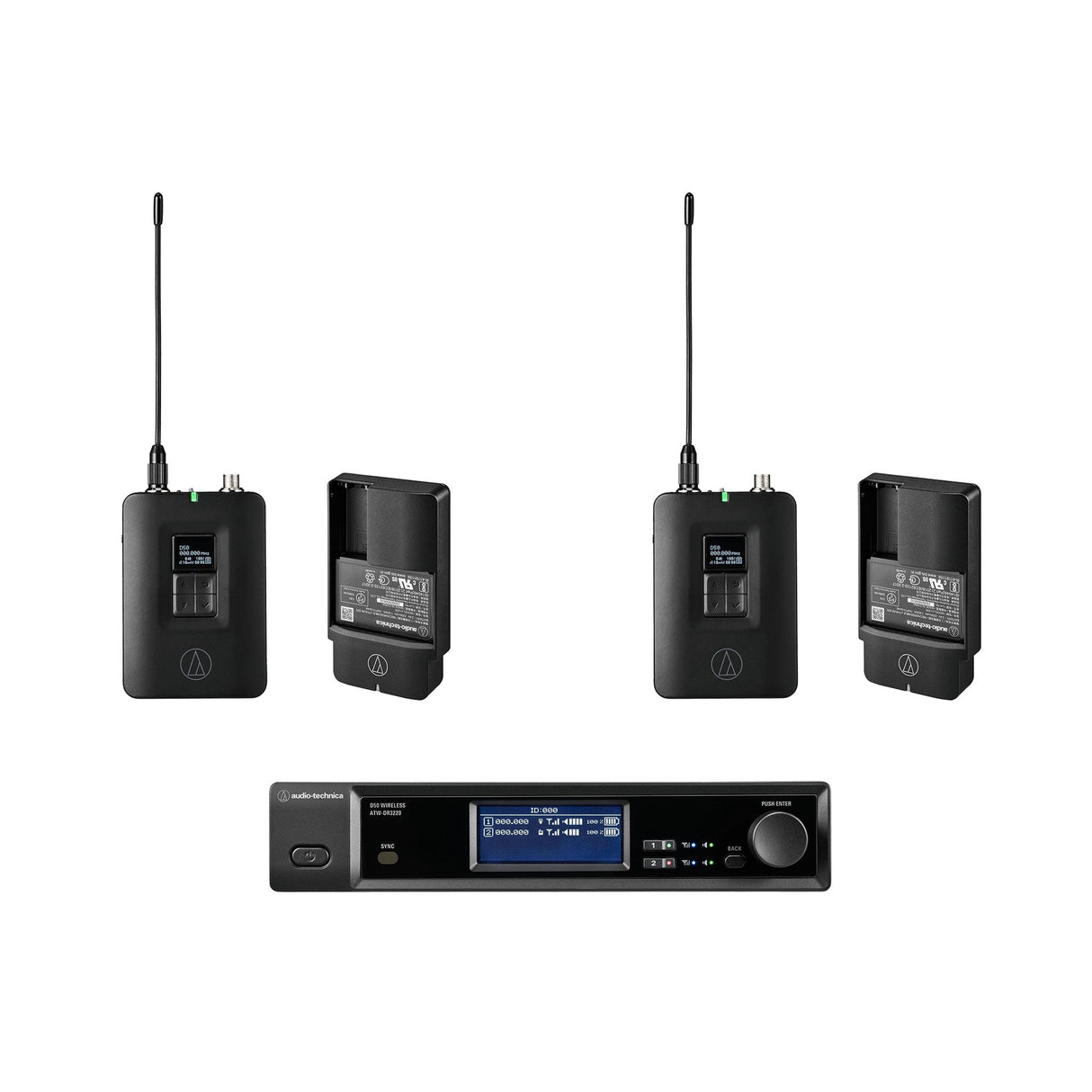

The Audio-Technica ATW-D50-DRX-2B D50 2CH 2BP System is a professional 2-channel digital UHF wireless body-pack system that includes an Audio-Technica LINK-enabled 2-channel receiver and two ATW-DT3201 compact body-pack transmitters. Designed for live sound, broadcast, corporate AV, houses of worship, education, theater, presentation, and installed audio applications, this system delivers flexible wireless performance with secure digital transmission and reliable RF operation. The included half-rack receiver supports advanced system control, while the two compact body-pack transmitters provide a dependable solution for compatible lavalier microphones, headworn microphones, and cables.

The receiver operates in two switchable RF modes to support different wireless environments. Normal mode uses Antenna Combining Diversity, while robust mode uses MRC True Diversity for improved RF stability in challenging setups. Up to four receivers can be linked and operated without antenna distribution, requiring only a single pair of antennas. This makes the ATW-D50-DRX-2B a practical choice for multi-channel wireless systems where clean setup, strong signal performance, and efficient rack integration are important.

For congested RF environments, the D50 system offers HD high-density mode, allowing users to expand from the standard 17 usable frequencies within a 6 MHz TV channel block to up to 47 frequencies in HD mode. The ATW-DT3201 body-pack transmitters feature a rugged cH-style screw-down 4-pin input connector, external control buttons, mute switch, OLED status display, and SideTrack function for switching audio to a second output for discrete live communication with performers or audio engineers. Each transmitter is powered by a custom-designed lithium-ion battery and can be charged in the transmitter with an ATW-CHG6 charging station, sold separately, or by removing the battery and charging it separately with the included ATW-CHGA6 battery chargers.

Key Features

• 2-channel digital UHF wireless body-pack system for professional D50 wireless applications
• Includes Audio-Technica LINK-enabled 2-channel half-rack receiver and two compact ATW-DT3201 body-pack transmitters
• DF2 operating frequency range from 470.125 to 607.875 MHz
• Receiver supports normal Antenna Combining Diversity and robust MRC True Diversity modes
• HD high-density mode expands usable frequencies in congested RF environments
• Up to four receivers can be linked and operated without antenna distribution using one pair of antennas
• AES256 encryption supports secure wireless audio transmission
• Onboard receiver DSP offers high-pass filter, 4-band EQ, and compressor settings for each channel
• Network port supports monitoring and device configuration through Audio-Technica Wireless Manager
• Receiver can be powered by the included AC adapter or PoE+ with backup power support
• Receiver supports mixed output when input channels are limited
• Spectrum analysis and IR sync functionality help simplify setup
• ATW-DT3201 transmitters include cH-style screw-down 4-pin input connectors for compatible lavalier mics, headworn mics, and cables
• Transmitters include external control buttons, mute switch, OLED display, and SideTrack function

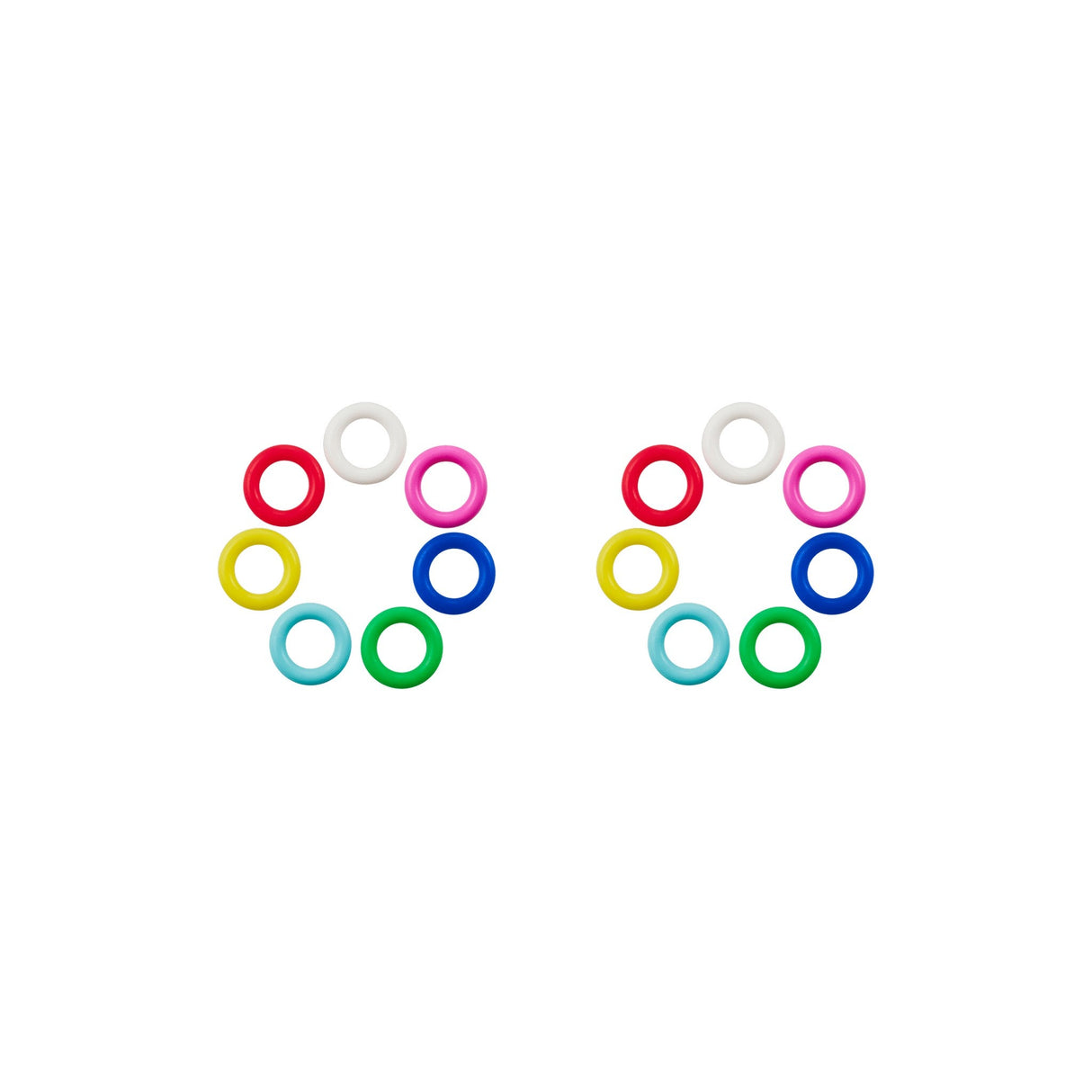

• Seven-color LED indicators and seven physical color rings make channel color coding easy
• All-metal transmitter construction supports professional durability

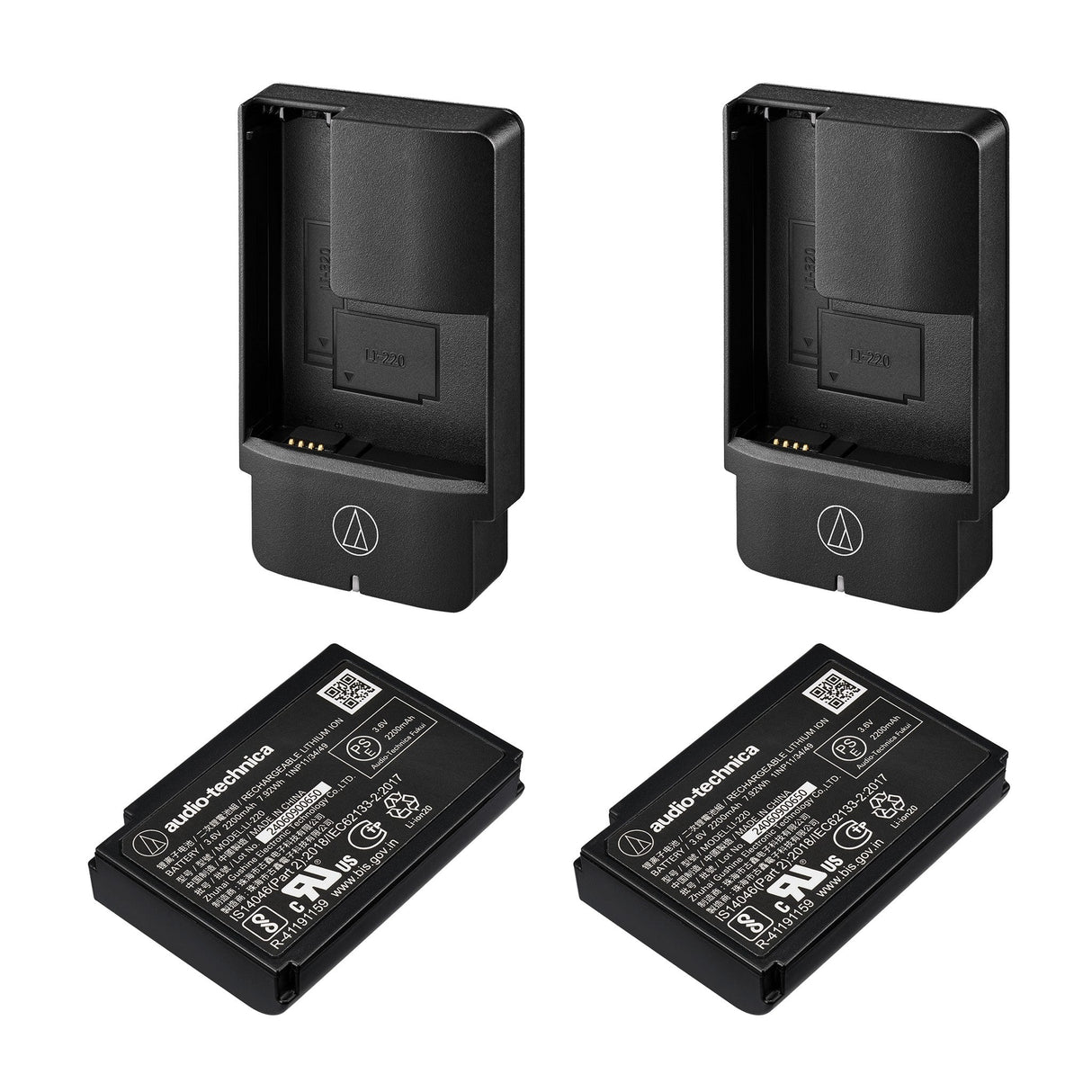

• Includes two ATW-CHGA6 battery chargers, two LI-220 rechargeable lithium-ion batteries, and two ATW-TI10 color ring indicator kits

Technical Specifications

Overall System

Operating Frequencies: DF2: 470.125 to 607.875 MHz
Modulation Mode: Standard: 8-PSK
HD mode: 16QAM
Occupied Bandwidth: Standard: 192 kHz
HD mode: 96 kHz
Frequency Response: Standard: 20 to 20,000 Hz
HD mode: 20 to 20,000 Hz
Depending on attached microphone element.
Operating Range: 328 ft
Open range environment with no interfering signals.
Dynamic Range: ATW-DT3201 Mic input: 120 dB, A-weighted, typical
ATW-DT3201 Instrument input: 109 dB, A-weighted, typical
ATW-DT3202: 120 dB, A-weighted, typical
ATW-DT3207: 120 dB, A-weighted, typical
Total Harmonic Distortion: 0.1% or less at 1 kHz, -20 dBFS
Maximum Simultaneous Use Recommended: Standard: 17 channels / 6 MHz
Results may vary depending on the radio environment and usage conditions.
Delay: Standard: 2.1 ms typical
HD mode: 3.3 ms typical
Audio Sampling Rate: Standard: 48 kHz
HD mode: 48 kHz
Encryption System: AES256
Notes: For product improvement, the product is subject to modification without notice.

ATW-DR3220LK Receiver

Receiving System: Robust: MRC true diversity
Normal: Antenna combining diversity
Image Rejection: 70 dB
RF Sensitivity: -98 dBm, 10⁻⁵ BER
Maximum Output Level: +18 dBV
Antenna Input: BNC, 50 ohms
Antenna Power: 12 V DC, 150 mA x2
Maximum Power Consumption: AC adapter: 13 W, 44 Btu/h
PoE+: 14 W, 48 Btu/h
Power Supply: 100 to 240 V AC 50/60 Hz
PoE+ IEEE 802.3at Class 4
Network: IP control: 100 Mbps
Audio-Technica Link: 100 Mbps
Operating Temperature Range: 23°F to 104°F
Storage Temperature Range: -4°F to 131°F
Cooling Method: Fan-assisted air cooling
Airflow Direction: Front intake / rear exhaust
Dimensions: 8.3" x 11" x 1.7" W x D x H
Weight Without Included Accessories: 4.6 lbs

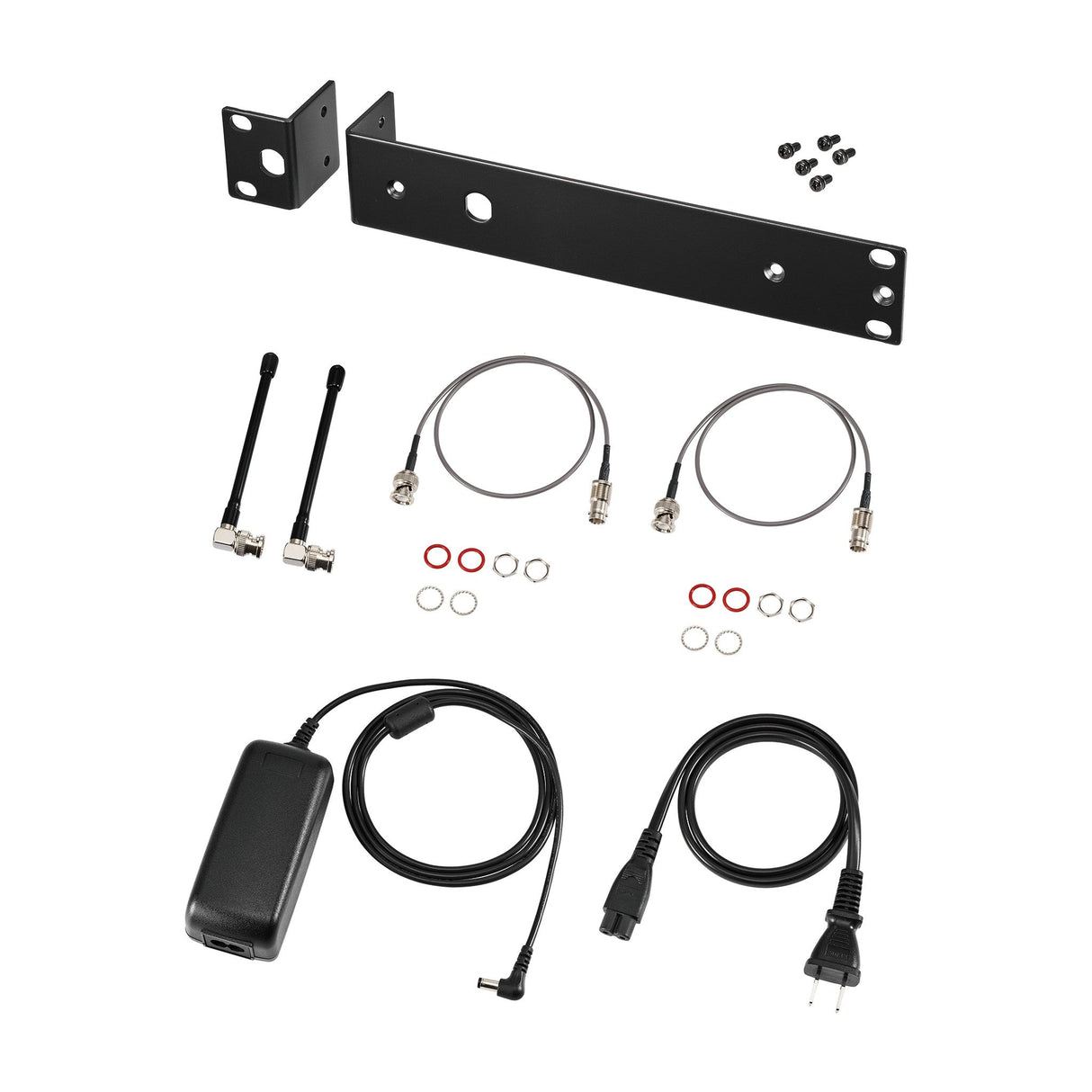

Included Accessories: Whip antenna x2
AC adapter AD-SA1230XA
AC cable
Rubber foot x4
Rack-mount adapter, short
Rack-mount adapter, long
Fixing screw x7, 3 for the bottom and 4 for the sides
BNC cable kit x2

ATW-DT3201 Body-Pack Transmitter

RF Output Power: Standard: 20 mW, 10 mW, 1 mW
HD mode: 1 mW
Input Connection: Four pin locking connector
Pin 1: GND
Pin 2: Instrument input
Pin 3: Mic input
Pin 4: DC bias +10 V
High-Pass Filter: 120 Hz, 12 dB/octave
Battery: Lithium-ion battery LI-220 included
Battery Life: 12 hours at 10 mW
May vary depending on usage conditions.
Operating Temperature Range: 23°F to 113°F
Storage Temperature Range: -4°F to 131°F
Dimensions: 2.2" x 3.1" x 0.94" W x D x H
Weight With Included Battery: 6.1 oz
Included Accessories: Transmitter indicator set, seven colors
Pouch

ATW-CHGA6 Battery Charger

Power Supply: USB Type-C, ATW-CHG6
Charging Output: USB Type-C: 4.2 V 0.5 A
ATW-CHG6: When charging one to four transmitters: 4.2 V 1.2 A
When charging five to six transmitters: 4.2 V 0.8 A
When charging seven to eight transmitters: 4.2 V 0.5 A
Charging Time LI-220: USB Type-C: Approx. 5 hours
Results may vary depending on usage conditions.
Charging Time LI-320: USB Type-C: Approx. 7 hours 10 minutes
Results may vary depending on usage conditions.
Operating Temperature Range: 32°F to 104°F
Storage Temperature Range: -4°F to 131°F
Dimensions: 2.5" x 4.2" x 0.98" W x D x H
Weight: 2.3 oz

LI-220 Lithium-Ion Battery

Type: Lithium ion
Output Voltage: 3.6 V DC
Capacitance: 2,200 mAh
Dimensions: 1.6" x 2.2" x 0.53" W x D x H
Weight: 1.7 oz

What’s Included

Included Accessories: ATW-DR3220LK receiver
Short and long rack ear kit
Power supply
Antennas
Front-mount antenna kit
Two ATW-DT3201 body-pack transmitters
Two ATW-CHGA6 battery chargers
Two LI-220 rechargeable lithium-ion batteries
Two ATW-TI10 color ring indicator kits
Transmitter indicator sets, seven colors
Pouches
