Audio-Technica ATW-D50-DRX-2BL 2-Person Wireless Cardioid Lavalier Microphone System, DF2 470-608 MHz

Audio-Technica ATW-D50-DRX-2BL 2-Person Wireless Cardioid Lavalier Microphone System, DF2 470-608 MHz

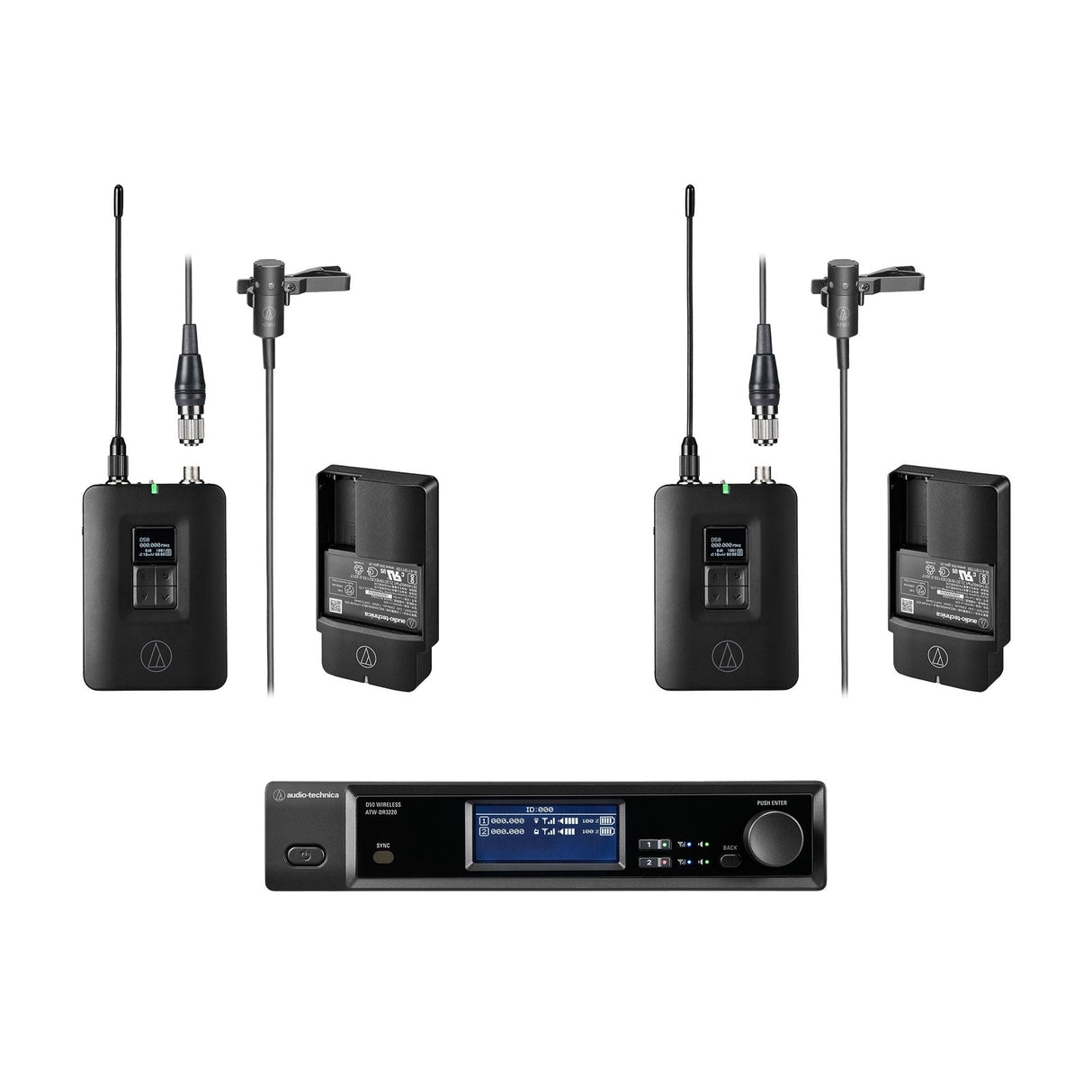

The Audio-Technica ATW-D50-DRX-2BL D50 2CH 2BPL System is a professional 2-channel digital UHF wireless body-pack system with lavalier microphones, designed for clear voice pickup, secure wireless transmission, and flexible system control. This system includes an Audio-Technica LINK-enabled 2-channel half-rack receiver, two ATW-DT3201 compact body-pack transmitters, and two AT831cH wireless clip-on lavalier microphones. It is ideal for live sound, broadcast, worship, education, corporate presentations, theater, conference systems, and installed AV applications that require dependable wireless lavalier microphone performance.

The included half-rack receiver operates in two switchable RF modes to support different wireless environments. Normal mode uses Antenna Combining Diversity, while robust mode uses MRC True Diversity for greater RF stability in challenging conditions. Up to four receivers can be linked and operated without antenna distribution, requiring only a single pair of antennas. This helps simplify multi-channel wireless setups while maintaining professional RF reliability and system flexibility.

The D50 system also supports HD high-density mode, expanding the number of usable frequencies from the standard 17 frequencies within a 6 MHz TV channel block to 47 frequencies in HD mode, which is especially useful in congested RF environments. The ATW-DT3201 body-pack transmitters feature rugged cH-style screw-down 4-pin input connectors, external control buttons, mute switches, OLED displays, IR sync, all-metal construction, and SideTrack functionality for switching audio to a second output. The included AT831cH wireless clip-on lavalier microphones provide crisp, full-sounding voice pickup with excellent gain before feedback and suppression of background noise.

Key Features

• 2-channel digital UHF wireless body-pack system with lavalier microphones
• Includes Audio-Technica LINK-enabled 2-channel half-rack receiver
• Includes two ATW-DT3201 compact body-pack transmitters
• Includes two AT831cH wireless clip-on lavalier microphones
• DF2, DF3, and EF3 operating frequency ranges support flexible regional channel planning
• Receiver switches between normal Antenna Combining Diversity and robust MRC True Diversity
• HD high-density mode expands usable frequencies in congested RF environments
• Up to four receivers can be linked and operated without antenna distribution using one pair of antennas
• AES256 encryption supports secure wireless audio transmission
• Receiver can be powered by the included AC adapter or PoE+
• PoE+ can provide backup power if AC power drops out
• Onboard receiver DSP includes high-pass filter, 4-band EQ, and compressor settings for each channel
• Network port supports monitoring and device configuration through Wireless Manager
• Spectrum analysis and IR sync help simplify wireless system setup
• Body-pack transmitters feature cH-style screw-down 4-pin input connectors for compatible lavalier mics, headworn mics, and cables
• Body-pack transmitters include external controls, mute switch, OLED display, and SideTrack function
• Seven-color LED indicators and physical color rings make channel identification easy
• All-metal transmitter construction supports professional durability
• AT831cH lavalier microphones provide crisp voice pickup, excellent gain before feedback, and suppression of background noise
• Includes windscreens, clothing clips, battery chargers, lithium-ion batteries, color ring indicator kits, antennas, rack accessories, and front-mount antenna kit

Technical Specifications

Overall System

Operating Frequencies: DF2: 470.125 to 607.875 MHz
DF3: 470.125 to 693.875 MHz
EF3: 580.000 to 693.875 MHz
Modulation Mode: Standard: 8-PSK
HD mode: 16QAM
Occupied Bandwidth: Standard: 192 kHz
HD mode: 96 kHz
Frequency Response: Standard: 20 to 20,000 Hz
HD mode: 20 to 20,000 Hz
Depending on attached microphone element.
Operating Range: 328 ft
Open range environment with no interfering signals.
Dynamic Range: ATW-DT3201 Mic input: 120 dB, A-weighted, typical
ATW-DT3201 Instrument input: 109 dB, A-weighted, typical
ATW-DT3202: 120 dB, A-weighted, typical
ATW-DT3207: 120 dB, A-weighted, typical
Total Harmonic Distortion: 0.1% or less at 1 kHz, -20 dBFS
Maximum Simultaneous Use Recommended: Standard: 17 channels / 6 MHz, 22 channels / 8 MHz
HD mode: 47 channels / 6 MHz, 63 channels / 8 MHz
Results may vary depending on the radio environment and usage conditions.
Delay: Standard: 2.1 ms typical
HD mode: 3.3 ms typical
Audio Sampling Rate: Standard: 48 kHz
HD mode: 48 kHz
Encryption System: AES256
Notes: For product improvement, the product is subject to modification without notice.

ATW-DR3220LK Receiver

Receiving System: Robust: MRC true diversity
Normal: Antenna combining diversity
Image Rejection: 70 dB
RF Sensitivity: -98 dBm, 10⁻⁵ BER
Maximum Output Level: +18 dBV
Antenna Input: BNC, 50 ohms
Antenna Power: 12 V DC, 150 mA x2
Maximum Power Consumption: AC adapter: 13 W, 44 Btu/h
PoE+: 14 W, 48 Btu/h
Power Supply: 100 to 240 V AC 50/60 Hz
PoE+ IEEE 802.3at Class 4
Network: IP control: 100 Mbps
Audio-Technica Link: 100 Mbps
Operating Temperature Range: 23°F to 104°F
Storage Temperature Range: -4°F to 131°F
Cooling Method: Fan-assisted air cooling
Airflow Direction: Front intake / rear exhaust
Dimensions: 8.3" x 11" x 1.7" W x D x H
Weight Without Included Accessories: 4.6 lbs

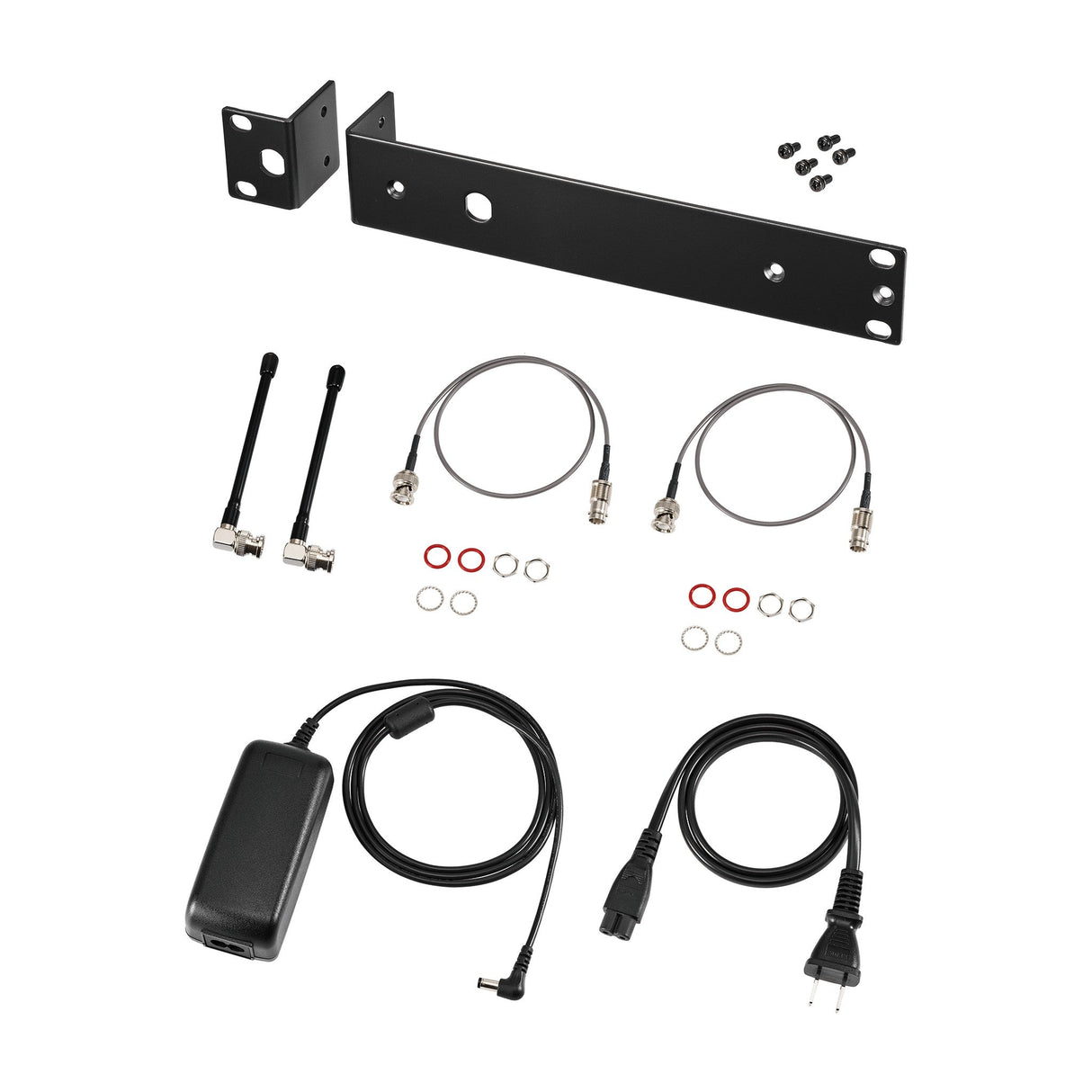

Included Accessories: Whip antenna x2
AC adapter AD-SA1230XA
AC cable
Rubber foot x4
Rack-mount adapter, short
Rack-mount adapter, long
Fixing screw x7, 3 for the bottom and 4 for the sides
BNC cable kit x2

ATW-DT3201 Body-Pack Transmitter

RF Output Power: Standard: 20 mW, 10 mW, 1 mW
HD mode: 1 mW
Input Connection: Four pin locking connector
Pin 1: GND
Pin 2: Instrument input
Pin 3: Mic input
Pin 4: DC bias +10 V
High-Pass Filter: 120 Hz, 12 dB/octave
Battery: Lithium-ion battery LI-220 included
Battery Life: 12 hours at 10 mW
May vary depending on usage conditions.
Operating Temperature Range: 23°F to 113°F
Storage Temperature Range: -4°F to 131°F
Dimensions: 2.2" x 3.1" x 0.94" W x D x H
Weight With Included Battery: 6.1 oz
Included Accessories: Transmitter indicator set, seven colors
Pouch

ATW-CHGA6 Battery Charger

Power Supply: USB Type-C, ATW-CHG6
Charging Output: USB Type-C: 4.2 V 0.5 A
ATW-CHG6: When charging one to four transmitters: 4.2 V 1.2 A
When charging five to six transmitters: 4.2 V 0.8 A
When charging seven to eight transmitters: 4.2 V 0.5 A
Charging Time LI-220: USB Type-C: Approx. 5 hours
Results may vary depending on usage conditions.
Charging Time LI-320: USB Type-C: Approx. 7 hours 10 minutes
Results may vary depending on usage conditions.
Operating Temperature Range: 32°F to 104°F
Storage Temperature Range: -4°F to 131°F
Dimensions: 2.5" x 4.2" x 0.98" W x D x H
Weight: 2.3 oz

LI-220 Lithium-Ion Battery

Type: Lithium ion
Output Voltage: 3.6 V DC
Capacitance: 2,200 mAh
Dimensions: 1.6" x 2.2" x 0.53" W x D x H
Weight: 1.7 oz

LI-320 Lithium-Ion Battery

Type: Lithium ion
Output Voltage: 3.6 V DC
Capacitance: 2,200 mAh
Dimensions: 1.6" x 2.2" x 0.53" W x D x H
Weight: 1.7 oz

What’s Included

Included Accessories: ATW-DR3220LK receiver
Short and long rack ear kit
Power supply
Antennas
Front-mount antenna kit
Two ATW-DT3201 body-pack transmitters

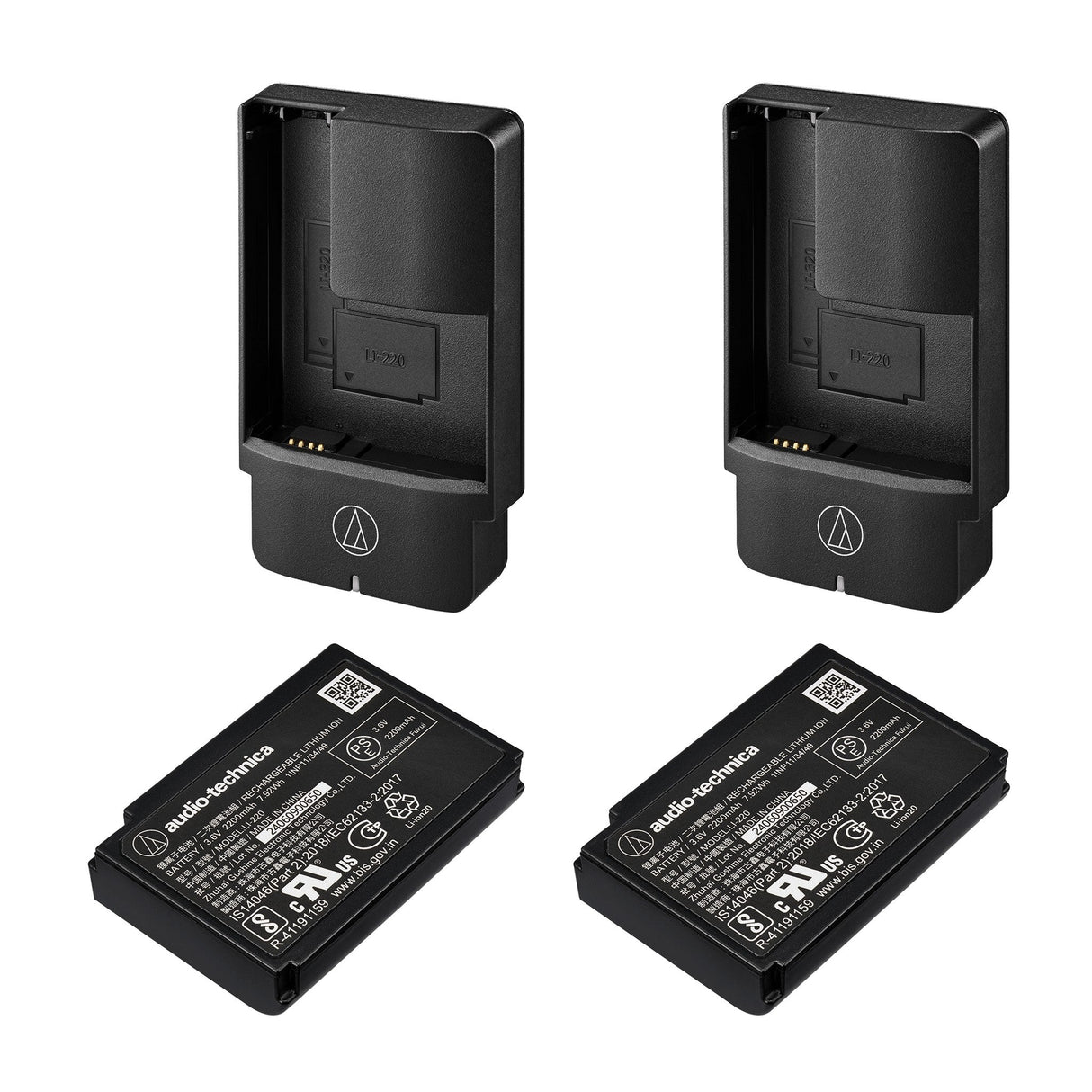

Two ATW-CHGA6 battery chargers
Two LI-220 rechargeable lithium-ion batteries
Two ATW-TI10 color ring indicator kits

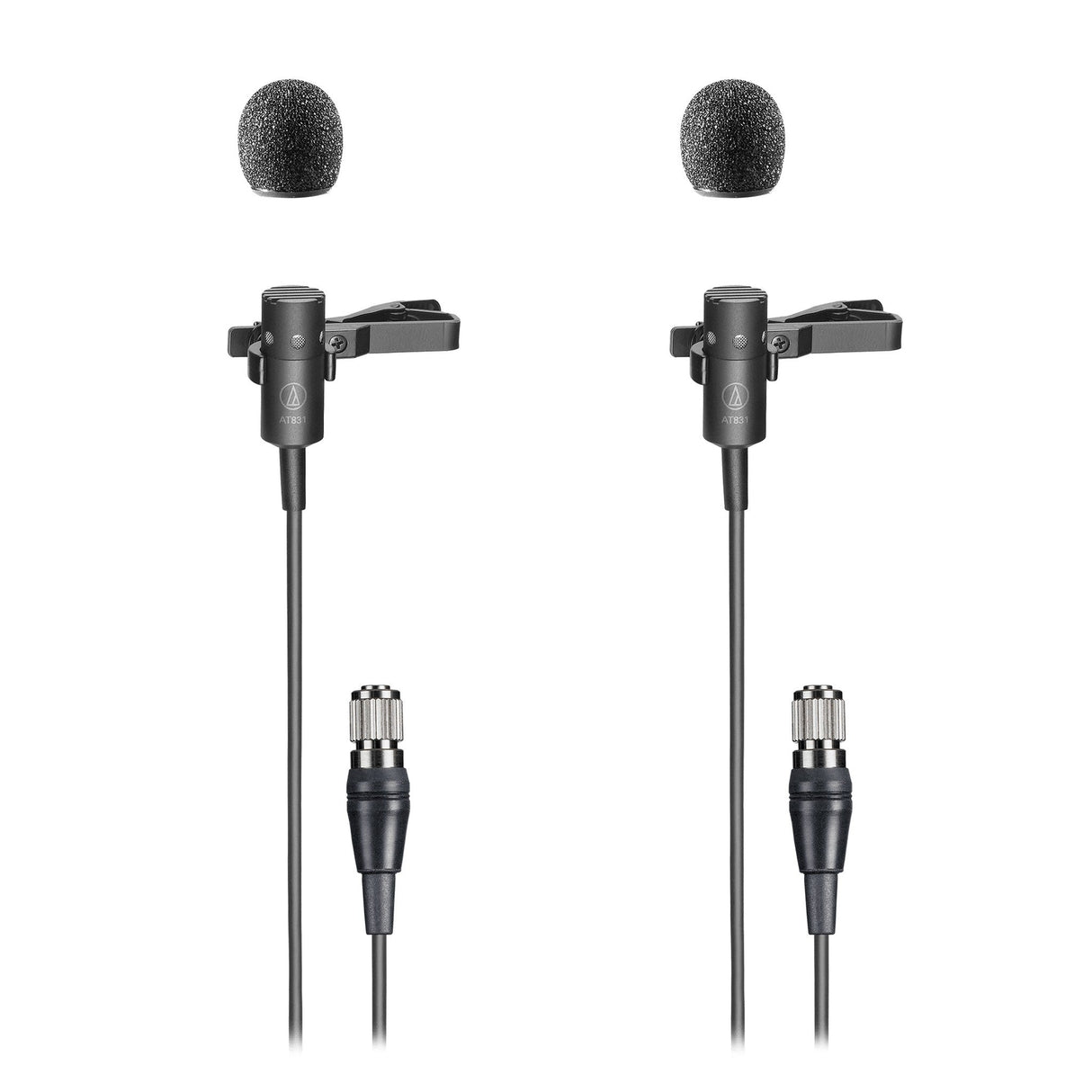

Two AT831cH wireless cardioid condenser lavalier microphones
Windscreens
Clothing clips
Transmitter indicator sets, seven colors
Pouches
