Audio-Technica ATW-D50-DRX-2H 2-Person Wireless Cardioid Handheld Microphone System, DF2 470-608 MHz

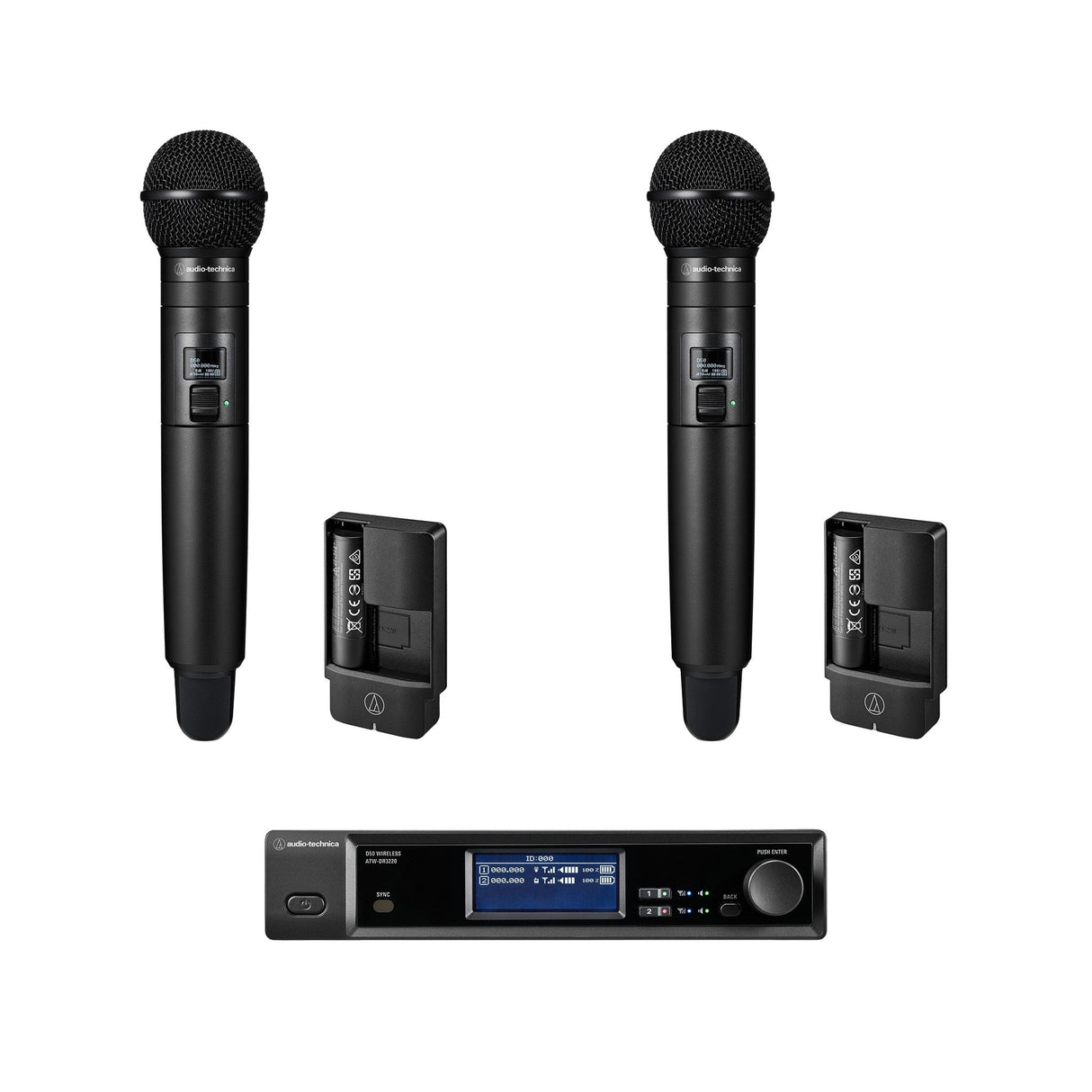

The Audio-Technica ATW-D50-DRX-2H D50 2CH 2HH System is a professional 2-channel digital UHF handheld wireless system designed for vocal performance, presentation, live sound, broadcast, worship, education, corporate AV, and installed audio applications. This system includes an Audio-Technica LINK-enabled 2-channel half-rack receiver and two ATW-DT3202/C510 handheld transmitters, giving users a complete dual handheld wireless microphone solution for secure, reliable, and high-quality voice capture.
The included receiver operates in two switchable RF modes to support different wireless environments. Normal mode uses Antenna Combining Diversity, while robust mode uses MRC True Diversity for greater RF stability in more challenging RF conditions. Up to four receivers can be linked and operated without antenna distribution, requiring only a single pair of antennas, making the system practical for multi-channel wireless setups where clean installation and efficient antenna management are important.
The D50 system also includes HD high-density mode, allowing users to expand from the standard 17 usable frequencies within a 6 MHz TV channel block to 47 frequencies in HD mode. This is especially useful in congested RF environments such as large cities, event venues, schools, worship spaces, and production facilities. The ATW-DT3202/C510 handheld transmitters come equipped with Audio-Technica ATW-C510 cardioid dynamic capsules, designed to capture the nuance of the human voice, and they are also compatible with a wide variety of additional Audio-Technica microphone capsules for flexible performance options.
Key Features
- 2-channel digital UHF handheld wireless system for professional D50 wireless applications
- Includes Audio-Technica LINK-enabled 2-channel half-rack receiver
- Includes two ATW-DT3202/C510 cardioid dynamic handheld transmitters
- DF2 operating frequency range from 470.125 to 607.875 MHz
- Receiver switches between normal Antenna Combining Diversity and robust MRC True Diversity modes
- HD high-density mode expands usable frequencies in congested RF environments
- Up to four receivers can be linked and operated without antenna distribution using one pair of antennas
- AES256 encryption supports secure wireless audio transmission
- Receiver can be powered by the included AC adapter or PoE+
- PoE+ can provide backup power if AC power drops out
- Onboard receiver DSP includes high-pass filter, 4-band EQ, and compressor settings for each channel
- Network port supports monitoring and device configuration through Wireless Manager
- Spectrum analysis and IR sync help simplify wireless system setup
- ATW-DT3202/C510 transmitters include ATW-C510 cardioid dynamic capsules
- Compatible with additional Audio-Technica capsules including ATW-C4100, ATW-C6100, ATW-C710, ATW-C3300, and ATW-C5400
- Handheld transmitters feature external control buttons, programmable mute switch, OLED display, and SideTrack function
- Seven-color LED indicators and physical color rings make channel identification easy
- All-metal handheld transmitter construction supports professional durability
- Includes mic clamps, stand adapters, anti-rolling rings, lithium-ion batteries, color ring kits, and storage pouches
Technical Specifications
Overall System
Operating Frequencies: DF2: 470.125 to 607.875 MHz
Modulation Mode: Standard: 8-PSK
HD mode: 16QAM
Occupied Bandwidth: Standard: 192 kHz
HD mode: 96 kHz
Frequency Response: Standard: 20 to 20,000 Hz
HD mode: 20 to 20,000 Hz
Depending on attached microphone element.
Operating Range: 328 ft
Open range environment with no interfering signals.
Dynamic Range: ATW-DT3201 Mic input: 120 dB, A-weighted, typical
ATW-DT3201 Instrument input: 109 dB, A-weighted, typical
ATW-DT3202: 120 dB, A-weighted, typical
ATW-DT3207: 120 dB, A-weighted, typical
Total Harmonic Distortion: 0.1% or less at 1 kHz, -20 dBFS
Maximum Simultaneous Use Recommended: Standard: 17 channels / 6 MHz
Results may vary depending on the radio environment and usage conditions.
Delay: Standard: 2.1 ms typical
HD mode: 3.3 ms typical
Audio Sampling Rate: Standard: 48 kHz
HD mode: 48 kHz
Encryption System: AES256
Notes: For product improvement, the product is subject to modification without notice.
ATW-DR3220LK Receiver
Receiving System: Robust: MRC true diversity
Normal: Antenna combining diversity
Image Rejection: 70 dB
RF Sensitivity: -98 dBm, 10⁻⁵ BER
Maximum Output Level: +18 dBV
Antenna Input: BNC, 50 ohms
Antenna Power: 12 V DC, 150 mA x2
Maximum Power Consumption: AC adapter: 13 W, 44 Btu/h
PoE+: 14 W, 48 Btu/h
Power Supply: 100 to 240 V AC 50/60 Hz
PoE+ IEEE 802.3at Class 4
Network: IP control: 100 Mbps
Audio-Technica Link: 100 Mbps
Operating Temperature Range: 23°F to 104°F
Storage Temperature Range: -4°F to 131°F
Cooling Method: Fan-assisted air cooling
Airflow Direction: Front intake / rear exhaust
Dimensions: 8.3" x 11" x 1.7" W x D x H
Weight Without Included Accessories: 4.6 lbs

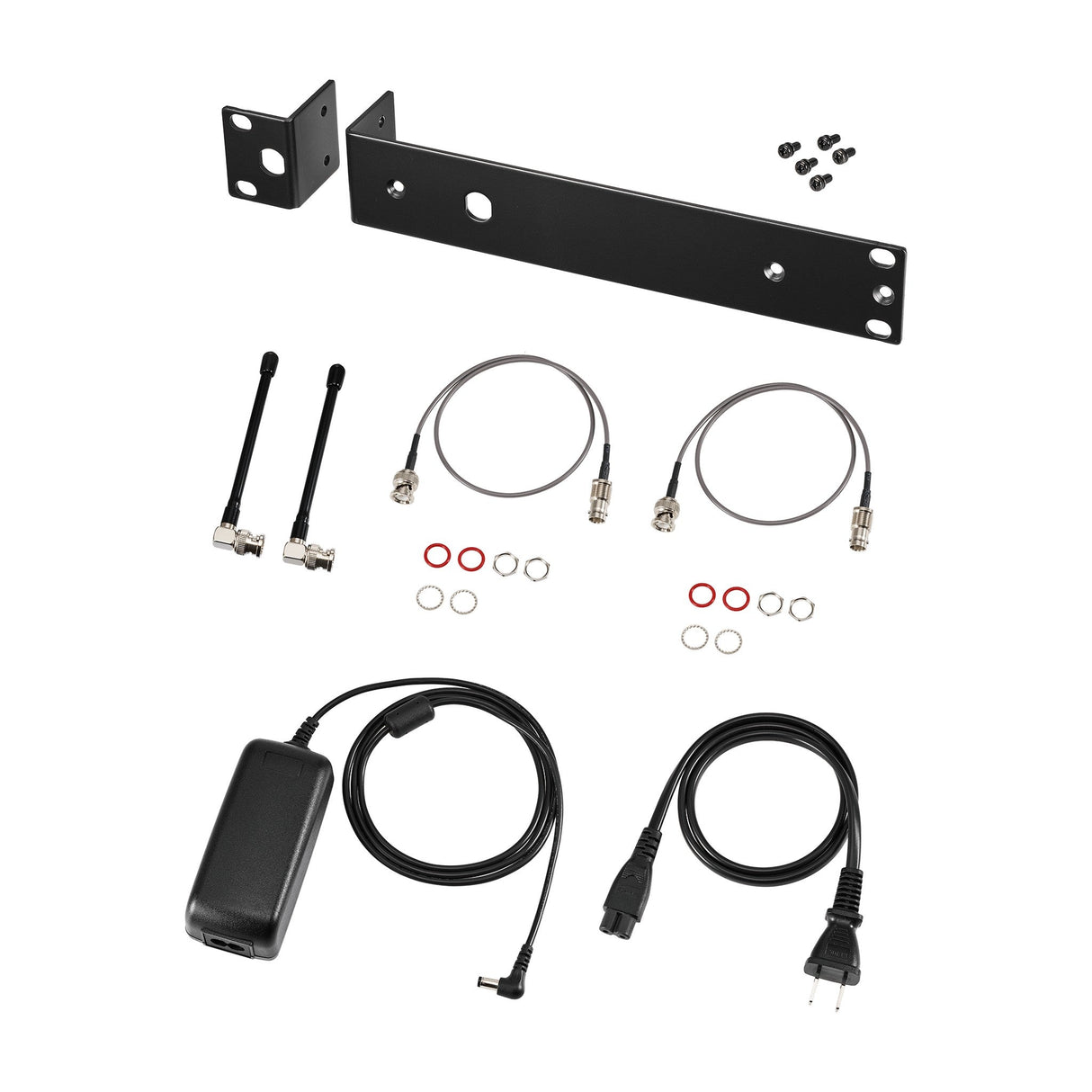

Included Accessories: Whip antenna x2
AC adapter AD-SA1230XA
AC cable
Rubber foot x4
Rack-mount adapter, short
Rack-mount adapter, long
Fixing screw x7, 3 for the bottom and 4 for the sides
BNC cable kit x2

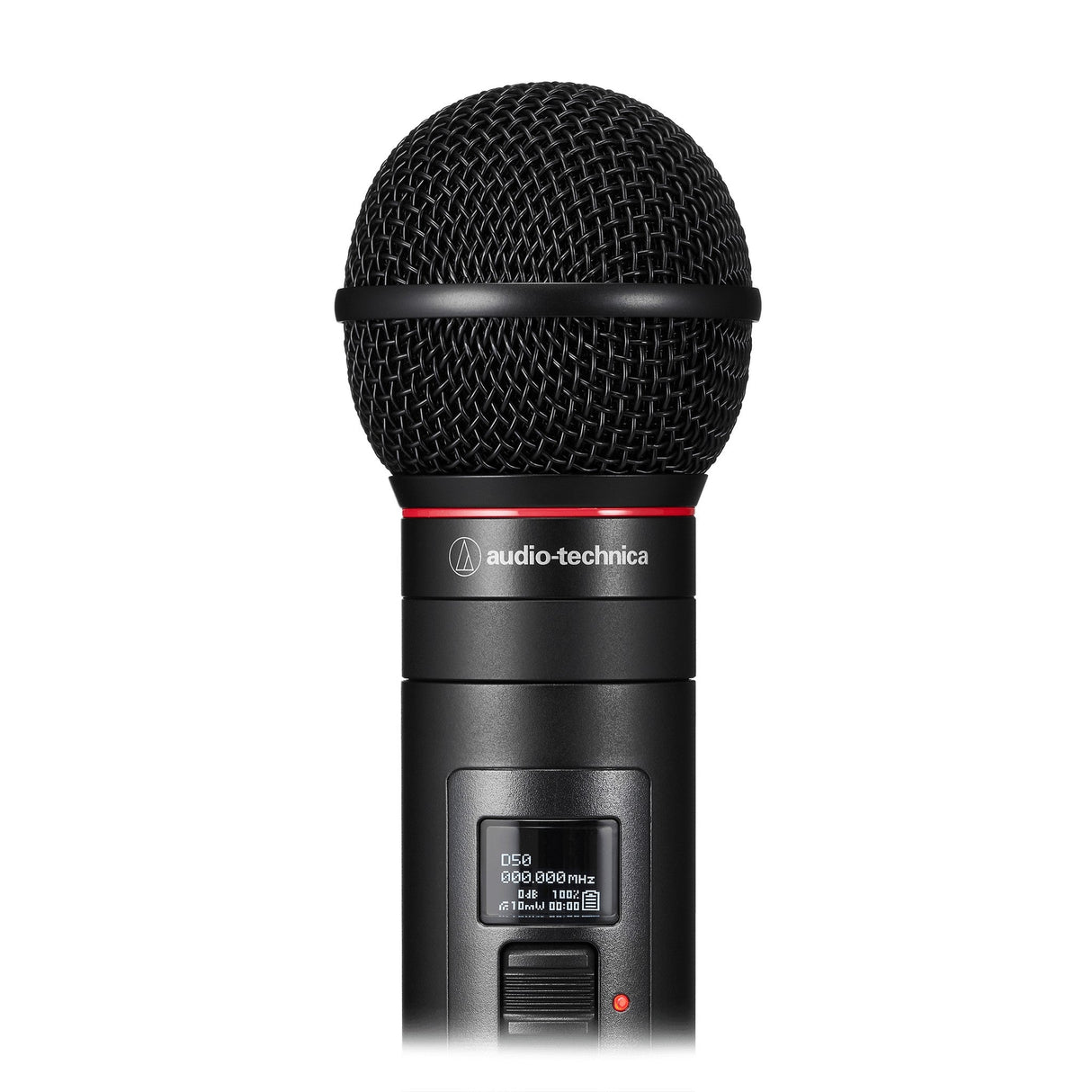

ATW-DT3202 Handheld Transmitter
RF Output Power: Standard: 20 mW, 10 mW, 1 mW
HD mode: 1 mW
Microphone: Interchangeable microphone capsule-compatible
Capsule Included: ATW-C510 cardioid dynamic capsule
Compatible Capsules: ATW-C4100, ATW-C6100, ATW-C710, ATW-C3300, ATW-C5400
High-Pass Filter: 120 Hz, 12 dB/octave
Battery: Lithium-ion battery LI-320 included
Battery Life: 17.5 hours at 10 mW
May vary depending on usage conditions.
Operating Temperature Range: 23°F to 113°F
Storage Temperature Range: -4°F to 131°F
Dimensions Without Capsule: 7.2" x 1.5" diameter
Dimensions With ATW-C510 Capsule: 10" x 2.1" diameter
Weight With Included Battery Without Capsule: 8.6 oz
Weight With Included Battery and ATW-C510 Capsule: 13 oz
Included Accessories: Transmitter indicator set, seven colors
AT8456a Quiet-Flex microphone stand clamp
5/8"-27 male to 3/8"-16 female threaded screw adapter
ATW-RR1 anti-rolling ring
Pouch
LI-320 Lithium-Ion Battery
Type: Lithium ion
Output Voltage: 3.6 V DC
Capacitance: 2,200 mAh
Dimensions: 1.6" x 2.2" x 0.53" W x D x H
Weight: 1.7 oz
What’s Included
Included Accessories: ATW-DR3220LK receiver
Short and long rack ear kit
Power supply
Antennas
Front-mount antenna kit
Two ATW-DT3202/C510 cardioid dynamic handheld transmitters
Two mic clamps
Two stand adapters
Two ATW-RR1 removable anti-rolling rings
Two LI-320 rechargeable lithium-ion batteries
Two ATW-TI20 color ring indicator kits
Two handheld transmitter storage pouches
