Audio-Technica ATW-D50-DRX-BH 2-Person Wireless Combo Bodypack/Handheld System, DF2 470-608 MHz

Audio-Technica ATW-D50-DRX-BH 2-Person Wireless Combo Bodypack/Handheld System, DF2 470-608 MHz

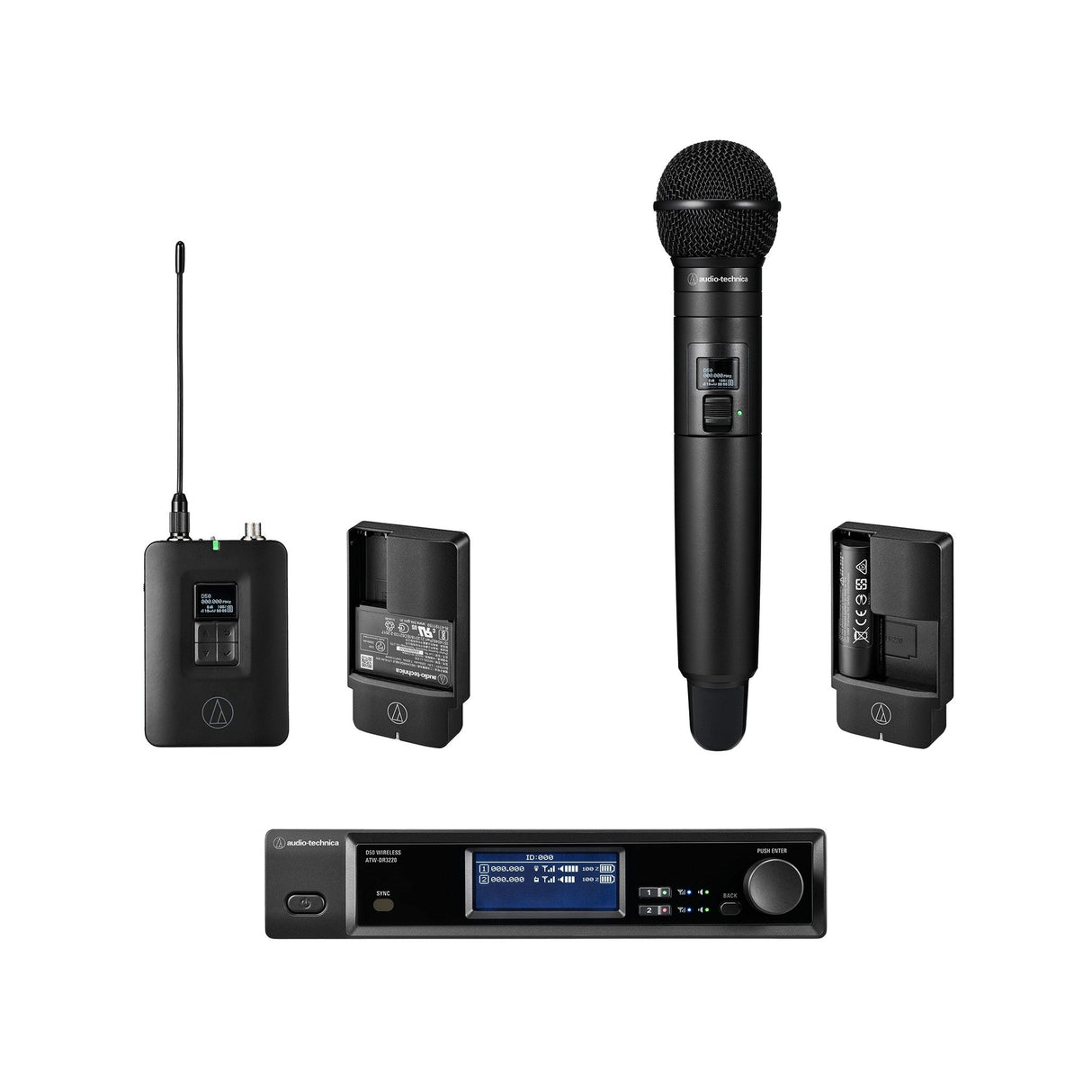

The Audio-Technica ATW-D50-DRX-BH D50 2CH BP-HH System is a professional 2-channel digital UHF wireless system that combines one handheld transmitter and one body-pack transmitter for flexible voice, presentation, performance, and production applications. This system includes an Audio-Technica LINK-enabled 2-channel half-rack receiver, one ATW-DT3202/C510 handheld transmitter, and one ATW-DT3201 compact body-pack transmitter, making it a complete wireless solution for users who need both handheld and body-pack operation in one package.

Designed for live sound, broadcast, houses of worship, corporate AV, education, theater, and installed audio environments, the ATW-D50-DRX-BH delivers secure digital wireless audio with reliable RF performance. The receiver operates in two switchable RF modes: normal mode with Antenna Combining Diversity or robust mode with MRC True Diversity for greater RF stability. Up to four receivers can be linked and operated without antenna distribution, requiring only one pair of antennas for cleaner multi-channel system setup.

The D50 system also includes HD high-density mode, allowing users to expand from the standard 17 usable frequencies within a 6 MHz TV channel block to 47 frequencies in HD mode. The ATW-DT3202/C510 handheld transmitter includes an ATW-C510 cardioid dynamic capsule designed to capture the nuance of the human voice, while the ATW-DT3201 body-pack transmitter features a secure cH-style screw-down 4-pin input connector for compatible lavalier microphones, headworn microphones, and cables. With AES256 encryption, onboard DSP, Wireless Manager software support, IR sync, OLED transmitter displays, SideTrack functionality, lithium-ion battery power, and included charging accessories, this system is built for professional wireless performance and efficient daily operation.

Key Features

• 2-channel digital UHF wireless system with one handheld transmitter and one body-pack transmitter
• Includes Audio-Technica LINK-enabled 2-channel half-rack receiver
• Includes one ATW-DT3202/C510 handheld transmitter with ATW-C510 cardioid dynamic capsule
• Includes one ATW-DT3201 compact body-pack transmitter with cH-style screw-down 4-pin connector
• DF2 operating frequency range from 470.125 to 607.875 MHz
• Receiver switches between normal Antenna Combining Diversity and robust MRC True Diversity modes
• HD high-density mode expands usable frequencies in congested RF environments
• Up to four receivers can be linked and operated without antenna distribution using one pair of antennas
• AES256 encryption supports secure wireless audio transmission
• Receiver can be powered by the included AC adapter or PoE+
• PoE+ can provide backup power if AC power drops out
• Onboard receiver DSP includes high-pass filter, 4-band EQ, and compressor settings for each channel
• Network port supports monitoring and device configuration through Audio-Technica Wireless Manager
• Spectrum analysis and IR sync help simplify wireless system setup
• Handheld transmitter is compatible with additional Audio-Technica capsules including ATW-C4100, ATW-C6100, ATW-C710, ATW-C3300, and ATW-C5400
• Transmitters feature external controls, OLED status displays, and SideTrack function for switching audio to a second output
• Seven-color LED indicators and physical color rings make channel identification easy
• All-metal transmitter construction supports professional durability
• Includes battery chargers, rechargeable lithium-ion batteries, color ring indicator kits, receiver rack accessories, antennas, and transmitter accessories

Technical Specifications

Overall System

Operating Frequencies: DF2: 470.125 to 607.875 MHz
Modulation Mode: Standard: 8-PSK
HD mode: 16QAM
Occupied Bandwidth: Standard: 192 kHz
HD mode: 96 kHz
Frequency Response: Standard: 20 to 20,000 Hz
HD mode: 20 to 20,000 Hz
Depending on attached microphone element.
Operating Range: 328 ft
Open range environment with no interfering signals.
Dynamic Range: ATW-DT3201 Mic input: 120 dB, A-weighted, typical
ATW-DT3201 Instrument input: 109 dB, A-weighted, typical
ATW-DT3202: 120 dB, A-weighted, typical
ATW-DT3207: 120 dB, A-weighted, typical
Total Harmonic Distortion: 0.1% or less at 1 kHz, -20 dBFS
Maximum Simultaneous Use Recommended: Standard: 17 channels / 6 MHz
Results may vary depending on the radio environment and usage conditions.
Delay: Standard: 2.1 ms typical
HD mode: 3.3 ms typical
Audio Sampling Rate: Standard: 48 kHz
HD mode: 48 kHz
Encryption System: AES256
Notes: For product improvement, the product is subject to modification without notice.

ATW-DR3220LK Receiver

Receiving System: Robust: MRC true diversity
Normal: Antenna combining diversity
Image Rejection: 70 dB
RF Sensitivity: -98 dBm, 10⁻⁵ BER
Maximum Output Level: +18 dBV
Antenna Input: BNC, 50 ohms
Antenna Power: 12 V DC, 150 mA x2
Maximum Power Consumption: AC adapter: 13 W, 44 Btu/h
PoE+: 14 W, 48 Btu/h
Power Supply: 100 to 240 V AC 50/60 Hz
PoE+ IEEE 802.3at Class 4
Network: IP control: 100 Mbps
Audio-Technica Link: 100 Mbps
Operating Temperature Range: 23°F to 104°F
Storage Temperature Range: -4°F to 131°F
Cooling Method: Fan-assisted air cooling
Airflow Direction: Front intake / rear exhaust
Dimensions: 8.3" x 11" x 1.7" W x D x H
Weight Without Included Accessories: 4.6 lbs

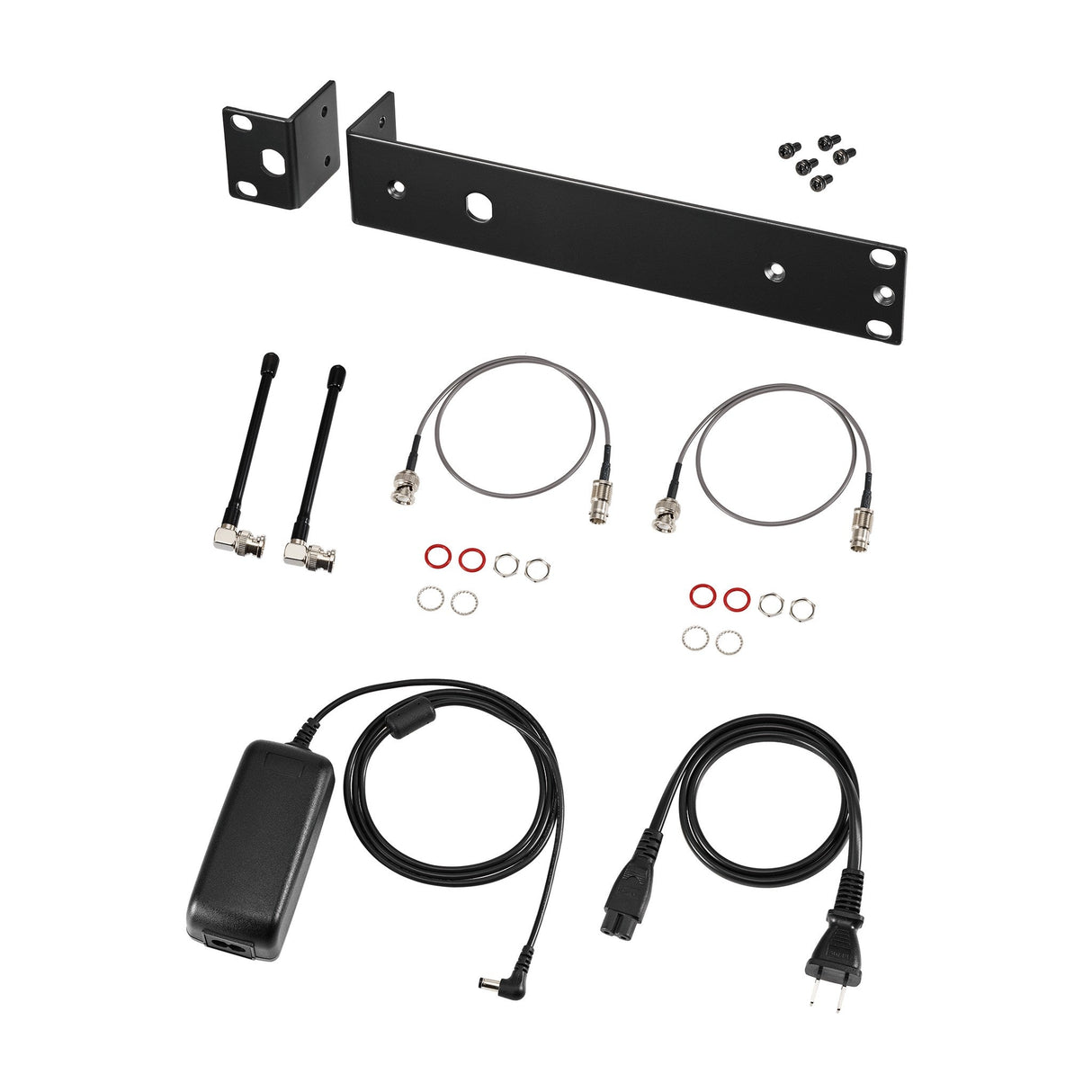

Included Accessories: Whip antenna x2
AC adapter AD-SA1230XA
AC cable
Rubber foot x4
Rack-mount adapter, short
Rack-mount adapter, long
Fixing screw x7, 3 for the bottom and 4 for the sides
BNC cable kit x2

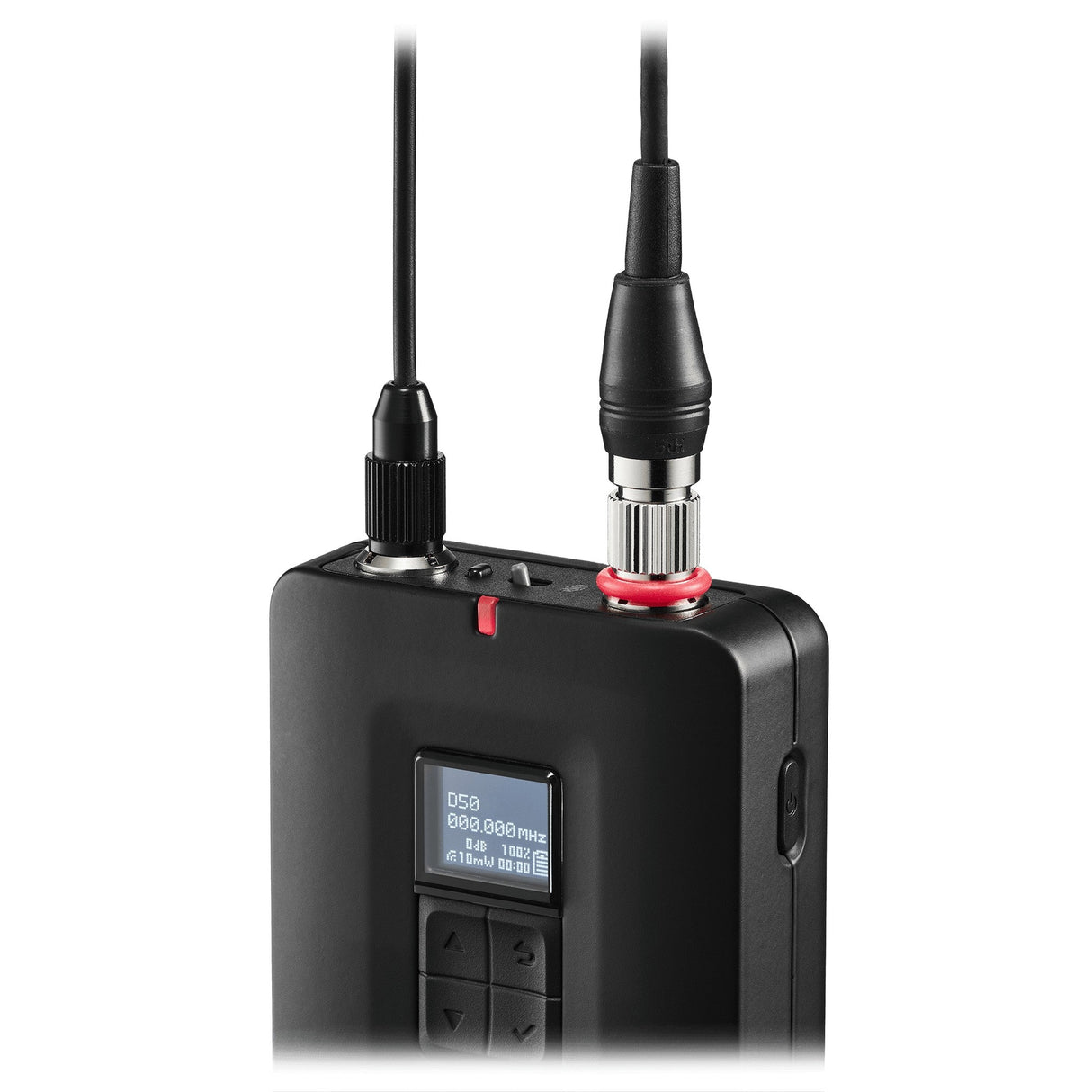

ATW-DT3201 Body-Pack Transmitter

RF Output Power: Standard: 20 mW, 10 mW, 1 mW
HD mode: 1 mW
Input Connection: Four pin locking connector
Pin 1: GND
Pin 2: Instrument input
Pin 3: Mic input
Pin 4: DC bias +10 V
High-Pass Filter: 120 Hz, 12 dB/octave
Battery: Lithium-ion battery LI-220 included
Battery Life: 12 hours at 10 mW
May vary depending on usage conditions.
Operating Temperature Range: 23°F to 113°F
Storage Temperature Range: -4°F to 131°F
Dimensions: 2.2" x 3.1" x 0.94" W x D x H
Weight With Included Battery: 6.1 oz
Included Accessories: Transmitter indicator set, seven colors
Pouch

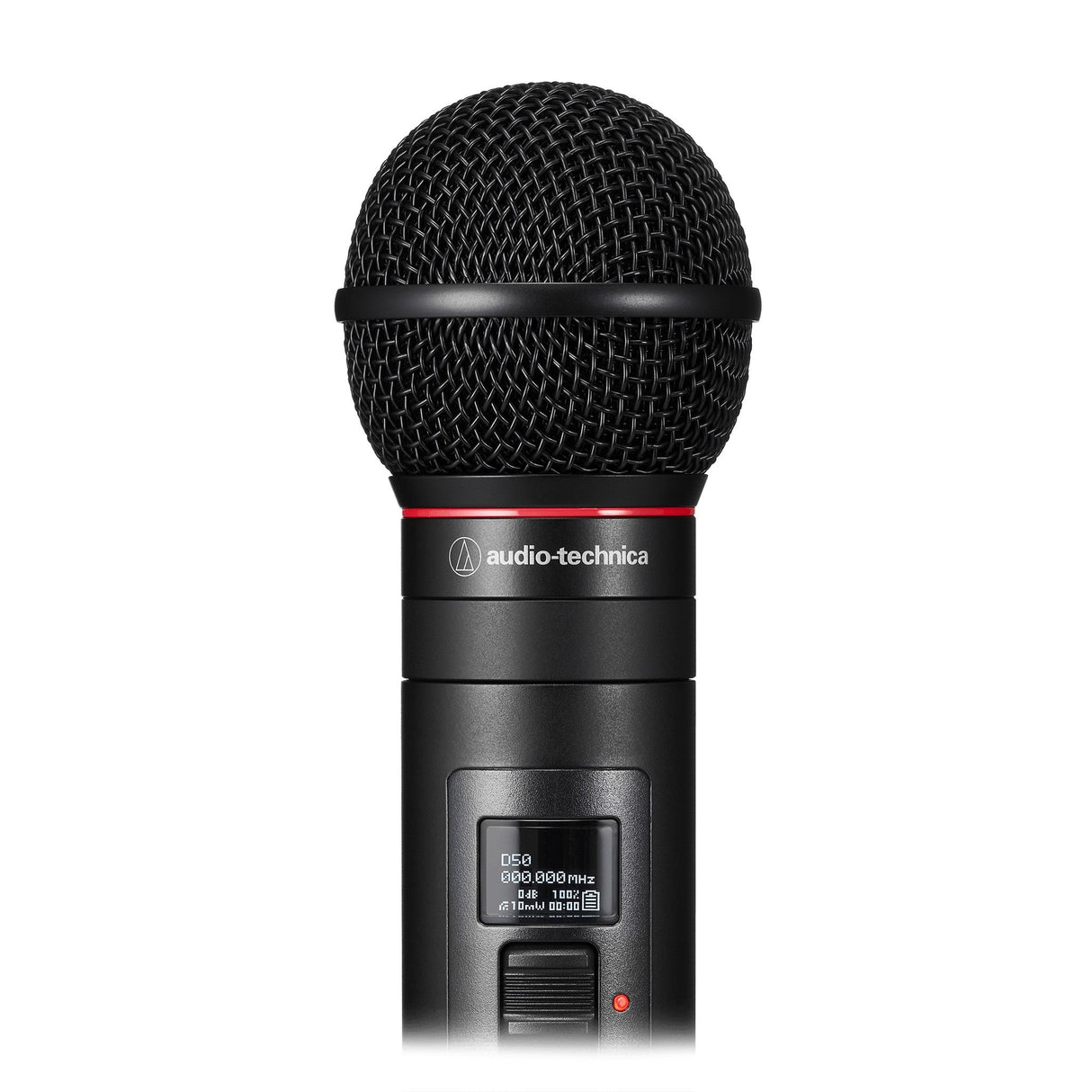

ATW-DT3202 Handheld Transmitter

RF Output Power: Standard: 20 mW, 10 mW, 1 mW
HD mode: 1 mW
Microphone: Interchangeable microphone capsule-compatible
Capsule Included: ATW-C510 cardioid dynamic capsule
Compatible Capsules: ATW-C4100, ATW-C6100, ATW-C710, ATW-C3300, ATW-C5400
High-Pass Filter: 120 Hz, 12 dB/octave
Battery: Lithium-ion battery LI-320 included
Battery Life: 17.5 hours at 10 mW
May vary depending on usage conditions.
Operating Temperature Range: 23°F to 113°F
Storage Temperature Range: -4°F to 131°F
Dimensions Without Capsule: 7.2" x 1.5" diameter
Dimensions With ATW-C510 Capsule: 10" x 2.1" diameter
Weight With Included Battery Without Capsule: 8.6 oz
Weight With Included Battery and ATW-C510 Capsule: 13 oz
Included Accessories: Transmitter indicator set, seven colors
AT8456a Quiet-Flex microphone stand clamp
5/8"-27 male to 3/8"-16 female threaded screw adapter
ATW-RR1 anti-rolling ring
Pouch

ATW-CHGA6 Battery Charger

Power Supply: USB Type-C, ATW-CHG6
Charging Output: USB Type-C: 4.2 V 0.5 A
ATW-CHG6: When charging one to four transmitters: 4.2 V 1.2 A
When charging five to six transmitters: 4.2 V 0.8 A
When charging seven to eight transmitters: 4.2 V 0.5 A
Charging Time LI-220: USB Type-C: Approx. 5 hours
Results may vary depending on usage conditions.
Charging Time LI-320: USB Type-C: Approx. 7 hours 10 minutes
Results may vary depending on usage conditions.
Operating Temperature Range: 32°F to 104°F
Storage Temperature Range: -4°F to 131°F
Dimensions: 2.5" x 4.2" x 0.98" W x D x H
Weight: 2.3 oz

LI-220 Lithium-Ion Battery

Type: Lithium ion
Output Voltage: 3.6 V DC
Capacitance: 2,200 mAh
Dimensions: 1.6" x 2.2" x 0.53" W x D x H
Weight: 1.7 oz

LI-320 Lithium-Ion Battery

Type: Lithium ion
Output Voltage: 3.6 V DC
Capacitance: 2,200 mAh
Dimensions: 1.6" x 2.2" x 0.53" W x D x H
Weight: 1.7 oz

What’s Included

Included Accessories: ATW-DR3220LK receiver
Short and long rack ear kit
Power supply
Antennas
Front-mount antenna kit
One ATW-DT3201 body-pack transmitter
One ATW-DT3202/C510 cardioid dynamic handheld transmitter
ATW-CHGA6 battery charger
LI-220 rechargeable lithium-ion battery
LI-320 rechargeable lithium-ion battery
ATW-TI10 body-pack color ring indicator kit
ATW-TI20 handheld color ring indicator kit
Mic clamp
Stand adapter
ATW-RR1 removable anti-rolling ring
Transmitter indicator sets, seven colors
Body-pack transmitter pouch
Handheld transmitter storage pouch
